1wjb

SOLUTION STRUCTURE OF THE N-TERMINAL ZN BINDING DOMAIN OF HIV-1 INTEGRASE (D FORM), NMR, 40 STRUCTURES

Method: SOLUTION NMR

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 INTEGRASE

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1N5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–55； UniProt 716–770 Author chain B； PDBConstruct 1–55； UniProt 716–770

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wjb
Deposition date deposition_date	1997-05-13
Structure title title	SOLUTION STRUCTURE OF THE N-TERMINAL ZN BINDING DOMAIN OF HIV-1 INTEGRASE (D FORM), NMR, 40 STRUCTURES
Keywords keywords	ZN-BINDING PROTEIN, AIDS, POLYPROTEIN, HYDROLASE, ASPARTYL PROTEASE, ENDONUCLEASE; ZN-BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wjb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wjb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

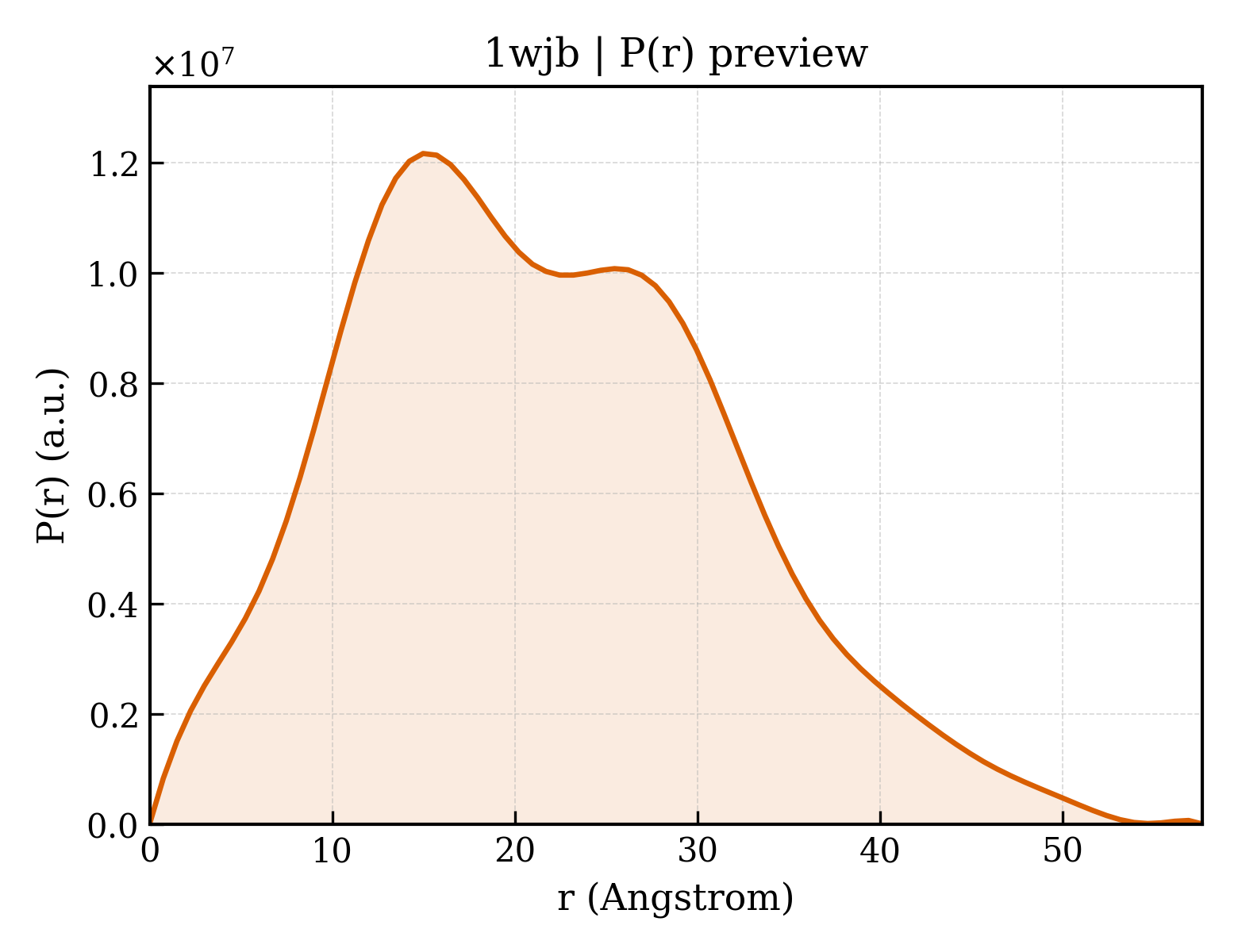

1wjb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.60 Å
Rg (electron density)	16.54 Å
Total Rg	17.38 Å
Atom count	1686
Residues	110
Excluded volume	15239 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wjb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`1wjb__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`1wjb__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`1wjb__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`1wjb__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`1wjb__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`1wjb__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`1wjb__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`1wjb__assembly_1__model_9`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`1wjb__assembly_1__model_10`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`1wjb__assembly_1__model_11`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`1wjb__assembly_1__model_12`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`1wjb__assembly_1__model_13`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`1wjb__assembly_1__model_14`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`1wjb__assembly_1__model_15`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	16	`1wjb__assembly_1__model_16`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	17	`1wjb__assembly_1__model_17`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	18	`1wjb__assembly_1__model_18`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	19	`1wjb__assembly_1__model_19`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	20	`1wjb__assembly_1__model_20`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	21	`1wjb__assembly_1__model_21`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	22	`1wjb__assembly_1__model_22`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	23	`1wjb__assembly_1__model_23`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	24	`1wjb__assembly_1__model_24`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	25	`1wjb__assembly_1__model_25`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	26	`1wjb__assembly_1__model_26`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	27	`1wjb__assembly_1__model_27`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	28	`1wjb__assembly_1__model_28`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	29	`1wjb__assembly_1__model_29`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	30	`1wjb__assembly_1__model_30`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	31	`1wjb__assembly_1__model_31`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	32	`1wjb__assembly_1__model_32`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	33	`1wjb__assembly_1__model_33`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	34	`1wjb__assembly_1__model_34`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	35	`1wjb__assembly_1__model_35`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	36	`1wjb__assembly_1__model_36`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	37	`1wjb__assembly_1__model_37`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	38	`1wjb__assembly_1__model_38`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	39	`1wjb__assembly_1__model_39`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	40	`1wjb__assembly_1__model_40`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1wjba_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.10 — Retroviral integrase, N-terminal Zn binding domain
Family Family family	a.4.10.1 — HIV/SIV integrase, N-terminal Zn binding domain

Domain ID domain_id	d1wjbb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.10 — Retroviral integrase, N-terminal Zn binding domain
Family Family family	a.4.10.1 — HIV/SIV integrase, N-terminal Zn binding domain

CATH v4.4 (2 domains)

Domain ID domain_id	1wjbA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	200 — Integrase, N-terminal zinc-binding domain

Domain ID domain_id	1wjbB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	200 — Integrase, N-terminal zinc-binding domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	HIV-1 INTEGRASE
Molecular weight formula_weight	6197.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	67440

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli
