SAXSdb — 2ftx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical 25.2 kDa protein in AFG3-SEB2 intergenic region

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 133–221	Fragment：Spc25p globular domain Non-standard monomer：Yes (specific site not provided by mmCIF)	Hypothetical 24.6 kDa protein in ILV2-ADE17 intergenic region × 1 （Q04477） NA SODIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 10.5；293 K；0.1 M CAPS, pH 10.5, 1.2 M NaH2PO4/0.8 M K2HPO4, 0.2 M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 10.50	Resolution 1.90 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2FTX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FV4 NMR solution structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-29	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–221（94 aa） Fragment：SPC25P GLOBULAR DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate buffer；Pressure ambient NMR sample composition 1.5 mM spc25G U-15N,13C,85%-2H, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C,85%-2H, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 85%-2H, 1.5 mM spc24G natural abundance isotopes, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O.	Resolution not provided
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 133–221（89 aa） Fragment：Spc25p C-terminal domain, residues 133-221	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 133–221（89 aa） Fragment：Spc25p C-terminal domain, residues 133-221	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
5T6J Structure of the MIND Complex Shows a Regulatory Focus of Yeast Kinetochore Assembly Deposited 2016-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 133–221（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES, pH 7.0-7.5, 1.0 M potassium sodium tartrate, 0.2 M lithium sulfate	Resolution 1.75 Å R-free 0.242
5TCS Crystal structure of a Dwarf Ndc80 Tetramer Deposited 2016-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–221（84 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；1.2 magnesium sulfate, 0.1 M ME pH 6.0	Resolution 2.83 Å R-free 0.266
5TD8 Crystal structure of an Extended Dwarf Ndc80 Complex Deposited 2016-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–45（45 aa） Chain D 138–221（84 aa）	Not recorded	HG MERCURY (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG 4,000, 0.1 M CHES, pH 9.0	Resolution 7.53 Å R-free 0.328
8V10 Structure of a Saccharomyces cerevisiae Mps1 peptide bound to dwarf Ndc80 Complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–221（84 aa）	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；291 K；13% polyethylene glycol 8000, 1M sodium chloride 100 mM PIPES pH 6.1	Resolution 3.02 Å R-free 0.271
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–220（83 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–31（31 aa） Chain H 138–220（83 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
9S4Q Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex lacking the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 25 1–221（221 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 25 1–221（221 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	YEK8_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–90； UniProt 133–221

Hypothetical 24.6 kDa protein in ILV2-ADE17 intergenic region

Saccharomyces cerevisiae

UniProt Q04477

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 154–213	Fragment：Spc24p globular domain Non-standard monomer：Yes (specific site not provided by mmCIF)	Hypothetical 25.2 kDa protein in AFG3-SEB2 intergenic region × 1 （P40014） NA SODIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 10.5；293 K；0.1 M CAPS, pH 10.5, 1.2 M NaH2PO4/0.8 M K2HPO4, 0.2 M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 10.50	Resolution 1.90 Å R-free 0.226

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2FTX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FV4 NMR solution structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-29	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 138–213（76 aa） Fragment：SPC24P GLOBULAR DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate buffer；Pressure ambient NMR sample composition 1.5 mM spc25G U-15N,13C,85%-2H, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C,85%-2H, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 85%-2H, 1.5 mM spc24G natural abundance isotopes, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O.	Resolution not provided
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 155–213（59 aa） Fragment：Spc24p C-terminal domain, residues 155-213	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 155–213（59 aa） Fragment：Spc24p C-terminal domain, residues 155-213	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
5T6J Structure of the MIND Complex Shows a Regulatory Focus of Yeast Kinetochore Assembly Deposited 2016-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 155–213（59 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES, pH 7.0-7.5, 1.0 M potassium sodium tartrate, 0.2 M lithium sulfate	Resolution 1.75 Å R-free 0.242
5TCS Crystal structure of a Dwarf Ndc80 Tetramer Deposited 2016-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–213（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；1.2 magnesium sulfate, 0.1 M ME pH 6.0	Resolution 2.83 Å R-free 0.266
5TD8 Crystal structure of an Extended Dwarf Ndc80 Complex Deposited 2016-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–62（62 aa） Chain C 162–213（52 aa）	Not recorded	HG MERCURY (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG 4,000, 0.1 M CHES, pH 9.0	Resolution 7.53 Å R-free 0.328
8V10 Structure of a Saccharomyces cerevisiae Mps1 peptide bound to dwarf Ndc80 Complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–213（52 aa）	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；291 K；13% polyethylene glycol 8000, 1M sodium chloride 100 mM PIPES pH 6.1	Resolution 3.02 Å R-free 0.271
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–212（51 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–48（48 aa） Chain G 162–212（51 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
9S4Q Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex lacking the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 24 1–213（213 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.90 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 24 1–213（213 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	YM06_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–64； UniProt 154–213

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ftx
Deposition date deposition_date	2006-01-25
Structure title title	Crystal structure of the yeast kinetochore Spc24/Spc25 globular domain
Keywords keywords	alpha-beta, complex, coiled-coil, structural protein, protein binding; structural protein, protein binding
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.94 Å
Radius of gyration Rg (electron density) rg_electron	15.37 Å
Forward intensity I(0) i0	5731520.00
Molecular weight molecular_weight	17032.0 kDa
Excluded volume excluded_volume	21226 Å³
Envelope volume envelope_volume	24699 Å³
Hydration-shell volume shell_volume	13703 Å³
Envelope diameter envelope_diameter	52.7 Å
Shell Rg shell_rg	21.04 Å
Envelope Rg envelope_rg	15.65 Å
Shape Rg shape_rg	15.37 Å
Total Rg total_rg	16.46 Å
Total atoms total_atoms	1188
Residues n_residues	146
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

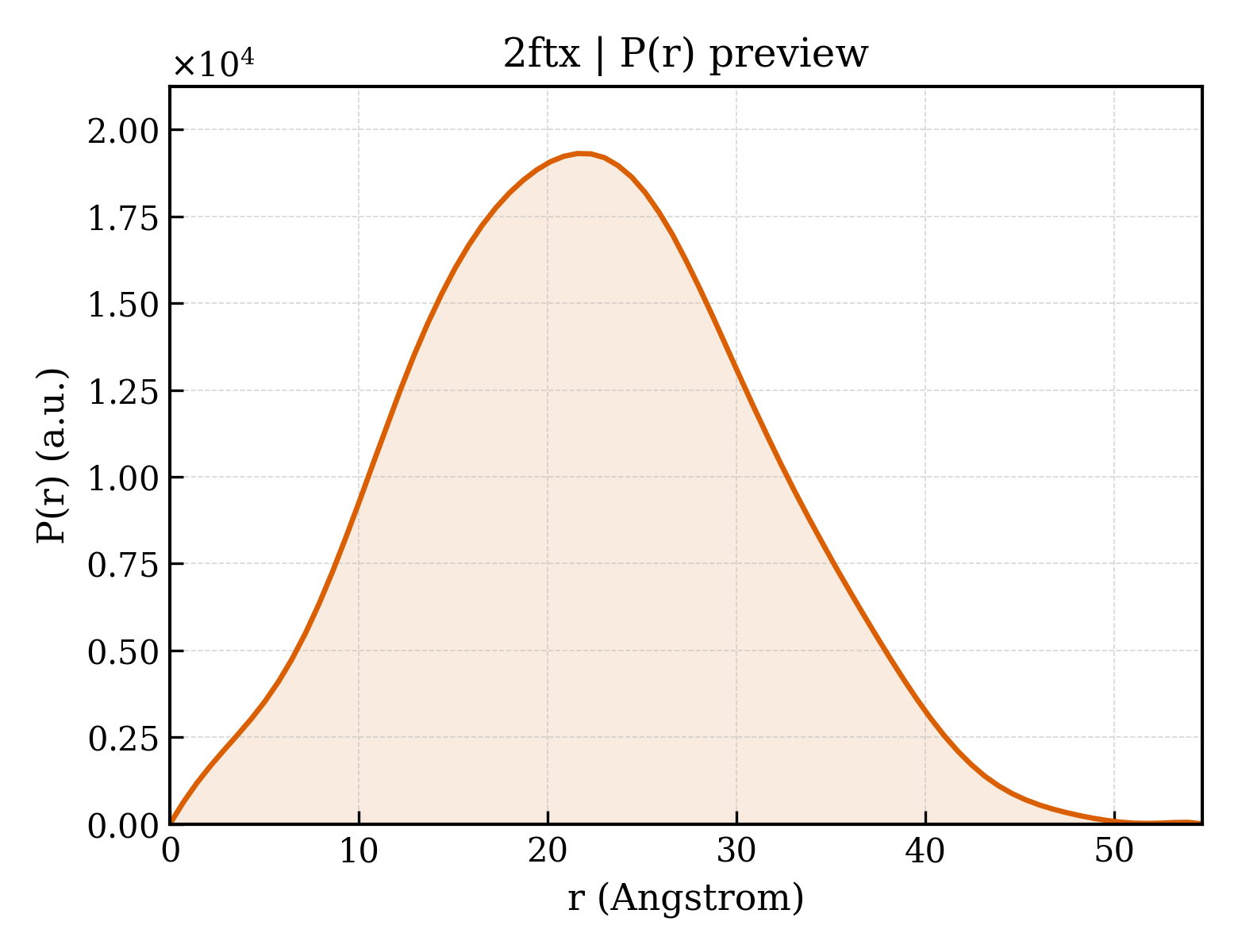

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	54.6 Å
Rg (real space) rg_real	16.85 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	5.7320e+06
I(0) uncertainty (real space) i0_real_error	6.5070e+04
Rg (reciprocal space) rg_reciprocal	16.86 Å
I(0) (reciprocal space) i0_reciprocal	5732000.0000
Solution quality estimate total_estimate	0.8904
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.6 Å
Skewness Skewness skewness	0.149
Kurtosis Kurtosis kurtosis	-0.379
Angular range angular_range	— – 0.4700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	769000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Hypothetical 25.2 kDa protein in AFG3-SEB2 intergenic region
Molecular weight formula_weight	10030.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1267

MNDAAEVALYERLLQLRVLPGASDVHDVRFVFGDDSRCWIEVAMHGDHVIGNSHPALDPKSRATLEHVLTVQGDLAAFLVVARDMLLASL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Hypothetical 24.6 kDa protein in ILV2-ADE17 intergenic region
Molecular weight formula_weight	7532.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSHMEANENILKLKLYRSLGVILDLENDQVLINRKNDGNIDILPLDNNLSDFYKTKYIWERLGK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	79

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2ftxa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.300 — Kinetochore globular domain-like
Superfamily Superfamily superfamily	d.300.1 — Kinetochore globular domain
Family Family family	d.300.1.1 — Spc25-like

Domain ID domain_id	d2ftxb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.300 — Kinetochore globular domain-like
Superfamily Superfamily superfamily	d.300.1 — Kinetochore globular domain
Family Family family	d.300.1.2 — Spc24-like

CATH v4.4 (2 domains)

Domain ID domain_id	2ftxA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	457 — Copper Amine Oxidase; Chain A, domain 1
Homologous superfamily homologous superfamily	50 — Chromosome segregation protein Spc25

Domain ID domain_id	2ftxB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	430 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.907 Å
Unit-cell length b length_b	84.907 Å
Unit-cell length c length_c	93.195 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2100
R_work r_work	0.2090
R_free r_free	0.2260

fit	/app/data/saxs_computation/ft/2ftx/2ftx.fit
pddf	/app/data/pr_computation/ft/2ftx/2ftx.pr.out
profile	/app/data/saxs_computation/ft/2ftx/2ftx.dat
