SAXSdb — 5tcs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore protein NDC80

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Kinetochore protein NUF2 × 1 （P33895） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDC80_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–208； UniProt 114–318 Author chain A； PDBConstruct 209–277； UniProt 621–689

Kinetochore protein NUF2

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P33895

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUF2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 19–170； UniProt 2–153 Author chain B； PDBConstruct 171–215； UniProt 407–451

Kinetochore protein SPC24

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt Q04477

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Kinetochore protein NUF2 × 1 （P33895） Kinetochore protein SPC25 × 1 （P40014） MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC24_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–48； UniProt 1–48 Author chain C； PDBConstruct 49–100； UniProt 162–213

Kinetochore protein SPC25

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P40014

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Kinetochore protein NUF2 × 1 （P33895） Kinetochore protein SPC24 × 1 （Q04477） MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC25_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–31； UniProt 1–31 Author chain D； PDBConstruct 32–115； UniProt 138–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5tcs
Deposition date deposition_date	2016-09-15
Structure title title	Crystal structure of a Dwarf Ndc80 Tetramer
Keywords keywords	RWD, CH, coiled-coil, tetramer, Ndc80, Kinetochore, REPLICATION; REPLICATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5tcs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5tcs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

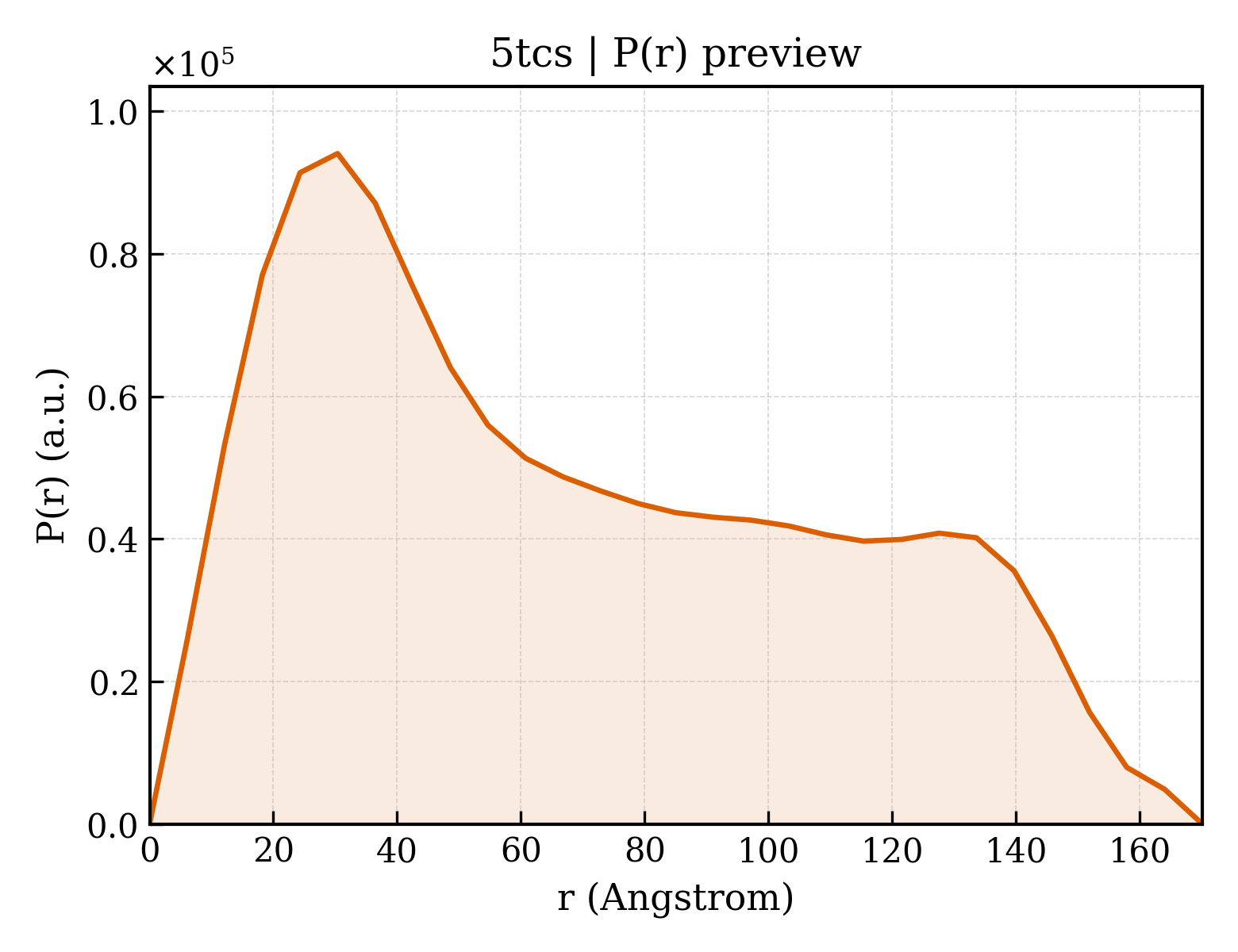

5tcs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.46 Å
Rg (electron density)	56.70 Å
Total Rg	56.24 Å
Atom count	11319
Residues	671
Excluded volume	101410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5tcs__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Kinetochore protein NDC80
Molecular weight formula_weight	33276.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11358

SNARDPRPLRDKNFQSAIQEEIYDYLKKNKFDIETNHPISIKFLKQPTQKGFIIIFKWLYLRLDPGYGFTKSIENEIYQILKNLRYPFLESINKSQISAVGGSNWHKFLGMLHWMVRTNIKLDMCLNKVDRSLINQNTQEITILSQPLKTLDEQDQRQERYELMVEKLLIDYFTESYKSFLKLEDNYEPSMQELKLGFEKFVHIINTDVTSTELKLEELKVDLNRKRYKLHQQVIHVIDITSKFKINIQSSLENSENELGNVIEELRNLEFETEHNV

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Kinetochore protein NUF2
Molecular weight formula_weight	25415.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SNASIFKDLEALSFQSNASRNQDVFPILDLQELVICLQSCDFALATQENISRPTSDYMVTLYKQIIENFMGISVESLLNSSNQETGDGHLQEENENIYLDTLNVLVLNKICFKFFENIGVQDFNMTDLYKPEAQRTQRLLSAVVNYARFREERMFDCNSFILQMESLLGQINKLNDEIKQLQKDFEVEVKEIEIEYSLLSGHINKYMNEMLEYMQ

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Kinetochore protein SPC24
Molecular weight formula_weight	11975.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSQKDNLLDNPVEFLKEVRESFDIQQDVDAMKRIRHDLDVIKEESEARLKLYRSLGVILDLENDQVLINRKNDGNIDILPLDNNLSDFYKTKYIWERLGK

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Kinetochore protein SPC25
Molecular weight formula_weight	13010.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MASIDAFSDLERRMDGFQKDVAQVLARQQNHVALYERLLQLRVLPGASDVHDVRFVFGDDSRCWIEVAMHGDHVIGNSHPALDPKSRATLEHVLTVQGDLAAFLVVARDMLLASL

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	5tcsA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	418 — Actin-binding Protein, T-fimbrin; domain 1
Homologous superfamily homologous superfamily	30 — Ncd80 complex, Ncd80 subunit

Domain ID domain_id	5tcsD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	457 — Copper Amine Oxidase; Chain A, domain 1
Homologous superfamily homologous superfamily	50 — Chromosome segregation protein Spc25

▶

Unit-cell length a length_a	169.381 Å
Unit-cell length b length_b	186.593 Å
Unit-cell length c length_c	122.039 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.831 Å
Low-resolution limit resolution_low	41.750 Å
R factor r_factor	0.2400
R_work r_work	0.2386
R_free r_free	0.2664

Crystal structure of a Dwarf Ndc80 Tetramer

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore protein NDC80

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Kinetochore protein NUF2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Kinetochore protein SPC24

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Kinetochore protein SPC25

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

5tcs__assembly_1__model_1

5tcs__assembly_1__model_1 | I(q)

5tcs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. Citations (1)
