SAXSdb — 8v10

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore protein NDC80

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Mps1/NUF2 chimera protein × 1 （P33895,P54199） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） NICKEL (II) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDC80_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–208； UniProt 114–318 Author chain A； PDBConstruct 209–279； UniProt 621–691

Mps1/NUF2 chimera protein

Saccharomyces cerevisiae

UniProt P33895

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） NICKEL (II) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUF2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 37–188； UniProt 2–153 Author chain B； PDBConstruct 189–233； UniProt 407–451

Mps1/NUF2 chimera protein

Saccharomyces cerevisiae

UniProt P54199

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） NICKEL (II) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MPS1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–36； UniProt 137–171

Kinetochore protein SPC24

Saccharomyces cerevisiae

UniProt Q04477

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Mps1/NUF2 chimera protein × 1 （P33895,P54199） Kinetochore protein SPC25 × 1 （P40014） NICKEL (II) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC24_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–48； UniProt 1–48 Author chain C； PDBConstruct 49–100； UniProt 162–213

Kinetochore protein SPC25

Saccharomyces cerevisiae

UniProt P40014

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	Kinetochore protein NDC80 × 1 （P40460） Mps1/NUF2 chimera protein × 1 （P33895,P54199） Kinetochore protein SPC24 × 1 （Q04477） NICKEL (II) ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPC25_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–31； UniProt 1–31 Author chain D； PDBConstruct 32–115； UniProt 138–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8v10
Deposition date deposition_date	2023-11-19
Structure title title	Structure of a Saccharomyces cerevisiae Mps1 peptide bound to dwarf Ndc80 Complex
Keywords keywords	tension sensing, Ndc80, kinetochore, CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8v10__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8v10__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

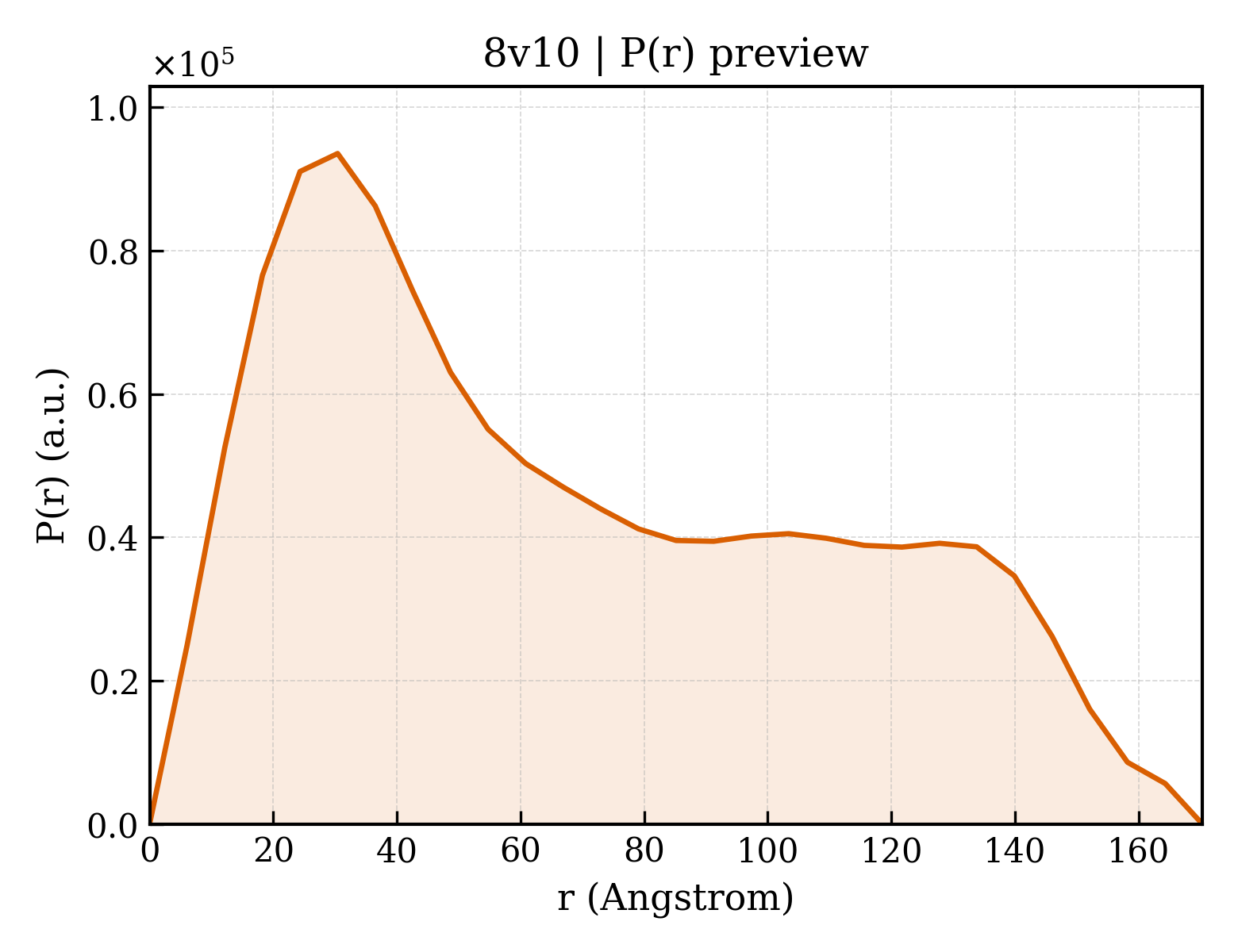

8v10__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.44 Å
Rg (electron density)	56.66 Å
Total Rg	56.23 Å
Atom count	5725
Residues	694
Excluded volume	102190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8v10__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Kinetochore protein NDC80
Molecular weight formula_weight	33256.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5725

SNARDPRPLRDKNFQSAIQEEIYDYLKKNKFDIETNHPISIKFLKQPTQKGFIIIFKWLYLRLDPGYGFTKSIENEIYQILKNLRYPFLESINKSQISAVGGSNWHKFLGMLHWMVRTNIKLDMCLNKVDRSLINQNTQEITILSQPLKTLDEQDQRQERYELMVEKLLIDYFTESYKSFLKLEDNYEPSMQELKLGFEKFVHIINTDVTSTELKLEELKVDLNRKRYKLHQQVIHVIDITSKFKINIQSSLENSENELGNVIEELRNLEFETEHNVTN

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Mps1/NUF2 chimera protein
Molecular weight formula_weight	27375.2 kDa
EC 编号 ec_number	2.7.12.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRQNMKEDITAKYAERRSKRFLISNRTTKLGPAKRASRNQDVFPILDLQELVICLQSCDFALATQENISRPTSDYMVTLYKQIIENFMGISVESLLNSSNQETGDGHLQEENENIYLDTLNVLVLNKICFKFFENIGVQDFNMTDLYKPEAQRTQRLLSAVVNYARFREERMFDCNSFILQMESLLGQINKLNDEIKQLQKDFEVEVKEIEIEYSLLSGHINKYMNEMLEYMQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Kinetochore protein SPC24
Molecular weight formula_weight	11881.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSQKDNLLDNPVEFLKEVRESFDIQQDVDAMKRIRHDLDVIKEESEARLKLYRSLGVILDLENDQVLINRKNDGNIDILPLDNNLSDFYKTKYIWERLGK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	Kinetochore protein SPC25
Molecular weight formula_weight	12822.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MASIDAFSDLERRMDGFQKDVAQVLARQQNHVALYERLLQLRVLPGASDVHDVRFVFGDDSRCWIEVAMHGDHVIGNSHPALDPKSRATLEHVLTVQGDLAAFLVVARDMLLASL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	72.657 Å
Unit-cell length b length_b	168.295 Å
Unit-cell length c length_c	230.214 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	orthorhombic

Resolution resolution	3.020 Å
Low-resolution limit resolution_low	115.110 Å
R factor r_factor	0.2399
R_work r_work	0.2381
R_free r_free	0.2707
