2ibz

Yeast Cytochrome BC1 Complex with Stigmatellin

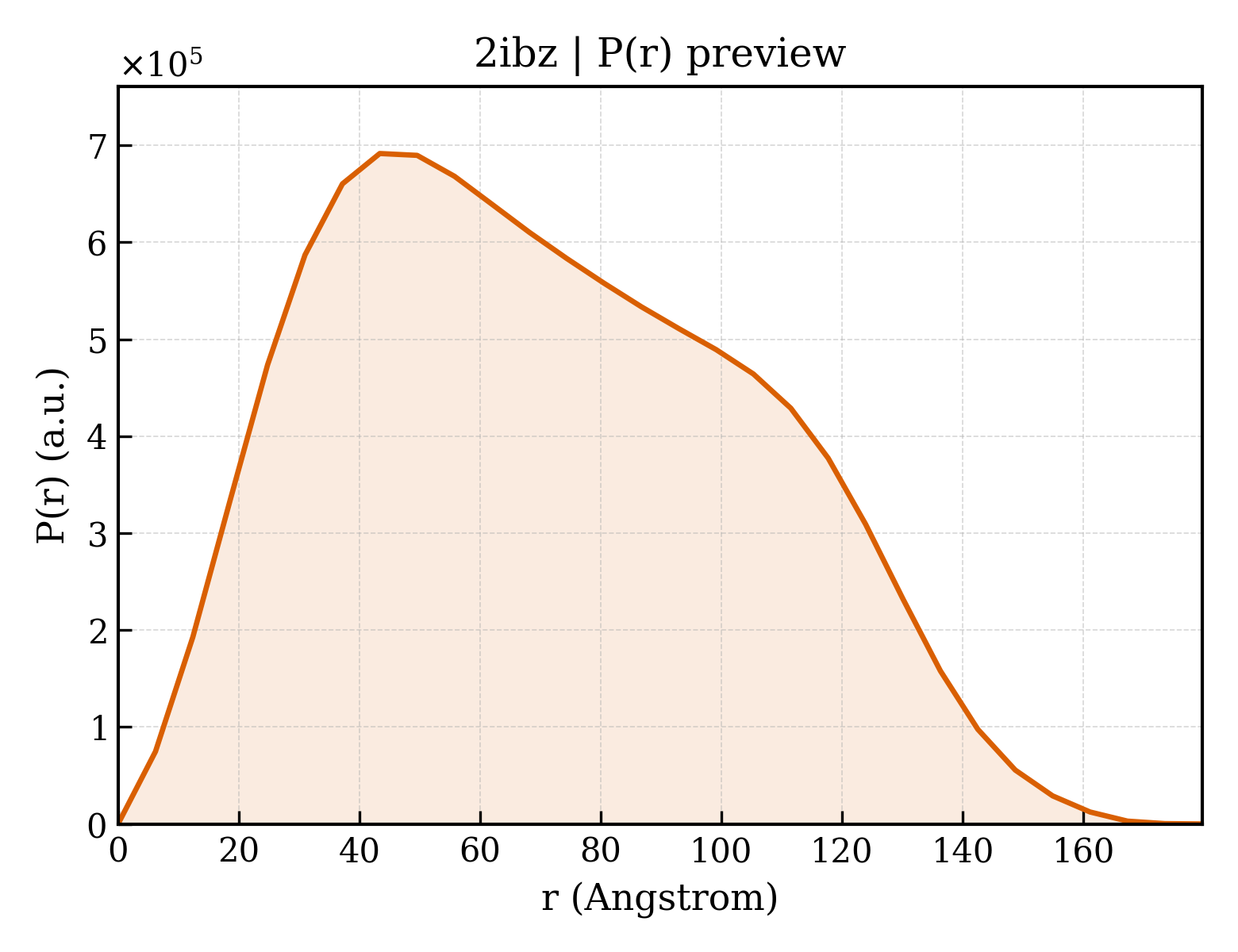

Method: X-RAY DIFFRACTION Dmax: 179.7 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ubiquinol-cytochrome-c reductase complex core protein 1

OrganismNot specified

UniProt P07256

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain A； UniProt 27–457 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EZV STRUCTURE OF THE YEAST CYTOCHROME BC1 COMPLEX CO-CRYSTALLIZED WITH AN ANTIBODY FV-FRAGMENT Deposited 2000-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 27–457（431 aa） Fragment：RESIDUES 24-457
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SMA STIGMATELLIN A × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions microseeding；pH 8；277 K；5 % PEG 4000, 100 mM Tris, 0.05 % Undecyl-maltoside, 1 micromolar stigmatellin, pH 8.0, microseeding, temperature 277K
Resolution 2.30 Å R-free 0.254
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain A 24–454（431 aa） Fragment：RESIDUES 27-457
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa） Fragment：RESIDUES 27-457
Chain L 27–457（431 aa） Fragment：RESIDUES 27-457
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 27–457（431 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain A 27–457（431 aa） Fragment：UNP residues 27-457
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain A 1–457（457 aa）
Chain a 1–457（457 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain A 1–457（457 aa）
Chain a 1–457（457 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain A 1–457（457 aa）
Chain K 1–457（457 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain A 27–457（431 aa）
Chain L 27–457（431 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UQCR1_YEAST
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–431； UniProt 27–457

Ubiquinol-cytochrome-c reductase complex core protein 2

OrganismNot specified

UniProt P07257

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain B； UniProt 17–368 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain B 17–368（352 aa） Fragment：RESIDUES 17-368
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa） Fragment：RESIDUES 17-368
Chain M 17–368（352 aa） Fragment：RESIDUES 17-368
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain B 17–368（352 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain B 17–368（352 aa） Fragment：UNP residues 17-368
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain B 1–368（368 aa）
Chain b 1–368（368 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain B 1–368（368 aa）
Chain b 1–368（368 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain B 1–368（368 aa）
Chain L 1–368（368 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain B 17–368（352 aa）
Chain M 17–368（352 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UQCR2_YEAST
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–352； UniProt 17–368

Cytochrome b

OrganismNot specified

UniProt P00163

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain C； UniProt 1–385 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain C 1–385（385 aa）
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain C 1–385（385 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain C 1–385（385 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain J 1–385（385 aa）
Chain j 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain J 1–385（385 aa）
Chain j 1–385（385 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain C 1–385（385 aa）
Chain M 1–385（385 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain C 1–385（385 aa）
Chain N 1–385（385 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CYB_YEAST
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–385； UniProt 1–385

Cytochrome c1, heme protein, mitochondrial precursor

OrganismNot specified

UniProt P07143

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain D； UniProt 62–309 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain D 62–307（246 aa） Fragment：RESIDUES 62-307
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa） Fragment：RESIDUES 62-309
Chain O 62–309（248 aa） Fragment：RESIDUES 62-309
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain D 62–307（246 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain D 62–309（248 aa） Fragment：UNP residues 62-309
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain D 62–309（248 aa）
Chain O 62–309（248 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain L 1–309（309 aa）
Chain l 1–309（309 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain L 1–309（309 aa）
Chain l 1–309（309 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain D 1–309（309 aa）
Chain N 1–309（309 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain D 62–308（247 aa）
Chain O 62–308（247 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CY1_YEAST
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–248； UniProt 62–309

Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor

OrganismNot specified

UniProt P08067

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain E； UniProt 31–215 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain E 31–215（185 aa） Fragment：RESIDUES 31-215
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa） Fragment：RESIDUES 31-215
Chain P 31–215（185 aa） Fragment：RESIDUES 31-215
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 31–215（185 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain E 31–215（185 aa） Fragment：UNP residues 31-215
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain C 1–215（215 aa）
Chain c 1–215（215 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain C 1–215（215 aa）
Chain c 1–215（215 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain E 1–215（215 aa）
Chain O 1–215（215 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain E 31–215（185 aa）
Chain P 31–215（185 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
9GS2 Structure of the Rieske bound Apo1 state of the heptameric Bcs1 AAA-ATPase Deposited 2024-09-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain H 92–215（124 aa）
Not recorded FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.46 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCRI_YEAST
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–185； UniProt 31–215

Ubiquinol-cytochrome c reductase complex 17 kDa protein

OrganismNot specified

UniProt P00127

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain H； UniProt 74–147 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain F 74–147（74 aa） Fragment：RESIDUES 74-147
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 75–147（73 aa） Fragment：RESIDUES 74-147
Chain Q 75–147（73 aa） Fragment：RESIDUES 74-147
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain F 74–147（74 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 2–147（146 aa） Fragment：RESIDUES 2-147
Chain Q 2–147（146 aa） Fragment：RESIDUES 2-147
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain F 2–147（146 aa） Fragment：RESIDUES 2-147
Chain Q 2–147（146 aa） Fragment：RESIDUES 2-147
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain F 74–147（74 aa） Fragment：UNP residues 74-147
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain F 1–147（147 aa）
Chain Q 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain F 74–147（74 aa）
Chain Q 73–147（75 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain G 1–147（147 aa）
Chain g 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain G 1–147（147 aa）
Chain g 1–147（147 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8ZJC Cryo-EM structure of Saccharomyces cerevisiae bc1 complex Deposited 2024-05-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZMT Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state Deposited 2024-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded A1D6P 1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 3 FES FE2/S2 (INORGANIC) CLUSTER × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain F 1–147（147 aa）
Chain P 1–147（147 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain F 73–147（75 aa）
Chain Q 73–147（75 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCRH_YEAST
Isoform —
PDB entities 6
Chains and sequence ranges Author chain H； PDBConstruct 1–74； UniProt 74–147

Ubiquinol-cytochrome c reductase complex 14 kDa protein

OrganismNot specified

UniProt P00128

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain F； UniProt 1–127 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain G 3–127（125 aa） Fragment：RESIDUES 3-127
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain G 3–127（125 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain G 2–127（126 aa） Fragment：RESIDUES 2-127
Chain R 2–127（126 aa） Fragment：RESIDUES 2-127
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain G 2–127（126 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain G 1–127（127 aa）
Chain R 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain G 2–127（126 aa）
Chain R 2–127（126 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain F 1–127（127 aa）
Chain f 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain F 1–127（127 aa）
Chain f 1–127（127 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain G 1–127（127 aa）
Chain Q 1–127（127 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain G 2–127（126 aa）
Chain R 2–127（126 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCR7_YEAST
Isoform —
PDB entities 7
Chains and sequence ranges Author chain F； PDBConstruct 1–127； UniProt 1–127

Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C

OrganismNot specified

UniProt P08525

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain G； UniProt 1–94 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex 7.3 kDa protein × 1 （P22289） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain H 2–94（93 aa） Fragment：RESIDUES 2-94
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa） Fragment：RESIDUES 2-94
Chain S 2–94（93 aa） Fragment：RESIDUES 2-94
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain H 2–94（93 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain H 2–94（93 aa）
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain H 1–94（94 aa）
Chain S 1–94（94 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain H 1–94（94 aa）
Chain S 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain H 1–94（94 aa）
Chain h 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain H 1–94（94 aa）
Chain h 1–94（94 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain H 1–94（94 aa）
Chain R 1–94（94 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain H 2–94（93 aa）
Chain S 2–94（93 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCRQ_YEAST
Isoform —
PDB entities 8
Chains and sequence ranges Author chain G； PDBConstruct 1–94； UniProt 1–94

Ubiquinol-cytochrome c reductase complex 7.3 kDa protein

OrganismNot specified

UniProt P22289

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 11 PDB declaration: undecameric（11） Consistent with protein copy count Chain I； UniProt 0–65 Not recorded Ubiquinol-cytochrome-c reductase complex core protein 1 × 1 （P07256） Ubiquinol-cytochrome-c reductase complex core protein 2 × 1 （P07257） Cytochrome b × 1 （P00163） Cytochrome c1, heme protein, mitochondrial precursor × 1 （P07143） Ubiquinol-cytochrome c reductase iron-sulfur subunit, mitochondrial precursor × 1 （P08067） Ubiquinol-cytochrome c reductase complex 17 kDa protein × 1 （P00127） Ubiquinol-cytochrome c reductase complex 14 kDa protein × 1 （P00128） Ubiquinol-cytochrome c reductase complex ubiquinone-binding protein QP-C × 1 （P08525） Variable Heavy chain of antibody fragment × 1 Variable Light chain of antibody fragment × 1 HEC HEME C × 3 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 SMA STIGMATELLIN A × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；precipitant PEG4000, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K Resolution 2.30 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 2IBZ Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1EZV STRUCTURE OF THE YEAST CYTOCHROME BC1 COMPLEX CO-CRYSTALLIZED WITH AN ANTIBODY FV-FRAGMENT Deposited 2000-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa） Fragment：RESIDUES 4-58
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 4 SMA STIGMATELLIN A × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions microseeding；pH 8；277 K；5 % PEG 4000, 100 mM Tris, 0.05 % Undecyl-maltoside, 1 micromolar stigmatellin, pH 8.0, microseeding, temperature 277K
Resolution 2.30 Å R-free 0.254
1KB9 YEAST CYTOCHROME BC1 COMPLEX Deposited 2001-11-05 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric
Chain I 4–58（55 aa） Fragment：RESIDUES 4-58
Not recorded PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 1 UMQ UNDECYL-MALTOSIDE × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 3 SMA STIGMATELLIN A × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 PIE 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoinositol × 1 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 2 CDL CARDIOLIPIN × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；PEG4000, pH 8, VAPOR DIFFUSION, SITTING DROP
Resolution 2.30 Å R-free 0.249
1KYO YEAST CYTOCHROME BC1 COMPLEX WITH BOUND SUBSTRATE CYTOCHROME C Deposited 2002-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 1–57（57 aa） Fragment：RESIDUES 1-57
Chain T 1–57（57 aa） Fragment：RESIDUES 1-57
Not recorded HEC HEME C × 7 SMA STIGMATELLIN A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；PEG4000, 20 mM Tris, 0.05 % Undecyl-maltopyranoside, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.97 Å R-free 0.268
1P84 HDBT inhibited Yeast Cytochrome bc1 Complex Deposited 2003-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain I 3–57（55 aa）
Not recorded 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 UMQ UNDECYL-MALTOSIDE × 2 HEC HEME C × 6 DBT 5-HEPTYL-6-HYDROXY-1,3-BENZOTHIAZOLE-4,7-DIONE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 PC1 1,2-DIACYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 2 CDL CARDIOLIPIN × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG4000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.50 Å R-free 0.252
3CX5 Structure of complex III with bound cytochrome c in reduced state and definition of a minimal core interface for electron transfer. Deposited 2008-04-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 2–66（65 aa） Fragment：RESIDUES 2-66
Chain T 2–66（65 aa） Fragment：RESIDUES 2-66
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (paraffin oil), temperature 277K
Resolution 1.90 Å R-free 0.263
3CXH Structure of yeast complex III with isoform-2 cytochrome c bound and definition of a minimal core interface for electron transfer. Deposited 2008-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 23 PDB declaration: 23-meric
Chain I 2–66（65 aa） Fragment：RESIDUES 2-66
Chain T 2–66（65 aa） Fragment：RESIDUES 2-66
Not recorded UMQ UNDECYL-MALTOSIDE × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 7 SMA STIGMATELLIN A × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN6 (2R,5R,11S,14R)-2-(butanoyloxy)-5,8,11-trihydroxy-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 X-RAY DIFFRACTION
X-ray crystallization conditions Microbatch (Paraffin oil)；pH 7.5；277 K；1M Sucrose, 10% DMSO, 20mM Tris pH 7.5, 80mM NaCl, 0.05 % UM, 1 M stigmatellin, 5% PEG 4000, Microbatch (Paraffin oil), temperature 277K
Resolution 2.50 Å R-free 0.256
4PD4 Structural analysis of atovaquone-inhibited cytochrome bc1 complex reveals the molecular basis of antimalarial drug action Deposited 2014-04-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric
Chain I 2–58（57 aa） Fragment：UNP residues 2-58
Not recorded UMQ UNDECYL-MALTOSIDE × 2 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 6 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 AOQ 2-[trans-4-(4-chlorophenyl)cyclohexyl]-3-hydroxynaphthalene-1,4-dione × 2 3PE 1,2-Distearoyl-sn-glycerophosphoethanolamine × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277.2 K；polyethylene glycol 4000, DMSO, Sucrose, Potassium phosphate, n-undecyl-?-D-maltopyranoside, atovaquone
Resolution 3.04 Å R-free 0.297
6HU9 III2-IV2 mitochondrial respiratory supercomplex from S. cerevisiae Deposited 2018-10-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 28 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 1 CDL CARDIOLIPIN × 8 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microL of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 sec
Resolution 3.35 Å
6T0B The III2-IV(5B)2 respiratory supercomplex from S. cerevisiae Deposited 2019-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded CDL CARDIOLIPIN × 8 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 7 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 2 HEA HEME-A × 4 CA CALCIUM ION × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 2.80 Å
6T15 The III2-IV(5B)1 respiratory supercomplex from S. cerevisiae Deposited 2019-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain I 1–66（66 aa）
Chain T 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 18 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 CDL CARDIOLIPIN × 7 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE；3 microliter of sample applied to negatively glow discharged grid, blot force -10; blotting time 8.5 s
Resolution 3.29 Å
6YMX CIII2/CIV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2020-04-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain I 5–58（54 aa）
Chain T 4–57（54 aa）
Not recorded CU COPPER (II) ION × 1 HEA HEME-A × 2 PTY PHOSPHATIDYLETHANOLAMINE × 7 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 CUA DINUCLEAR COPPER ION × 1 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 5 ZN ZINC ION × 1 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.17 Å
8E7S III2IV2 respiratory supercomplex from Saccharomyces cerevisiae with 4 bound UQ6 Deposited 2022-08-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 44 PDB declaration: 44-meric
Chain E 1–66（66 aa）
Chain e 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 24 FES FE2/S2 (INORGANIC) CLUSTER × 2 CDL CARDIOLIPIN × 10 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEA HEME-A × 4 CU COPPER (II) ION × 2 CUA DINUCLEAR COPPER ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8EC0 III2IV respiratory supercomplex from Saccharomyces cerevisiae cardiolipin-lacking mutant Deposited 2022-08-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain E 1–66（66 aa）
Chain e 1–66（66 aa）
Not recorded PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 15 PGT (1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 7 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CUA DINUCLEAR COPPER ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8YHQ Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in pyraclostrobin-bound state Deposited 2024-02-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain R 4–58（55 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6K methyl ~{N}-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]phenyl]-~{N}-methoxy-carbamate × 2 7PH (1R)-2-(dodecanoyloxy)-1-[(phosphonooxy)methyl]ethyl tetradecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.42 Å
8YIL Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF24228-bound state Deposited 2024-02-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 86T metyltetraprole × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.58 Å
8YIN Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in YF23694-bound state Deposited 2024-02-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 A1D6O 1-[2-[(4,6-dimethyl-1,3-benzothiazol-2-yl)sulfanylmethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen NITROGEN
Resolution 2.74 Å
8YIO Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in azoxystrobin-bound state Deposited 2024-02-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded AZO METHYL (2Z)-2-(2-{[6-(2-CYANOPHENOXY)PYRIMIDIN-4-YL]OXY}PHENYL)-3-METHOXYACRYLATE × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.35 Å
8ZJC Cryo-EM structure of Saccharomyces cerevisiae bc1 complex Deposited 2024-05-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS,0.1%DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
8ZMT Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state Deposited 2024-05-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 4–58（55 aa）
Chain T 4–58（55 aa）
Not recorded A1D6P 1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 6 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 3 FES FE2/S2 (INORGANIC) CLUSTER × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；PBS, 0.1% DDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.52 Å
9BPB Tethered respiratory III2IV2 supercomplex from Saccharomyces cerevisiae Deposited 2024-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 42 PDB declaration: 42-meric
Chain I 1–66（66 aa）
Chain S 1–66（66 aa）
Not recorded CDL CARDIOLIPIN × 8 6PH (1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate × 2 8PE (2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate × 2 CN5 (5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate × 1 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 4 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 9PE (1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate × 2 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 6 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 8 PTY PHOSPHATIDYLETHANOLAMINE × 10 HEA HEME-A × 4 CU COPPER (II) ION × 2 CA CALCIUM ION × 2 CN3 (2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate × 2 MG MAGNESIUM ION × 2 CUA DINUCLEAR COPPER ION × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL of sample, 5 s blot time, 30 s hold time, 0 blot force.
Resolution 2.57 Å
9ETZ III2IV respiratory supercomplex from Saccharomyces cerevisiae Deposited 2024-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain I 2–58（57 aa）
Chain T 2–58（57 aa）
Not recorded CDL CARDIOLIPIN × 11 HEM PROTOPORPHYRIN IX CONTAINING FE × 4 PEF DI-PALMITOYL-3-SN-PHOSPHATIDYLETHANOLAMINE × 26 PCF 1,2-DIACYL-SN-GLYCERO-3-PHOSHOCHOLINE × 6 UQ6 5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL × 2 HEC HEME C × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 CU COPPER (II) ION × 1 HEA HEME-A × 2 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CUA DINUCLEAR COPPER ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name UCR9_YEAST
Isoform —
PDB entities 9
Chains and sequence ranges Author chain I； PDBConstruct 1–66； UniProt 0–65

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 2ibz

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 2ibz
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2ibz
Deposition date deposition_date2006-09-12
Structure title titleYeast Cytochrome BC1 Complex with Stigmatellin
Keywords keywordsmultisubunit membrane protein complex, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier55.13 Å
Radius of gyration Rg (electron density) rg_electron54.75 Å
Forward intensity I(0) i0814585000.00
Molecular weight molecular_weight246910.0 kDa
Excluded volume excluded_volume312290 ų
Envelope volume envelope_volume465770 ų
Hydration-shell volume shell_volume73790 ų
Envelope diameter envelope_diameter188.1 Å
Shell Rg shell_rg54.48 Å
Envelope Rg envelope_rg53.86 Å
Shape Rg shape_rg54.74 Å
Total Rg total_rg54.77 Å
Total atoms total_atoms17439
Residues n_residues2179
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax179.7 Å
Rg (real space) rg_real55.30 Å
Rg uncertainty (real space) rg_real_error1.80 Å
I(0) (real space) i0_real8.1460e+08
I(0) uncertainty (real space) i0_real_error1.7430e+07
Rg (reciprocal space) rg_reciprocal54.96 Å
I(0) (reciprocal space) i0_reciprocal814100000.0000
Solution quality estimate total_estimate0.8478
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary43.4 Å
Skewness Skewness skewness0.273
Kurtosis Kurtosis kurtosis-0.791
Angular range angular_range— – 0.1450 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha59410000.0000
Real-space data points n_real_points30
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.402
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (16)

▼

7. Fold Classification (SCOP + CATH) 31 domains

SCOP 2.08 (16 domains)

Domain ID domain_idd2ibza1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamilyd.185.1 — LuxS/MPP-like metallohydrolase
Family Family familyd.185.1.1 — MPP-like
Domain ID domain_idd2ibza2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamilyd.185.1 — LuxS/MPP-like metallohydrolase
Family Family familyd.185.1.1 — MPP-like
Domain ID domain_idd2ibzb1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamilyd.185.1 — LuxS/MPP-like metallohydrolase
Family Family familyd.185.1.1 — MPP-like
Domain ID domain_idd2ibzb2
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.185 — LuxS/MPP-like metallohydrolase
Superfamily Superfamily superfamilyd.185.1 — LuxS/MPP-like metallohydrolase
Family Family familyd.185.1.1 — MPP-like
Domain ID domain_idd2ibzc1
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.32 — a domain/subunit of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Superfamily Superfamily superfamilyf.32.1 — a domain/subunit of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Family Family familyf.32.1.1 — a domain/subunit of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzc2
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.21 — Heme-binding four-helical bundle
Superfamily Superfamily superfamilyf.21.1 — Transmembrane di-heme cytochromes
Family Family familyf.21.1.2 — Cytochrome b of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzd1
Class classa — All alpha proteins
Fold Fold folda.3 — Cytochrome c
Superfamily Superfamily superfamilya.3.1 — Cytochrome c
Family Family familya.3.1.3 — Cytochrome bc1 domain
Domain ID domain_idd2ibzd2
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.23 — Single transmembrane helix
Superfamily Superfamily superfamilyf.23.11 — Cytochrome c1 subunit of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase), transmembrane anchor
Family Family familyf.23.11.1 — Cytochrome c1 subunit of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase), transmembrane anchor
Domain ID domain_idd2ibze1
Class classb — All beta proteins
Fold Fold foldb.33 — ISP domain
Superfamily Superfamily superfamilyb.33.1 — ISP domain
Family Family familyb.33.1.1 — Rieske iron-sulfur protein (ISP)
Domain ID domain_idd2ibze2
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.23 — Single transmembrane helix
Superfamily Superfamily superfamilyf.23.12 — ISP transmembrane anchor
Family Family familyf.23.12.1 — ISP transmembrane anchor
Domain ID domain_idd2ibzf_
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.27 — 14 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Superfamily Superfamily superfamilyf.27.1 — 14 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Family Family familyf.27.1.1 — 14 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzg_
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.23 — Single transmembrane helix
Superfamily Superfamily superfamilyf.23.13 — Ubiquinone-binding protein QP-C of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Family Family familyf.23.13.1 — Ubiquinone-binding protein QP-C of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzh_
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.28 — Non-heme 11 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Superfamily Superfamily superfamilyf.28.1 — Non-heme 11 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Family Family familyf.28.1.1 — Non-heme 11 kDa protein of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzi_
Class classf — Membrane and cell surface proteins and peptides
Fold Fold foldf.23 — Single transmembrane helix
Superfamily Superfamily superfamilyf.23.14 — Subunit X (non-heme 7 kDa protein) of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Family Family familyf.23.14.1 — Subunit X (non-heme 7 kDa protein) of cytochrome bc1 complex (Ubiquinol-cytochrome c reductase)
Domain ID domain_idd2ibzx_
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.1 — V set domains (antibody variable domain-like)
Domain ID domain_idd2ibzy_
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.1 — Immunoglobulin
Family Family familyb.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (15 domains)

Domain ID domain_id2ibzA01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily10 — Metalloenzyme, LuxS/M16 peptidase-like
Domain ID domain_id2ibzA02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily10 — Metalloenzyme, LuxS/M16 peptidase-like
Domain ID domain_id2ibzB01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily10 — Metalloenzyme, LuxS/M16 peptidase-like
Domain ID domain_id2ibzB02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology830 — Cytochrome Bc1 Complex; Chain A, domain 1
Homologous superfamily homologous superfamily10 — Metalloenzyme, LuxS/M16 peptidase-like
Domain ID domain_id2ibzC00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology810 — Cytochrome Bc1 Complex; Chain C
Homologous superfamily homologous superfamily10 — Cytochrome Bc1 Complex; Chain C
Domain ID domain_id2ibzD01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily10 — Cytochrome c-like domain
Domain ID domain_id2ibzD02
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily100 — Cytochrome c1, transmembrane anchor, C-terminal
Domain ID domain_id2ibzE01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily270 — Ubiquinol cytochrome reductase, transmembrane domain
Domain ID domain_id2ibzE02
Class class2 — Mainly Beta
Architecture architecture102 — 3-layer Sandwich
Topology topology10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily10 — Rieske [2Fe-2S] iron-sulphur domain
Domain ID domain_id2ibzF00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1090 — Cytochrome Bc1 Complex; Chain F
Homologous superfamily homologous superfamily10 — Cytochrome b-c1 complex subunit 7
Domain ID domain_id2ibzG00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily210 — Cytochrome b-c1 complex subunit 8
Domain ID domain_id2ibzH00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology287 — Helix Hairpins
Homologous superfamily homologous superfamily20 — Ubiquinol-cytochrome C reductase hinge domain
Domain ID domain_id2ibzI00
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily260 — Cytochrome b-c1 complex subunit 9
Domain ID domain_id2ibzX00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
Domain ID domain_id2ibzY00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
▶

8. Citations (1)

▶

9. Files and Curves (10)
