Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | MKIAA1027 protein × 1 （Q80TM2） | Consistent with protein count |
| UniProt name | TLN1_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 7–174； UniProt 1655–1822 |
Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Talin-1 × 1 （P26039） | Consistent with protein count |
| UniProt name | Q80TM2_MOUSE |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–91； UniProt 334–424 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 2kgx |
| Deposition date deposition_date | 2009-03-23 |
| Structure title title | HADDOCK structure of the talin F3 domain in complex with talin 1655-1822 |
| Keywords keywords | talin, interdomain, F3, cytoskeleton, Cell membrane, Cell projection, Cytoplasm, Membrane, Phosphoprotein, CELL ADHESION; CELL ADHESION |
| Experimental Method method | SOLUTION NMR |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

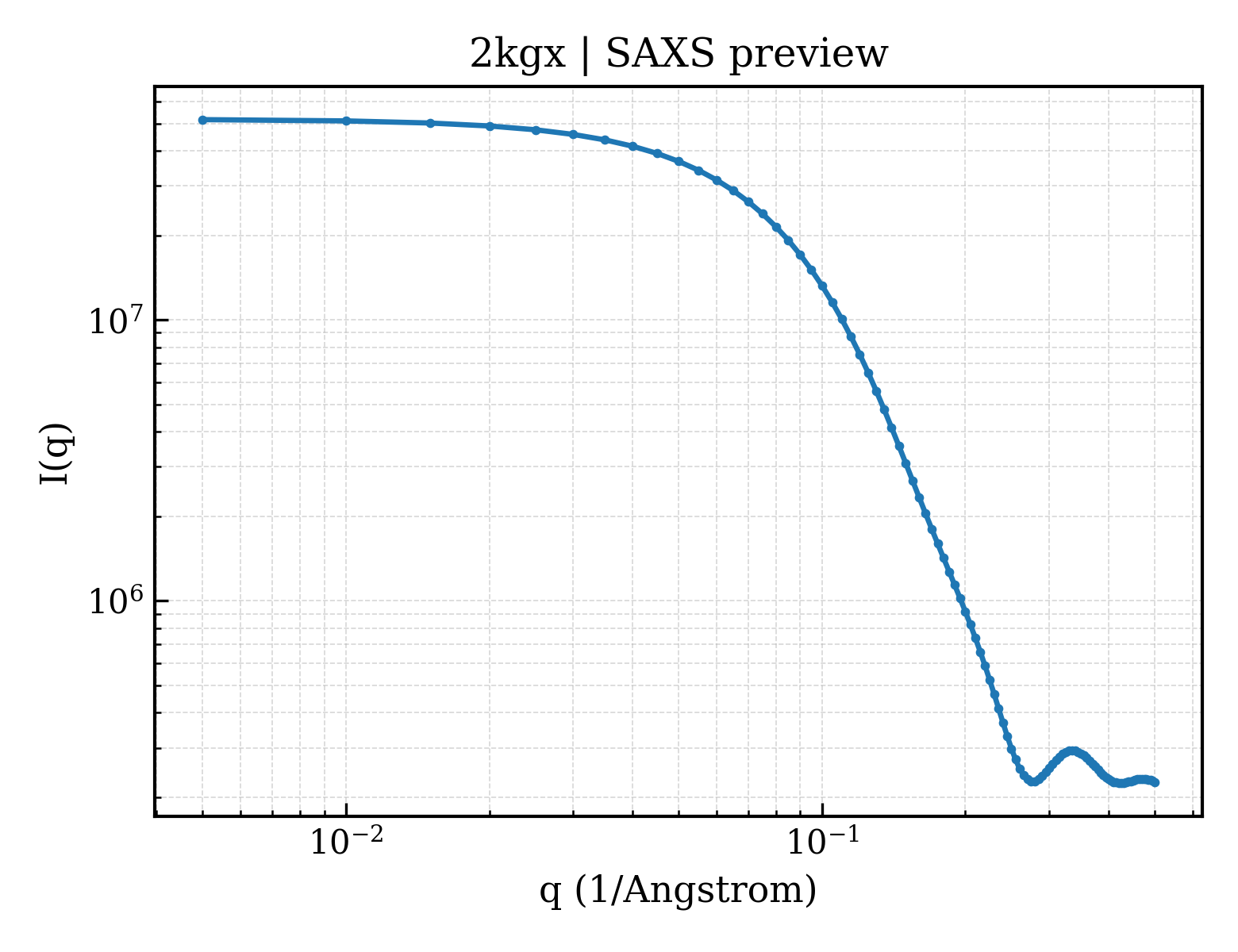

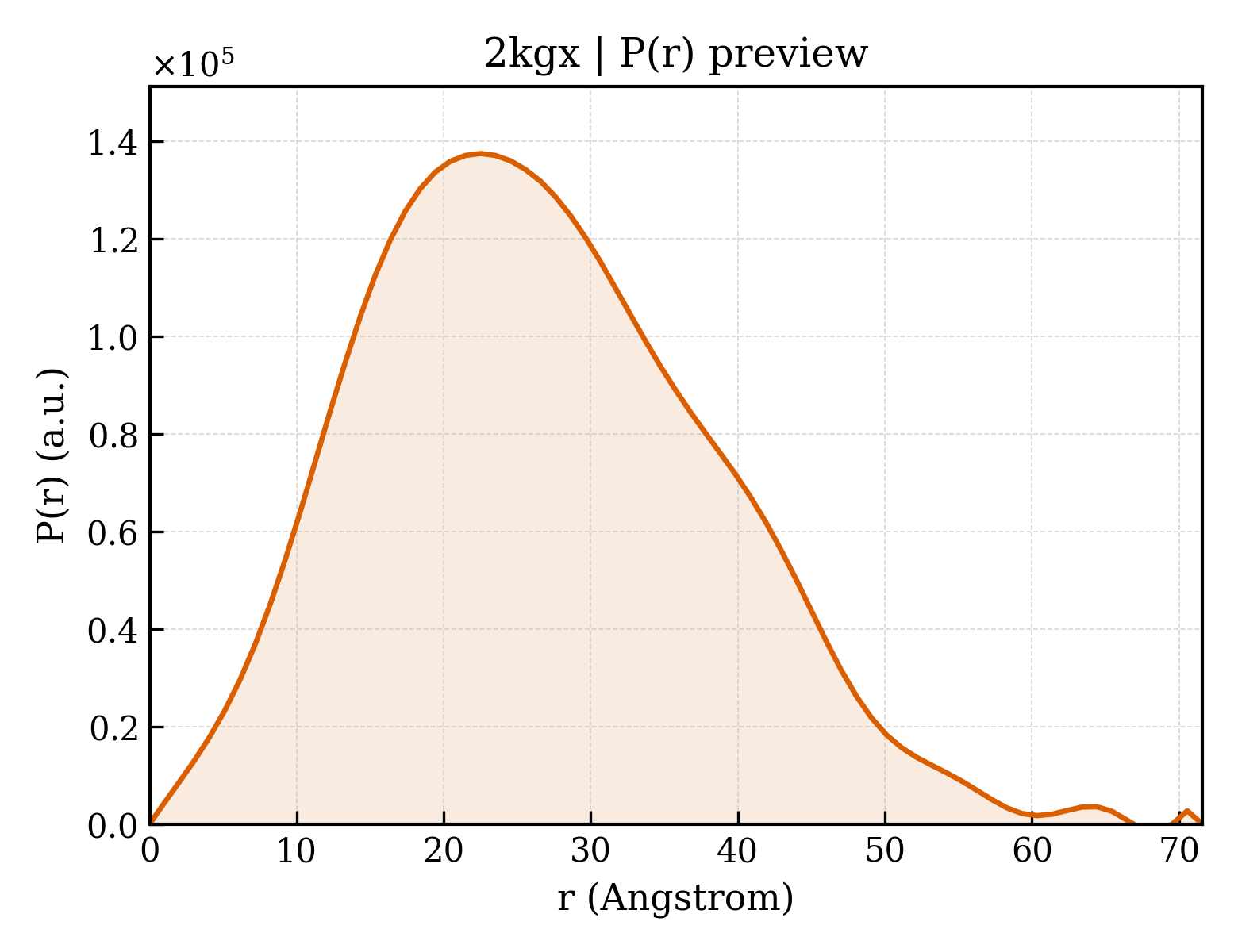

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.82 Å |
| Rg (electron density) | 20.03 Å |
| Total Rg | 20.87 Å |
| Atom count | 2459 |
| Residues | 265 |
| Excluded volume | 35941 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 2kgxA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 1420 — A middle domain of Talin 1 |
| Homologous superfamily homologous superfamily | 10 — Talin, central domain |
| Domain ID domain_id | 2kgxB00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 30 — Roll |
| Topology topology | 29 — PH-domain like |
| Homologous superfamily homologous superfamily | 30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB) |
