2p6v

Structure of TAFH domain of the human TAF4 subunit of TFIID

Method: X-RAY DIFFRACTION D_max: 49.6 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription initiation factor TFIID subunit 4

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 575–688	Fragment：TAFH domain Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；Crystals of methylated hTAF4-TAFH containing SeMet were grown by hanging drop vapor diffusion at 22 C by mixing equal volumes of protein solution and crystallization buffer (200 mM ammonium acetate, 2.2 M ammonium sulfate and 150 mM sodium bromide). , pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2P6V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H3O Crystal Structure of the Human TAF4-TAF12 (TAFII135-TAFII20) Complex Deposited 2002-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 870–943（74 aa） Fragment：HISTONE FOLD DOMAIN, RESIDUES 870-943	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272
1H3O Crystal Structure of the Human TAF4-TAF12 (TAFII135-TAFII20) Complex Deposited 2002-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 870–943（74 aa） Fragment：HISTONE FOLD DOMAIN, RESIDUES 870-943	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272
6MZC Human TFIID BC core Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 4.50 Å
6MZD Human TFIID Lobe A canonical Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain D 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 9.80 Å
6MZL Human TFIID canonical state Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain D 1–1085（1085 aa） Chain E 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 23.00 Å
6MZM Human TFIID bound to promoter DNA and TFIIA Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain D 61–1085（1025 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 7.50 Å
7EDX p53-bound TFIID-based core PIC on HDM2 promoter Deposited 2021-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7EG7 TFIID-based core PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
7EG8 TFIID-based core PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.40 Å
7EG9 TFIID-based intermediate PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7EGA TFIID-based intermediate PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7EGB TFIID-based holo PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7EGC p53-bound TFIID-based holo PIC on HDM2 promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7EGD SCP promoter-bound TFIID-TFIIA in initial TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.75 Å
7EGE TFIID in canonical conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
7EGF TFIID lobe A subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
7EGG TFIID lobe B subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.77 Å
7EGI TFIID in rearranged conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.82 Å
7EGJ SCP promoter-bound TFIID-TFIIA in post TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.64 Å
7ENA TFIID-based PIC-Mediator holo-complex in pre-assembled state (pre-hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7ENC TFIID-based PIC-Mediator holo-complex in fully-assembled state (hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
8GXQ PIC-Mediator in complex with +1 nucleosome (T40N) in MH-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.04 Å
8GXS PIC-Mediator in complex with +1 nucleosome (T40N) in H-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
8WAK Structure of transcribing complex 2 (TC2), the initially transcribing complex with Pol II positioned 2nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.47 Å
8WAL Structure of transcribing complex 3 (TC3), the initially transcribing complex with Pol II positioned 3nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.52 Å
8WAN Structure of transcribing complex 4 (TC4), the initially transcribing complex with Pol II positioned 4nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.07 Å
8WAO Structure of transcribing complex 5 (TC5), the initially transcribing complex with Pol II positioned 5nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å
8WAP Structure of transcribing complex 6 (TC6), the initially transcribing complex with Pol II positioned 6nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.85 Å
8WAQ Structure of transcribing complex 7 (TC7), the initially transcribing complex with Pol II positioned 7nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.29 Å
8WAR Structure of transcribing complex 8 (TC8), the initially transcribing complex with Pol II positioned 8nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8WAS Structure of transcribing complex 9 (TC9), the initially transcribing complex with Pol II positioned 9nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.13 Å

30 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TAF4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–105； UniProt 575–688

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

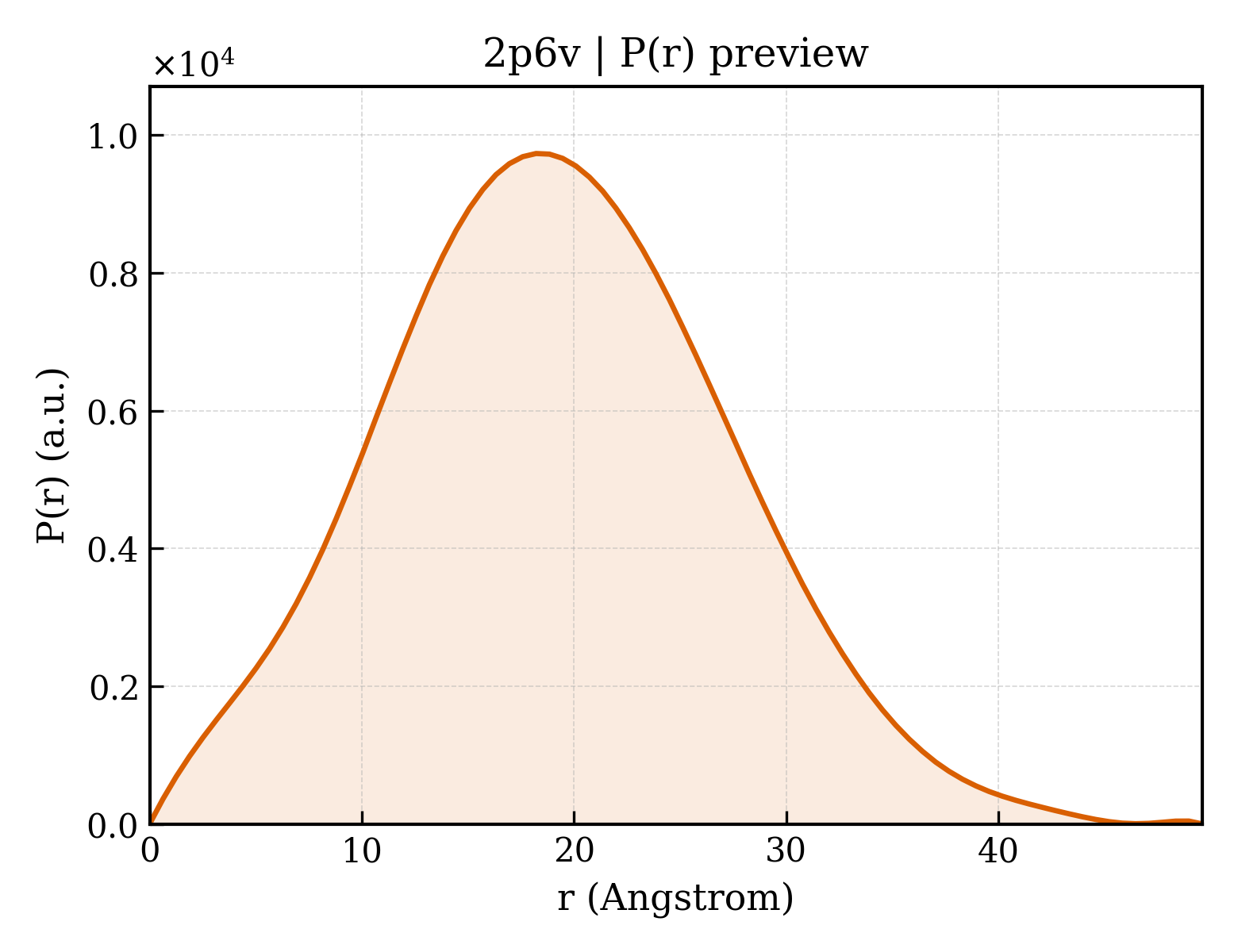

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2p6v
Deposition date deposition_date	2007-03-19
Structure title title	Structure of TAFH domain of the human TAF4 subunit of TFIID
Keywords keywords	ALPHA HELIX, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.80 Å
Radius of gyration Rg (electron density) rg_electron	13.29 Å
Forward intensity I(0) i0	2485030.00
Molecular weight molecular_weight	11039.0 kDa
Excluded volume excluded_volume	13959 Å³
Envelope volume envelope_volume	16022 Å³
Hydration-shell volume shell_volume	10522 Å³
Envelope diameter envelope_diameter	49.0 Å
Shell Rg shell_rg	18.63 Å
Envelope Rg envelope_rg	13.72 Å
Shape Rg shape_rg	13.26 Å
Total Rg total_rg	14.63 Å
Total atoms total_atoms	774
Residues n_residues	89
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.6 Å
Rg (real space) rg_real	14.73 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	2.4850e+06
I(0) uncertainty (real space) i0_real_error	2.9910e+04
Rg (reciprocal space) rg_reciprocal	14.74 Å
I(0) (reciprocal space) i0_reciprocal	2485000.0000
Solution quality estimate total_estimate	0.7004
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.2 Å
Skewness Skewness skewness	0.192
Kurtosis Kurtosis kurtosis	-0.214
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	260400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.785; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 1.000; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Transcription initiation factor TFIID subunit 4
Molecular weight formula_weight	12651.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	820

TVPGATTTSSAATETMENVKKCKNFLSTLIKLASSGKQSTETAANVKELVQNLLDGKIEAEDFTSRLYRELNSSPQPYLVPFLKRSLPALRQLTPDSAAFIQQSQQQPPPPTSQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2p6va1
Class class	a — All alpha proteins
Fold Fold fold	a.277 — TAFH domain-like
Superfamily Superfamily superfamily	a.277.1 — TAFH domain-like
Family Family family	a.277.1.1 — TAFH domain-like

CATH v4.4 (1 domains)

Domain ID domain_id	2p6vA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1110 — TAFH/NHR1 domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.852 Å
Unit-cell length b length_b	74.852 Å
Unit-cell length c length_c	131.785 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	65.940 Å
R factor r_factor	0.2157
R_work r_work	0.2140
R_free r_free	0.2483
