Crystal Structure of the Human TAF4-TAF12 (TAFII135-TAFII20) Complex

Method: X-RAY DIFFRACTION D_max: 61.5 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRANSCRIPTION INITIATION FACTOR TFIID 135 KDA SUBUNIT

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 870–943	Fragment：HISTONE FOLD DOMAIN, RESIDUES 870-943 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	TRANSCRIPTION INITIATION FACTOR TFIID 20/15 KDA SUBUNITS × 1 （Q16514）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 870–943	Fragment：HISTONE FOLD DOMAIN, RESIDUES 870-943 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	TRANSCRIPTION INITIATION FACTOR TFIID 20/15 KDA SUBUNITS × 1 （Q16514）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1H3O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2P6V Structure of TAFH domain of the human TAF4 subunit of TFIID Deposited 2007-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 575–688（114 aa） Fragment：TAFH domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；295 K；Crystals of methylated hTAF4-TAFH containing SeMet were grown by hanging drop vapor diffusion at 22 C by mixing equal volumes of protein solution and crystallization buffer (200 mM ammonium acetate, 2.2 M ammonium sulfate and 150 mM sodium bromide). , pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.00 Å R-free 0.248
6MZC Human TFIID BC core Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain E 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 4.50 Å
6MZD Human TFIID Lobe A canonical Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain D 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 9.80 Å
6MZL Human TFIID canonical state Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain D 1–1085（1085 aa） Chain E 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 23.00 Å
6MZM Human TFIID bound to promoter DNA and TFIIA Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain D 61–1085（1025 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 7.50 Å
7EDX p53-bound TFIID-based core PIC on HDM2 promoter Deposited 2021-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7EG7 TFIID-based core PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
7EG8 TFIID-based core PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.40 Å
7EG9 TFIID-based intermediate PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7EGA TFIID-based intermediate PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7EGB TFIID-based holo PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7EGC p53-bound TFIID-based holo PIC on HDM2 promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7EGD SCP promoter-bound TFIID-TFIIA in initial TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.75 Å
7EGE TFIID in canonical conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
7EGF TFIID lobe A subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
7EGG TFIID lobe B subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.77 Å
7EGI TFIID in rearranged conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.82 Å
7EGJ SCP promoter-bound TFIID-TFIIA in post TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.64 Å
7ENA TFIID-based PIC-Mediator holo-complex in pre-assembled state (pre-hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7ENC TFIID-based PIC-Mediator holo-complex in fully-assembled state (hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
8GXQ PIC-Mediator in complex with +1 nucleosome (T40N) in MH-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.04 Å
8GXS PIC-Mediator in complex with +1 nucleosome (T40N) in H-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DD 1–1085（1085 aa） Chain Dd 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
8WAK Structure of transcribing complex 2 (TC2), the initially transcribing complex with Pol II positioned 2nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.47 Å
8WAL Structure of transcribing complex 3 (TC3), the initially transcribing complex with Pol II positioned 3nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.52 Å
8WAN Structure of transcribing complex 4 (TC4), the initially transcribing complex with Pol II positioned 4nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.07 Å
8WAO Structure of transcribing complex 5 (TC5), the initially transcribing complex with Pol II positioned 5nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å
8WAP Structure of transcribing complex 6 (TC6), the initially transcribing complex with Pol II positioned 6nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.85 Å
8WAQ Structure of transcribing complex 7 (TC7), the initially transcribing complex with Pol II positioned 7nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.29 Å
8WAR Structure of transcribing complex 8 (TC8), the initially transcribing complex with Pol II positioned 8nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8WAS Structure of transcribing complex 9 (TC9), the initially transcribing complex with Pol II positioned 9nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain D 1–1085（1085 aa） Chain d 1–1085（1085 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.13 Å

30 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	T2D3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–75； UniProt 870–943 Author chain C； PDBConstruct 2–75； UniProt 870–943

TRANSCRIPTION INITIATION FACTOR TFIID 20/15 KDA SUBUNITS

HOMO SAPIENS

UniProt Q16514

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 57–128	Fragment：HISTONE FOLD DOMAIN, RESIDUES 57-128 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	TRANSCRIPTION INITIATION FACTOR TFIID 135 KDA SUBUNIT × 1 （O00268）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 57–128	Fragment：HISTONE FOLD DOMAIN, RESIDUES 57-128 Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	TRANSCRIPTION INITIATION FACTOR TFIID 135 KDA SUBUNIT × 1 （O00268）	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.25；pH 5.25	Resolution 2.30 Å R-free 0.272

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1H3O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6MZC Human TFIID BC core Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 4.50 Å
6MZD Human TFIID Lobe A canonical Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain Q 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 9.80 Å
6MZL Human TFIID canonical state Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain Q 1–161（161 aa） Chain R 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 23.00 Å
6MZM Human TFIID bound to promoter DNA and TFIIA Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain R 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE；BT 4s; BF 15N	Resolution 7.50 Å
7EDX p53-bound TFIID-based core PIC on HDM2 promoter Deposited 2021-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7EG7 TFIID-based core PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.20 Å
7EG8 TFIID-based core PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 37 PDB declaration: 39-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 9 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.40 Å
7EG9 TFIID-based intermediate PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7EGA TFIID-based intermediate PIC on PUMA promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 39 PDB declaration: 41-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 10 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å
7EGB TFIID-based holo PIC on SCP promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7EGC p53-bound TFIID-based holo PIC on HDM2 promoter Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 49 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7EGD SCP promoter-bound TFIID-TFIIA in initial TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.75 Å
7EGE TFIID in canonical conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.00 Å
7EGF TFIID lobe A subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain l 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
7EGG TFIID lobe B subcomplex Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain L 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.77 Å
7EGI TFIID in rearranged conformation Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 22 PDB declaration: 22-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.82 Å
7EGJ SCP promoter-bound TFIID-TFIIA in post TBP-loading state Deposited 2021-03-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.64 Å
7ENA TFIID-based PIC-Mediator holo-complex in pre-assembled state (pre-hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DL 1–161（161 aa） Chain Dl 1–161（161 aa）	Not recorded	ZN ZINC ION × 16 MG MAGNESIUM ION × 1 SF4 IRON/SULFUR CLUSTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.07 Å
7ENC TFIID-based PIC-Mediator holo-complex in fully-assembled state (hPIC-MED) Deposited 2021-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 74 PDB declaration: 76-meric	Chain DL 1–161（161 aa） Chain Dl 1–161（161 aa）	Not recorded	ZN ZINC ION × 16 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.13 Å
7KTR Cryo-EM structure of the human SAGA coactivator complex (TRRAP, core) Deposited 2020-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain G 1–161（161 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8；Buffers were freshly prepared and 0.22 um filtered. cryo-EM vitrification conditions Cryogen ETHANE；blot force 0, blot time 3 sec	Resolution 2.93 Å
7KTS Negative stain EM structure of the human SAGA coactivator complex (TRRAP, core, splicing module) Deposited 2020-11-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain G 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffers were freshly prepared and 0.22 um filtered.	Resolution 19.09 Å
8GXQ PIC-Mediator in complex with +1 nucleosome (T40N) in MH-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DL 1–161（161 aa） Chain Dl 1–161（161 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.04 Å
8GXS PIC-Mediator in complex with +1 nucleosome (T40N) in H-binding state Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 83 PDB declaration: 87-meric	Chain DL 1–161（161 aa） Chain Dl 1–161（161 aa）	Not recorded	ZN ZINC ION × 19 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.16 Å
8H7G Cryo-EM structure of the human SAGA complex Deposited 2022-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain R 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8WAK Structure of transcribing complex 2 (TC2), the initially transcribing complex with Pol II positioned 2nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.47 Å
8WAL Structure of transcribing complex 3 (TC3), the initially transcribing complex with Pol II positioned 3nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.52 Å
8WAN Structure of transcribing complex 4 (TC4), the initially transcribing complex with Pol II positioned 4nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.07 Å
8WAO Structure of transcribing complex 5 (TC5), the initially transcribing complex with Pol II positioned 5nt downstream of TSS. Deposited 2023-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.40 Å
8WAP Structure of transcribing complex 6 (TC6), the initially transcribing complex with Pol II positioned 6nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.85 Å
8WAQ Structure of transcribing complex 7 (TC7), the initially transcribing complex with Pol II positioned 7nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.29 Å
8WAR Structure of transcribing complex 8 (TC8), the initially transcribing complex with Pol II positioned 8nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å
8WAS Structure of transcribing complex 9 (TC9), the initially transcribing complex with Pol II positioned 9nt downstream of TSS. Deposited 2023-09-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 48 PDB declaration: 51-meric	Chain L 1–161（161 aa） Chain l 1–161（161 aa）	Not recorded	ZN ZINC ION × 17 SF4 IRON/SULFUR CLUSTER × 1 MG MAGNESIUM ION × 1 W0F [[(2~{S},3~{R},4~{S},5~{R})-5-(2-azanyl-6-oxidanylidene-3~{H}-purin-9-yl)-3-methoxy-4-oxidanyl-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] phosphono hydrogen phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.9 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.13 Å
9RDK Cryo-EM structure of the human SAGA co-activator complex Deposited 2025-06-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: 13-meric	Chain G 1–161（161 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.41 Å

33 other PDB entries and 33 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	T2DA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–76； UniProt 57–128 Author chain D； PDBConstruct 5–76； UniProt 57–128

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

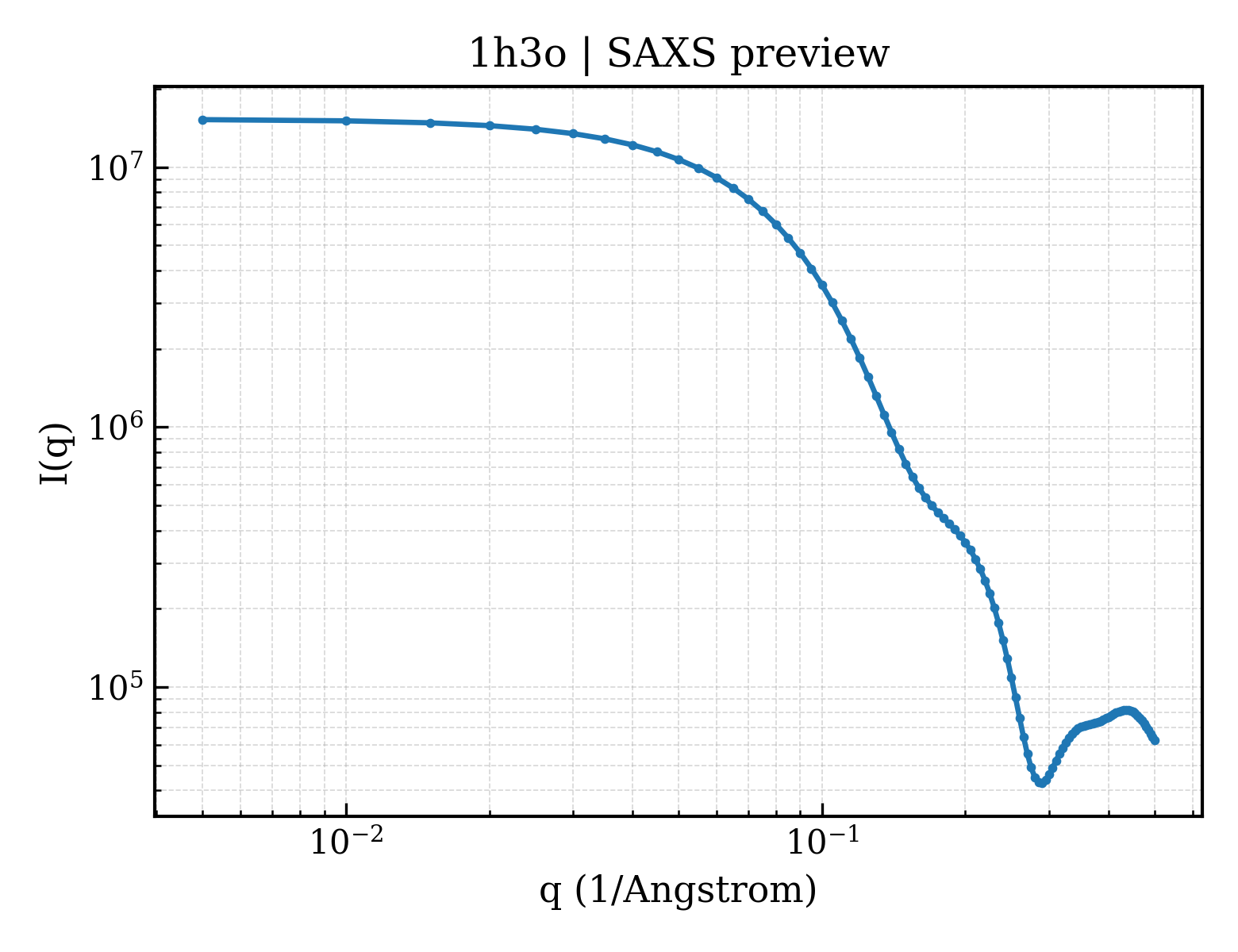

SAXS scattering curve SAXS Profile

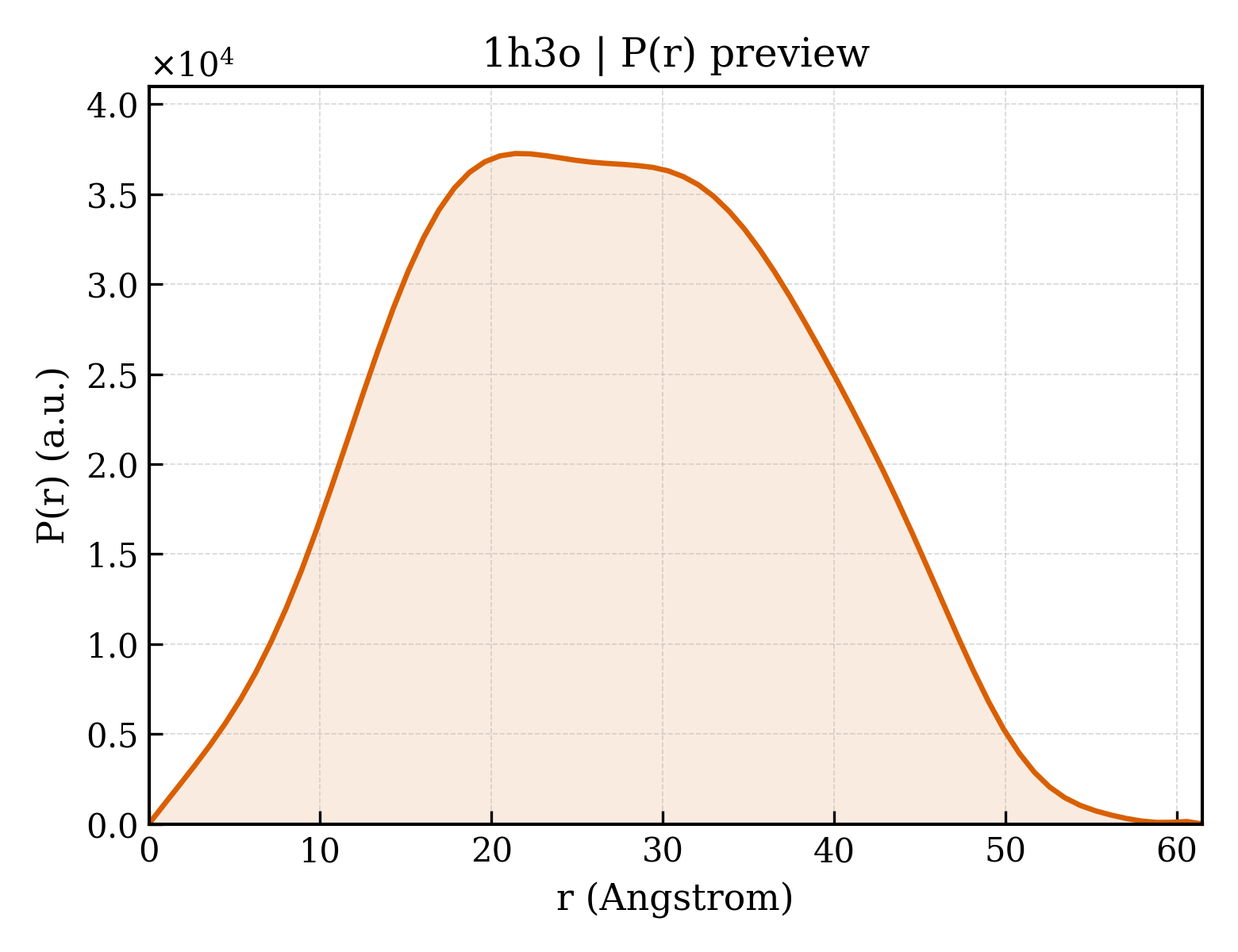

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1h3o
Deposition date deposition_date	2002-09-12
Structure title title	Crystal Structure of the Human TAF4-TAF12 (TAFII135-TAFII20) Complex
Keywords keywords	;TRANSCRIPTION/TBP-ASSOCIATED FACTORS, TBP-ASSOCIATED FACTORS, TFIID, RNA POLYMERASE II TRANSCRIPTION, HISTONE FOLD DOMAINS, NUCLEAR PROTEIN, TRANSCRIPTION-TBP-ASSOCIATED FACTORS complex ;; TRANSCRIPTION/TBP-ASSOCIATED FACTORS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.66 Å
Radius of gyration Rg (electron density) rg_electron	19.58 Å
Forward intensity I(0) i0	15288300.00
Molecular weight molecular_weight	29078.0 kDa
Excluded volume excluded_volume	36109 Å³
Envelope volume envelope_volume	42528 Å³
Hydration-shell volume shell_volume	18229 Å³
Envelope diameter envelope_diameter	61.9 Å
Shell Rg shell_rg	25.71 Å
Envelope Rg envelope_rg	19.57 Å
Shape Rg shape_rg	19.62 Å
Total Rg total_rg	20.29 Å
Total atoms total_atoms	2014
Residues n_residues	240
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.5 Å
Rg (real space) rg_real	20.55 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	1.5290e+07
I(0) uncertainty (real space) i0_real_error	1.7040e+05
Rg (reciprocal space) rg_reciprocal	20.57 Å
I(0) (reciprocal space) i0_reciprocal	15290000.0000
Solution quality estimate total_estimate	0.9150
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.4 Å
Skewness Skewness skewness	0.082
Kurtosis Kurtosis kurtosis	-0.692
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4325000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRANSCRIPTION INITIATION FACTOR TFIID 135 KDA SUBUNIT
Molecular weight formula_weight	8813.8 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	2172

MFLLQAPLQRRILEIGKKHGITELHPDVVSYVSHATQQRLQNLVEKISETAQQKNFSYKDDDRYEQASDVRAQLK

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	TRANSCRIPTION INITIATION FACTOR TFIID 20/15 KDA SUBUNITS
Molecular weight formula_weight	9053.8 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GSHMVLTKKKLQDLVREVDPNEQLDEDVEEMLLQIADDFIESVVTAACQLARHRKSSTLEVKDVQLHLERQWNMWI

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	158

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1h3oa_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.3 — TBP-associated factors, TAFs

Domain ID domain_id	d1h3ob1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.3 — TBP-associated factors, TAFs

Domain ID domain_id	d1h3ob2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1h3oc_
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.3 — TBP-associated factors, TAFs

Domain ID domain_id	d1h3od1
Class class	a — All alpha proteins
Fold Fold fold	a.22 — Histone-fold
Superfamily Superfamily superfamily	a.22.1 — Histone-fold
Family Family family	a.22.1.3 — TBP-associated factors, TAFs

Domain ID domain_id	d1h3od2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1h3oA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1h3oB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1h3oC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

Domain ID domain_id	1h3oD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	20 — Histone, subunit A
Homologous superfamily homologous superfamily	10 — Histone, subunit A

▶

8. Citations (2)

▶

Unit-cell length a length_a	112.940 Å
Unit-cell length b length_b	36.825 Å
Unit-cell length c length_c	73.948 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.630 Å
R factor r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2720

fit	/app/data/saxs_computation/h3/1h3o/1h3o.fit
pddf	/app/data/pr_computation/h3/1h3o/1h3o.pr.out
profile	/app/data/saxs_computation/h3/1h3o/1h3o.dat

Crystal Structure of the Human TAF4-TAF12 (TAFII135-TAFII20) Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRANSCRIPTION INITIATION FACTOR TFIID 135 KDA SUBUNIT

State in the Current Structure

Other States of the Same Protein in the Database

TRANSCRIPTION INITIATION FACTOR TFIID 20/15 KDA SUBUNITS

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

CATH v4.4 (4 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
