1. Protein Identity and Related Structures Protein Identity & Related Structures

COLICIN-E2 IMMUNITY PROTEIN

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	COLICIN-E9 × 1 （P09883） GLYCEROL × 2 NITRATE ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IMM2_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–86； UniProt 1–86

COLICIN-E9

ESCHERICHIA COLI

UniProt P09883

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	COLICIN-E2 IMMUNITY PROTEIN × 1 （P04482） GLYCEROL × 2 NITRATE ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CEA9_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–134； UniProt 450–582

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wpt
Deposition date deposition_date	2009-08-10
Structure title title	The crystal structure of Im2 in complex with colicin E9 DNase
Keywords keywords	IMMUNE SYSTEM, NUCLEASE, ANTIMICROBIAL, BACTERIOCIN IMMUNITY, HYDROLASE, ANTIBIOTIC, ENDONUCLEASE; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2wpt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2wpt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

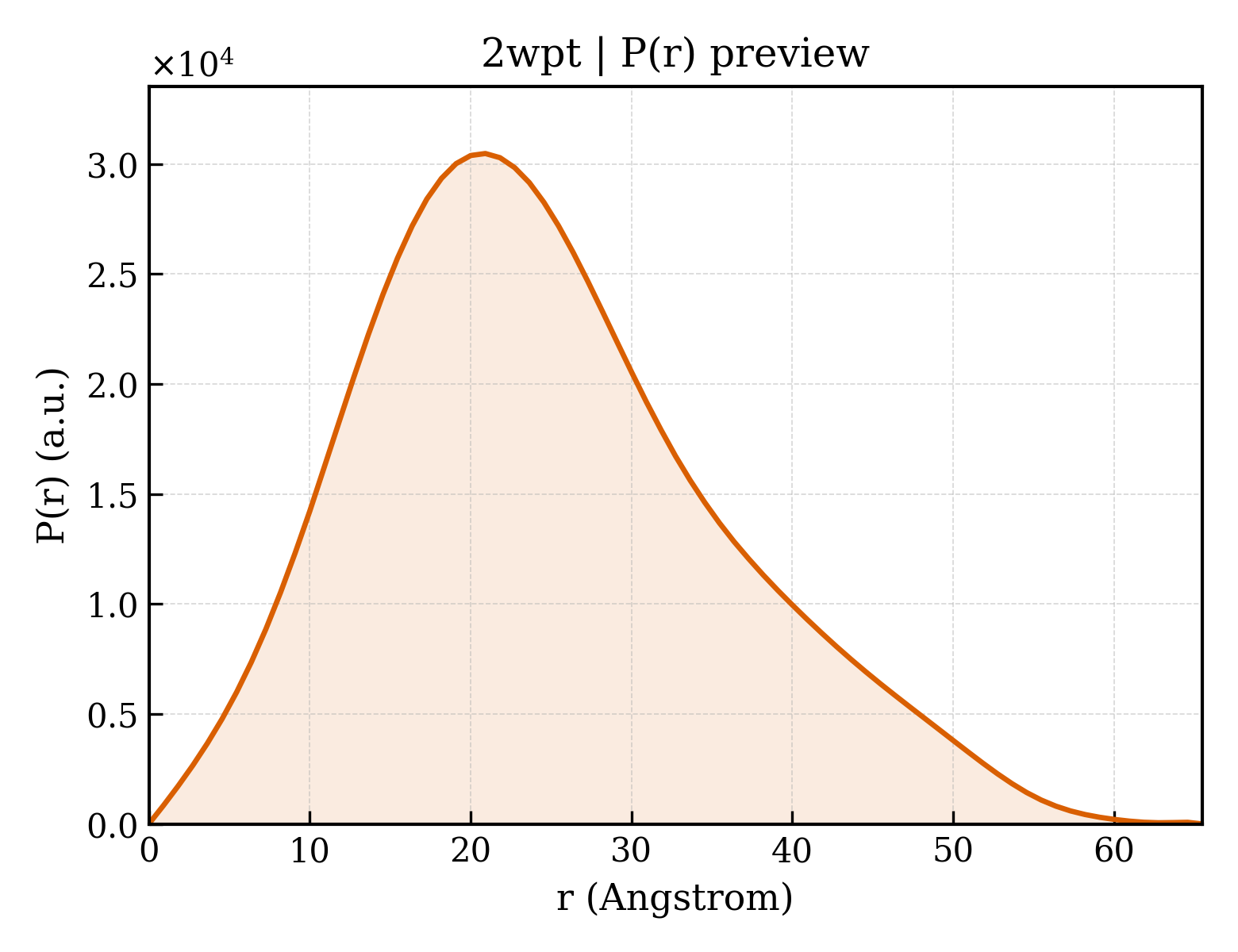

2wpt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.00 Å
Rg (electron density)	18.26 Å
Total Rg	19.15 Å
Atom count	1586
Residues	195
Excluded volume	27740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2wpt__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	COLICIN-E2 IMMUNITY PROTEIN
Molecular weight formula_weight	9953.0 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1725

MELKHSISDYTEAEFLEFVKKIARAEGATECDDNKLVREFERLTEHPDGSDLIYYPRDDREDSPEGIVKEIKEWRAANGKSGFKQG

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	COLICIN-E9
Molecular weight formula_weight	15166.1 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MESKRNKPGKATGKGKPVGDKWLDDAGKDSGAPIPDRIADKLRDKEFKSFDDFRKAVWEEVSKDPELSKNLNPSNKSSVSKGYSPFTPKNQQVGCRKVYELHHDKPISQGGEVYDMDNIRVTTPKRHIDIHRGK

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	111

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2wpta_
Class class	a — All alpha proteins
Fold Fold fold	a.28 — Acyl carrier protein-like
Superfamily Superfamily superfamily	a.28.2 — Colicin E immunity proteins
Family Family family	a.28.2.1 — Colicin E immunity proteins

Domain ID domain_id	d2wptb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.4 — His-Me finger endonucleases
Superfamily Superfamily superfamily	d.4.1 — His-Me finger endonucleases
Family Family family	d.4.1.1 — HNH-motif

CATH v4.4 (2 domains)

Domain ID domain_id	2wptA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	20 — Colicin E immunity protein

Domain ID domain_id	2wptB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	540 — Colicin E7 immunity protein; Chain B, fragment: Endonuclease domain
Homologous superfamily homologous superfamily	10 — Colicin/pyocin, DNase domain

▶

Unit-cell length a length_a	76.229 Å
Unit-cell length b length_b	82.897 Å
Unit-cell length c length_c	89.528 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.780 Å
Low-resolution limit resolution_low	19.590 Å
R factor r_factor	0.1943
R_work r_work	0.1928
R_free r_free	0.2229

The crystal structure of Im2 in complex with colicin E9 DNase
