3fzb

Crystal structure of the tail terminator protein from phage lambda (gpU-WT)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Minor tail protein U

Enterobacteria phage lambda

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	SULFATE ION × 2 water × 5	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 5	SULFATE ION × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VMTU_LAMBD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–134； UniProt 1–131 Author chain B； PDBConstruct 4–134； UniProt 1–131 Author chain C； PDBConstruct 4–134； UniProt 1–131 Author chain D； PDBConstruct 4–134； UniProt 1–131 Author chain E； PDBConstruct 4–134； UniProt 1–131 Author chain F； PDBConstruct 4–134； UniProt 1–131 Author chain G； PDBConstruct 4–134； UniProt 1–131 Author chain H； PDBConstruct 4–134； UniProt 1–131 Author chain I； PDBConstruct 4–134； UniProt 1–131 Author chain J； PDBConstruct 4–134； UniProt 1–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3fzb
Deposition date deposition_date	2009-01-24
Structure title title	Crystal structure of the tail terminator protein from phage lambda (gpU-WT)
Keywords keywords	Mixed Alpha-Beta fold, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3fzb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

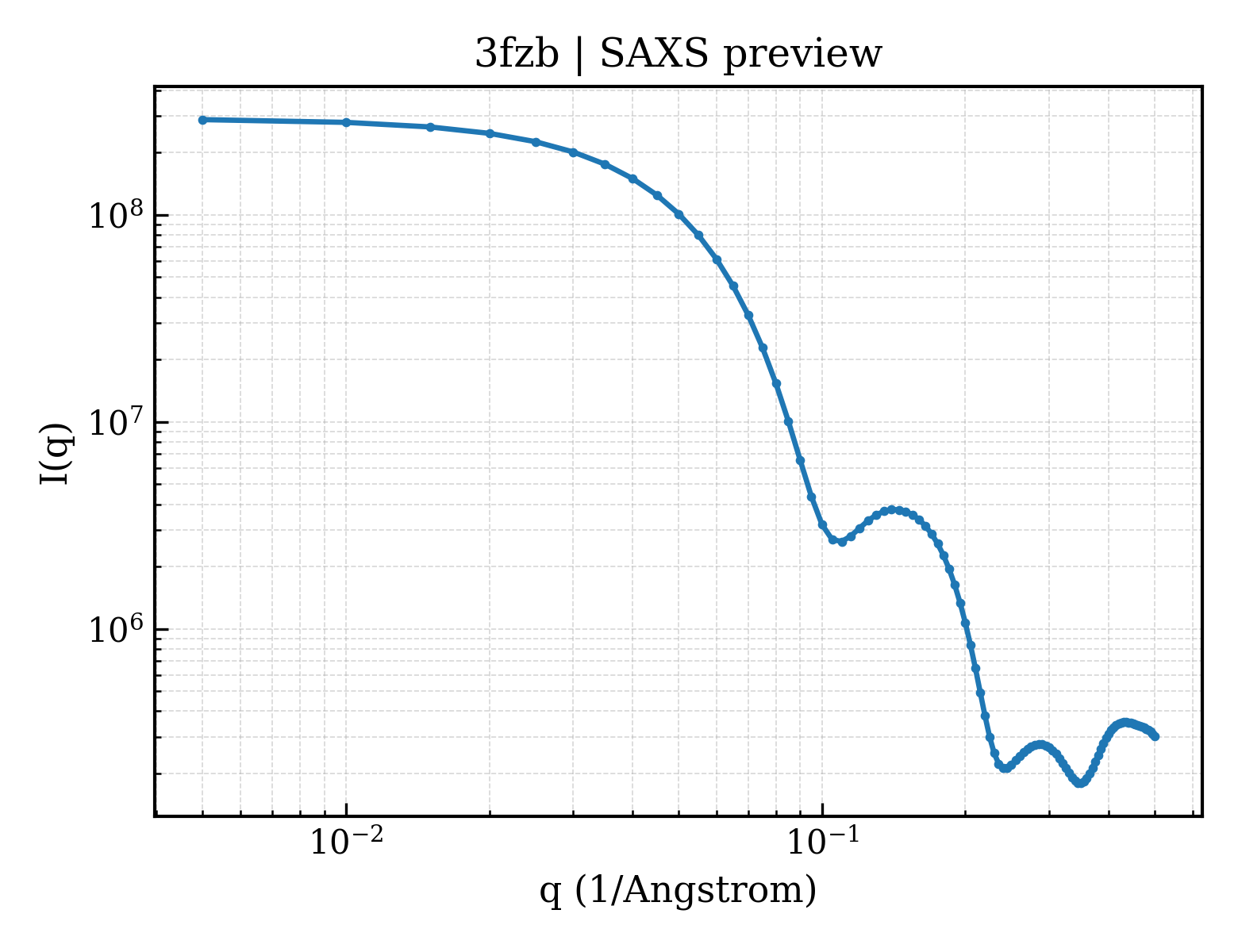

3fzb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

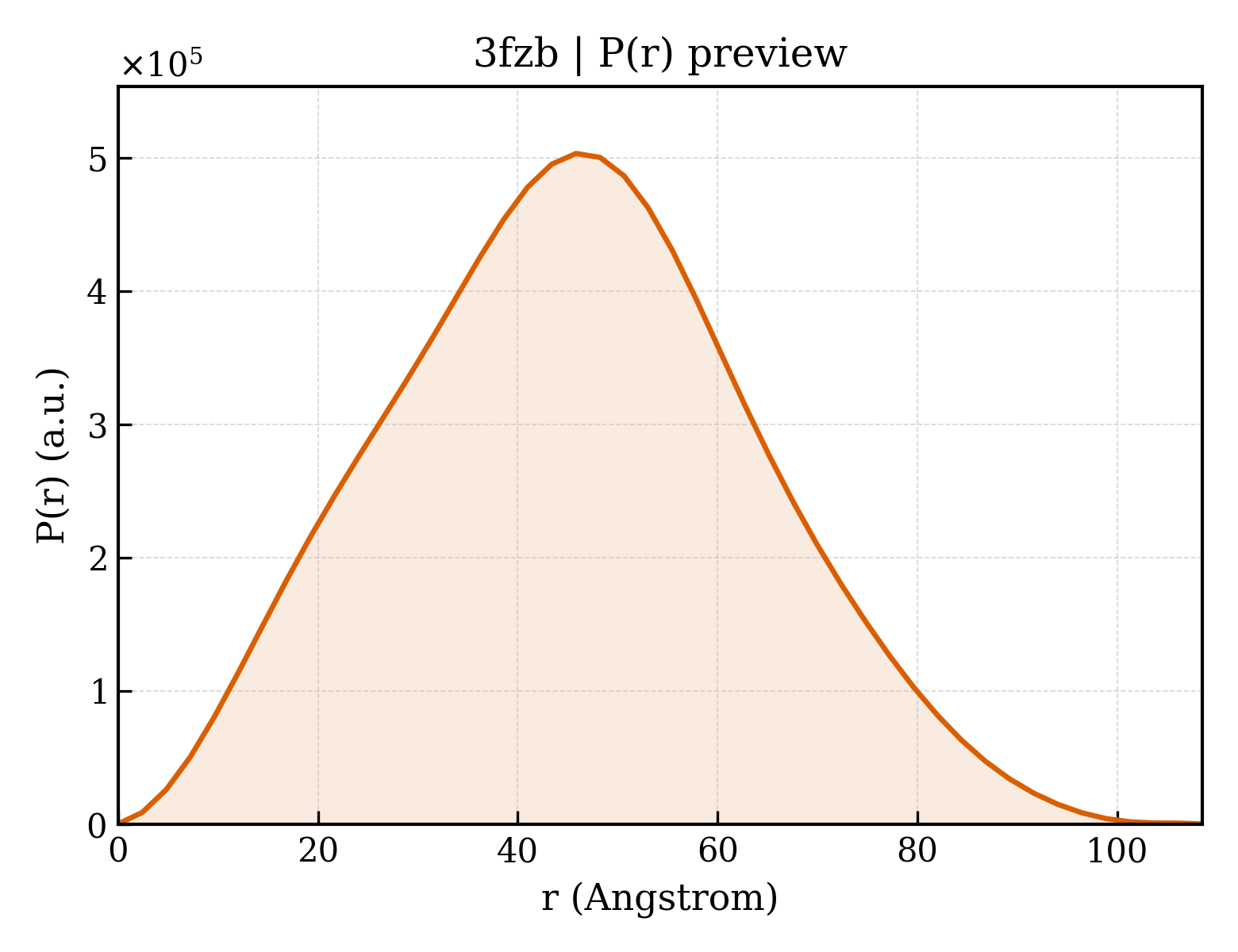

3fzb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.65 Å
Rg (electron density)	26.78 Å
Total Rg	27.70 Å
Atom count	4821
Residues	646
Excluded volume	84811 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3fzb__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3fzb__assembly_2__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Minor tail protein U
Molecular weight formula_weight	14941.4 kDa
Source method src_method	man
Copy count entity_count	10

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J
Atom count atom_count	9748

GSHMKHTELRAAVLDALEKHDTGATFFDGRPAVFDEADFPAVAVYLTGAEYTGEELDSDTWQAELHIEVFLPAQVPDSELDAWMESRIYPVMSDIPALSDLITSMVASGYDYRRDDDAGLWSSADLTYVITYEM

Source Source

Source organism organism	Enterobacteria phage lambda
Common name common_name	Bacteriophage lambda
NCBI taxonomy ID ncbi_taxonomy_id	10710
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	109

▼

6. Fold Classification (SCOP + CATH) 27 domains

SCOP 2.08 (17 domains)

Domain ID domain_id	d3fzba1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzba2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbe_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbf1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbf2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbg1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbg2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3fzbh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbi_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbj1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.323 — Phage tail protein-like
Superfamily Superfamily superfamily	d.323.1 — Phage tail protein-like
Family Family family	d.323.1.1 — Lambda phage gpU-like

Domain ID domain_id	d3fzbj2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (10 domains)

Domain ID domain_id	3fzbA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbG00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbI00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

Domain ID domain_id	3fzbJ00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1700 — Phage minor tail protein U

▶

Unit-cell length a length_a	74.100 Å
Unit-cell length b length_b	127.990 Å
Unit-cell length c length_c	82.910 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.92 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	20

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	70.100 Å
R factor r_factor	0.2360
R_work r_work	0.2360
R_free r_free	0.3090
