3qyn

Structure of p63 DNA Binding Domain in Complex with a 22 Base Pair A/T Rich Response Element Containing 2 Base Pair Spacer Between Half Sites

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor protein 63

Homo sapiens

UniProt Q9H3D4

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–DNA Homooligomer Protein 4 DNA 2 5'-D(*AP*AP*AP*CP*AP*TP*GP*TP*TP*TP*TP*AP*AP*AP*AP*CP*AP*TP*GP*TP*TP*T)-3' × 2 ZINC ION × 4 water × 6 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer
1rg6 2rmn 2y9t 2y9u

4 assemblies

Homodimer

None

Homotetramer
3zy0 3zy1 4a9z

3 assemblies

Other homooligomers

None

Heteromeric or nucleic-acid complex
2nb1 3qym 3qym 3qym 3qyn 3us0 3us1 3us2 3us2 6fgn 6ru6 6ru7

30 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name P63_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 7–203； UniProt 166–362 Author chain B； PDBConstruct 7–203； UniProt 166–362 Author chain C； PDBConstruct 7–203； UniProt 166–362 Author chain D； PDBConstruct 7–203； UniProt 166–362

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3qyn
Deposition date deposition_date2011-03-03
Structure title titleStructure of p63 DNA Binding Domain in Complex with a 22 Base Pair A/T Rich Response Element Containing 2 Base Pair Spacer Between Half Sites
Keywords keywords;B DNA double helix, protein-DNA complex, zinc binding, beta sandwich, greek key, transcription factor, DNA binding, nucleus, TRANSCRIPTION ACTIVATOR-DNA complex ;; TRANSCRIPTION ACTIVATOR/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3qyn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

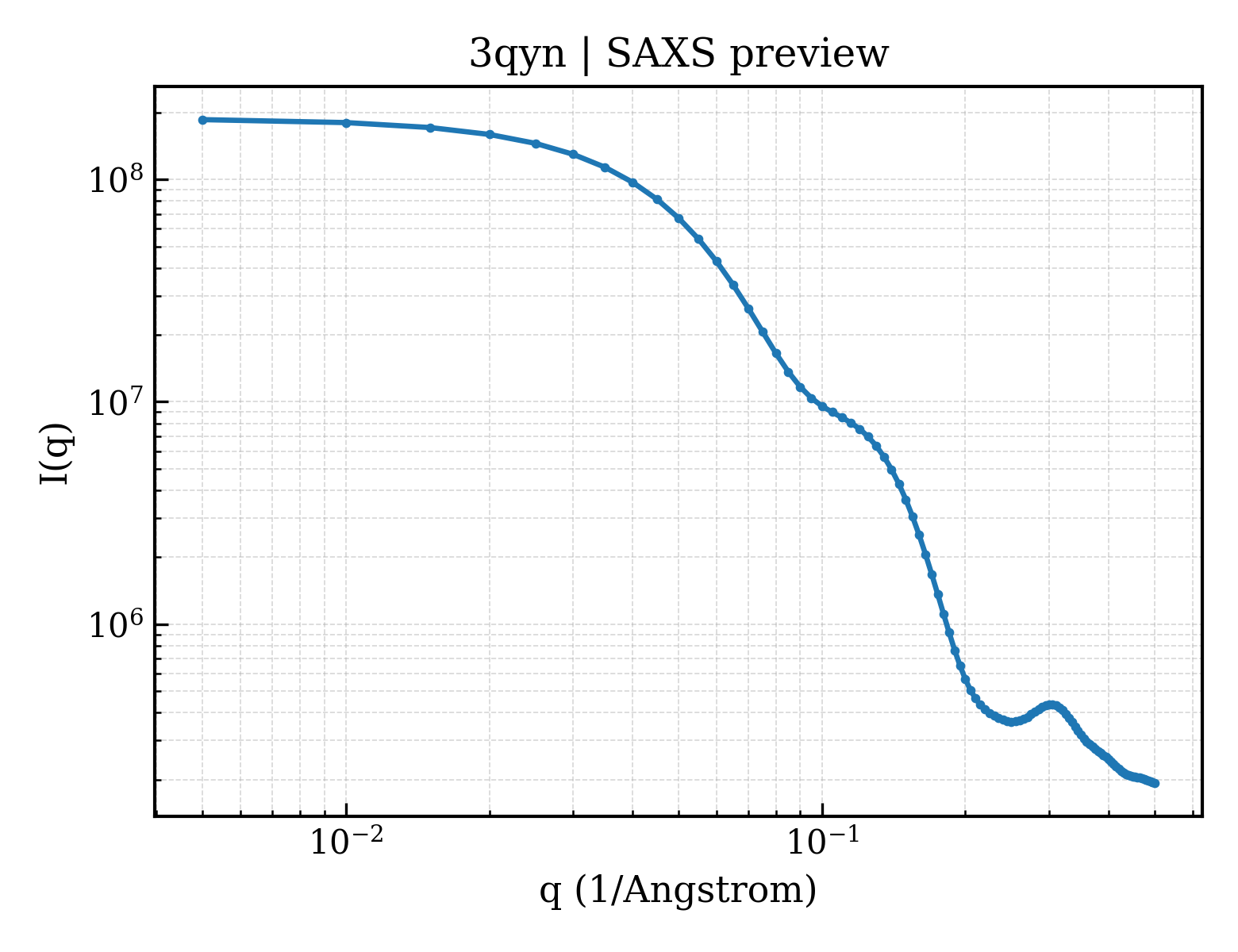

3qyn__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

3qyn__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）35.04 Å
Rg (electron density)35.54 Å
Total Rg35.73 Å
Atom count6866
Residues818
Excluded volume118900 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 3qyn__assembly_1__model_1 hexameric （6） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (8 domains)

Domain ID domain_idd3qyna1
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.2 — p53 DNA-binding domain-like
Domain ID domain_idd3qyna2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd3qynb1
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.2 — p53 DNA-binding domain-like
Domain ID domain_idd3qynb2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd3qync1
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.2 — p53 DNA-binding domain-like
Domain ID domain_idd3qync2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags
Domain ID domain_idd3qynd1
Class classb — All beta proteins
Fold Fold foldb.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamilyb.2.5 — p53-like transcription factors
Family Family familyb.2.5.2 — p53 DNA-binding domain-like
Domain ID domain_idd3qynd2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id3qynA00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
Domain ID domain_id3qynB00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
Domain ID domain_id3qynC00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
Domain ID domain_id3qynD00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily720 —
▶

7. Citations (1)
