1rg6

Solution structure of the C-terminal domain of p63

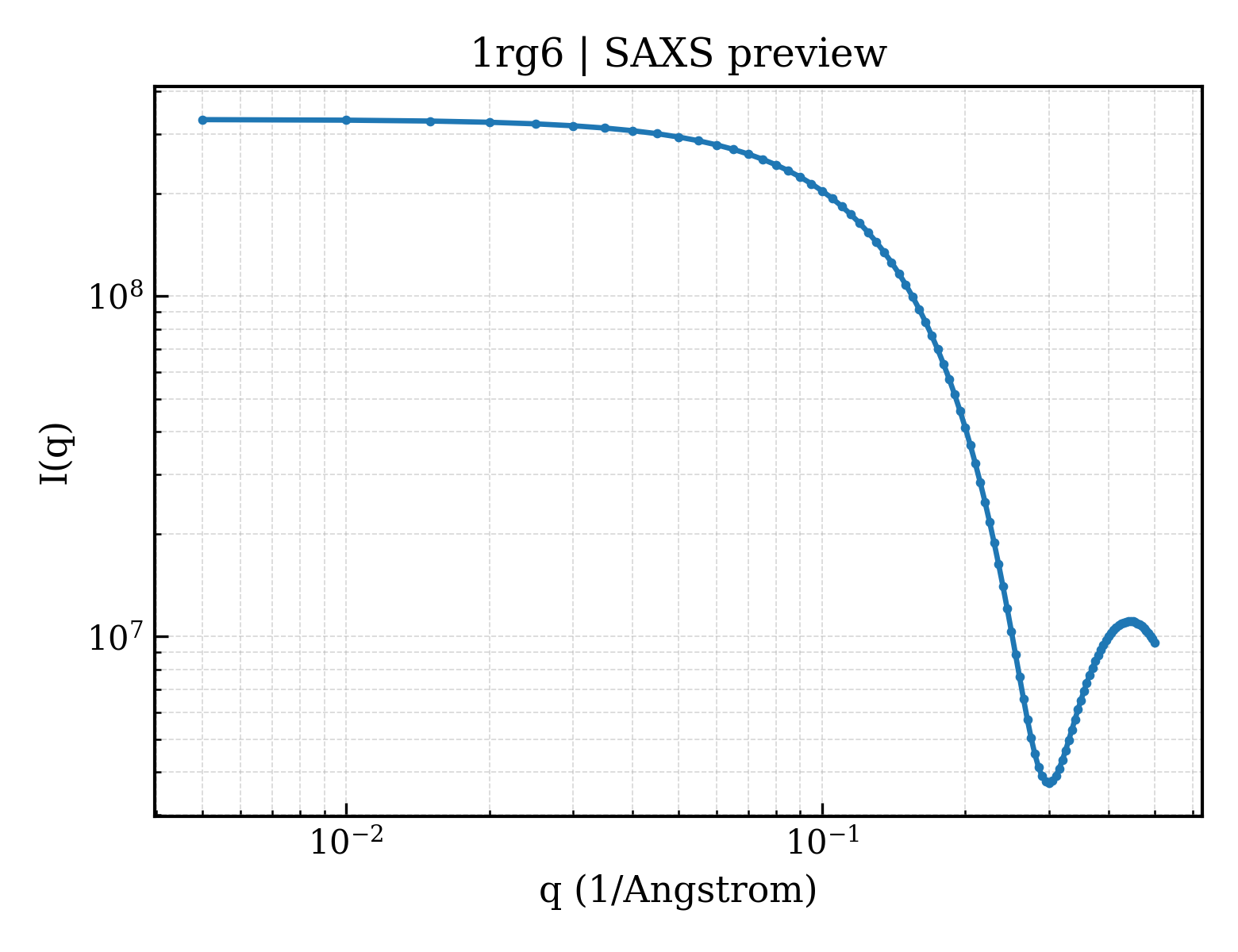

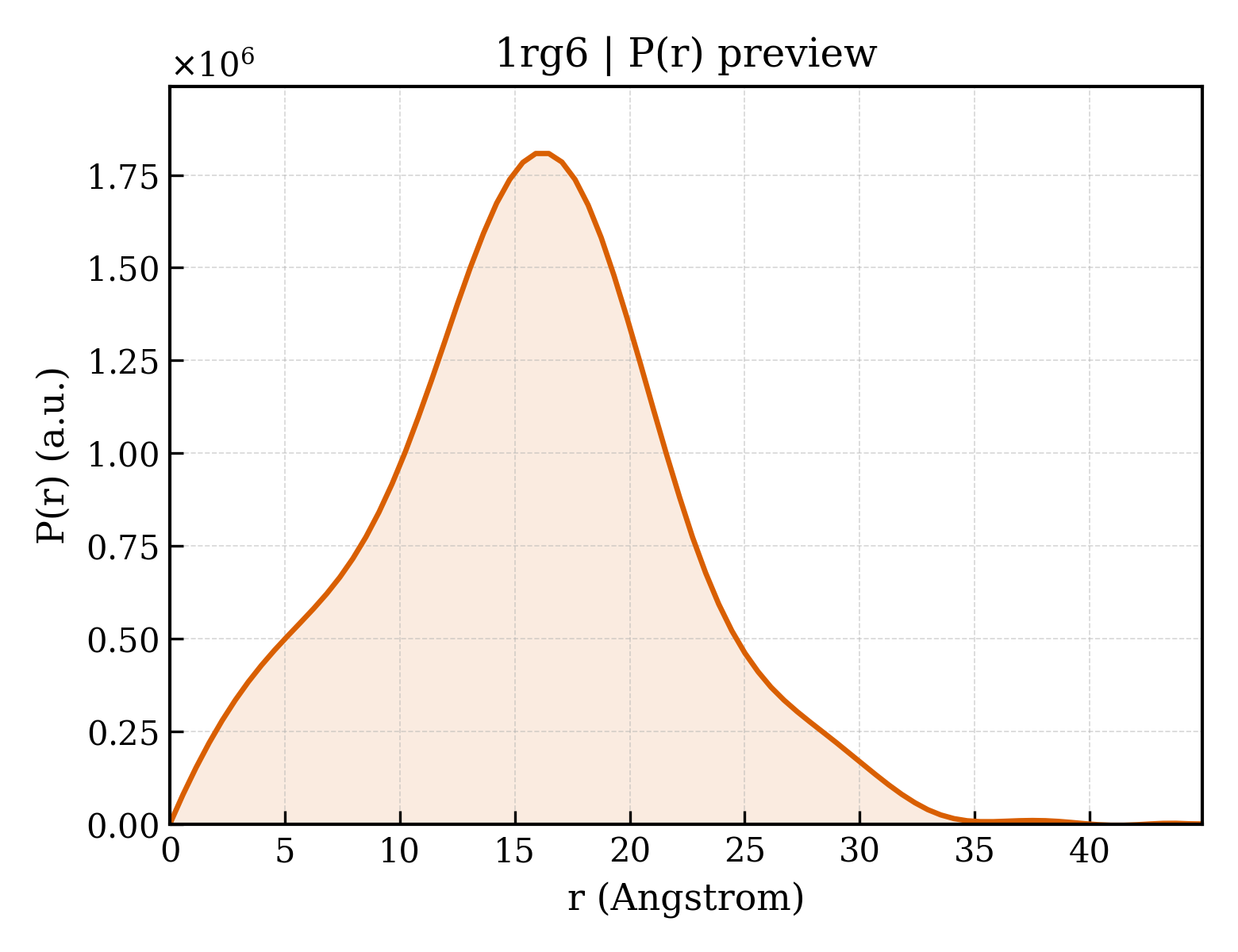

Method: SOLUTION NMR Dmax: 44.9 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

second splice variant p63

Homo sapiens

UniProt Q9H3D4

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 501–575 Fragment：C-terminal domain (residues 501-575) No other associated polymer SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 150mM NaCl；Pressure ambient NMR sample composition：0.75mM p63 U-15N, 25mM sodium posphate, 150mM sodium chloride, 1mM AEBSF, 3mM DTT, 95% H20, 5%D2O | 95% H20, 5%D2O NMR sample composition：0.25mM p63 U-15N U-13C, 25mM sodium posphate, 150mM sodium chloride, 1mM AEBSF, 3mM DTT, 95% H20, 5%D2O | 95% H20, 5%D2O NMR sample composition：0.25mM p63 U-15N U-13C, 25mM sodium posphate, 150mM sodium chloride, 1mM AEBSF, 3mM DTT, 100% D2O | 100% D2O NMR sample composition：0.75mM p63 U-15N, 25mM sodium posphate, 150mM sodium chloride, 1mM AEBSF, 3mM DTT, phage | phage Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1RG6 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2NB1 P63/p73 hetero-tetramerisation domain Deposited 2016-01-19 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 397–455（59 aa） Fragment：Tetramerization domain of 63, UNP residues 397-455
Chain C 397–455（59 aa） Fragment：Tetramerization domain of 63, UNP residues 397-455
Mutation：K21E Mutation：K21E No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；310 K；Ionic strength (raw mmCIF value) 75；Pressure ambient
NMR measurement conditions pH 6；310 K；Ionic strength (raw mmCIF value) 5；Pressure ambient
NMR sample composition 0.5 mM [U-100% 13C; U-100% 15N] p63 tetramerization domain, 0.5 mM p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 0.5 mM p63 tetramerization domain, 0.5 mM [U-100% 13C; U-100% 15N] p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 0.5 mM [U-100% 15N] p63 tetramerization domain, 0.5 mM [U-100% 13C] p63 tetramerization domain, 1 mM p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 1 mM p63 tetramerization domain, 0.5 mM [U-100% 15N] p73 tetramerization domain, 0.5 mM [U-100% 13C] p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O
NMR sample composition 0.5 mM [U-100% 15N] p63 tetramerization domain, 0.5 mM p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 100% D2O | 100% D2O
NMR sample composition 0.5 mM p63 tetramerization domain, 0.5 mM [U-100% 15N] p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 100% D2O | 100% D2O
NMR sample composition 0.5 mM [U-100% 15N] p63 tetramerization domain, 0.5 mM [U-100% 13C] p63 tetramerization domain, 0.5 mM [U-100% 15N] p73 tetramerization domain, 0.5 mM [U-100% 13C] p73 tetramerization domain, 25 mM HEPES, 50 mM sodium chloride, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2RMN The solution structure of the p63 DNA-binding domain Deposited 2007-11-01 Different construct Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 153–384（232 aa） Fragment：DNA binding domain, UNP residues 153-384
Not recorded ZN ZINC ION × 1 SOLUTION NMR
NMR measurement conditions pH 6.8；303 K；Ionic strength (raw mmCIF value) 100；Pressure ambient
NMR sample composition 0.7mM [U-15N] p63BDB; 50mM potassium chloride; 50mM potassium phosphate; 5mM DTT; 95% H2O, 5% D2O | 95% H2O/5% D2O
NMR sample composition 0.7mM [U-13C; U-15N] p63BDB; 50mM potassium chloride; 50mM potassium phosphate; 5mM DTT; 95% H2O, 5% D2O | 95% H2O/5% D2O
Resolution not provided
2Y9T Structural basis of p63a SAM domain mutants involved in AEC syndrome Deposited 2011-02-16 Different construct Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 543–622（80 aa） Fragment：SAM DOMAIN, RESIDUES 543-622
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 150
NMR sample composition 90% WATER/10% D2O
Resolution not provided
2Y9U Structural basis of p63a SAM domain mutants involved in AEC syndrome Deposited 2011-02-16 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 545–611（67 aa） Fragment：SAM DOMAIN, RESIDUES 545-611
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；100 MM SODIUM CITRATE, PH 6.4, 500MM LITHIUM SULPHATE, 500MM AMMONIUM SULPHATE, 5MM DTT
Resolution 1.60 Å R-free 0.206
3QYM Structure of p63 DNA Binding Domain in Complex with a 10 Base Pair A/T Rich Response Element Half Site Deposited 2011-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: octameric
Chain A 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain B 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain C 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；10% PEG3350, 0.2 M ammonium formate, 0.1 M Bis-Tris, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.271
3QYM Structure of p63 DNA Binding Domain in Complex with a 10 Base Pair A/T Rich Response Element Half Site Deposited 2011-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 4 PDB declaration: octameric
Chain E 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain F 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain G 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain H 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；10% PEG3350, 0.2 M ammonium formate, 0.1 M Bis-Tris, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.271
3QYM Structure of p63 DNA Binding Domain in Complex with a 10 Base Pair A/T Rich Response Element Half Site Deposited 2011-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Homooligomer；Protein × 4 PDB declaration: octameric
Chain C 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain E 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain F 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；10% PEG3350, 0.2 M ammonium formate, 0.1 M Bis-Tris, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 3.20 Å R-free 0.271
3QYN Structure of p63 DNA Binding Domain in Complex with a 22 Base Pair A/T Rich Response Element Containing 2 Base Pair Spacer Between Half Sites Deposited 2011-03-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain A 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain B 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain C 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；20% PEG3350, 0.2 M ammonium acetate, 0.1 M Bis-Tris, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.245
3US0 Structure of p63 DNA Binding Domain in Complex with a 22 Base Pair A/T Rich Response Element Containing a Two Base Pair "AT" Spacer Between Half Sites Deposited 2011-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain A 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain B 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain C 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；14% PEG3350, 0.2 M ammonium acetate, 0.1 M Bis-Tris, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.239
3US1 Structure of p63 DNA Binding Domain in Complex with a 22 Base Pair Response Element Containing a Two Base Pair "GC" Spacer Between Half Sites Deposited 2011-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain A 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；0.2 M ammonium phosphate monobasic, 0.1 M Bis-Tris, pH 6.8, 14% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.234
3US2 Structure of p63 DNA Binding Domain in Complex with a 19 Base Pair A/T Rich Response Element Containing Two Half Sites with a Single Base Pair Overlap Deposited 2011-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain A 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain B 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain C 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain D 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；0.2 M ammonium formate, 0.1 M Bis-Tris, pH 6.8, 12% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.20 Å R-free 0.334
3US2 Structure of p63 DNA Binding Domain in Complex with a 19 Base Pair A/T Rich Response Element Containing Two Half Sites with a Single Base Pair Overlap Deposited 2011-11-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Homooligomer；Protein × 4 PDB declaration: hexameric
Chain G 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain H 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain I 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Chain J 166–362（197 aa） Fragment：DNA binding domain (UNP residues 166-362)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；0.2 M ammonium formate, 0.1 M Bis-Tris, pH 6.8, 12% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 4.20 Å R-free 0.334
3ZY0 Crystal structure of a truncated variant of the human p63 tetramerization domain lacking the C-terminal helix Deposited 2011-08-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 304–333（30 aa） Fragment：TRUNCATED TETRAMERIZATION DOMAIN, RESIDUES 304-333
Chain B 304–333（30 aa） Fragment：TRUNCATED TETRAMERIZATION DOMAIN, RESIDUES 304-333
Chain C 304–333（30 aa） Fragment：TRUNCATED TETRAMERIZATION DOMAIN, RESIDUES 304-333
Chain D 304–333（30 aa） Fragment：TRUNCATED TETRAMERIZATION DOMAIN, RESIDUES 304-333
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；SITTING DROP VAPOR DIFFUSION AT 17 DEGREE C. PROTEIN SOLUTION: 12-15 MG/ML IN 20 MM TRIS PH 8.5, 50 MM NACL CRYSTALLIZATION BUFFER: 30% PEG 400, 0.1 M HEPES PH 7.5, 0.2 M MG CHLORIDE.
Resolution 1.90 Å R-free 0.252
3ZY1 Crystal structure of the human p63 tetramerization domain Deposited 2011-08-16 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 398–441（44 aa） Fragment：TETRAMERIZATION DOMAIN, RESIDUES 398-441
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；SITTING DROP VAPOR DIFFUSION AT 17 DEGREE C. PROTEIN SOLUTION: 12-15 MG/ML IN 20 MM TRIS PH 8.5, 50 MM NACL CRYSTALLIZATION BUFFER: 10% PEG 8000, 0.1 M HEPES PH 7.5, AND 0.2 M CA ACETATE
Resolution 2.15 Å R-free 0.285
4A9Z CRYSTAL STRUCTURE OF HUMAN P63 TETRAMERIZATION DOMAIN Deposited 2011-11-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 397–455（59 aa） Fragment：TETRAMERIZATION DOMAIN, RESIDUES 397-455
Chain B 397–455（59 aa） Fragment：TETRAMERIZATION DOMAIN, RESIDUES 397-455
Chain C 397–455（59 aa） Fragment：TETRAMERIZATION DOMAIN, RESIDUES 397-455
Chain D 397–455（59 aa） Fragment：TETRAMERIZATION DOMAIN, RESIDUES 397-455
Not recorded PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.29 Å R-free 0.246
6FGN Solution Structure of p300Taz2-p63TA Deposited 2018-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 47–73（27 aa） Fragment：Taz2,transactivation domain
Not recorded ZN ZINC ION × 3 SOLUTION NMR
NMR measurement conditions pH 6.3；303 K；Ionic strength (raw mmCIF value) 200；Pressure AMBIENT
NMR sample composition 1200 mM [U-13C; U-15N] Fusion construct of p300 Taz2 and the transactivation domain of p63, 25 mM MES, 200 mM NaCl, 0.5 mM TCEP, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
6RU6 Crystal structure of Casein Kinase I delta (CK1d) in complex with monophosphorylated p63 PAD1P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 618–630（13 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 2.05 Å R-free 0.257
6RU7 Crystal structure of Casein Kinase I delta (CK1d) in complex with double phosphorylated p63 PAD2P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 618–633（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 10 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 2.08 Å R-free 0.218
6RU7 Crystal structure of Casein Kinase I delta (CK1d) in complex with double phosphorylated p63 PAD2P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 618–633（16 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 2.08 Å R-free 0.218
6RU8 Crystal structure of Casein Kinase I delta (CK1d) in complex with triple phosphorylated p63 PAD3P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 621–632（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 5 NA SODIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 1.92 Å R-free 0.211
6RU8 Crystal structure of Casein Kinase I delta (CK1d) in complex with triple phosphorylated p63 PAD3P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 621–632（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 4 NA SODIUM ION × 1 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 1.92 Å R-free 0.211
6RU8 Crystal structure of Casein Kinase I delta (CK1d) in complex with triple phosphorylated p63 PAD3P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 621–632（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 1.92 Å R-free 0.211
6RU8 Crystal structure of Casein Kinase I delta (CK1d) in complex with triple phosphorylated p63 PAD3P peptide Deposited 2019-05-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 621–632（12 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；10-20% PEG 3350, 0.1-0.2 M sodium sulfate and 0.1 M citrate, pH 4.6-5.9
Resolution 1.92 Å R-free 0.211
7Z71 Crystal structure of p63 DBD in complex with darpin C14 Deposited 2022-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 68–269（202 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；25% PEG 3350, 0.2 M sodium chloride, 0.1 M HEPES pH 7.5
Resolution 1.85 Å R-free 0.181
7Z71 Crystal structure of p63 DBD in complex with darpin C14 Deposited 2022-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 68–269（202 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；25% PEG 3350, 0.2 M sodium chloride, 0.1 M HEPES pH 7.5
Resolution 1.85 Å R-free 0.181
7Z72 Crystal structure of p63 SAM in complex with darpin A5 Deposited 2022-03-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 460–526（67 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；25% PEG3350, 0.1 M citrate pH 3.5
Resolution 1.80 Å R-free 0.188
7Z73 Crystal structure of p63 tetramerization domain in complex with darpin 8F1 Deposited 2022-03-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 303–361（59 aa）
Chain B 303–361（59 aa）
Chain C 303–361（59 aa）
Chain D 303–361（59 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；25% PEG3350, 0.2 M sodium chloride, 0.1 M bis-tris pH 5.5
Resolution 2.27 Å R-free 0.235
7Z7E Crystal structure of p63 DNA binding domain in complex with inhibitory DARPin G4 Deposited 2022-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 68–269（202 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；25% PEG 3350 0.2M Li2SO4 0.1M HEPES
Resolution 1.80 Å R-free 0.249
8P9C Crystal structure of p63-p73 heterotetramer (tetramerisation domain) in complex with darpin 1810 F11 Deposited 2023-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 397–455（59 aa）
Not recorded EDO 1,2-ETHANEDIOL × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.2M ammonium acetate, 25% PEG3350, 0.1M HEPES pH 7.5
Resolution 1.76 Å R-free 0.210
8P9D Crystal structure of p63-p73 heterotetramer (tetramerisation domain) in complex with darpin 1810 A2 Deposited 2023-06-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 397–455（59 aa）
Chain C 397–455（59 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293.15 K；20% PEG3350, 0.1M bis-tris propane pH 7.0, 0.2M salicylic, sodium salt
Resolution 2.70 Å R-free 0.252
8P9E Crystal structure of wild type p63-p73 heterotetramer (tetramerisation domain) in complex with darpin 1810 F11 Deposited 2023-06-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: trimeric
Chain A 303–361（59 aa）
Not recorded GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；0.2M sodium chloride, 25% PEG3350, 0.1M bis-tris pH 6.5
Resolution 2.25 Å R-free 0.250
9GFO iASPP-CTD fusion to p63 peptide Deposited 2024-08-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain AAA 373–381（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M sodium formate and 0.1 M TRIS pH 7.5
Resolution 2.40 Å R-free 0.280
9GFO iASPP-CTD fusion to p63 peptide Deposited 2024-08-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain BBB 373–381（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M sodium formate and 0.1 M TRIS pH 7.5
Resolution 2.40 Å R-free 0.280
9GFO iASPP-CTD fusion to p63 peptide Deposited 2024-08-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain CCC 373–381（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M sodium formate and 0.1 M TRIS pH 7.5
Resolution 2.40 Å R-free 0.280
9GFO iASPP-CTD fusion to p63 peptide Deposited 2024-08-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain DDD 373–381（9 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；2 M sodium formate and 0.1 M TRIS pH 7.5
Resolution 2.40 Å R-free 0.280
9N54 Bipartite p63 NLS in complex with Importin Alpha 2 Deposited 2025-02-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 278–302（25 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；296 K；0.65 M sodium citrate, 0.1 M HEPES and 10 mM DTT
Resolution 2.20 Å R-free 0.206

25 other PDB entries and 36 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name P73L_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–75； UniProt 501–575

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1rg6

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1rg6
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1rg6
Deposition date deposition_date2003-11-11
Structure title titleSolution structure of the C-terminal domain of p63
Keywords keywordsP73 SAM-LIKE DOMAIN, GENE REGULATION; GENE REGULATION
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier11.99 Å
Radius of gyration Rg (electron density) rg_electron11.62 Å
Forward intensity I(0) i0330702000.00
Molecular weight molecular_weight154840.0 kDa
Excluded volume excluded_volume193780 ų
Envelope volume envelope_volume17571 ų
Hydration-shell volume shell_volume11248 ų
Envelope diameter envelope_diameter45.6 Å
Shell Rg shell_rg19.12 Å
Envelope Rg envelope_rg14.03 Å
Shape Rg shape_rg11.62 Å
Total Rg total_rg11.79 Å
Total atoms total_atoms21420
Residues n_residues1340
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax44.9 Å
Rg (real space) rg_real11.91 Å
Rg uncertainty (real space) rg_real_error0.36 Å
I(0) (real space) i0_real3.3070e+08
I(0) uncertainty (real space) i0_real_error3.5960e+06
Rg (reciprocal space) rg_reciprocal11.91 Å
I(0) (reciprocal space) i0_reciprocal330700000.0000
Solution quality estimate total_estimate0.7548
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary37.5 Å
Skewness Skewness skewness0.069
Kurtosis Kurtosis kurtosis-0.095
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha125800.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.274; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.991
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1rg6a_
Class classa — All alpha proteins
Fold Fold folda.60 — SAM domain-like
Superfamily Superfamily superfamilya.60.1 — SAM/Pointed domain
Family Family familya.60.1.2 — SAM (sterile alpha motif) domain

CATH v4.4 (1 domains)

Domain ID domain_id1rg6A00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily50 — Transcription Factor, Ets-1
▶

8. Citations (1)

▶

9. Files and Curves (10)
