SAXSdb — 5ew5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Colicin-E9

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 immunity protein × 1 （P13479） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 immunity protein × 1 （P13479） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 immunity protein × 1 （P13479） water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 immunity protein × 1 （P13479） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CEA9_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–582； UniProt 1–582 Author chain B； PDBConstruct 1–582； UniProt 1–582 Author chain C； PDBConstruct 1–582； UniProt 1–582 Author chain D； PDBConstruct 1–582； UniProt 1–582

Colicin-E9 immunity protein

Escherichia coli

UniProt P13479

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 × 1 （P09883） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 × 1 （P09883） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 × 1 （P09883） water × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Colicin-E9 × 1 （P09883） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IMM9_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–86； UniProt 1–86 Author chain F； PDBConstruct 1–86； UniProt 1–86 Author chain G； PDBConstruct 1–86； UniProt 1–86 Author chain H； PDBConstruct 1–86； UniProt 1–86

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5ew5
Deposition date deposition_date	2015-11-20
Structure title title	Crystal Structure of Colicin E9 In Complex with Its Immunity Protein Im9
Keywords keywords	colicin, complex, toxin, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5ew5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5ew5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

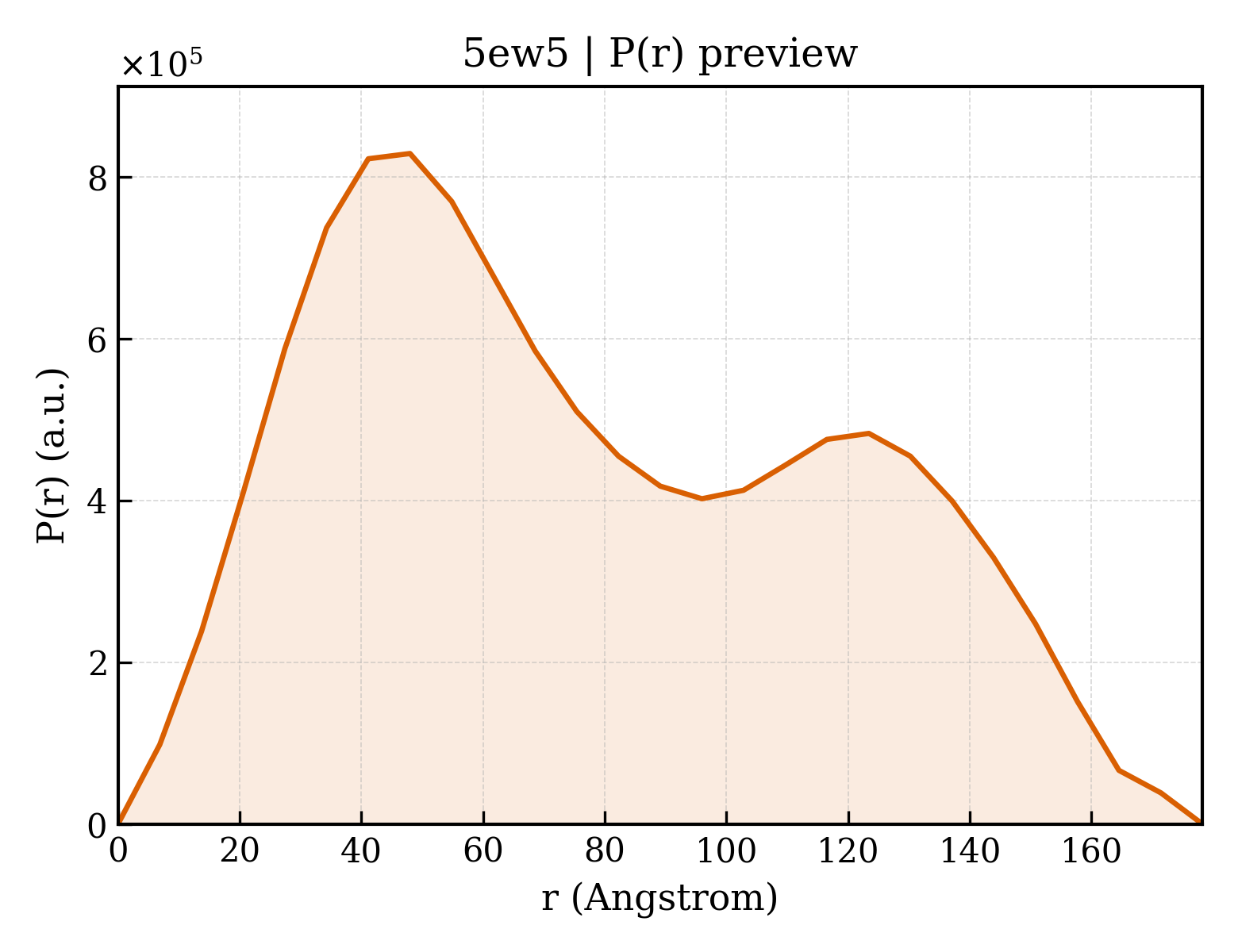

5ew5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.58 Å
Rg (electron density)	36.28 Å
Total Rg	36.30 Å
Atom count	4388
Residues	573
Excluded volume	77050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5ew5__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5ew5__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`5ew5__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`5ew5__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Colicin-E9
Molecular weight formula_weight	61563.1 kDa
EC 编号 ec_number	3.1.-.-
Mutation mutation	Y324C, L447C, D448A, K449M
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	17397

MSGGDGRGHNTGAHSTSGNINGGPTGIGVSGGASDGSGWSSENNPWGGGSGSGIHWGGGSGRGNGGGNGNSGGGSGTGGNLSAVAAPVAFGFPALSTPGAGGLAVSISASELSAAIAGIIAKLKKVNLKFTPFGVVLSSLIPSEIAKDDPNMMSKIVTSLPADDITESPVSSLPLDKATVNVNVRVVDDVKDERQNISVVSGVPMSVPVVDAKPTERPGVFTASIPGAPVLNISVNDSTPAVQTLSPGVTNNTDKDVRPAGFTQGGNTRDAVIRFPKDSGHNAVYVSVSDVLSPDQVKQRQDEENRRQQEWDATHPVEAAERNCERARAELNQANEDVARNQERQAKAVQVYNSRKSELDAANKTLADAIAEIKQFNRFAHDPMAGGHRMWQMAGLKAQRAQTDVNNKQAAFDAAAKEKSDADAALSAAQERRKQKENKEKDAKDKCAMESKRNKPGKATGKGKPVGDKWLDDAGKDSGAPIPDRIADKLRDKEFKSFDDFRKAVWEEVSKDPELSKNLNPSNKSSVSKGYSPFTPKNQQVGGRKVYELHHDKPISQGGEVYDMDNIRVTTPKRHIDIHRGK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Colicin-E9 immunity protein
Molecular weight formula_weight	10663.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

MELKHSISDYTEAEFLQLVTTICNADTSSEEELVKLVTHFEEMTEHPSGSDLIYYPKEGDDDSPSGIVNTVKQWRAANGKSGFKQGLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	22

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	5ew5E00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	20 — Colicin E immunity protein

Domain ID domain_id	5ew5F00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	20 — Colicin E immunity protein

Domain ID domain_id	5ew5G00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	20 — Colicin E immunity protein

Domain ID domain_id	5ew5H00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	20 — Colicin E immunity protein

▶

Unit-cell length a length_a	94.894 Å
Unit-cell length b length_b	116.050 Å
Unit-cell length c length_c	150.365 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.72 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	29.600 Å
R factor r_factor	0.2154
R_work r_work	0.2124
R_free r_free	0.2706
