SAXSdb — 5h2x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit alpha

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 88–510	Fragment：UNP residues 88-510	Ubiquitin-like-specific protease 1 × 1 （Q02724）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M sodium phosphate, 12% PEG8000	Resolution 2.20 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5H2X	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BK5 KARYOPHERIN ALPHA FROM SACCHAROMYCES CEREVISIAE Deposited 1998-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 89–510（422 aa） Fragment：ARMADILLO DOMAIN Chain B 89–510（422 aa） Fragment：ARMADILLO DOMAIN	Not recorded	CO COBALT (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.20 Å R-free 0.276
1BK6 KARYOPHERIN ALPHA (YEAST) + SV40 T ANTIGEN NLS Deposited 1998-07-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 89–510（422 aa） Fragment：ARMADILLO DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.80 Å R-free 0.307
1BK6 KARYOPHERIN ALPHA (YEAST) + SV40 T ANTIGEN NLS Deposited 1998-07-14	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 89–510（422 aa） Fragment：ARMADILLO DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.80 Å R-free 0.307
1EE4 CRYSTAL STRUCTURE OF YEAST KARYOPHERIN (IMPORTIN) ALPHA IN A COMPLEX WITH A C-MYC NLS PEPTIDE Deposited 2000-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 87–509（423 aa） Fragment：ARMADILLO DOMAIN	Mutation：Y397D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.277
1EE4 CRYSTAL STRUCTURE OF YEAST KARYOPHERIN (IMPORTIN) ALPHA IN A COMPLEX WITH A C-MYC NLS PEPTIDE Deposited 2000-01-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 87–509（423 aa） Fragment：ARMADILLO DOMAIN	Mutation：Y397D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.10 Å R-free 0.277
1EE5 YEAST KARYOPHERIN (IMPORTIN) ALPHA IN A COMPLEX WITH A NUCLEOPLASMIN NLS PEPTIDE Deposited 2000-01-30	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 87–510（424 aa） Fragment：ARMADILLLO-REPEAT DOMAIN	Mutation：Y397D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.265
1UN0 Crystal Structure of Yeast Karyopherin (Importin) alpha in complex with a Nup2p N-terminal fragment Deposited 2003-09-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 88–530（443 aa） Fragment：ARMADILLO REPEAT DOMAIN, RESIDUES 88-530	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；50 MM HEPES PH 6.8, 0.15 M NACL, 24 % PEG3350, 2 % PEG400	Resolution 2.60 Å R-free 0.257
1UN0 Crystal Structure of Yeast Karyopherin (Importin) alpha in complex with a Nup2p N-terminal fragment Deposited 2003-09-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 88–530（443 aa） Fragment：ARMADILLO REPEAT DOMAIN, RESIDUES 88-530	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；50 MM HEPES PH 6.8, 0.15 M NACL, 24 % PEG3350, 2 % PEG400	Resolution 2.60 Å R-free 0.257
2C1T Structure of the Kap60p:Nup2 complex Deposited 2005-09-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 88–541（454 aa） Fragment：ARM DOMAIN, RESIDUES 88-541	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；EXPERIMENTAL DETALS GIVEN IN ENTRY 1UN0 AND IN MATSUURA ET AL, EMBO J, 22, 5358, 2003., pH 6.80	Resolution 2.60 Å R-free 0.251
2C1T Structure of the Kap60p:Nup2 complex Deposited 2005-09-20	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 88–541（454 aa） Fragment：ARM DOMAIN, RESIDUES 88-541	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；EXPERIMENTAL DETALS GIVEN IN ENTRY 1UN0 AND IN MATSUURA ET AL, EMBO J, 22, 5358, 2003., pH 6.80	Resolution 2.60 Å R-free 0.251
4PVZ Structure of yeast importin a bound to the membrane protein Nuclear Localization Signal sequence of INM protein Heh2 Deposited 2014-03-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 88–509（422 aa） Fragment：unp residues 88-509	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；100 mM ammonium acetate, 20% PEG 8000, 100 mM BisTris, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.226
4PVZ Structure of yeast importin a bound to the membrane protein Nuclear Localization Signal sequence of INM protein Heh2 Deposited 2014-03-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 88–509（422 aa） Fragment：unp residues 88-509	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；100 mM ammonium acetate, 20% PEG 8000, 100 mM BisTris, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.226
4XZR Structure of yeast importin a bound to the membrane protein Nuclear Localization Signal sequence of INM protein Heh1 Deposited 2015-02-04	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 88–509（422 aa） Fragment：unp residues 88-509	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100 mM ammonium acetate, 20% PEG 8000, 100 mM BisTris	Resolution 2.25 Å R-free 0.215
5H2W Crystal structure of the karyopherin Kap60p bound to the SUMO protease Ulp1p (150-340) Deposited 2016-10-18	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 88–510（423 aa） Fragment：UNP residues 88-510	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M MES, 0.1M calcium acetate, 12% PEG8000	Resolution 2.50 Å R-free 0.247
5H2W Crystal structure of the karyopherin Kap60p bound to the SUMO protease Ulp1p (150-340) Deposited 2016-10-18	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 88–510（423 aa） Fragment：UNP residues 88-510	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M MES, 0.1M calcium acetate, 12% PEG8000	Resolution 2.50 Å R-free 0.247
5T94 Crystal structure of Kap60 bound to yeast RCC1 (Prp20) Deposited 2016-09-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–542（542 aa）	Mutation：T205A, D276E, K400R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M Na cacodylate, 0.1 M NaCl and 1.1 M ammonium sulfate	Resolution 2.63 Å R-free 0.259

10 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IMA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–423； UniProt 88–510

Ubiquitin-like-specific protease 1

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt Q02724

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 150–172	Fragment：UNP residues 150-172	Importin subunit alpha × 1 （Q02821）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1M sodium phosphate, 12% PEG8000	Resolution 2.20 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5H2X	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EUV X-RAY STRUCTURE OF THE C-TERMINAL ULP1 PROTEASE DOMAIN IN COMPLEX WITH SMT3, THE YEAST ORTHOLOG OF SUMO. Deposited 2000-04-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 401–621（221 aa） Fragment：C-TERMINAL PROTEASE DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；0.1M MES pH6.5, 10% w/v polyethylene glycol 20000, 3% w/v 1,6-hexandiol, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.60 Å R-free 0.251
2HKP SUMO protease Ulp1 with the catalytic cysteine oxidized to a sulfenic acid Deposited 2006-07-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 403–621（219 aa） Fragment：c-terminal catalytic domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；20% w/v PEG 3350, 0.2M NaCl and post-soaked in 50mM DTT for 48 hours, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.10 Å R-free 0.260
2HL8 SUMO protease Ulp1 with the catalytic cysteine oxidized to a sulfinic acid Deposited 2006-07-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 403–621（219 aa） Fragment：c-terminal catalytic domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；20%(w/v) PEG 3350, 0.2M NaCl, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.00 Å R-free 0.234
2HL9 SUMO protease Ulp1 with the catalytic cysteine oxidized to a sulfonic acid Deposited 2006-07-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 403–621（219 aa） Fragment：c-terminal catalytic domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289 K；30%(v/v) pentaerythritol ethoxylate(15/4 EO/OH), 0.05M ammonium sulfate, 100mM hydrogen peroxide , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.90 Å R-free 0.237
5H2V Crystal structure of the karyopherin Kap121p bound to the SUMO protease Ulp1p Deposited 2016-10-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–150（150 aa） Fragment：UNP residues 1-150	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.1M HEPES, 10% 2-propanol, 24% PEG20000	Resolution 2.80 Å R-free 0.241
5H2W Crystal structure of the karyopherin Kap60p bound to the SUMO protease Ulp1p (150-340) Deposited 2016-10-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 150–340（191 aa） Fragment：UNP residues 150-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M MES, 0.1M calcium acetate, 12% PEG8000	Resolution 2.50 Å R-free 0.247
5H2W Crystal structure of the karyopherin Kap60p bound to the SUMO protease Ulp1p (150-340) Deposited 2016-10-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 150–340（191 aa） Fragment：UNP residues 150-340	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1M MES, 0.1M calcium acetate, 12% PEG8000	Resolution 2.50 Å R-free 0.247

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ULP1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–23； UniProt 150–172

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5h2x
Deposition date deposition_date	2016-10-18
Structure title title	Crystal structure of the karyopherin Kap60p bound to the SUMO protease Ulp1p (150-172)
Keywords keywords	nuclear import, PROTEIN TRANSPORT-HYDROGENASE complex; PROTEIN TRANSPORT/HYDROGENASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.11 Å
Radius of gyration Rg (electron density) rg_electron	27.78 Å
Forward intensity I(0) i0	37931800.00
Molecular weight molecular_weight	48580.0 kDa
Excluded volume excluded_volume	61169 Å³
Envelope volume envelope_volume	73778 Å³
Hydration-shell volume shell_volume	24195 Å³
Envelope diameter envelope_diameter	101.8 Å
Shell Rg shell_rg	32.33 Å
Envelope Rg envelope_rg	27.81 Å
Shape Rg shape_rg	27.78 Å
Total Rg total_rg	28.28 Å
Total atoms total_atoms	3412
Residues n_residues	437
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

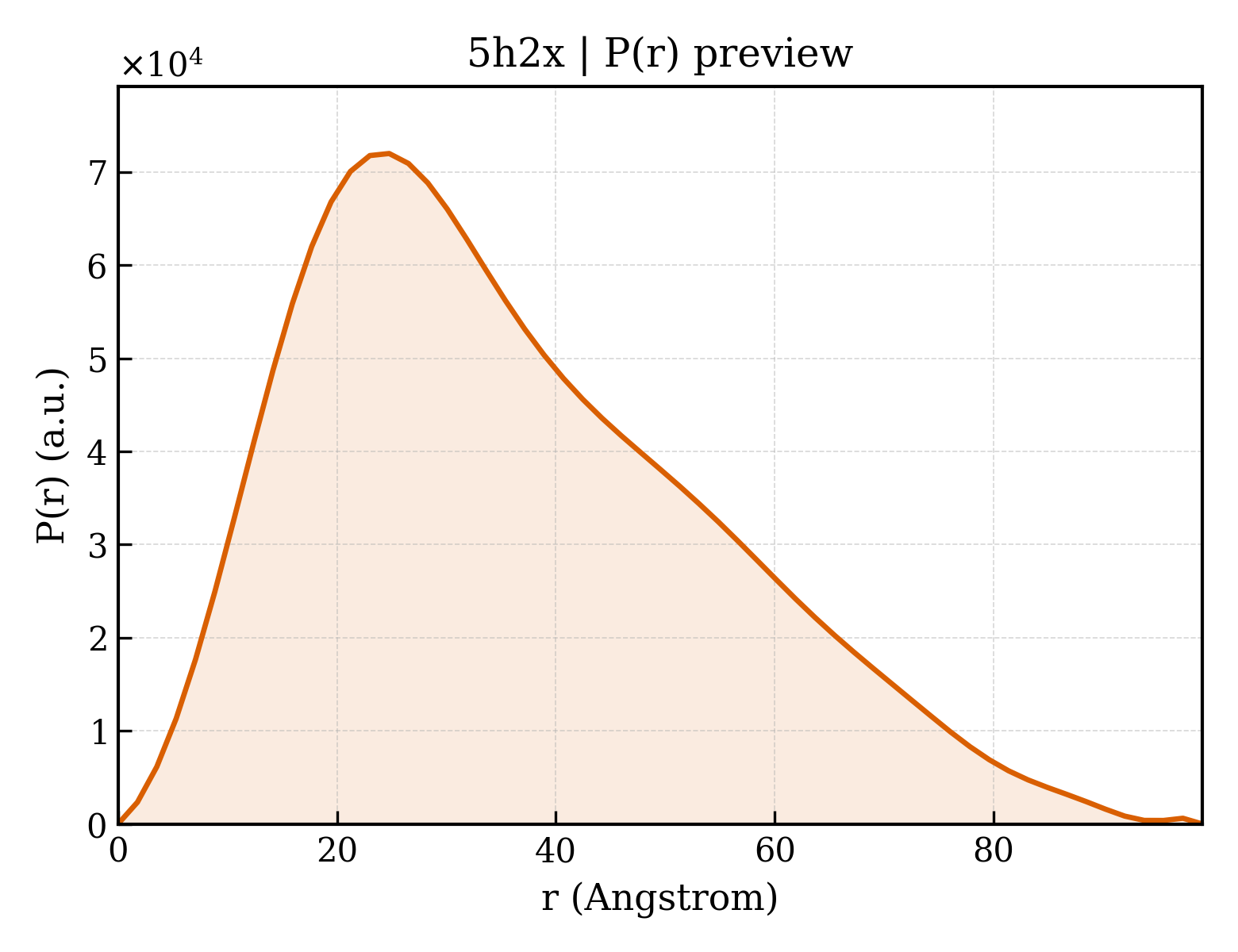

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.1 Å
Rg (real space) rg_real	28.52 Å
Rg uncertainty (real space) rg_real_error	0.83 Å
I(0) (real space) i0_real	3.7930e+07
I(0) uncertainty (real space) i0_real_error	5.2590e+05
Rg (reciprocal space) rg_reciprocal	28.39 Å
I(0) (reciprocal space) i0_reciprocal	37930000.0000
Solution quality estimate total_estimate	0.7874
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.8 Å
Skewness Skewness skewness	0.593
Kurtosis Kurtosis kurtosis	-0.280
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	13170000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.608; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.501; Smooth: 0.907

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Importin subunit alpha
Molecular weight formula_weight	46847.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3632

ELPQMTQQLNSDDMQEQLSATVKFRQILSREHRPPIDVVIQAGVVPRLVEFMRENQPEMLQLEAAWALTNIASGTSAQTKVVVDADAVPLFIQLLYTGSVEVKEQAIWALGNVAGDSTDYRDYVLQCNAMEPILGLFNSNKPSLIRTATWTLSNLCRGKKPQPDWSVVSQALPTLAKLIYSMDTETLVDACWAISYLSDGPQEAIQAVIDVRIPKRLVELLSHESTLVQTPALRAVGNIVTGNDLQTQVVINAGVLPALRLLLSSPKENIKKEACWTISNITAGNTEQIQAVIDANLIPPLVKLLEVAEYKTKKEACWAISNASSGGLQRPDIIRYLVSQGCIKPLCDLLEIADNRIIEVTLDALENILKMGEADKEARGLNINENADFIEKAGGMEKIFNCQQNENDKIYEKAYKIIETYFG

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin-like-specific protease 1
Molecular weight formula_weight	2809.2 kDa
EC 编号 ec_number	3.4.22.68
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SSDTRKHKFDTSTWALPNKRRRI

来源 Source

来源生物 organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	220

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d5h2xa_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.1 — Armadillo repeat

CATH v4.4 (1 domains)

Domain ID domain_id	5h2xA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.570 Å
Unit-cell length b length_b	77.480 Å
Unit-cell length c length_c	114.590 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	49.268 Å
R factor r_factor	0.2030
R_work r_work	0.2016
R_free r_free	0.2284

fit	/app/data/saxs_computation/h2/5h2x/5h2x.fit
pddf	/app/data/pr_computation/h2/5h2x/5h2x.pr.out
profile	/app/data/saxs_computation/h2/5h2x/5h2x.dat
