SAXSdb — 6c95

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N-alpha-acetyltransferase 15, NatA auxiliary subunit

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–866	Not recorded	N-alpha-acetyltransferase 10 × 1 （P41227） Huntingtin-interacting protein K × 1 （Q9NX55） IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；19.5% PEG3350, 11% Tascimate, pH 6.5	Resolution 3.15 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6C95	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6C9M The Human NatA (Naa10/Naa15) amino-terminal acetyltransferase complex Deposited 2018-01-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–866（866 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 10% Tascimate, pH 7.5, 2% acetone	Resolution 2.80 Å R-free 0.242
6C9M The Human NatA (Naa10/Naa15) amino-terminal acetyltransferase complex Deposited 2018-01-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–866（866 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 10% Tascimate, pH 7.5, 2% acetone	Resolution 2.80 Å R-free 0.242
6PPL Cryo-EM structure of human NatE complex (NatA/Naa50) Deposited 2019-07-08	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–866（866 aa）	Not recorded	ACO ACETYL COENZYME A × 2 IHP* INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6PW9 Cryo-EM structure of human NatE/HYPK complex Deposited 2019-07-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–866（866 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.03 Å
9F1B Mammalian ternary complex of a translating 80S ribosome, NAC and NatA/E Deposited 2024-04-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 83 PDB declaration: 89-meric	Chain DB 1–866（866 aa）	Not recorded	MG MAGNESIUM ION × 420 ZN ZINC ION × 8 UNX UNKNOWN LIGAND × 306 IHP INOSITOL HEXAKISPHOSPHATE × 1 SPD SPERMIDINE × 30 SPM SPERMINE × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.01 Å
9F1C Mammalian quaternary complex of a translating 80S ribosome, NAC, MetAP1 and NatA/E Deposited 2024-04-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 84 PDB declaration: 90-meric	Chain DB 1–866（866 aa）	Not recorded	UNX UNKNOWN LIGAND × 277 MG MAGNESIUM ION × 420 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 SPD SPERMIDINE × 30 SPM SPERMINE × 3 ZN ZINC ION × 8 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.78 Å
9F1D Mammalian quaternary complex of a translating 80S ribosome, NAC, MetAP1 and NatA/E-HYPK Deposited 2024-04-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 85 PDB declaration: 91-meric	Chain DB 1–866（866 aa）	Not recorded	UNX UNKNOWN LIGAND × 295 SPD SPERMIDINE × 30 MG MAGNESIUM ION × 420 SPM SPERMINE × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.26 Å
9FPZ Human NatA-MAP2 80S ribosome complex Deposited 2024-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: 13-meric	Chain B 1–841（841 aa）	Not recorded	CO COBALT (II) ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.69 Å
9FQ0 Human NatA-NAC-MAP1 80S ribosome complex Deposited 2024-06-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: hexadecameric	Chain B 1–841（841 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.67 Å
9GJ5 Human 80S ribosome in complex with NatA in distal position and Ebp1 Deposited 2024-08-21	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: 13-meric	Chain B 1–841（841 aa）	Not recorded	KGN D-chiro inositol hexakisphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.61 Å
9GJ6 Human 80S ribosome in complex with NatA in proximal and distal position Deposited 2024-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 15 PDB declaration: 17-meric	Chain B 1–841（841 aa） Chain D 1–841（841 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
9QQB Quaternary complex of a translating ribosome, NAC, NMT1, and NatA Deposited 2025-03-31	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 84 PDB declaration: 89-meric	Chain XA 1–866（866 aa）	Not recorded	SPD SPERMIDINE × 30 SPM SPERMINE × 3 MG MAGNESIUM ION × 412 UNX UNKNOWN LIGAND × 168 ZN ZINC ION × 8 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.43 Å

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NAA15_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–866； UniProt 1–866

N-alpha-acetyltransferase 10

Homo sapiens

UniProt P41227

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–235	Non-standard monomer：Yes (specific site not provided by mmCIF)	N-alpha-acetyltransferase 15, NatA auxiliary subunit × 1 （Q9BXJ9） Huntingtin-interacting protein K × 1 （Q9NX55） IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；19.5% PEG3350, 11% Tascimate, pH 6.5	Resolution 3.15 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6C95	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6C9M The Human NatA (Naa10/Naa15) amino-terminal acetyltransferase complex Deposited 2018-01-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–235（235 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 10% Tascimate, pH 7.5, 2% acetone	Resolution 2.80 Å R-free 0.242
6C9M The Human NatA (Naa10/Naa15) amino-terminal acetyltransferase complex Deposited 2018-01-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–235（235 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IHP INOSITOL HEXAKISPHOSPHATE × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG3350, 10% Tascimate, pH 7.5, 2% acetone	Resolution 2.80 Å R-free 0.242
6PPL Cryo-EM structure of human NatE complex (NatA/Naa50) Deposited 2019-07-08	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–235（235 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACO ACETYL COENZYME A × 2 IHP* INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.02 Å
6PW9 Cryo-EM structure of human NatE/HYPK complex Deposited 2019-07-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–235（235 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	IHP INOSITOL HEXAKISPHOSPHATE × 1 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.03 Å
9F1B Mammalian ternary complex of a translating 80S ribosome, NAC and NatA/E Deposited 2024-04-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 83 PDB declaration: 89-meric	Chain DC 1–235（235 aa）	Mutation：E24Q, Y26F	MG MAGNESIUM ION × 420 ZN ZINC ION × 8 UNX UNKNOWN LIGAND × 306 IHP INOSITOL HEXAKISPHOSPHATE × 1 SPD SPERMIDINE × 30 SPM SPERMINE × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.01 Å
9F1C Mammalian quaternary complex of a translating 80S ribosome, NAC, MetAP1 and NatA/E Deposited 2024-04-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 84 PDB declaration: 90-meric	Chain DC 1–235（235 aa）	Mutation：E24Q, Y26F	UNX UNKNOWN LIGAND × 277 MG MAGNESIUM ION × 420 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 SPD SPERMIDINE × 30 SPM SPERMINE × 3 ZN ZINC ION × 8 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.78 Å
9F1D Mammalian quaternary complex of a translating 80S ribosome, NAC, MetAP1 and NatA/E-HYPK Deposited 2024-04-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 85 PDB declaration: 91-meric	Chain DC 1–235（235 aa）	Mutation：E24Q, Y26F	UNX UNKNOWN LIGAND × 295 SPD SPERMIDINE × 30 MG MAGNESIUM ION × 420 SPM SPERMINE × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.26 Å
9FPZ Human NatA-MAP2 80S ribosome complex Deposited 2024-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: 13-meric	Chain 2 2–170（169 aa）	Not recorded	CO COBALT (II) ION × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.69 Å
9FQ0 Human NatA-NAC-MAP1 80S ribosome complex Deposited 2024-06-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 14 PDB declaration: hexadecameric	Chain 2 2–170（169 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.67 Å
9GJ5 Human 80S ribosome in complex with NatA in distal position and Ebp1 Deposited 2024-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 11 PDB declaration: 13-meric	Chain 2 2–170（169 aa）	Not recorded	KGN D-chiro inositol hexakisphosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.61 Å
9GJ6 Human 80S ribosome in complex with NatA in proximal and distal position Deposited 2024-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 15 PDB declaration: 17-meric	Chain A 1–235（235 aa） Chain C 1–235（235 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.91 Å
9QQB Quaternary complex of a translating ribosome, NAC, NMT1, and NatA Deposited 2025-03-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 84 PDB declaration: 89-meric	Chain XB 1–235（235 aa）	Not recorded	SPD SPERMIDINE × 30 SPM SPERMINE × 3 MG MAGNESIUM ION × 412 UNX UNKNOWN LIGAND × 168 ZN ZINC ION × 8 IHP INOSITOL HEXAKISPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.43 Å

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NAA10_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–236； UniProt 1–235

Huntingtin-interacting protein K

Homo sapiens

UniProt Q9NX55

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain D； UniProt 1–129	Not recorded	N-alpha-acetyltransferase 15, NatA auxiliary subunit × 1 （Q9BXJ9） N-alpha-acetyltransferase 10 × 1 （P41227） IHP INOSITOL HEXAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；19.5% PEG3350, 11% Tascimate, pH 6.5	Resolution 3.15 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6C95	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6PW9 Cryo-EM structure of human NatE/HYPK complex Deposited 2019-07-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–129（129 aa）	Not recorded	IHP INOSITOL HEXAKISPHOSPHATE × 1 ACO ACETYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.03 Å
9F1D Mammalian quaternary complex of a translating 80S ribosome, NAC, MetAP1 and NatA/E-HYPK Deposited 2024-04-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 85 PDB declaration: 91-meric	Chain DD 1–121（121 aa）	Not recorded	UNX UNKNOWN LIGAND × 295 SPD SPERMIDINE × 30 MG MAGNESIUM ION × 420 SPM SPERMINE × 3 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.26 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HYPK_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–129； UniProt 1–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6c95
Deposition date deposition_date	2018-01-25
Structure title title	The Human NatA (Naa10/Naa15) amino-terminal acetyltransferase complex bound to HYPK
Keywords keywords	NatA, HYPK, N-terminal acetylation, Huntingtin interacting protein, protein complex, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.25 Å
Radius of gyration Rg (electron density) rg_electron	32.37 Å
Forward intensity I(0) i0	226347000.00
Molecular weight molecular_weight	120010.0 kDa
Excluded volume excluded_volume	150240 Å³
Envelope volume envelope_volume	198320 Å³
Hydration-shell volume shell_volume	49379 Å³
Envelope diameter envelope_diameter	111.8 Å
Shell Rg shell_rg	40.59 Å
Envelope Rg envelope_rg	32.05 Å
Shape Rg shape_rg	32.36 Å
Total Rg total_rg	33.06 Å
Total atoms total_atoms	8420
Residues n_residues	1028
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

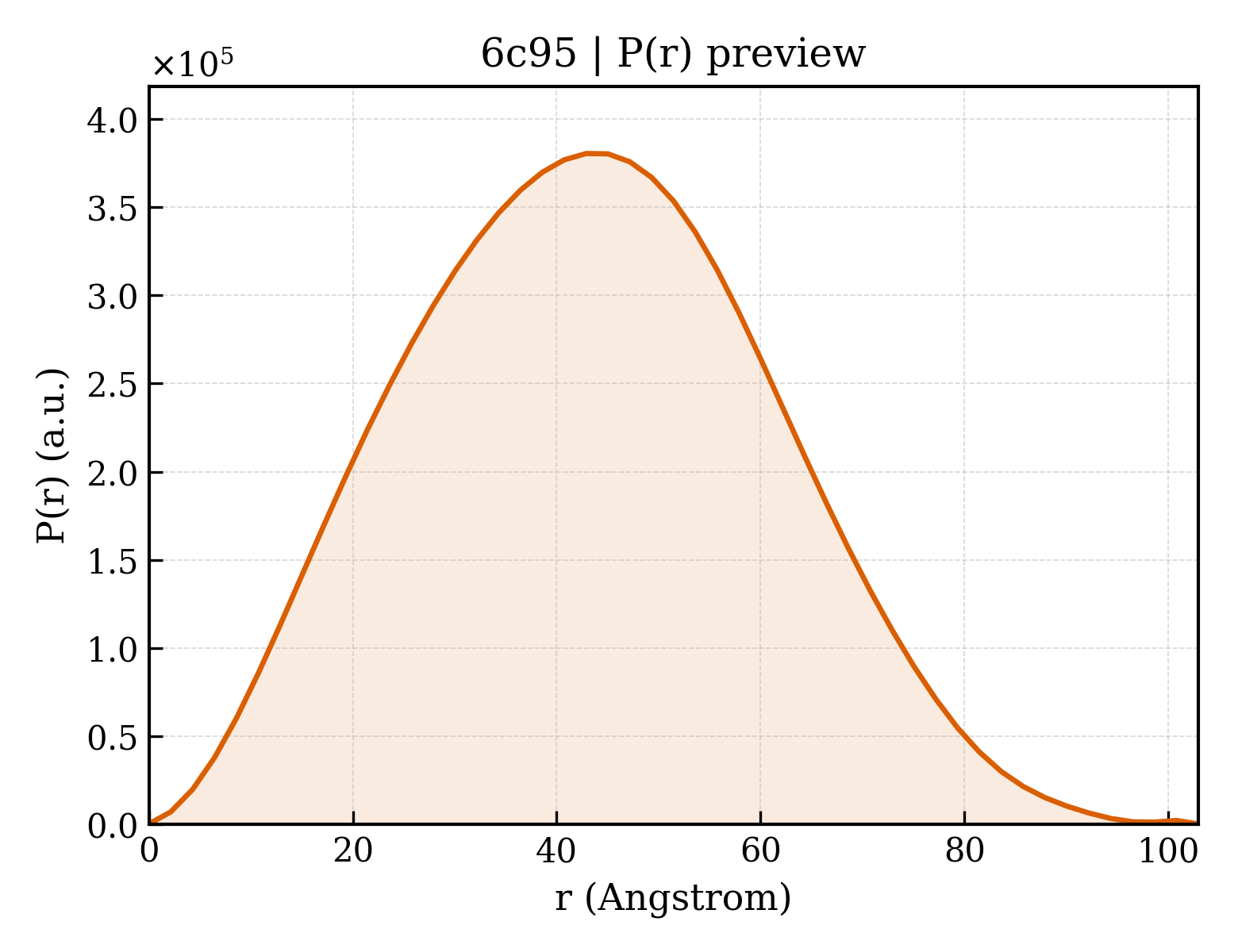

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.9 Å
Rg (real space) rg_real	33.02 Å
Rg uncertainty (real space) rg_real_error	0.59 Å
I(0) (real space) i0_real	2.2630e+08
I(0) uncertainty (real space) i0_real_error	3.1640e+06
Rg (reciprocal space) rg_reciprocal	33.12 Å
I(0) (reciprocal space) i0_reciprocal	226400000.0000
Solution quality estimate total_estimate	0.9028
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.9 Å
Skewness Skewness skewness	0.128
Kurtosis Kurtosis kurtosis	-0.482
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	42160000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.952

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	N-alpha-acetyltransferase 15, NatA auxiliary subunit
Molecular weight formula_weight	101427.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8454

MPAVSLPPKENALFKRILRCYEHKQYRNGLKFCKQILSNPKFAEHGETLAMKGLTLNCLGKKEEAYELVRRGLRNDLKSHVCWHVYGLLQRSDKKYDEAIKCYRNALKWDKDNLQILRDLSLLQIQMRDLEGYRETRYQLLQLRPAQRASWIGYAIAYHLLEDYEMAAKILEEFRKTQQTSPDKVDYEYSELLLYQNQVLREAGLYREALEHLCTYEKQICDKLAVEETKGELLLQLCRLEDAADVYRGLQERNPENWAYYKGLEKALKPANMLERLKIYEEAWTKYPRGLVPRRLPLNFLSGEKFKECLDKFLRMNFSKGCPPVFNTLRSLYKDKEKVAIIEELVVGYETSLKSCRLFNPNDDGKEEPPTTLLWVQYYLAQHYDKIGQPSIALEYINTAIESTPTLIELFLVKAKIYKHAGNIKEAARWMDEAQALDTADRFINSKCAKYMLKANLIKEAEEMCSKFTREGTSAVENLNEMQCMWFQTECAQAYKAMNKFGEALKKCHEIERHFIEITDDQFDFHTYCMRKITLRSYVDLLKLEDVLRQHPFYFKAARIAIEIYLKLHDNPLTDENKEHEADTANMSDKELKKLRNKQRRAQKKAQIEEEKKNAEKEKQQRNQKKKKDDDDEEIGGPKEELIPEKLAKVETPLEEAIKFLTPLKNLVKNKIETHLFAFEIYFRKEKFLLMLQSVKRAFAIDSSHPWLHECMIRLFNTAVCESKDLSDTVRTVLKQEMNRLFGATNPKNFNETFLKRNSDSLPHRLSAAKMVYYLDPSSQKRAIELATTLDESLTNRNLQTCMEVLEALYDGSLGDCKEAAEIYRANCHKLFPYALAFMPPGYEEDMKITVNGDSSAEAEELANEI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	N-alpha-acetyltransferase 10
Molecular weight formula_weight	26522.6 kDa
EC 编号 ec_number	2.3.1.255
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

XMNIRNARPEDLMNMQHCNLLCLPENYQMKYYFYHGLSWPQLSYIAEDENGKIVGYVLAKMEEDPDDVPHGHITSLAVKRSHRRLGLAQKLMDQASRAMIENFNAKYVSLHVRKSNRAALHLYSNTLNFQISEVEPKYYADGEDAYAMKRDLTQMADELRRHLELKEKGRHVVLGAIENKVESKGNSPPSSGEACREEKGLAAEDSGGDSKDLSEVSETTESTDVKDSSEASDSAS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Huntingtin-interacting protein K
Molecular weight formula_weight	14689.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MRRRGEIDMATEGDVELELETETSGPERPPEKPRKHDSGAADLERVTDYAEEKEIQSSNLETAMSVIGDRRSREQKAKQEREKELAKVTIKKEDLELIMTEMEISRAAAERSLREHMGNVVEALIALTN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 Entity 4 non-polymer

Description description	INOSITOL HEXAKISPHOSPHATE
Molecular weight formula_weight	660.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	34

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6c95b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.108 — Acyl-CoA N-acyltransferases (Nat)
Superfamily Superfamily superfamily	d.108.1 — Acyl-CoA N-acyltransferases (Nat)
Family Family family	d.108.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	6c95B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	630 — Aminopeptidase
Homologous superfamily homologous superfamily	30 — Gcn5-related N-acetyltransferase (GNAT)

▶

8. Citations (1)

▶

Unit-cell length a length_a	182.320 Å
Unit-cell length b length_b	182.320 Å
Unit-cell length c length_c	86.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	49.040 Å
R factor r_factor	0.2230
R_work r_work	0.2210
R_free r_free	0.2550

fit	/app/data/saxs_computation/c9/6c95/6c95.fit
pddf	/app/data/pr_computation/c9/6c95/6c95.pr.out
profile	/app/data/saxs_computation/c9/6c95/6c95.dat
