9fq0

Human NatA-NAC-MAP1 80S ribosome complex

Method: ELECTRON MICROSCOPY D_max: 244.8 Å Quality: GOOD

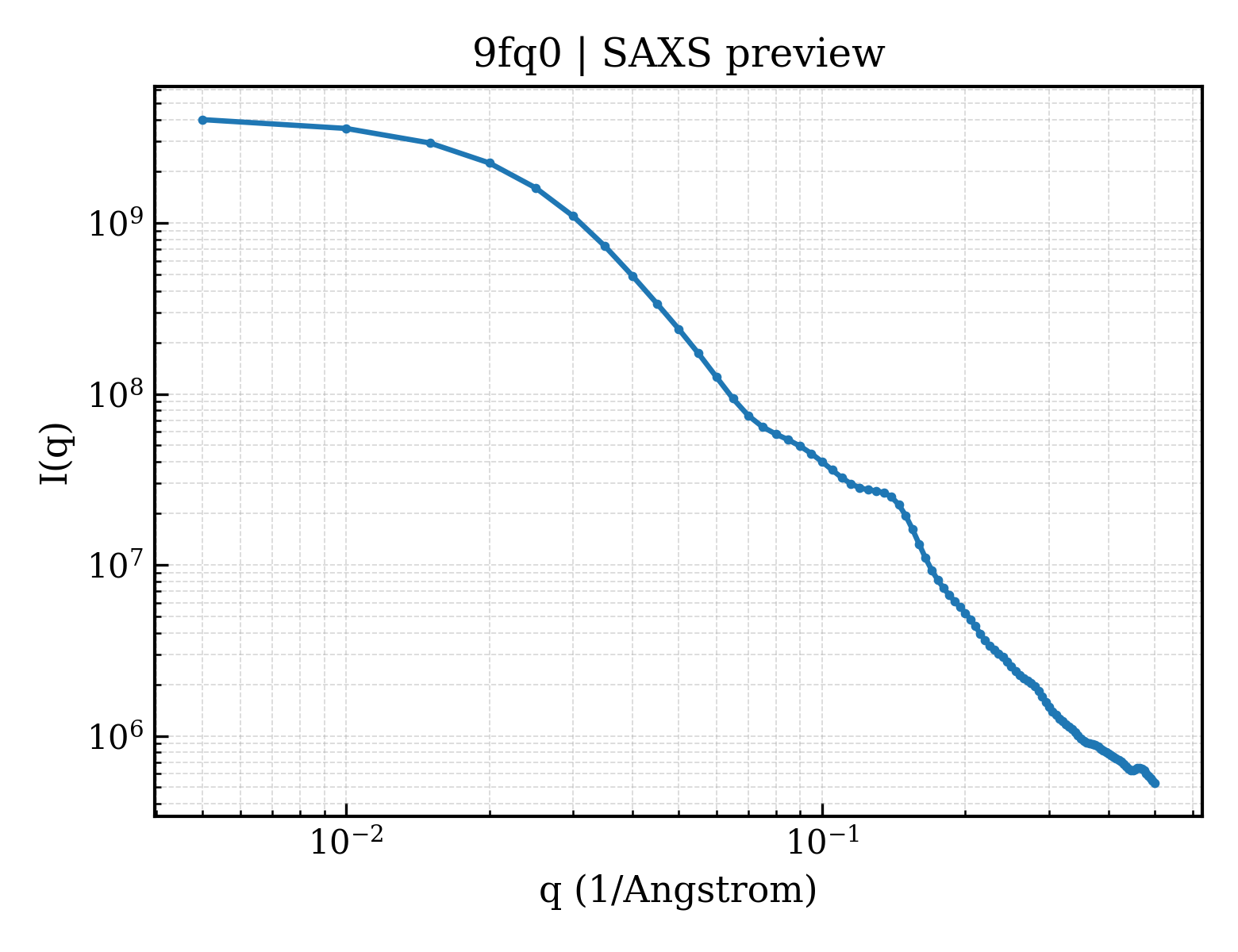

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9fq0
沉积日期 deposition_date	2024-06-14
结构标题 title	Human NatA-NAC-MAP1 80S ribosome complex
关键词 keywords	;co-translational processing, ribosome associated factor (RAF), methionine aminopeptidase 2 (MAP2), N-terminal methionine excision (NME), N-acetyl-transferase A (NatA), N-termional acetylation (NTA), UBA domain, a-solenoid, protein-protein and protein-RNA interactions, TRANSLATION ;; TRANSLATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.88 Å
回转半径 Rg (电子) rg_electron	69.49 Å
零角强度 I(0) i0	4183100000.00
分子量 molecular_weight	458090.0 kDa
排除体积 excluded_volume	538690 Å³
包络体积 envelope_volume	1064600 Å³
水化壳体积 shell_volume	131550 Å³
包络直径 envelope_diameter	243.3 Å
壳层 Rg shell_rg	64.63 Å
包络 Rg envelope_rg	69.12 Å
形状 Rg shape_rg	69.46 Å
总 Rg total_rg	69.49 Å
总原子数 total_atoms	31676
残基数 n_residues	3317
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	244.8 Å
Rg (实空间) rg_real	69.00 Å
Rg 误差 (实空间) rg_real_error	3.34 Å
I(0) (实空间) i0_real	4.1830e+09
I(0) 误差 (实空间) i0_real_error	1.0130e+08
Rg (倒空间) rg_reciprocal	68.36 Å
I(0) (倒空间) i0_reciprocal	4178000000.0000
解质量估计 total_estimate	0.8466
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	74.5 Å
偏度 Skewness skewness	0.387
峰度 Kurtosis kurtosis	-0.394
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	161000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.613

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (17)

Entity 1 polymer

描述 description	5.8S rRNA
分子量 formula_weight	18646.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	8
原子数 atom_count	31676

AACGCAGCUAGCUGCGAGAAUUAAUGUGAAUUGCAGGACACAUUGAUCAUCGACACUU

Entity 2 polymer

描述 description	Methionine aminopeptidase 1
分子量 formula_weight	43717.6 kDa
EC 编号 ec_number	3.4.11.18
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

GPGSGSMAAVETRVCETDGCSSEAKLQCPTCIKLGIQGSYFCSQECFKGSWATHKLLHKKAKDEKAKREVSSWTVEGDINTDPWAGYRYTGKLRPHYPLMPTRPVPSYIQRPDYADHPLGMSESEQALKGTSQIKLLSSEDIEGMRLVCRLAREVLDVAAGMIKPGVTTEEIDHAVHLACIARNCYPSPLNYYNFPKSCCTSVNEVICHGIPDRRPLQEGDIVNVDITLYRNGYHGDLNETFFVGEVDDGARKLVQTTYECLMQAIDAVKPGVRYRELGNIIQKHAQANGFSVVRSYCGHGIHKLFHTAPNVPHYAKNKAVGVMKSGHVFTIEPMICEGGWQDETWPDGWTAVTRDGKRSAQFEHTLLVTDTGCEILTRRLDSARPHFMSQF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Transcription factor BTF3
分子量 formula_weight	22201.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MRRTGAPAQADSRGRGRARGGCPGGEATLSQPPPRGGTRGQEPQMKETIMNQEKLAKLQAQVRIGGKGTARRKKKVVHRTATADDKKLQFSLKKLGVNNISGIEEVNMFTNQGTVIHFNNPKVQASLAANTFTITGHAETKQLTEMLPSILNQLGADSLTSLRRLAEALPKQSVDGKAPLATGEDDDDEVPDLVENFDEASKNEAN

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	28S rRNA
分子量 formula_weight	1640222.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	1

CGCGACCUCAGAUCAGACGUGGCGACCCGCUGAAUUUAAGCAUAUUAGUCAGCGGAGGAGAAGAAACUAACCAGGAUUCCCUCAGUAACGGCGAGUGAACAGGGAAGAGCCCAGCGCCGAAUCCCCGCCCCGCGGCGGGGCGCGGGACAUGUGGCGUACGGAAGACCCGCUCCCCGGCGCCGCUCGUGGGGGGCCCAAGUCCUUCUGAUCGAGGCCCAGCCCGUGGACGGUGUGAGGCCGGUAGCGGCCCCCGGCGCGCCGGGCCCGGGUCUUCCCGGAGUCGGGUUGCUUGGGAAUGCAGCCCAAAGCGGGUGGUAAACUCCAUCUAAGGCUAAAUACCGGCACGAGACCGAUAGUCAACAAGUACCGUAAGGGAAAGUUGAAAAGAACUUUGAAGAGAGAGUUCAAGAGGGCGUGAAACCGUUAAGAGGUAAACGGGUGGGGUCCGCGCAGUCCGCCCGGAGGAUUCAACCCGGCGGCGGGUCCGGCCGUGUCGGCGGCCCGGCGGAUCUUUCCCGCCCCCCGUUCCUCCCGACCCCUCCACCCGCCCUCCCUUCCCCCGCCGCCCCUCCUCCUCCUCCCCGGAGGGGGCGGGCUCCGGCGGGUGCGGGGGUGGGCGGGCGGGGCCGGGGGUGGGGUCGGCGGGGGACCGUCCCCCGACCGGCGACCGGCCGCCGCCGGGCGCAUUUCCACCGCGGCGGUGCGCCGCGACCGGCUCCGGGACGGCUGGGAAGGCCCGGCGGGGAAGGUGGCUCGGGGGGCCCCGUCCGUCCGUCCGUCCGUCCUCCUCCUCCCCCGUCUCCGCCCCCCGGCCCCGCGUCCUCCCUCGGGAGGGCGCGCGGGUCGGGGCGGCGGCGGCGGCGGCGGUGGCGGCGGCGGCGGCGGCGGCGGGACCGAAACCCCCCCCGAGUGUUACAGCCCCCCCGGCAGCAGCACUCGCCGAAUCCCGGGGCCGAGGGAGCGAGACCCGUCGCCGCGCUCUCCCCCCUCCCGGCGCCCACCCCCGCGGGGAAUCCCCCGCGAGGGGGGUCUCCCCCGCGGGGGCGCGCCGGCGUCUCCUCGUGGGGGGGCCGGGCCACCCCUCCCACGGCGCGACCGCUCUCCCACCCCUCCUCCCCGCGCCCCCGCCCCGGCGACGGGGGGGGUGCCGCGCGCGGGUCGGGGGGCGGGGCGGACUGUCCCCAGUGCGCCCCGGGCGGGUCGCGCCGUCGGGCCCGGGGGAGGUUCUCUCGGGGCCACGCGCGCGUCCCCCGAAGAGGGGGACGGCGGAGCGAGCGCACGGGGUCGGCGGCGACGUCGGCUACCCACCCGACCCGUCUUGAAACACGGACCAAGGAGUCUAACACGUGCGCGAGUCGGGGGCUCGCACGAAAGCCGCCGUGGCGCAAUGAAGGUGAAGGCCGGCGCGCUCGCCGGCCGAGGUGGGAUCCCGAGGCCUCUCCAGUCCGCCGAGGGCGCACCACCGGCCCGUCUCGCCCGCCGCGCCGGGGAGGUGGAGCACGAGCGCACGUGUUAGGACCCGAAAGAUGGUGAACUAUGCCUGGGCAGGGCGAAGCCAGAGGAAACUCUGGUGGAGGUCCGUAGCGGUCCUGACGUGCAAAUCGGUCGUCCGACCUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCCUCCGAAGUUUCCCUCAGGAUAGCUGGCGCUCUCGCAGACCCGACGCACCCCCGCCACGCAGUUUUAUCCGGUAAAGCGAAUGAUUAGAGGUCUUGGGGCCGAAACGAUCUCAACCUAUUCUCAAACUUUAAAUGGGUAAGAAGCCCGGCUCGCUGGCGUGGAGCCGGGCGUGGAAUGCGAGUGCCUAGUGGGCCACUUUUGGUAAGCAGAACUGGCGCUGCGGGAUGAACCGAACGCCGGGUUAAGGCGCCCGAUGCCGACGCUCAUCAGACCCCAGAAAAGGUGUUGGUUGAUAUAGACAGCAGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCUGCCGAAUCAACUAGCCCUGAAAAUGGAUGGCGCUGGAGCGUCGGGCCCAUACCCGGCCGUCGCCGGCAGUCGAGAGUGGACGGGAGCGGCGGGGGCGGCGCGCGCGCGCGCGCGUGUGGUGUGCGUCGGAGGGCGGCGGCGGCGGCGGCGGCGGGGGUGUGGGGUCCUUCCCCCGCCCCCCCCCCCACGCCUCCUCCCCUCCUCCCGCCCACGCCCCGCUCCCCGCCCCCGGAGCCCCGCGGACGCUACGCCGCGACGAGUAGGAGGGCCGCUGCGGUGAGCCUUGAAGCCUAGGGCGCGGGCCCGGGUGGAGCCGCCGCAGGUGCAGAUCUUGGUGGUAGUAGCAAAUAUUCAAACGAGAACUUUGAAGGCCGAAGUGGAGAAGGGUUCCAUGUGAACAGCAGUUGAACAUGGGUCAGUCGGUCCUGAGAGAUGGGCGAGCGCCGUUCCGAAGGGACGGGCGAUGGCCUCCGUUGCCCUCGGCCGAUCGAAAGGGAGUCGGGUUCAGAUCCCCGAAUCCGGAGUGGCGGAGAUGGGCGCCGCGAGGCGUCCAGUGCGGUAACGCGACCGAUCCCGGAGAAGCCGGCGGGAGCCCCGGGGAGAGUUCUCUUUUCUUUGUGAAGGGCAGGGCGCCCUGGAAUGGGUUCGCCCCGAGAGAGGGGCCCGUGCCUUGGAAAGCGUCGCGGUUCCGGCGGCGUCCGGUGAGCUCUCGCUGGCCCUUGAAAAUCCGGGGGAGAGGGUGUAAAUCUCGCGCCGGGCCGUACCCAUAUCCGCAGCAGGUCUCCAAGGUGAACAGCCUCUGGCAUGUUGGAACAAUGUAGGUAAGGGAAGUCGGCAAGCCGGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGCUGGGUCGGUCGGGCUGGGGCGCGAAGCGGGGCUGGGCGCGCGCCGCGGCUGGACGAGGCGCCGCCGCCCCCCCCACGCCCGGGGCACCCCCCUCGCGGCCCUCCCCCGCCCCACCCCGCGCGCGCCGCUCGCUCCCUCCCCGCCCCGCGCCCUCUCUCUCUCUCUCUCCCCCGCUCCCCGUCCUCCCCCCUCCCCGGGGGAGCGCCGCGUGGGGGCGGCGGCGGGGGGAGAAGGGUCGGGGCGGCAGGGGCCGGCGGCGGCCCGCCGCGGGGCCCCGGCGGCGGGGGCACGGUCCCCCGCGAGGGGGGCCCGGGCACCCGGGGGGCCGGCGGCGGCGGCGACUCUGGACGCGAGCCGGGCCCUUCCCGUGGAUCGCCCCAGCUGCGGCGGGCGUCGCGGCCGCCCCCGGGGAGCCCGGCGGGCGCCGGCGCGCCCCCCCCCCCACCCCACGUCUCGUCGCGCGCGCGUCCGCUGGGGGCGGGGAGCGGUCGGGCGGCGGCGGUCGGCGGGCGGCGGGGCGGGGCGGUUCGUCCCCCCGCCCUACCCCCCCGGCCCCGUCCGCCCCCCGUUCCCCCCUCCUCCUCGGCGCGCGGCGGCGGCGGCGGCAGGCGGCGGAGGGGCCGCGGGCCGGUCCCCCCCGCCGGGUCCGCCCCCGGGGCCGCGGUUCCGCGCGGCGCCUCGCCUCGGCCGGCGCCUAGCAGCCGACUUAGAACUGGUGCGGACCAGGGGAAUCCGACUGUUUAAUUAAAACAAAGCAUCGCGAAGGCCCGCGGCGGGUGUUGACGCGAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAAUGAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAAUUAGUGACGCGCAUGAAUGGAUGAACGAGAUUCCCACUGUCCCUACCUACUAUCCAGCGAAACCACAGCCAAGGGAACGGGCUUGGCGGAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUCUGGCACGGUGAAGAGACAUGAGAGGUGUAGAAUAAGUGGGAGGCCCCCGGCGCCCCCCCGGUGUCCCCGCGAGGGGCCCGGGGCGGGGUCCGCCGGCCCUGCGGGCCGCCGGUGAAAUACCACUACUCUGAUCGUUUUUUCACUGACCCGGUGAGGCGGGGGGGCGAGCCCCGAGGGGCUCUCGCUUCUGGCGCCAAGCGCCCGGCCGCGCGCCGGCCGGGCGCGACCCGCUCCGGGGACAGUGCCAGGUGGGGAGUUUGACUGGGGCGGUACACCUGUCAAACGGUAACGCAGGUGUCCUAAGGCGAGCUCAGGGAGGACAGAAACCUCCCGUGGAGCAGAAGGGCAAAAGCUCGCUUGAUCUUGAUUUUCAGUACGAAUACAGACCGUGAAAGCGGGGCCUCACGAUCCUUCUGACCUUUUGGGUUUUAAGCAGGAGGUGUCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCGGCCAAGCGUUCAUAGCGACGUCGCUUUUUGAUCCUUCGAUGUCGGCUCUUCCUAUCAUUGUGAAGCAGAAUUCACCAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAUGUGUUGUUGCCAUGGUAAUCCUGCUCAGUACGAGAGGAACCGCAGGUUCAGACAUUUGGUGUAUGUGCUUGGCUGAGGAGCCAAUGGGGCGAAGCUACCAUCUGUGGGAUUAUGACUGAACGCCUCUAAGUCAGAAUCCCGCCCAGGCGGAACGAUACGGCAGCGCCGCGGAGCCUCGGUUGGCCUCGGAUAGCCGGUCCCCCGCCUGUCCCCGCCGGCGGGCCGCCCCCCCCCUCCACGCGCCCCGCGCGCGCGGGAGGGCGCGUGCCCCGCCGCGCGCCGGGACCGGGGUCCGGUGCGGAGUGCCCUUCGUCCUGGGAAACGGGGCGCGGCCGGAGAGGCGGCCGCCCCCUCGCCCGUCACGCACCGCACGUUCGUGGGGAACCUGGCGCUAAACCAUUCGUAGACGACCUGCUUCUGGGUCGGGGUUUCGUACGUAGCAGAGCAGCUCCCUCGCUGCGAUCUAUUGAAAGUCAGCCCUCGACACAAGGGUUUGUC

Entity 5 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	17289.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LY

MKFNPFVTSDRSKNRKRHFNAPSHIRRKIMSSPLSKELRQKYNVRSMPIRKDDEVQVVRGHYKGQQIGKVVQVYRKKYVIYIERVQREKANGTTVHVGIHPSKVVITRLKLDKDRKKILERKAKSRQVGKEKGKYKEETIEKMQD

Entity 6 polymer

描述 description	60S ribosomal protein L35
分子量 formula_weight	14593.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Lh

MAKIKARDLRGKKKEELLKQLDDLKVELSQLRVAKVTGGAASKLSKIRVVRKSIARVLTVINQTQKENLRKFYKGKKYKPLDLRPKKTRAMRRRLNKHEENLKTKKQQRKERLYPLRKYAVKA

Entity 7 polymer

描述 description	60S ribosomal protein L23a
分子量 formula_weight	17740.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LX

MAPKAKKEAPAPPKAEAKAKALKAKKAVLKGVHSHKKKKIRTSPTFRRPKTLRLRRQPKYPRKSAPRRNKLDHYAIIKFPLTTESAMKKIEDNNTLVFIVDVKANKHQIKQAVKKLYDIDVAKVNTLIRPDGEKKAYVRLAPDYDALDVANKIGII

Entity 8 polymer

描述 description	Nascent polypeptide-associated complex subunit alpha
分子量 formula_weight	23849.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

GPGSGSMPGEATETVPATEQELPQPQAETGSGTESDSDESVPELEEQDSTQATTQQAQLAAAAEIDEEPVSKAKQSRSEKKARKAMSKLGLRQVTGVTRVTIRKSKNILFVITKPDVYKSPASDTYIVFGEAKIEDLSQQAQLAAAEKFKVQGEAVSNIQENTQTPTVQEESEEEEVDETGVEVKDIELVMSQANVSRAKAVRALKNNSNDIVNAIMELTM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 9 polymer

描述 description	60S ribosomal protein L22
分子量 formula_weight	14813.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LU

MAPVKKLVVKGGKKKKQVLKFTLDCTHPVEDGIMDAANFEQFLQERIKVNGKAGNLGGGVVTIERSKSKITVTSEVPFSKRYLKYLTKKYLKKNNLRDWLRVVANSKESYELRYFQINQDEEEEEDED

Entity 10 polymer

描述 description	60S ribosomal protein L19
分子量 formula_weight	23535.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LR

MSMLRLQKRLASSVLRCGKKKVWLDPNETNEIANANSRQQIRKLIKDGLIIRKPVTVHSRARCRKNTLARRKGRHMGIGKRKGTANARMPEKVTWMRRMRILRRLLRRYRESKKIDRHMYHSLYLKVKGNVFKNKRILMEHIHKLKADKARKKLLADQAEARRSKTKEARKRREERLQAKKEEIIKTLSKEEETKK

Entity 11 polymer

描述 description	60S ribosomal protein L38
分子量 formula_weight	8238.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Lk

MPRKIEEIKDFLLTARRKDAKSVKIKKNKDNVKFKVRCSRYLYTLVITDKEKAEKLKQSLPPGLAVKELK

Entity 12 polymer

描述 description	N-alpha-acetyltransferase 10
分子量 formula_weight	20003.8 kDa
EC 编号 ec_number	2.3.1.255
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MGNIRNARPEDLMNMQHCNLLCLPENYQMKYYFYHGLSWPQLSYIAEDENGKIVGYVLAKMEEDPDDVPHGHITSLAVKRSHRRLGLAQKLMDQASRAMIENFNAKYVSLHVRKSNRAALHLYSNTLNFQISEVEPKYYADGEDAYAMKRDLTQMADELRRHLELKEKGRH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 13 polymer

描述 description	N-alpha-acetyltransferase 15, NatA auxiliary subunit
分子量 formula_weight	98658.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MPAVSLPPKENALFKRILRCYEHKQYRNGLKFCKQILSNPKFAEHGETLAMKGLTLNCLGKKEEAYELVRRGLRNDLKSHVCWHVYGLLQRSDKKYDEAIKCYRNALKWDKDNLQILRDLSLLQIQMRDLEGYRETRYQLLQLRPAQRASWIGYAIAYHLLEDYEMAAKILEEFRKTQQTSPDKVDYEYSELLLYQNQVLREAGLYREALEHLCTYEKQICDKLAVEETKGELLLQLCRLEDAADVYRGLQERNPENWAYYKGLEKALKPANMLERLKIYEEAWTKYPRGLVPRRLPLNFLSGEKFKECLDKFLRMNFSKGCPPVFNTLRSLYKDKEKVAIIEELVVGYETSLKSCRLFNPNDDGKEEPPTTLLWVQYYLAQHYDKIGQPSIALEYINTAIESTPTLIELFLVKAKIYKHAGNIKEAARWMDEAQALDTADRFINSKCAKYMLKANLIKEAEEMCSKFTREGTSAVENLNEMQCMWFQTECAQAYKAMNKFGEALKKCHEIERHFIEITDDQFDFHTYCMRKITLRSYVDLLKLEDVLRQHPFYFKAARIAIEIYLKLHDNPLTDENKEHEADTANMSDKELKKLRNKQRRAQKKAQIEEEKKNAEKEKQQRNQKKKKDDDDEEIGGPKEELIPEKLAKVETPLEEAIKFLTPLKNLVKNKIETHLFAFEIYFRKEKFLLMLQSVKRAFAIDSSHPWLHECMIRLFNTVCESKDLSDTVRTVLKQEMNRLFGATNPKNFNETFLKRNSDSLPHRLSAAKMVYYLDPSSQKRAIELATTLDESLTNRNLQTCMEVLEALYDGSLGDCKEAAEIYRANCHKLFPYALAFMPP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 14 polymer

描述 description	60S ribosomal protein L4
分子量 formula_weight	47804.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LC

MACARPLISVYSEKGESSGKNVTLPAVFKAPIRPDIVNFVHTNLRKNNRQPYAVSELAGHQTSAESWGTGRAVARIPRVRGGGTHRSGQGAFGNMCRGGRMFAPTKTWRRWHRRVNTTQKRYAICSALAASALPALVMSKGHRIEEVPELPLVVEDKVEGYKKTKEAVLLLKKLKAWNDIKKVYASQRMRAGKGKMRNRRRIQRRGPCIIYNEDNGIIKAFRNIPGITLLNVSKLNILKLAPGGHVGRFCIWTESAFRKLDELYGTWRKAASLKSNYNLPMHKMINTDLSRILKSPEIQRALRAPRKKIHRRVLKKNPLKNLRIMLKLNPYAKTMRRNTILRQARNHKLRVDKAAAAAAALQAKSDEKAAVAGKKPVVGKKGKKAAVGVKKQKKPLVGKKAAATKKPAPEKKPAEKKPTTEEKKPAA

Entity 15 polymer

描述 description	Large ribosomal subunit protein eL6
分子量 formula_weight	32810.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LE

MAGEKVEKPDTKEKKPEAKKVDAGGKVKKGNLKAKKPKKGKPHCSRNPVLVRGIGRYSRSAMYSRKAMYKRKYSAAKSKVEKKKKEKVLATVTKPVGGDKNGGTRVVKLRKMPRYYPTEDVPRKLLSHGKKPFSQHVRKLRASITPGTILIILTGRHRGKRVVFLKQLASGLLLVTGPLVLNRVPLRRTHQKFVIATSTKIDISNVKIPKHLTDAYFKKKKLRKPRHQEGEIFDTEKEKYEITEQRKIDQKAVDSQILPKIKAIPQLQGYLRSVFALTNGIYPHKLVF

Entity 16 polymer

描述 description	60S ribosomal protein L28
分子量 formula_weight	15784.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Lr

MSAHLQWMVVRNCSSFLIKRNKQTYSTEPNNLKARNSFRYNGLIHRKTVGVEPAADGKGVVVVIKRRSGQRKPATSYVRTTINKNARATLSSIRHMIRKNKYRPDLRMAAIRRASAILRSQKPVMVKRKRTRPTKSS

Entity 17 non-polymer

描述 description	INOSITOL HEXAKISPHOSPHATE
分子量 formula_weight	660.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.67 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	24116

fit	/app/data/saxs_computation/fq/9fq0/9fq0.fit
pddf	/app/data/pr_computation/fq/9fq0/9fq0.pr.out
profile	/app/data/saxs_computation/fq/9fq0/9fq0.dat
