SAXSdb — 6kag

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 160–376	Not recorded	SWI/SNF complex subunit SMARCC2 × 2 （Q8TAQ2）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；150 mM CsCl2, 15% PEG3350.	Resolution 2.60 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6KAG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5AJ1 Solution Structure of the Smarc Domain Deposited 2015-02-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–113（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 100；Pressure 1.0 NMR sample composition 95% WATER/5% D2O	Resolution not provided
5GJK Crystal Structure of BAF47 and BAF155 Complex Deposited 2016-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 183–249（67 aa） Fragment：UNP RESIDUES 183-249	Not recorded	GOL GLYCEROL × 6 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5.4；293 K；1 M sodium phosphate monobasic monohydrate, potassium phosphate dibasic, pH 5.4	Resolution 2.05 Å R-free 0.213
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7B Solution structure of the human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 184–258（75 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 120；Pressure 1 NMR sample composition 20 mM potassium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM potassium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6AX5 RPT1 region of INI1/SNF5/SMARCB1_HUMAN - SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1. Deposited 2017-09-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 174–256（83 aa） Fragment：UNP Residues 174-256	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 160；Pressure 1 NMR sample composition 400 uM [U-99% 13C; U-99% 15N] Rpt1/INI1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6KZ7 The crystal structure of BAF155 SWIRM domain and N-terminal elongated hSNF5 RPT1 domain complex: Chromatin remodeling complex Deposited 2019-09-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 171–252（82 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；288 K；TACSIMATE, HEPES, PEC3350, MICROBATCH, TEMPERATURE 288K	Resolution 2.28 Å R-free 0.200
6KZ7 The crystal structure of BAF155 SWIRM domain and N-terminal elongated hSNF5 RPT1 domain complex: Chromatin remodeling complex Deposited 2019-09-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 171–252（82 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；288 K；TACSIMATE, HEPES, PEC3350, MICROBATCH, TEMPERATURE 288K	Resolution 2.28 Å R-free 0.200
6LTH Structure of human BAF Base module Deposited 2020-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain M 1–385（385 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain M 1–113（113 aa） Fragment：UNP residues 1-113, UNP residues 172-385 Chain M 172–385（214 aa） Fragment：UNP residues 1-113, UNP residues 172-385	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6UCH SMARCB1 nucleosome-interacting C-terminal alpha helix Deposited 2019-09-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 351–385（35 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition 300 uM [U-100% 13C; U-100% 15N] SMARCB1CC, 137 mM NaCl, 2.7 mM potassium chloride, 10 mM Na2HPO4, 1.8 mM KH2PO4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 230 uM SMARCB1CC, 137 mM NaCl, 2.7 mM potassium chloride, 10 mM Na2HPO4, 1.8 mM KH2PO4, 100% D2O \| 100% D2O	Resolution not provided
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain V 1–385（385 aa）	Not recorded	BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric	Chain M 1–385（385 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	PTD PENTANEDIAL × 16 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric	Chain M 1–385（385 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNF5_HUMAN
Isoform	Q12824-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–217； UniProt 160–376

SWI/SNF complex subunit SMARCC2

Homo sapiens

UniProt Q8TAQ2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 325–518 Chain C； UniProt 325–518	Not recorded	SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1 × 1 （Q12824）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；150 mM CsCl2, 15% PEG3350.	Resolution 2.60 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6KAG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6LTH Structure of human BAF Base module Deposited 2020-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain W 1–1214（1214 aa） Chain X 1–1214（1214 aa）	Not recorded	BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	PTD PENTANEDIAL × 16 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric	Chain N 1–1214（1214 aa） Chain O 1–1214（1214 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SMRC2_HUMAN
Isoform	Q8TAQ2-3
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–194； UniProt 325–518 Author chain C； PDBConstruct 1–194； UniProt 325–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6kag
Deposition date deposition_date	2019-06-22
Structure title title	Crystal structure of the SMARCB1/SMARCC2 subcomplex
Keywords keywords	;Chromatin remodeling complex, SWI-SNF complex, BAF complex, SMARCB1and SMARCC2 subcomplex, Atypical Teratoid/Rhabdoid tumor, CELL CYCLE ;; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.06 Å
Radius of gyration Rg (electron density) rg_electron	28.98 Å
Forward intensity I(0) i0	26369700.00
Molecular weight molecular_weight	40568.0 kDa
Excluded volume excluded_volume	51017 Å³
Envelope volume envelope_volume	66376 Å³
Hydration-shell volume shell_volume	20656 Å³
Envelope diameter envelope_diameter	103.4 Å
Shell Rg shell_rg	33.26 Å
Envelope Rg envelope_rg	28.68 Å
Shape Rg shape_rg	29.05 Å
Total Rg total_rg	29.20 Å
Total atoms total_atoms	2862
Residues n_residues	350
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.5 Å
Rg (real space) rg_real	29.34 Å
Rg uncertainty (real space) rg_real_error	0.84 Å
I(0) (real space) i0_real	2.6370e+07
I(0) uncertainty (real space) i0_real_error	3.4610e+05
Rg (reciprocal space) rg_reciprocal	29.22 Å
I(0) (reciprocal space) i0_reciprocal	26370000.0000
Solution quality estimate total_estimate	0.5990
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	23.3 Å
Skewness Skewness skewness	0.478
Kurtosis Kurtosis kurtosis	-0.546
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4454000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.681; Stabil: 1.000; Sysdev: 0.156; Positv: 1.000; Valcen: 0.416; Smooth: 0.857

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1
Molecular weight formula_weight	24872.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2977

DDHDPAVIHENASQPEVLVPIRLDMEIDGQKLRDAFTWNMNEKLMTPEMFSEILCDDLDLNPLTFVPAIASAIRQQIESYPTDSILEDQSDQRVIIKLNIHVGNISLVDQFEWDMSEKENSPEKFALKLCSELGLGGEFVTTIAYSIRGQLSWHQKTYAFSENPLPTVEIAIRNTGDADQWCPLLETLTDAEMEKKIRDQDRNTRRMRRLANTAPAW

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	SWI/SNF complex subunit SMARCC2
Molecular weight formula_weight	22214.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

TKSKRGHREEEQEDLTKDMDEPSPVPNVEEVTLPKTVNTKKDSESAPVKGGTMTDLDEQEDESMETTGKDEDENSTGNKGEQTKNPDLHEDNVTEQTHHIIIPSYAAWFDYNSVHAIERRALPEFFNGKNKSKTPEIYLAYRNFMIDTYRLNPQEYLTSTACRRNLAGDVCAIMRVHAFLEQWGLINYQVDAES

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d6kagb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.0 — automated matches

Domain ID domain_id	d6kagc_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.0 — automated matches

▶

8. Citations (1)

▶

Unit-cell length a length_a	170.390 Å
Unit-cell length b length_b	170.390 Å
Unit-cell length c length_c	170.390 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 41 3 2
Space-group number int_tables_number	213
Crystal system crystal_system	—

Resolution resolution	2.601 Å
Low-resolution limit resolution_low	49.187 Å
R factor r_factor	0.2083
R_work r_work	0.2066
R_free r_free	0.2402

fit	/app/data/saxs_computation/ka/6kag/6kag.fit
pddf	/app/data/pr_computation/ka/6kag/6kag.pr.out
profile	/app/data/saxs_computation/ka/6kag/6kag.dat

Crystal structure of the SMARCB1/SMARCC2 subcomplex

1. Protein Identity and Related Structures Protein Identity & Related Structures

SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1

State in the Current Structure

Other States of the Same Protein in the Database

SWI/SNF complex subunit SMARCC2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

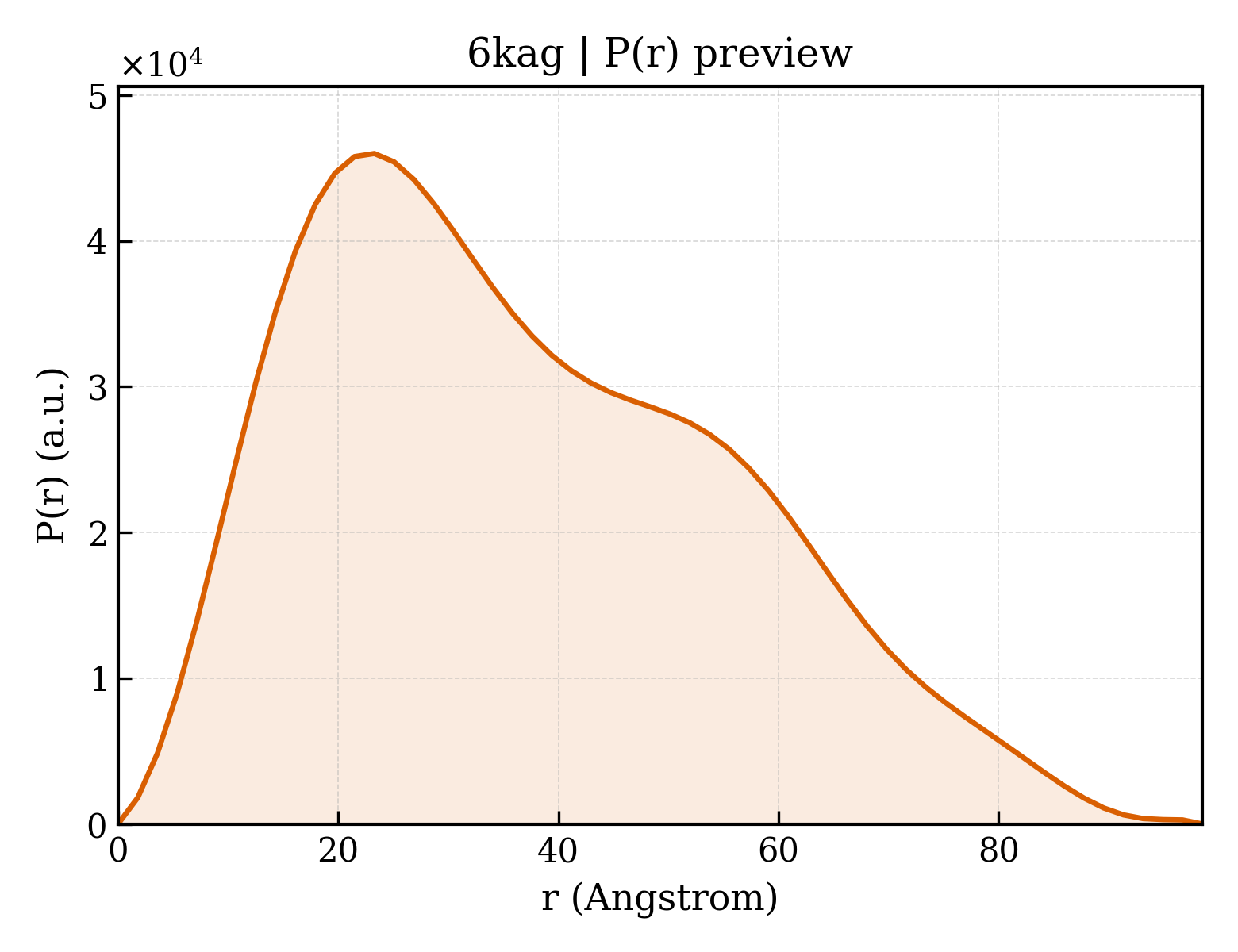

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
