SAXSdb — 6uch

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 351–385	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6.5；288 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition：300 uM [U-100% 13C; U-100% 15N] SMARCB1CC, 137 mM NaCl, 2.7 mM potassium chloride, 10 mM Na2HPO4, 1.8 mM KH2PO4, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：230 uM SMARCB1CC, 137 mM NaCl, 2.7 mM potassium chloride, 10 mM Na2HPO4, 1.8 mM KH2PO4, 100% D2O \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6UCH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5AJ1 Solution Structure of the Smarc Domain Deposited 2015-02-19	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–113（112 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 100；Pressure 1.0 NMR sample composition 95% WATER/5% D2O	Resolution not provided
5GJK Crystal Structure of BAF47 and BAF155 Complex Deposited 2016-06-30	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 183–249（67 aa） Fragment：UNP RESIDUES 183-249	Not recorded	GOL GLYCEROL × 6 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 5.4；293 K；1 M sodium phosphate monobasic monohydrate, potassium phosphate dibasic, pH 5.4	Resolution 2.05 Å R-free 0.213
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7A The crystal structure of the Human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 184–252（69 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；277 K；1.4 M tri-sodium citrate and 100 mM HEPES pH 7.5	Resolution 2.10 Å R-free 0.260
5L7B Solution structure of the human SNF5/INI1 domain Deposited 2016-06-02	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 184–258（75 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；293 K；Ionic strength (raw mmCIF value) 120；Pressure 1 NMR sample composition 20 mM potassium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 20 mM potassium phosphate, 100 mM sodium chloride, 5 mM [U-100% 2H] beta-mercaptoethanol, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6AX5 RPT1 region of INI1/SNF5/SMARCB1_HUMAN - SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1. Deposited 2017-09-06	Different construct Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 174–256（83 aa） Fragment：UNP Residues 174-256	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；298 K；Ionic strength (raw mmCIF value) 160；Pressure 1 NMR sample composition 400 uM [U-99% 13C; U-99% 15N] Rpt1/INI1, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6KAG Crystal structure of the SMARCB1/SMARCC2 subcomplex Deposited 2019-06-22	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 160–376（217 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；150 mM CsCl2, 15% PEG3350.	Resolution 2.60 Å R-free 0.240
6KZ7 The crystal structure of BAF155 SWIRM domain and N-terminal elongated hSNF5 RPT1 domain complex: Chromatin remodeling complex Deposited 2019-09-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 171–252（82 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；288 K；TACSIMATE, HEPES, PEC3350, MICROBATCH, TEMPERATURE 288K	Resolution 2.28 Å R-free 0.200
6KZ7 The crystal structure of BAF155 SWIRM domain and N-terminal elongated hSNF5 RPT1 domain complex: Chromatin remodeling complex Deposited 2019-09-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 171–252（82 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；288 K；TACSIMATE, HEPES, PEC3350, MICROBATCH, TEMPERATURE 288K	Resolution 2.28 Å R-free 0.200
6LTH Structure of human BAF Base module Deposited 2020-01-22	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain M 1–385（385 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
6LTJ Structure of nucleosome-bound human BAF complex Deposited 2020-01-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain M 1–113（113 aa） Fragment：UNP residues 1-113, UNP residues 172-385 Chain M 172–385（214 aa） Fragment：UNP residues 1-113, UNP residues 172-385	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
7VDV The overall structure of human chromatin remodeling PBAF-nucleosome complex Deposited 2021-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 22 PDB declaration: 24-meric	Chain V 1–385（385 aa）	Not recorded	BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7Y8R The nucleosome-bound human PBAF complex Deposited 2022-06-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 25 PDB declaration: 27-meric	Chain M 1–385（385 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9RL4 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL-6 Deposited 2025-06-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	PTD PENTANEDIAL × 16 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
9RMC Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 1 Deposited 2025-06-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
9RN1 Structure of BAF-nucleosome complex with OCT4-SOX2 at SHL+6 in ADP-bound state, BAF47 bound to ATPase lobe 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 22-meric	Chain M 1–385（385 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.90 Å
9RN2 Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2 Deposited 2025-06-19	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 21-meric	Chain M 1–385（385 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNF5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–41； UniProt 351–385

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6uch
Deposition date deposition_date	2019-09-16
Structure title title	SMARCB1 nucleosome-interacting C-terminal alpha helix
Keywords keywords	;mSWI-SNF complex, BAF complex, Chromatin Remodeling, SMARCB1, BAF47, Positive charge cluster, Arginine cluster, Nucleosome Binding, Alpha Helix, NUCLEAR PROTEIN ;; NUCLEAR PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.55 Å
Radius of gyration Rg (electron density) rg_electron	16.14 Å
Forward intensity I(0) i0	39116100.00
Molecular weight molecular_weight	47255.0 kDa
Excluded volume excluded_volume	58076 Å³
Envelope volume envelope_volume	29488 Å³
Hydration-shell volume shell_volume	13025 Å³
Envelope diameter envelope_diameter	81.9 Å
Shell Rg shell_rg	25.85 Å
Envelope Rg envelope_rg	21.65 Å
Shape Rg shape_rg	16.19 Å
Total Rg total_rg	16.73 Å
Total atoms total_atoms	6660
Residues n_residues	410
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

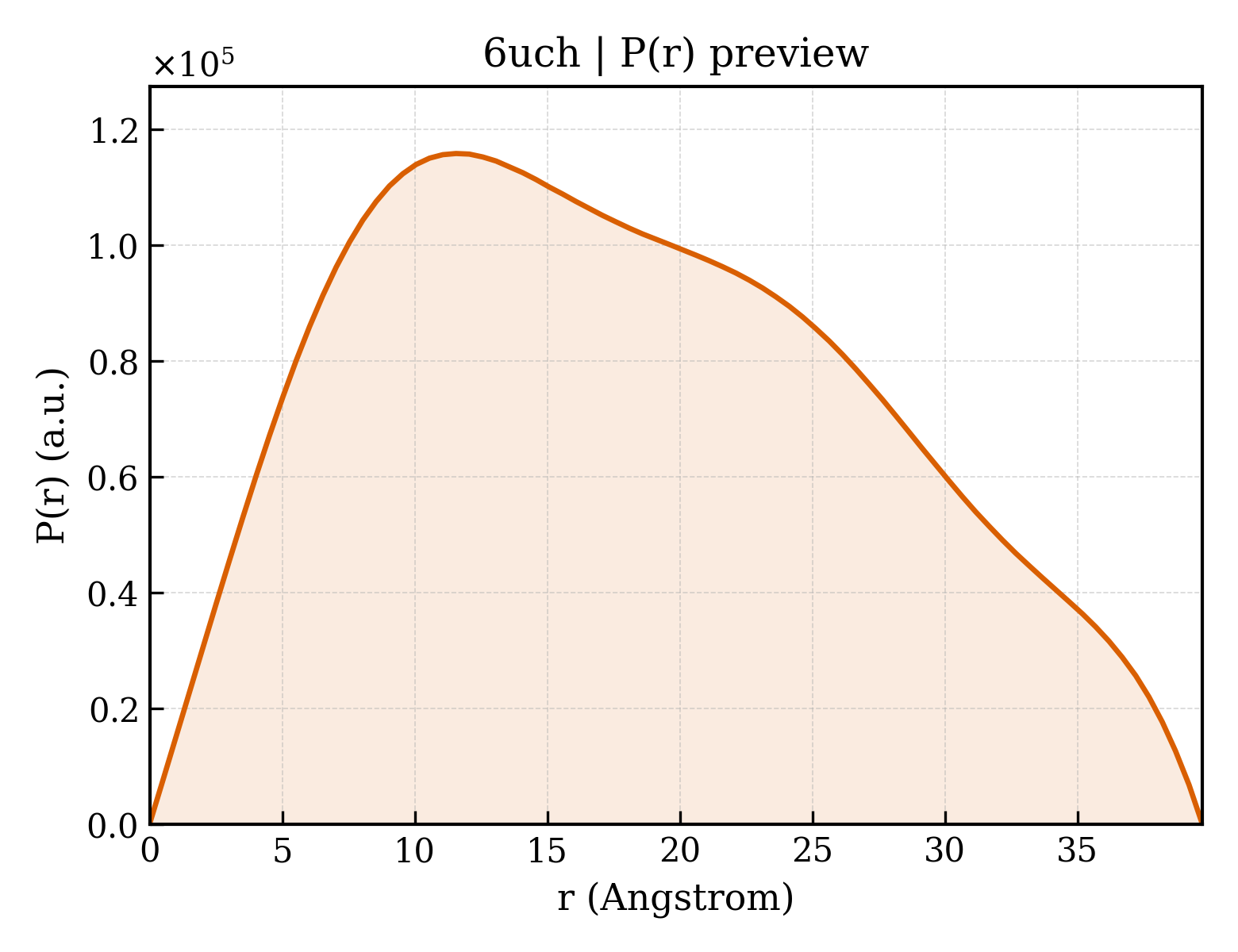

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	39.7 Å
Rg (real space) rg_real	14.19 Å
Rg uncertainty (real space) rg_real_error	0.08 Å
I(0) (real space) i0_real	3.7110e+07
I(0) uncertainty (real space) i0_real_error	3.2150e+05
Rg (reciprocal space) rg_reciprocal	15.90 Å
I(0) (reciprocal space) i0_reciprocal	39120000.0000
Solution quality estimate total_estimate	0.6616
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	11.6 Å
Skewness Skewness skewness	0.265
Kurtosis Kurtosis kurtosis	-0.825
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	2.7920
Highest regularization parameter α highest_alpha	30450.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.020; Oscil: 0.998; Stabil: 0.988; Sysdev: 0.000; Positv: 1.000; Valcen: 0.643; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Description description	SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1
Molecular weight formula_weight	4748.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6660

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

fit	/app/data/saxs_computation/uc/6uch/6uch.fit
pddf	/app/data/pr_computation/uc/6uch/6uch.pr.out
profile	/app/data/saxs_computation/uc/6uch/6uch.dat

SMARCB1 nucleosome-interacting C-terminal alpha helix

1. Protein Identity and Related Structures Protein Identity & Related Structures

SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1

State in the Current Structure

Other States of the Same Protein in the Database

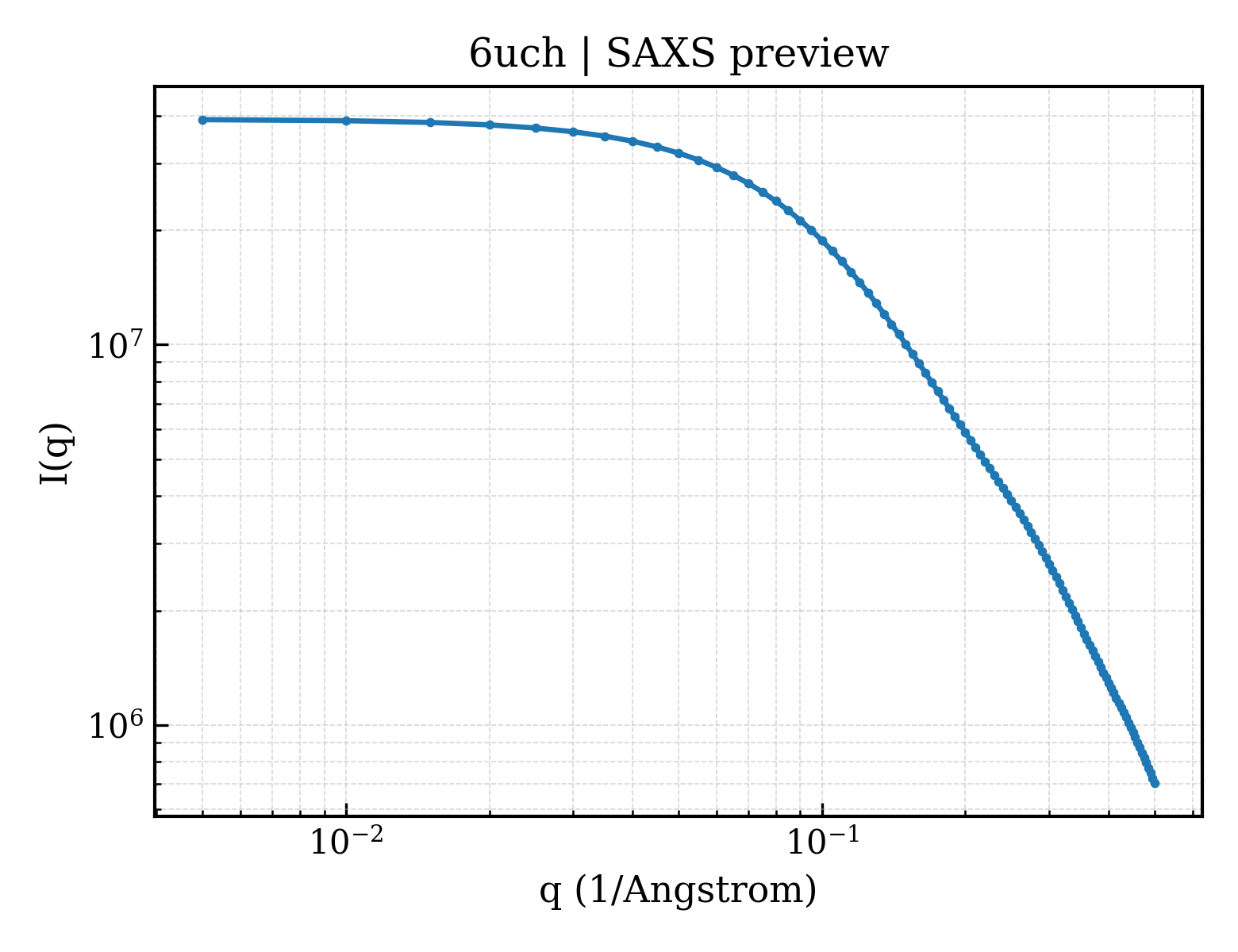

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
