1. Protein Identity and Related Structures Protein Identity & Related Structures

Inner kinetochore subunit MCM16

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain H； UniProt 1–181	Not recorded	Inner kinetochore subunit CTF3 × 1 （Q12748） Inner kinetochore subunit MCM22 × 1 （P47167） Inner kinetochore subunit WIP1 × 1 （Q2V2P8） Inner kinetochore subunit CNN1 × 1 （P43618）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.23 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WUC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6OUA Cryo-EM structure of the yeast Ctf3 complex Deposited 2019-05-04	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–181（181 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
6QLD Structure of inner kinetochore CCAN-Cenp-A complex Deposited 2019-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain H 4–136（133 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6YPC Crystal structure of the kinetochore subunits H/I/K/T/W penta-complex from S. cerevisiae at 2.9 angstroms Deposited 2020-04-15	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain H 137–181（45 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1 M NaH2PO4 and 0.38M K2HPO4 with protein at 5.5 mg/ml	Resolution 2.90 Å R-free 0.283
7L7Q Ctf3c with Ulp2-KIM Deposited 2020-12-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 1–181（181 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8OVW Cryo-EM structure of CBF1-CCAN bound topologically to centromeric DNA Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain H 1–181（181 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain H 1–181（181 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain H 1–181（181 aa） Chain HH 1–181（181 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPH_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain H； PDBConstruct 4–184； UniProt 1–181

Inner kinetochore subunit CTF3

Saccharomyces cerevisiae

UniProt Q12748

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain I； UniProt 1–733	Not recorded	Inner kinetochore subunit MCM16 × 1 （Q12262） Inner kinetochore subunit MCM22 × 1 （P47167） Inner kinetochore subunit WIP1 × 1 （Q2V2P8） Inner kinetochore subunit CNN1 × 1 （P43618）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.23 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WUC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6NUW Yeast Ctf19 complex Deposited 2019-02-03	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain H 1–733（733 aa） Chain Y 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.25 Å
6OUA Cryo-EM structure of the yeast Ctf3 complex Deposited 2019-05-04	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
6QLD Structure of inner kinetochore CCAN-Cenp-A complex Deposited 2019-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain I 321–728（408 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6QLE Structure of inner kinetochore CCAN complex Deposited 2019-01-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain I 335–656（322 aa） Chain I 690–733（44 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
6YPC Crystal structure of the kinetochore subunits H/I/K/T/W penta-complex from S. cerevisiae at 2.9 angstroms Deposited 2020-04-15	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 1–245（245 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1 M NaH2PO4 and 0.38M K2HPO4 with protein at 5.5 mg/ml	Resolution 2.90 Å R-free 0.283
7L7Q Ctf3c with Ulp2-KIM Deposited 2020-12-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8OVW Cryo-EM structure of CBF1-CCAN bound topologically to centromeric DNA Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain I 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain I 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain I 1–733（733 aa） Chain II 1–733（733 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPI_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 4–736； UniProt 1–733

Inner kinetochore subunit MCM22

Saccharomyces cerevisiae

UniProt P47167

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain K； UniProt 1–239	Not recorded	Inner kinetochore subunit MCM16 × 1 （Q12262） Inner kinetochore subunit CTF3 × 1 （Q12748） Inner kinetochore subunit WIP1 × 1 （Q2V2P8） Inner kinetochore subunit CNN1 × 1 （P43618）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.23 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WUC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6OUA Cryo-EM structure of the yeast Ctf3 complex Deposited 2019-05-04	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1–239（239 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.18 Å
6QLD Structure of inner kinetochore CCAN-Cenp-A complex Deposited 2019-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain K 7–128（122 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.15 Å
6QLE Structure of inner kinetochore CCAN complex Deposited 2019-01-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain K 1–133（133 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
6YPC Crystal structure of the kinetochore subunits H/I/K/T/W penta-complex from S. cerevisiae at 2.9 angstroms Deposited 2020-04-15	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 131–239（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1 M NaH2PO4 and 0.38M K2HPO4 with protein at 5.5 mg/ml	Resolution 2.90 Å R-free 0.283
7L7Q Ctf3c with Ulp2-KIM Deposited 2020-12-30	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 1–239（239 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8OVW Cryo-EM structure of CBF1-CCAN bound topologically to centromeric DNA Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain K 1–239（239 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain K 1–239（239 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain K 1–239（239 aa） Chain KK 1–239（239 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPK_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain K； PDBConstruct 4–242； UniProt 1–239

Inner kinetochore subunit WIP1

Saccharomyces cerevisiae

UniProt Q2V2P8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain W； UniProt 1–89	Not recorded	Inner kinetochore subunit MCM16 × 1 （Q12262） Inner kinetochore subunit CTF3 × 1 （Q12748） Inner kinetochore subunit MCM22 × 1 （P47167） Inner kinetochore subunit CNN1 × 1 （P43618）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.23 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WUC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6YPC Crystal structure of the kinetochore subunits H/I/K/T/W penta-complex from S. cerevisiae at 2.9 angstroms Deposited 2020-04-15	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain W 1–89（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1 M NaH2PO4 and 0.38M K2HPO4 with protein at 5.5 mg/ml	Resolution 2.90 Å R-free 0.283
8OVW Cryo-EM structure of CBF1-CCAN bound topologically to centromeric DNA Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain W 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain W 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain W 1–89（89 aa） Chain WW 1–89（89 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPW_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain W； PDBConstruct 4–92； UniProt 1–89

Inner kinetochore subunit CNN1

Saccharomyces cerevisiae

UniProt P43618

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain T； UniProt 1–361	Not recorded	Inner kinetochore subunit MCM16 × 1 （Q12262） Inner kinetochore subunit CTF3 × 1 （Q12748） Inner kinetochore subunit MCM22 × 1 （P47167） Inner kinetochore subunit WIP1 × 1 （Q2V2P8）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.23 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WUC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 60–84（25 aa） Fragment：Cnn1p N-terminal motif, residues 60-84	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 60–84（25 aa） Fragment：Cnn1p N-terminal motif, residues 60-84	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
6YPC Crystal structure of the kinetochore subunits H/I/K/T/W penta-complex from S. cerevisiae at 2.9 angstroms Deposited 2020-04-15	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain T 1–361（361 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1 M NaH2PO4 and 0.38M K2HPO4 with protein at 5.5 mg/ml	Resolution 2.90 Å R-free 0.283
8OVW Cryo-EM structure of CBF1-CCAN bound topologically to centromeric DNA Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain T 1–361（361 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW0 Cryo-EM structure of CBF1-CCAN bound topologically to a centromeric CENP-A nucleosome Deposited 2023-04-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 23 PDB declaration: 25-meric	Chain T 1–361（361 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8OW1 Cryo-EM structure of the yeast Inner kinetochore bound to a CENP-A nucleosome. Deposited 2023-04-26	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 40 PDB declaration: 42-meric	Chain T 1–361（361 aa） Chain TT 1–361（361 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CENPT_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain T； PDBConstruct 1–361； UniProt 1–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6wuc
Deposition date deposition_date	2020-05-04
Structure title title	The yeast Ctf3 complex with Cnn1-Wip1
Keywords keywords	kinetochore, cell cycle, chromosome segregation, CCAN; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	46.12 Å
Radius of gyration Rg (electron density) rg_electron	46.46 Å
Forward intensity I(0) i0	293643000.00
Molecular weight molecular_weight	146090.0 kDa
Excluded volume excluded_volume	184970 Å³
Envelope volume envelope_volume	253680 Å³
Hydration-shell volume shell_volume	47196 Å³
Envelope diameter envelope_diameter	148.6 Å
Shell Rg shell_rg	48.02 Å
Envelope Rg envelope_rg	46.06 Å
Shape Rg shape_rg	46.48 Å
Total Rg total_rg	46.44 Å
Total atoms total_atoms	10284
Residues n_residues	1266
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

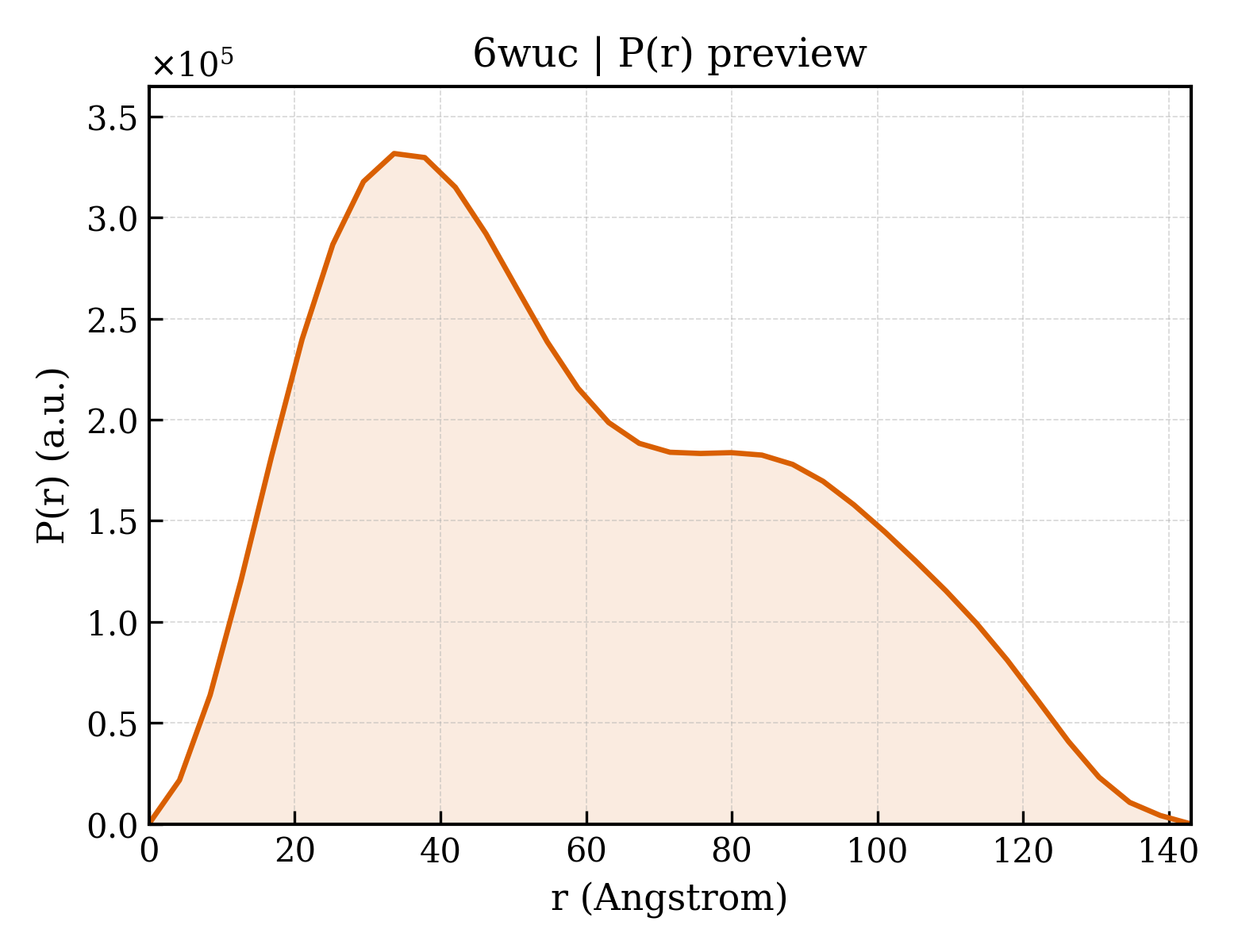

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	143.0 Å
Rg (real space) rg_real	46.62 Å
Rg uncertainty (real space) rg_real_error	1.23 Å
I(0) (real space) i0_real	2.9360e+08
I(0) uncertainty (real space) i0_real_error	5.3220e+06
Rg (reciprocal space) rg_reciprocal	46.13 Å
I(0) (reciprocal space) i0_reciprocal	293500000.0000
Solution quality estimate total_estimate	0.7654
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.6 Å
Skewness Skewness skewness	0.424
Kurtosis Kurtosis kurtosis	-0.806
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	43010000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.729; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.755; Smooth: 0.002

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Inner kinetochore subunit MCM16
Molecular weight formula_weight	21438.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	10284

SNAMTNSSEKQWERIQQLEKEHVEVYRELLITLDRLYLIRKHNHAVILSHTQQRLLEIRHQLQINLEKTALLIRLLEKPDNTNVLFTKLQNLLEESNSLDYELLQSLGAQSSLHKQLIESRAERDELMSKLIELSSKFPKPTIPPDDSDTAGKQVEVEKENETIQELMIALQIHSGYTNISYTI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Inner kinetochore subunit CTF3
Molecular weight formula_weight	84617.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

SNAMSLILDDIILSLTNANERTPPQALKTTLSLLYEKSKQYGLSSPQLQALVRLLCETSIIDTVTKVYIVENCFLPDGYLTKELLLEIINHLGTPTVFSRYRIQTPPVLQSALCKWLVHVYFLFPVHSEREHNISSSIWLHLWQFSFLQKWITPLVIWQATTPVDVKPWKLSIIKRCAMHPGYRDAPGSATLILQRFQCLVGASSQITESIITINCNRKTLKSHRNLKLDAHFLSILKRILSRAHPANFPADTVQNTIDMYLSEIHQLGADSIYPLRLQSLPEYVPSDSTVSLWDVTSLEQLAQNWPQLHIPNDVDYMMKPSLNSNVLLPRKVMSRDSLKHLYSSIILIKNSRDESSSPYEWCIWQLKRCFAHQIETPQEVIPIIISVSSMDNKLSSRIIQTFCNLKYLKLDELTLKKVCGGILPLWKPELISGTREFFVKFMASIFMWSTRDGHDNNCTFSETCFYVLQMITNWVLDDKLIALGLTLLHDMQSLLTLDKIFNNATSNRFSTMAFISSLDILTQLSKQTKSDYAIQYLIVGPDIMNKVFSSDDPLLLSAACRYLVATKNKLMQYPSTNKFVRMQNQYIMDLTNYLYRNKVLSSKSLFGVSPDFFKQILENLYIPTADFKNAKFFTITGIPALSYICIIILRRLETAENTKIKFTSGIINEETFNNFFRVHHDEIGQHGWIKGVNNIHDLRVKILMHLSNTANPYRDIAAFLFTYLKSLSKYSVQNS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Inner kinetochore subunit MCM22
Molecular weight formula_weight	27874.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

SNAMDVEKDVLDVYIKNLENQIGNKRYFLKQAQGAIDEITKRSLDTEGKPVNSEVFTELLRKPMFFSERADPIGFSLTSNFLSLRAQSSSEWLSLMNDQSVDQKAMLLLQNNINSDLKELLRKLQHQMTIMDSKKQDHAHIRTRKARNKELWDSLADFLKGYLVPNLDDNDESIDSLTNEVMLLMKRLIEHDLNLTLNDFSSKTIPIYRLLLRANIITVIEGSTNPGTKYIKLIDFNETSLT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Inner kinetochore subunit WIP1
Molecular weight formula_weight	10527.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W

SNAMDTEALANYLLRQLSLDAEENKLEDLLQRQNEDQESSQEYNKKLLLACGFQAILRKILLDARTRATAEGLREVYPYHIEAATQAFLDSQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Inner kinetochore subunit CNN1
Molecular weight formula_weight	41359.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

MSTPRKAAGNNENTEVSEIRTPFRERALEEQRLKDEVLIRNTPGYRKLLSASTKSHDILNKDPNEVRSFLQDLSQVLARKSQGNDTTTNKTQARNLIDELAYEESQPEENELLRSRSEKLTDNNIGNETQPDYTSLSQTVFAKLQERDKGLKSRKIDPIIIQDVPTTGHEDELTVHSPDKANSISMEVLRTSPSIGMDQVDEPPVRDPVPISITQQEEPLSEDLPSDDKEETEEAENEDYSFENTSDENLDDIGNDPIRLNVPAVRRSSIKPLQIMDLKHLTRQFLNENRIILPKQTWSTIQEESLNIMDFLKQKIGTLQKQELVDSFIDMGIINNVDDMFELAHELLPLELQSRIESYLF

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;Baker's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.23 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	109996

fit	/app/data/saxs_computation/wu/6wuc/6wuc.fit
pddf	/app/data/pr_computation/wu/6wuc/6wuc.pr.out
profile	/app/data/saxs_computation/wu/6wuc/6wuc.dat

The yeast Ctf3 complex with Cnn1-Wip1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Inner kinetochore subunit MCM16

State in the Current Structure

Other States of the Same Protein in the Database

Inner kinetochore subunit CTF3

State in the Current Structure

Other States of the Same Protein in the Database

Inner kinetochore subunit MCM22

State in the Current Structure

Other States of the Same Protein in the Database

Inner kinetochore subunit WIP1

State in the Current Structure

Other States of the Same Protein in the Database

Inner kinetochore subunit CNN1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
