SAXSdb — 7lhm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Retinol-binding protein 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ACETATE ION × 1 RETINAL × 1 GLYCEROL × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ACETATE ION × 1 RETINAL × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RET2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 2–134 Author chain B； PDBConstruct 1–133； UniProt 2–134

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7lhm
Deposition date deposition_date	2021-01-25
Structure title title	Crystal structure of Q108K:K40L:T51V:T53C:R58W:T29L:Y19W:Q4A:Q38L mutant of cellular retinol binding protein II complex with all-trans-retinal
Keywords keywords	hCRBPII, Q4A, Q38L, isomerization, retinal, all-trans-retinal, rhodopsin, bacteriorhodopsin, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7lhm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7lhm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

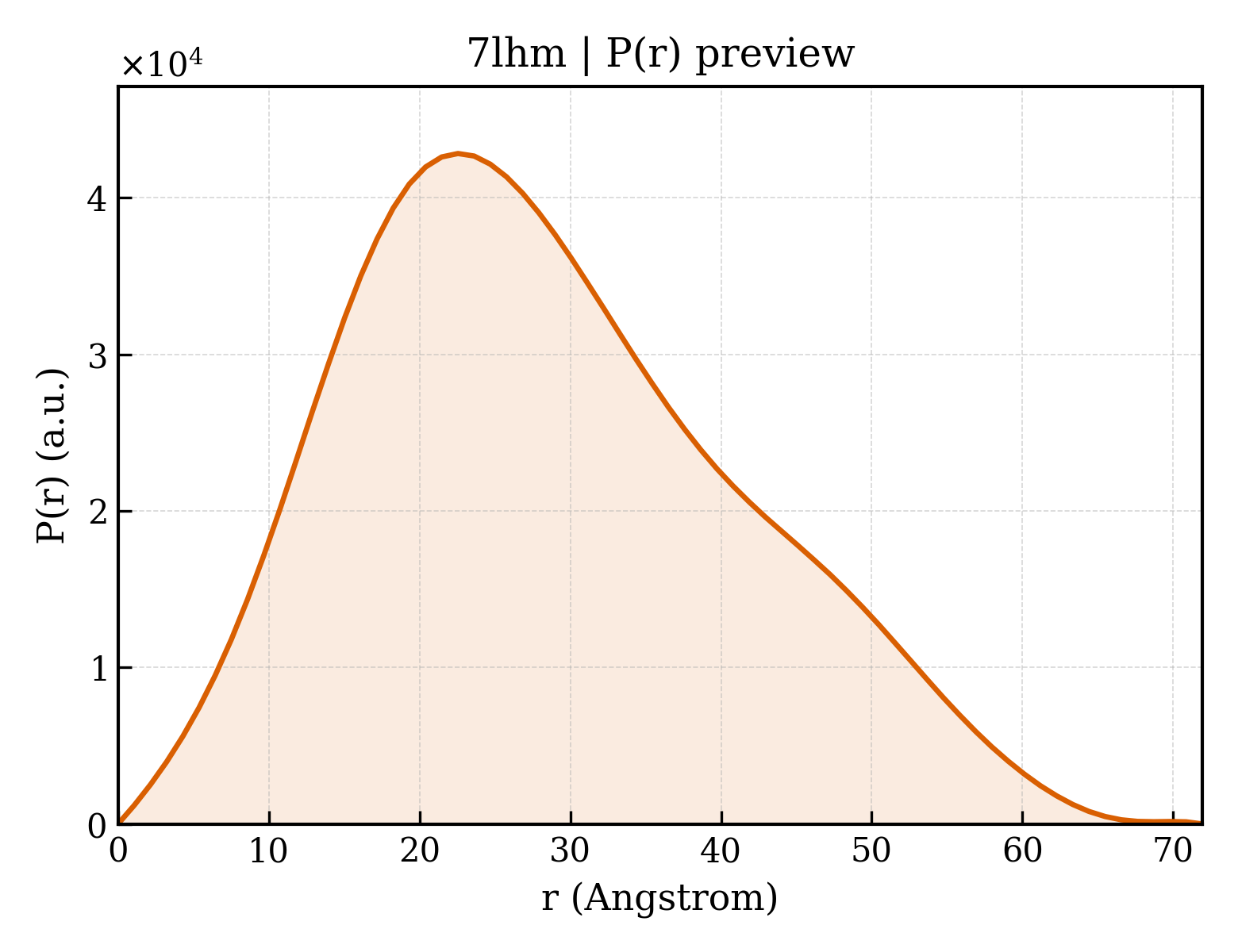

7lhm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.56 Å
Rg (electron density)	14.15 Å
Total Rg	15.39 Å
Atom count	1134
Residues	133
Excluded volume	20078 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7lhm__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7lhm__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Retinol-binding protein 2
Molecular weight formula_weight	15574.6 kDa
Mutation mutation	Q108K,K40L,T51V,T53C,R58W,T29L,Y19W,Q4A,Q38L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2439

TRDANGTWEMESNENFEGWMKALDIDFALRKIAVRLTLTLVIDQDGDNFKVKCTSTFWNYDVDFTVGVEFDEYTKSLDNRHVKALVTWEGDVLVCVQKGEKENRGWKKWIEGDKLYLELTCGDQVCRQVFKKK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	RETINAL
Molecular weight formula_weight	284.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	171

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d7lhma_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.2 — Fatty acid binding protein-like

Domain ID domain_id	d7lhmb_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.2 — Fatty acid binding protein-like

▶

Unit-cell length a length_a	30.979 Å
Unit-cell length b length_b	36.479 Å
Unit-cell length c length_c	63.896 Å
Unit-cell angle α angle_alpha	90.81 °
Unit-cell angle β angle_beta	93.40 °
Unit-cell angle γ angle_gamma	115.90 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	31.860 Å
R factor r_factor	0.1992
R_work r_work	0.1980
R_free r_free	0.2223
