SAXSdb — 7v1a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Talin-1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ASP-ILE-ASP-GLN-MET-PHE-SER-THR-LEU-LEU-GLY-GLU-MK8-ASP-LEU-LEU-MK8-GLN-SER × 1 1,2-ETHANEDIOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TLN1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–301； UniProt 1357–1657

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7v1a
Deposition date deposition_date	2022-05-11
Structure title title	Stapled TBS peptide from RIAM bound to talin R7R8 domains
Keywords keywords	RIAM, Talin, integrin, MRL, stapled, helix, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7v1a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7v1a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

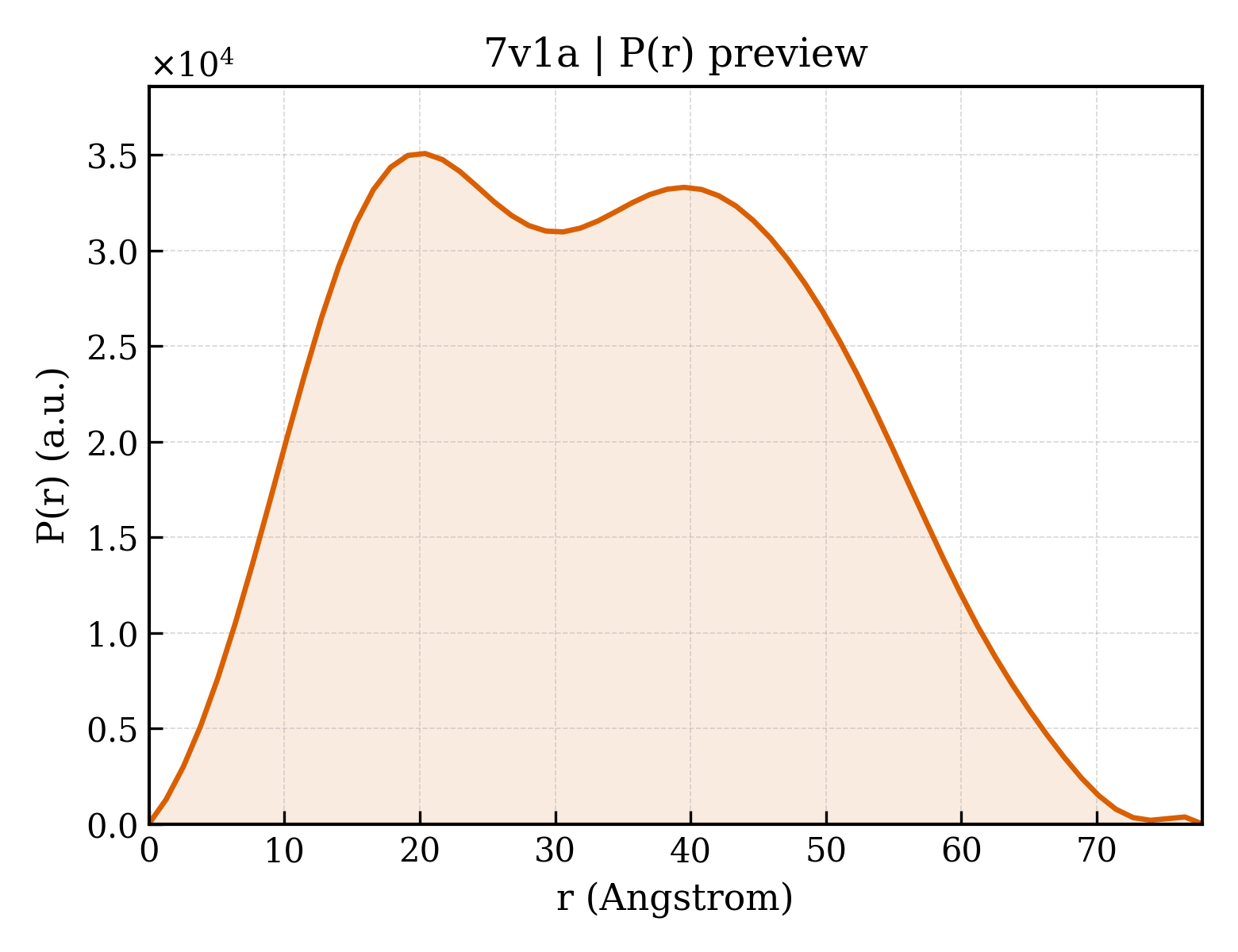

7v1a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.93 Å
Rg (electron density)	25.12 Å
Total Rg	25.77 Å
Atom count	2321
Residues	317
Excluded volume	41047 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7v1a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Talin-1
Molecular weight formula_weight	31603.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2468

APGQKECDNALRQLETVRELLENPVQPINDMSYFGCLDSVMENSKVLGEAMTGISQNAKNGNLPEFGDAIATASKALCGFTEAAAQAAYLVGVSDPNSQAGQQGLVEPTQFARANQAIQMACQSLGEPGCTQAQVLSAATIVAKHTSALCNSCRLASARTANPTAKRQFVQSAKEVANSTANLVKTIKALDGDFTEENRAQCRAATAPLLEAVDNLSAFASNPEFSSVPAQISPEGRAAMEPIVISAKTMLESAGGLIQTARALAVNPRDPPRWSVLAGHSRTVSDSIKKLITSMRDKAPG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ASP-ILE-ASP-GLN-MET-PHE-SER-THR-LEU-LEU-GLY-GLU-MK8-ASP-LEU-LEU-MK8-GLN-SER
Molecular weight formula_weight	2179.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DIDQMFSTLLGELDLLLQS

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	144

▶

Unit-cell length a length_a	60.864 Å
Unit-cell length b length_b	104.334 Å
Unit-cell length c length_c	48.233 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.845 Å
Low-resolution limit resolution_low	52.572 Å
R factor r_factor	0.2175
R_work r_work	0.2154
R_free r_free	0.2538
