SAXSdb — 8efh

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8efh
沉积日期 deposition_date	2022-09-08
结构标题 title	Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in complex with ADP-Mg2+
关键词 keywords	actin, tropomyosin, myosin, cardiac, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.86 Å
回转半径 Rg (电子) rg_electron	56.06 Å
零角强度 I(0) i0	1594160000.00
分子量 molecular_weight	331060.0 kDa
排除体积 excluded_volume	413310 Å³
包络体积 envelope_volume	610520 Å³
水化壳体积 shell_volume	93654 Å³
包络直径 envelope_diameter	248.3 Å
壳层 Rg shell_rg	55.41 Å
包络 Rg envelope_rg	56.39 Å
形状 Rg shape_rg	56.06 Å
总 Rg total_rg	56.04 Å
总原子数 total_atoms	23228
残基数 n_residues	2921
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	228.4 Å
Rg (实空间) rg_real	56.03 Å
Rg 误差 (实空间) rg_real_error	3.47 Å
I(0) (实空间) i0_real	1.5940e+09
I(0) 误差 (实空间) i0_real_error	3.4130e+07
Rg (倒空间) rg_reciprocal	55.71 Å
I(0) (倒空间) i0_reciprocal	1593000000.0000
解质量估计 total_estimate	0.7985
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.1 Å
偏度 Skewness skewness	0.433
峰度 Kurtosis kurtosis	-0.125
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	140500000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.521; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.821; Smooth: 0.993

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	beta-cardiac myosin II
分子量 formula_weight	99157.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	23228

MGDSEMAVFGAAAPYLRKSEKERLEAQTRPFDLKKDVFVPDDKQEFVKAKIVSREGGKVTAETEYGKTVTVKEDQVMQQNPPKFDKIEDMAMLTFLHEPAVLYNLKDRYGSWMIYTYSGLFCVTVNPYKWLPVYTPEVVAAYRGKKRSEAPPHIFSISDNAYQYMLTDRENQSILITGESGAGKTVNTKRVIQYFAVIAAIGDRSKKDQSPGKGTLEDQIIQANPALEAFGNAKTVRNDNSSRFGKFIRIHFGATGKLASADIETYLLEKSRVIFQLKAERDYHIFYQILSNKKPELLDMLLITNNPYDYAFISQGETTVASIDDAEELMATDNAFDVLGFTSEEKNSMYKLTGAIMHFGNMKFKLKQREEQAEPDGTEEADKSAYLMGLNSADLLKGLCHPRVKVGNEYVTKGQNVQQVIYATGALAKAVYERMFNWMVTRINATLETKQPRQYFIGVLDIAGFEIFDFNSFEQLCINFTNEKLQQFFNHHMFVLEQEEYKKEGIEWTFIDFGMDLQACIDLIEKPMGIMSILEEECMFPKATDMTFKAKLFDNHLGKSANFQKPRNIKGKPEAHFSLIHYAGIVDYNIIGWLQKNKDPLNETVVGLYQKSSLKLLSTLFANYAGADAPIEKGKGKAKKGSSFQTVSALHRENLNKLMTNLRSTHPHFVRCIIPNETKSPGVMDNPLVMHQLRCNGVLEGIRICRKGFPNRILYGDFRQRYRILNPAAIPEGQFIDSRKGAEKLLSSLDIDHNQYKFGHTKVFFKAGLLGLLEEMRDERLSRIITRIQAQSRGVLARMEYKKLLERRDSLLVIQWNIRAFMGVKNWPWMKLYFKIKPLLKSGLNDIFEAQKIEWHEDYKDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mus musculus

Entity 2 polymer

描述 description	Actin, alpha cardiac muscle 1
分子量 formula_weight	42064.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,B,C,D,E

MCDDEETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDEAGPSIVHRKCF

Entity 3 polymer

描述 description	Tropomyosin alpha-1 chain
分子量 formula_weight	32763.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P

MDAIKKKMQMLKLDKENALDRAEQAEADKKAAEDRSKQLEDELVSLQKKLKGTEDELDKYSEALKDAQEKLELAEKKATDAEADVASLNRRIQLVEEELDRAQERLATALQKLEEAEKAADESERGMKVIESRAQKDEEKMEIQEIQLKEAKHIAEDADRKYEEVARKLVIIESDLERAEERAELSEGKCAELEEELKTVTNNLKSLEAQAEKYSQKEDRYEEEIKVLSDKLKEAETRAEFAERSVTKLEKSIDDLEDELYAQKLKYKAISEELDHALNDMTSI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 5 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	8efhA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	8efhB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	8efhC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	8efhD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	8efhE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	8efhF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	131194

fit	/app/data/saxs_computation/ef/8efh/8efh.fit
pddf	/app/data/pr_computation/ef/8efh/8efh.pr.out
profile	/app/data/saxs_computation/ef/8efh/8efh.dat

Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in complex with ADP-Mg2+

SAXS 散射曲线 SAXS Profile

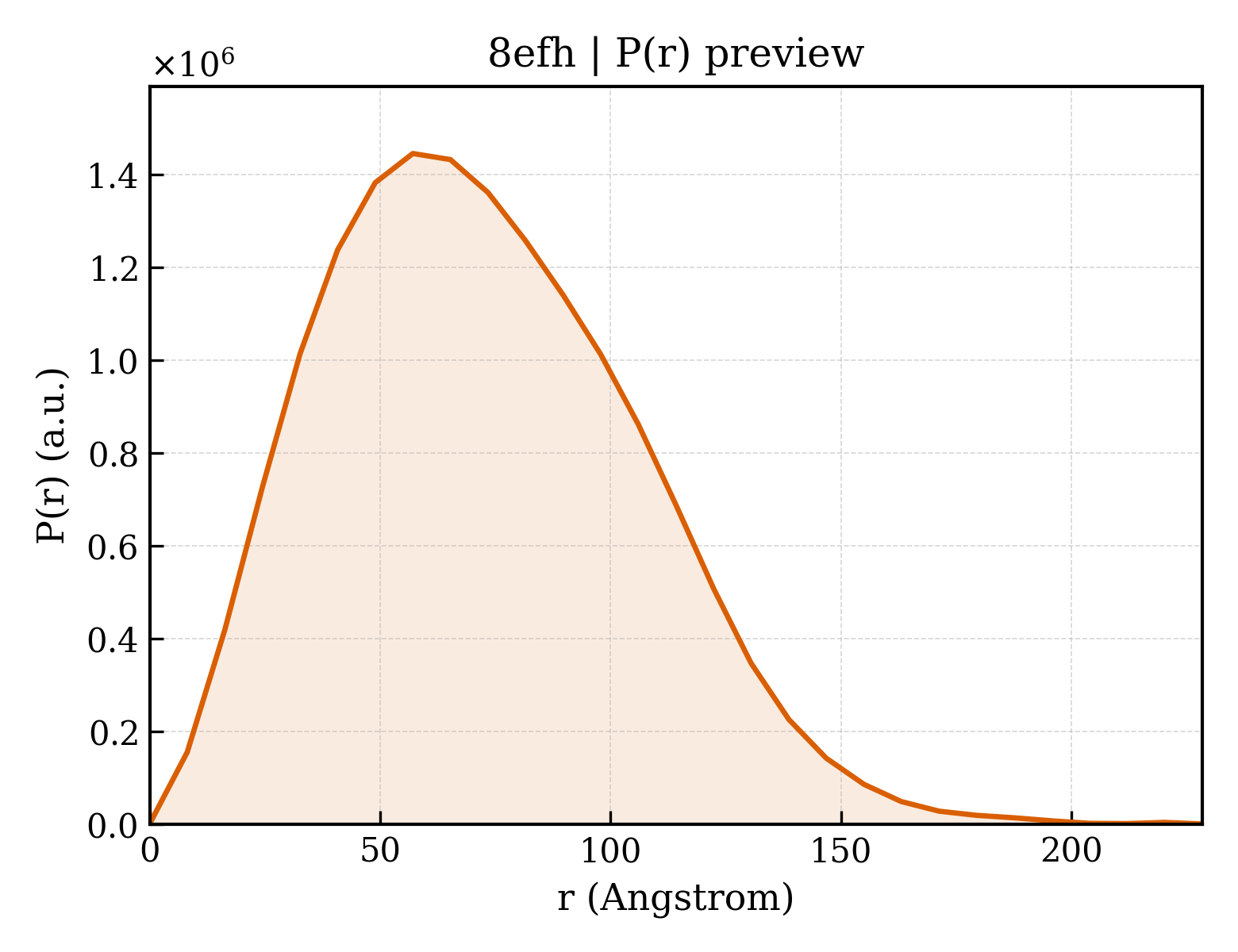

P(r) 距离分布 P(r) Distribution
