8enc

Helical reconstruction of the human cardiac actin-tropomyosin-myosin loop 4 7G mutant complex

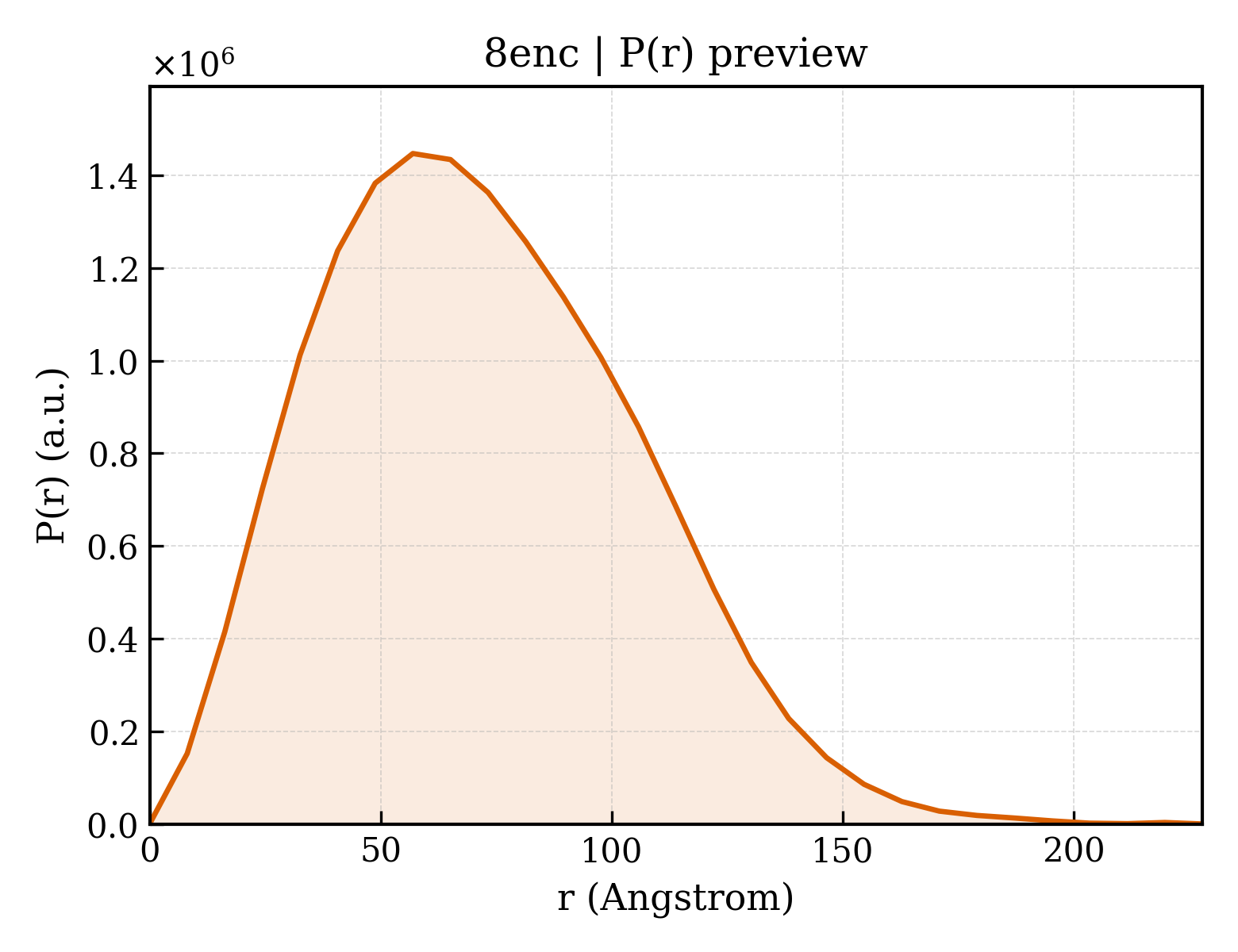

Method: ELECTRON MICROSCOPY Dmax: 227.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin-7

Homo sapiens

UniProt P12883

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain M； UniProt 1–1935 Mutation：Residues 366-372 substituted with seven glycines Actin, alpha cardiac muscle 1 × 5 （B6VNT8） Tropomyosin alpha-1 chain × 2 （P09493） ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8ENC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2FXM Structure of the human beta-myosin S2 fragment Deposited 2006-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Chain B 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Not recorded HG MERCURY (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；296 K；PEG 3350, LITHIUM CITRATE, TRIS- HCL, pH 8.50, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 296K
Resolution 2.70 Å R-free 0.283
2FXO Structure of the human beta-myosin S2 fragment Deposited 2006-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Chain B 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Mutation：E924K Mutation：E924K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；PEG 3350, SODIUM ACETATE, TRIS-HCL, pH 7.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K
Resolution 2.50 Å R-free 0.349
2FXO Structure of the human beta-myosin S2 fragment Deposited 2006-02-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Chain D 838–963（126 aa） Fragment：DELTA-S2 FRAGMENT (838-963)
Mutation：E924K Mutation：E924K No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；296 K；PEG 3350, SODIUM ACETATE, TRIS-HCL, pH 7.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K
Resolution 2.50 Å R-free 0.349
3DTP Tarantula heavy meromyosin obtained by flexible docking to Tarantula muscle thick filament Cryo-EM 3D-MAP Deposited 2008-07-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 216 PDB declaration: 216-meric
Chain A 842–961（120 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972)
Chain B 842–963（122 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3；pH 7；100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3
cryo-EM vitrification conditions Plunging in a liquid ethane. Blotting was performed from one side of the grid till a thin sample film on it using Whatman No 42 filter paper, then the grid was immediately plunged under gravity into liquid ethane cooled by liquid nitrogen. Grids were stored under liquid nitrogen.
Resolution 20.00 Å
3DTP Tarantula heavy meromyosin obtained by flexible docking to Tarantula muscle thick filament Cryo-EM 3D-MAP Deposited 2008-07-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 842–961（120 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972)
Chain B 842–963（122 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3；pH 7；100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3
cryo-EM vitrification conditions Plunging in a liquid ethane. Blotting was performed from one side of the grid till a thin sample film on it using Whatman No 42 filter paper, then the grid was immediately plunged under gravity into liquid ethane cooled by liquid nitrogen. Grids were stored under liquid nitrogen.
Resolution 20.00 Å
3DTP Tarantula heavy meromyosin obtained by flexible docking to Tarantula muscle thick filament Cryo-EM 3D-MAP Deposited 2008-07-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 842–961（120 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-972)
Chain B 842–963（122 aa） Fragment：SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974),SUBFRAGMENT 1(S1), DELTA-S2 (residues 2-974)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer 100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3；pH 7；100mM NaCl, 3mM MgCl2, 1mM EGTA, 5mM PIPES, 5mM NaH2PO4, 1mM NaN3
cryo-EM vitrification conditions Plunging in a liquid ethane. Blotting was performed from one side of the grid till a thin sample film on it using Whatman No 42 filter paper, then the grid was immediately plunged under gravity into liquid ethane cooled by liquid nitrogen. Grids were stored under liquid nitrogen.
Resolution 20.00 Å
4DB1 Cardiac human myosin S1dC, beta isoform complexed with Mn-AMPPNP Deposited 2012-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–783（782 aa） Fragment：UNP residues 2-783
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；precipitant: 7.5% PEG 8000, 0.05M MES, 0.05M acetate, 0.25M sodium chloride, 0.01M manganese chloride, 0.1% sodium cholate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.60 Å R-free 0.257
4DB1 Cardiac human myosin S1dC, beta isoform complexed with Mn-AMPPNP Deposited 2012-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–783（782 aa） Fragment：UNP residues 2-783
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；precipitant: 7.5% PEG 8000, 0.05M MES, 0.05M acetate, 0.25M sodium chloride, 0.01M manganese chloride, 0.1% sodium cholate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.60 Å R-free 0.257
4DB1 Cardiac human myosin S1dC, beta isoform complexed with Mn-AMPPNP Deposited 2012-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–783（782 aa） Fragment：UNP residues 2-783
Chain B 2–783（782 aa） Fragment：UNP residues 2-783
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MN MANGANESE (II) ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；precipitant: 7.5% PEG 8000, 0.05M MES, 0.05M acetate, 0.25M sodium chloride, 0.01M manganese chloride, 0.1% sodium cholate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 2.60 Å R-free 0.257
4P7H Structure of Human beta-Cardiac Myosin Motor Domain::GFP chimera Deposited 2014-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–787（787 aa） Fragment：UNP P12883 residues 1-787,UNP P42212 residues 5-238
Mutation：Q80R, K101N, V163A, I167T, S175G, D190N Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% Tacsimate, pH 6.0, 10% glycerol, 14-15% PEG 3350, 0.2 mM MgCL2, and 5 mM TCEP
Resolution 3.20 Å R-free 0.284
4P7H Structure of Human beta-Cardiac Myosin Motor Domain::GFP chimera Deposited 2014-03-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–787（787 aa） Fragment：UNP P12883 residues 1-787,UNP P42212 residues 5-238
Mutation：Q80R, K101N, V163A, I167T, S175G, D190N Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；10% Tacsimate, pH 6.0, 10% glycerol, 14-15% PEG 3350, 0.2 mM MgCL2, and 5 mM TCEP
Resolution 3.20 Å R-free 0.284
4PA0 Omecamtiv Mercarbil binding site on the Human Beta-Cardiac Myosin Motor Domain Deposited 2014-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–787（787 aa） Fragment：UNP P12883 residues 1-787, UNP P42212 residues 5-234
Mutation：Q80R, V163A, I167T, S175G, D190N Non-standard monomer：Yes (specific site not provided by mmCIF) 2OW methyl 4-(2-fluoro-3-{[(6-methylpyridin-3-yl)carbamoyl]amino}benzyl)piperazine-1-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；Tacsimate, pH 6.0, PEG 3350, glycerol, MgCL2, TCEP and ligand, omecamptiv mercarbil
Resolution 2.25 Å R-free 0.246
4PA0 Omecamtiv Mercarbil binding site on the Human Beta-Cardiac Myosin Motor Domain Deposited 2014-04-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–787（787 aa） Fragment：UNP P12883 residues 1-787, UNP P42212 residues 5-234
Mutation：Q80R, V163A, I167T, S175G, D190N Non-standard monomer：Yes (specific site not provided by mmCIF) 2OW methyl 4-(2-fluoro-3-{[(6-methylpyridin-3-yl)carbamoyl]amino}benzyl)piperazine-1-carboxylate × 1 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；295 K；Tacsimate, pH 6.0, PEG 3350, glycerol, MgCL2, TCEP and ligand, omecamptiv mercarbil
Resolution 2.25 Å R-free 0.246
4XA1 Crystal Structure of the coiled-coil surrounding Skip 1 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1173–1238（66 aa） Fragment：UNP P13848 residues 1-49,UNP Q12883 residues 1173-1238,UNP Q15691 residues 211-251
Chain B 1173–1238（66 aa） Fragment：UNP P13848 residues 1-49,UNP Q12883 residues 1173-1238,UNP Q15691 residues 211-251
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；20% (w/v) polyethylene glycol methyl ether 2000, 20 mM SrCl2, 100 mM HEPES pH 7.6, 5% pentaerythritol ethoxylate (17/8 PO/OH) 797, 0.5% 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS)
Resolution 3.20 Å R-free 0.285
4XA1 Crystal Structure of the coiled-coil surrounding Skip 1 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1173–1238（66 aa） Fragment：UNP P13848 residues 1-49,UNP Q12883 residues 1173-1238,UNP Q15691 residues 211-251
Chain D 1173–1238（66 aa） Fragment：UNP P13848 residues 1-49,UNP Q12883 residues 1173-1238,UNP Q15691 residues 211-251
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.6；298 K；20% (w/v) polyethylene glycol methyl ether 2000, 20 mM SrCl2, 100 mM HEPES pH 7.6, 5% pentaerythritol ethoxylate (17/8 PO/OH) 797, 0.5% 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS)
Resolution 3.20 Å R-free 0.285
4XA3 Crystal structure of the coiled-coil surrounding Skip 2 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1361–1425（65 aa） Fragment：UNP P13848 residues 1-49,UNP P12883 residues 1361-1425,UNP Q15691 residues 215-251
Chain B 1361–1425（65 aa） Fragment：UNP P13848 residues 1-49,UNP P12883 residues 1361-1425,UNP Q15691 residues 215-251
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；4.5% (w/v) polyethylene glycol 8000, 100 mM sodium acetate pH 5.0, 50 mM CaCl2, 2.5% (w/v) 3-methoxy-3-methyl-1-butanol
Resolution 2.55 Å R-free 0.311
4XA4 Crystal Structure of the coiled-coil surrounding Skip 3 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1551–1609（59 aa） Fragment：UNP Q13426 residues 2-147,UNP P12883 residues 1551-1609
Chain B 1551–1609（59 aa） Fragment：UNP Q13426 residues 2-147,UNP P12883 residues 1551-1609
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；30% (w/v) polyethylene glycol 1500, 250 mM tetramethylammonium chloride, 100 mM 3-[4-(2-Hydroxyethyl)-1-piperazinyl]propanesulfonic acid (HEPPS)
Resolution 2.33 Å R-free 0.274
4XA6 Crystal Structure of the coiled-coil surrounding Skip 4 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1777–1855（79 aa） Fragment：UNP P13848 residues 2-50,UNP P02564 residues 1777-1855,UNP Q15691 residues 209-251
Chain B 1777–1855（79 aa） Fragment：UNP P13848 residues 2-50,UNP P02564 residues 1777-1855,UNP Q15691 residues 209-251
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；18% (w/v) polyethylene glycol 2000 methyl ether, 100 mM piperazine-N,N-bis(2-ethanesulfonic acid) (PIPES)
Resolution 3.42 Å R-free 0.297
4XA6 Crystal Structure of the coiled-coil surrounding Skip 4 of MYH7 Deposited 2014-12-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1777–1855（79 aa） Fragment：UNP P13848 residues 2-50,UNP P02564 residues 1777-1855,UNP Q15691 residues 209-251
Chain D 1777–1855（79 aa） Fragment：UNP P13848 residues 2-50,UNP P02564 residues 1777-1855,UNP Q15691 residues 209-251
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；298 K；18% (w/v) polyethylene glycol 2000 methyl ether, 100 mM piperazine-N,N-bis(2-ethanesulfonic acid) (PIPES)
Resolution 3.42 Å R-free 0.297
5CHX Crystal Structure of amino acids 1590-1657 of MYH7 Deposited 2015-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1590–1657（68 aa） Fragment：UNP Q13426 residues 2-143, UNP P12833 1590-1657
Chain B 1590–1657（68 aa） Fragment：UNP Q13426 residues 2-143, UNP P12833 1590-1657
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% (w/v) MEPEG 2000, 250 mM potassium nitrate, 100 mM 3-(N-morpholino)propanesulfonic acid (MOPS)
Resolution 2.30 Å R-free 0.265
5CHX Crystal Structure of amino acids 1590-1657 of MYH7 Deposited 2015-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1590–1657（68 aa） Fragment：UNP Q13426 residues 2-143, UNP P12833 1590-1657
Chain B 1590–1657（68 aa） Fragment：UNP Q13426 residues 2-143, UNP P12833 1590-1657
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；16% (w/v) MEPEG 2000, 250 mM potassium nitrate, 100 mM 3-(N-morpholino)propanesulfonic acid (MOPS)
Resolution 2.30 Å R-free 0.265
5CJ0 Crystal Structure of Amino Acids 1631-1692 of MYH7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1631–1692（62 aa） Fragment：UNP Q13426 residues 2-142, UNP P12883 residues 1631-1692
Chain B 1631–1692（62 aa） Fragment：UNP Q13426 residues 2-142, UNP P12883 residues 1631-1692
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；14% (w/v) MEPEG 5000, 200 mM glycine, 100 mM bistrispropane pH 7.0.
Resolution 2.30 Å R-free 0.238
5CJ1 Crystal structure of the coiled coil of MYH7 residues 1526 to 1571 fused to Gp7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Chain B 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；16% (w/v) PEG 8000, 400 mM malonate pH 7.2, and 100 mM triethanolamine pH 7.5
Resolution 2.10 Å R-free 0.250
5CJ1 Crystal structure of the coiled coil of MYH7 residues 1526 to 1571 fused to Gp7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Chain D 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；16% (w/v) PEG 8000, 400 mM malonate pH 7.2, and 100 mM triethanolamine pH 7.5
Resolution 2.10 Å R-free 0.250
5CJ1 Crystal structure of the coiled coil of MYH7 residues 1526 to 1571 fused to Gp7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Chain F 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；16% (w/v) PEG 8000, 400 mM malonate pH 7.2, and 100 mM triethanolamine pH 7.5
Resolution 2.10 Å R-free 0.250
5CJ1 Crystal structure of the coiled coil of MYH7 residues 1526 to 1571 fused to Gp7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain G 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Chain H 1526–1571（46 aa） Fragment：UNP P13848 residues 2-52, UNP P12833 residues 1526-1571
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；16% (w/v) PEG 8000, 400 mM malonate pH 7.2, and 100 mM triethanolamine pH 7.5
Resolution 2.10 Å R-free 0.250
5CJ4 Crystal Structure of Amino Acids 1562-1622 of MYH7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1562–1622（61 aa） Fragment：UNP Q13426 residues 2-144, UNP P12883 1562-1622
Chain B 1562–1622（61 aa） Fragment：UNP Q13426 residues 2-144, UNP P12883 1562-1622
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；23% (w/v) PEG 4000, 500 mM NaCl, 100 mM triethanolamine pH 8.0.
Resolution 3.10 Å R-free 0.280
5CJ4 Crystal Structure of Amino Acids 1562-1622 of MYH7 Deposited 2015-07-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1562–1622（61 aa） Fragment：UNP Q13426 residues 2-144, UNP P12883 1562-1622
Chain D 1562–1622（61 aa） Fragment：UNP Q13426 residues 2-144, UNP P12883 1562-1622
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；23% (w/v) PEG 4000, 500 mM NaCl, 100 mM triethanolamine pH 8.0.
Resolution 3.10 Å R-free 0.280
5TBY HUMAN BETA CARDIAC HEAVY MEROMYOSIN INTERACTING-HEADS MOTIF OBTAINED BY HOMOLOGY MODELING (USING SWISS-MODEL) OF HUMAN SEQUENCE FROM APHONOPELMA HOMOLOGY MODEL (PDB-3JBH), RIGIDLY FITTED TO HUMAN BETA-CARDIAC NEGATIVELY STAINED THICK FILAMENT 3D-RECONSTRUCTION (EMD-2240) Deposited 2016-09-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1935（1935 aa） Fragment：SUBFRAGMENT 1(S1)
Chain B 1–1935（1935 aa） Fragment：SUBFRAGMENT 1(S1)
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；PLUNGING IN A LIQUID ETHANE COOLED BY LIQUID NITROGEN. BLOTTING WAS PERFORMED FROM ONE SIDE OF THE GRID TILL A THIN SAMPLE FILM ON IT USING WHATMAN NO. 42 FILTER PAPER, THEN THE GRID WAS IMMEDIATELY PLUNGED UNDER GRAVITY INTO LIQUID ETHANE COOLED BY LIQUID NITROGEN. GRIDS WERE STORED UNDER LIQUID NITROGEN.
Resolution 20.00 Å
5WJ7 Crystal Structure of Amino Acids 1733-1797 of Human Beta Cardiac Myosin Fused to Xrcc4 Deposited 2017-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1733–1797（65 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1733-1797
Chain B 1733–1797（65 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1733-1797
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；16% (w/v) Methyl-Ether PEG 5K, 300 mM glycine, 100 mM triethanolamine pH 7.5
Resolution 2.50 Å R-free 0.249
5WJB Crystal Structure of Amino Acids 1733-1797 of Human Beta Cardiac Myosin Fused to Gp7 Deposited 2017-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1733–1797（65 aa） Fragment：UNP P13848 residues 2-47, UNP P12833 residues 1733-1797
Chain B 1733–1797（65 aa） Fragment：UNP P13848 residues 2-47, UNP P12833 residues 1733-1797
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；14% (w/v) methyl-ether PEG 2K, 1.5%(w/v) myo-inositol, 100 mM HEPES pH 7.5, 50 mM magnesium chloride
Resolution 2.90 Å R-free 0.300
5WJB Crystal Structure of Amino Acids 1733-1797 of Human Beta Cardiac Myosin Fused to Gp7 Deposited 2017-07-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1733–1797（65 aa） Fragment：UNP P13848 residues 2-47, UNP P12833 residues 1733-1797
Chain D 1733–1797（65 aa） Fragment：UNP P13848 residues 2-47, UNP P12833 residues 1733-1797
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；14% (w/v) methyl-ether PEG 2K, 1.5%(w/v) myo-inositol, 100 mM HEPES pH 7.5, 50 mM magnesium chloride
Resolution 2.90 Å R-free 0.300
5WLQ Crystal Structure of Amino Acids 1677-1755 of Human Beta Cardiac Myosin Fused to Gp7 and Eb1 Deposited 2017-07-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1677–1755（79 aa） Fragment：UNP P13848 residues 2-48 UNP Q15691 residues 208-256, UNP P12883 residues 1677-1755
Not recorded SO4 SULFATE ION × 2 TMO trimethylamine oxide × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；298 K；1.6 M Ammonium Aulfate, 500 mM Trimethyl Ammonium N-Oxide, 100 mM Bis-tris Propane pH 9.0
Resolution 3.10 Å R-free 0.236
5WLZ Crystal Structure of Amino Acids 1677-1758 of Human Beta Cardiac Myosin Fused to Xrcc4 Deposited 2017-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1677–1758（82 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1677-1758
Chain B 1677–1758（82 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1677-1758
Chain C 1677–1758（82 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1677-1758
Chain D 1677–1758（82 aa） Fragment：UNP Q13426 residues 2-132, UNP P12883 residues 1677-1758
Mutation：E29K, E51K, D57A, D58T, E62N, C93R, E98K,C128D, C132A Mutation：E29K, E51K, D57A, D58T, E62N, C93R, E98K,C128D, C132A Mutation：E29K, E51K, D57A, D58T, E62N, C93R, E98K,C128D, C132A Mutation：E29K, E51K, D57A, D58T, E62N, C93R, E98K,C128D, C132A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；8-10% methyl-ether polyethylene glycol (MEPEG) 5K, 300 mM glycine, bis-tris propane pH 7.0, 1.5-3.0% (w/v) jeffamine M-600
Resolution 3.50 Å R-free 0.249
5WME Crystal Structure of Amino Acids 1729-1786 of Human Beta Cardiac Myosin Fused to Gp7 as Anti-Parallel Four-Helix Bundle Deposited 2017-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1728–1786（59 aa） Fragment：UNP P13848 residues 2-48, UNP P12883 residues 1729-1786
Chain B 1728–1786（59 aa） Fragment：UNP P13848 residues 2-48, UNP P12883 residues 1729-1786
Chain C 1728–1786（59 aa） Fragment：UNP P13848 residues 2-48, UNP P12883 residues 1729-1786
Chain D 1728–1786（59 aa） Fragment：UNP P13848 residues 2-48, UNP P12883 residues 1729-1786
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；298 K；18% (w/v) pentaerythritol ethoxylate 797, 150 mM ammonium thiocyanate, 100 mM sodium acetate pH 5.0.
Resolution 2.30 Å R-free 0.264
8ACT structure of the human beta-cardiac myosin folded-back off state Deposited 2022-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 3–906（904 aa）
Chain B 3–906（904 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
8EFD Human cardiac myosin II and associated essential light chain in the rigor conformation Deposited 2022-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–842（842 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8EFE Human beta-cardiac myosin II bound to ADP-MG2+ and the associated essential light chain Deposited 2022-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–842（842 aa）
Not recorded MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8EFH Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in complex with ADP-Mg2+ Deposited 2022-09-08 Different construct Different mutation/modification Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–842（842 aa）
Not recorded MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8EFI Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in the rigor form Deposited 2022-09-08 Different mutation/modification Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain M 1–1935（1935 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8G4L Cryo-EM structure of the human cardiac myosin filament Deposited 2023-02-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 123 PDB declaration: 123-meric
Chain A 1–1935（1935 aa）
Chain AA 1–1935（1935 aa）
Chain AB 1–1935（1935 aa）
Chain AG 1–1935（1935 aa）
Chain AH 1–1935（1935 aa）
Chain AI 1–1935（1935 aa）
Chain AJ 1–1935（1935 aa）
Chain AK 1–1935（1935 aa）
Chain AL 1–1935（1935 aa）
Chain AM 1–1935（1935 aa）
Chain AN 1–1935（1935 aa）
Chain AO 1–1935（1935 aa）
Chain AP 1–1935（1935 aa）
Chain AQ 1–1935（1935 aa）
Chain AR 1–1935（1935 aa）
Chain AS 1–1935（1935 aa）
Chain AT 1–1935（1935 aa）
Chain AU 1–1935（1935 aa）
Chain AV 1–1935（1935 aa）
Chain AW 1–1935（1935 aa）
Chain AX 1–1935（1935 aa）
Chain AY 1–1935（1935 aa）
Chain AZ 1–1935（1935 aa）
Chain B 1–1935（1935 aa）
Chain BA 1–1935（1935 aa）
Chain BB 1–1935（1935 aa）
Chain BG 1–1935（1935 aa）
Chain BH 1–1935（1935 aa）
Chain BI 1–1935（1935 aa）
Chain BJ 1–1935（1935 aa）
Chain BK 1–1935（1935 aa）
Chain BL 1–1935（1935 aa）
Chain BM 1–1935（1935 aa）
Chain BN 1–1935（1935 aa）
Chain BO 1–1935（1935 aa）
Chain BP 1–1935（1935 aa）
Chain BQ 1–1935（1935 aa）
Chain BR 1–1935（1935 aa）
Chain BS 1–1935（1935 aa）
Chain BT 1–1935（1935 aa）
Chain BU 1–1935（1935 aa）
Chain BV 1–1935（1935 aa）
Chain BW 1–1935（1935 aa）
Chain BX 1–1935（1935 aa）
Chain BY 1–1935（1935 aa）
Chain BZ 1–1935（1935 aa）
Chain G 1–1935（1935 aa）
Chain H 1–1935（1935 aa）
Chain I 1–1935（1935 aa）
Chain J 1–1935（1935 aa）
Chain K 1–1935（1935 aa）
Chain L 1–1935（1935 aa）
Chain M 1–1935（1935 aa）
Chain N 1–1935（1935 aa）
Chain O 1–1935（1935 aa）
Chain P 1–1935（1935 aa）
Chain Q 1–1935（1935 aa）
Chain R 1–1935（1935 aa）
Chain S 1–1935（1935 aa）
Chain T 1–1935（1935 aa）
Chain U 1–1935（1935 aa）
Chain V 1–1935（1935 aa）
Chain W 1–1935（1935 aa）
Chain X 1–1935（1935 aa）
Chain Y 1–1935（1935 aa）
Chain Z 1–1935（1935 aa）
Chain ae 1–1935（1935 aa）
Chain af 1–1935（1935 aa）
Chain ak 1–1935（1935 aa）
Chain al 1–1935（1935 aa）
Chain be 1–1935（1935 aa）
Chain bf 1–1935（1935 aa）
Chain bk 1–1935（1935 aa）
Chain bl 1–1935（1935 aa）
Chain e 1–1935（1935 aa）
Chain f 1–1935（1935 aa）
Chain k 1–1935（1935 aa）
Chain l 1–1935（1935 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
8ZB7 Human left ventricle ATM complex Deposited 2024-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain G 6–781（776 aa）
Chain H 6–781（776 aa）
Chain I 6–781（776 aa）
Chain J 6–781（776 aa）
Chain K 6–781（776 aa）
Chain M 6–781（776 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.19 Å
8ZI9 Human left ventricle actin and myosin complex Deposited 2024-05-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 6–781（776 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9GZ1 Beta-cardiac myosin interacting heads motif complexed to mavacamten Deposited 2024-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 2–1138（1137 aa）
Chain B 2–1138（1137 aa）
Not recorded MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 XB2 Mavacamten × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9GZ2 Beta-cardiac heavy meromyosin motor domain in the primed state complexed to mavacamten Deposited 2024-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–1138（1137 aa）
Not recorded MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 XB2 Mavacamten × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9GZ3 Beta-cardiac heavy meromyosin motor domain in the primed state Deposited 2024-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–1138（1137 aa）
Not recorded MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 PO4 PHOSPHATE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9HTF Beta-cardiac myosin Y115H mutant motor domain in the pre-powerstroke state, MgADP.VO4 form Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–810（810 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 VO4 VANADATE ION × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；23 % PEG 3350 w:v, 0.3 M lithium sulfate, 0.1M Tris-HCl, 2 mM Mg.ADP.Vanadate
Resolution 2.48 Å R-free 0.255
9HTG Beta-cardiac myosin E497D mutant motor domain in the pre-powerstroke state, MgADP.VO4 form Deposited 2024-12-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–808（808 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 VO4 VANADATE ION × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；22 % PEG 3350 w:v, 0.3 M lithium sulfate, 0.1M Tris-HCl, 2 mM Mg.ADP.Vanadate
Resolution 2.60 Å R-free 0.248
9I8P Human beta-cardiac myosin wild type motor domain in the pre-powerstroke state, MgADP.VO4 form Deposited 2025-02-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–808（808 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 VO4 VANADATE ION × 1 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；25 % PEG 3350 w:v, 0.25 M lithium sulfate, 0.1M Tris-HCl, 2 mM Mg.ADP.Vanadate. Optimal crystals were obtained using the micro-seeding technique.
Resolution 2.60 Å R-free 0.245
9YOP Cryo-EM structure of human beta-cardiac myosin in the interacting-heads motif and S2-FH docked state Deposited 2025-10-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9YP4 Cryo-EM structure of human beta-cardiac myosin bound to omecamtiv mecarbil in the interacting-heads motif and S2-FH docked state Deposited 2025-10-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded 2OW methyl 4-(2-fluoro-3-{[(6-methylpyridin-3-yl)carbamoyl]amino}benzyl)piperazine-1-carboxylate × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9YP9 Cryo-EM structure of human beta-cardiac myosin bound to mavacamten in the interacting-heads motif and S2-FH docked state Deposited 2025-10-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded PO4 PHOSPHATE ION × 2 XB2 Mavacamten × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9YR7 Cryo-EM structure of human beta-cardiac myosin bound to mavacamten in the interacting-heads motif and S2-FH undocked state Deposited 2025-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded XB2 Mavacamten × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9YRG Cryo-EM structure of human beta-cardiac myosin in the interacting-heads motif and S2-FH undocked state Deposited 2025-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9YRH Cryo-EM structure of human beta-cardiac myosin bound to omecamtiv mecarbil in the interacting-heads motif and S2-FH undocked state Deposited 2025-10-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–1016（1016 aa）
Chain B 1–1016（1016 aa）
Not recorded 2OW methyl 4-(2-fluoro-3-{[(6-methylpyridin-3-yl)carbamoyl]amino}benzyl)piperazine-1-carboxylate × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 PO4 PHOSPHATE ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å

40 other PDB entries and 55 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MYH7_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain M； PDBConstruct 1–1935； UniProt 1–1935

Actin, alpha cardiac muscle 1

OrganismNot specified

UniProt B6VNT8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain B； UniProt 1–377 Chain C； UniProt 1–377 Chain D； UniProt 1–377 Chain E； UniProt 1–377 Chain F； UniProt 1–377 Not recorded Myosin-7 × 1 （P12883） Tropomyosin alpha-1 chain × 2 （P09493） ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8ENC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
5NOG Ca2+-induced Movement of Tropomyosin on Native Cardiac Thin Filaments - "Blocked" state Deposited 2017-04-12 Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 7–373（367 aa）
Chain B 7–373（367 aa）
Chain C 7–373（367 aa）
Chain D 7–373（367 aa）
Chain E 7–373（367 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 11.00 Å
5NOL Ca2+-induced Movement of Tropomyosin on Native Cardiac Thin Filaments - "Closed" state Deposited 2017-04-12 Different construct Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 7–373（367 aa）
Chain B 7–373（367 aa）
Chain C 7–373（367 aa）
Chain D 7–373（367 aa）
Chain E 7–373（367 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
7JH7 cardiac actomyosin complex Deposited 2020-07-20 Different oligomeric state Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Chain C 1–377（377 aa）
Chain D 1–377（377 aa）
Chain E 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
7LRG Filamentous actin decorated with human cardiac myosin binding protein C C2 domain Deposited 2021-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Chain C 1–377（377 aa）
Chain D 1–377（377 aa）
Chain E 1–377（377 aa）
Chain F 1–377（377 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
8DD0 The structure of the native cardiac thin filament junction region Deposited 2022-06-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Chain C 1–377（377 aa）
Chain D 1–377（377 aa）
Chain E 1–377（377 aa）
Chain F 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8EFH Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in complex with ADP-Mg2+ Deposited 2022-09-08 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–377（377 aa）
Chain C 1–377（377 aa）
Chain D 1–377（377 aa）
Chain E 1–377（377 aa）
Chain F 1–377（377 aa）
Not recorded MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8EFI Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in the rigor form Deposited 2022-09-08 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–377（377 aa）
Chain C 1–377（377 aa）
Chain D 1–377（377 aa）
Chain E 1–377（377 aa）
Chain F 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8UWW The structure of the native cardiac thin filament troponin core in Ca2+-free state from the upper strand Deposited 2023-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.10 Å
8UWX The structure of the native cardiac thin filament troponin core in Ca2+-free tilted state from the upper strand Deposited 2023-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.00 Å
8UWY The structure of the native cardiac thin filament troponin core in Ca2+-free rotated state from the upper strand Deposited 2023-11-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.50 Å
8UYD The structure of the native cardiac thin filament troponin core in Ca2+-free state from the lower strand Deposited 2023-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
8UZ5 The structure of the native cardiac thin filament troponin core in Ca2+-free rotated state from the lower strand Deposited 2023-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.90 Å
8UZ6 The structure of the native cardiac thin filament troponin core in Ca2+-free tilted state from the lower strand Deposited 2023-11-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.10 Å
8UZX The structure of the native cardiac thin filament troponin core in Ca2+-bound fully activated state from the upper strand Deposited 2023-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.40 Å
8UZY The structure of the native cardiac thin filament troponin core in Ca2+-bound partially activated state from the upper strand Deposited 2023-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.30 Å
8V01 The structure of the native cardiac thin filament troponin core in Ca2+-bound fully activated state 1 from the lower strand Deposited 2023-11-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.50 Å
8V0I The structure of the native cardiac thin filament troponin core in Ca2+-bound fully activated state 2 from the lower strand Deposited 2023-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.80 Å
8V0K The structure of the native cardiac thin filament troponin core in Ca2+-bound partially activated state from the lower strand Deposited 2023-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 CA CALCIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.20 Å
8V0Y The structure of the native cardiac thin filament troponin core in Ca2+-free state from the upper strand activated by the C1-domain of cardiac myosin binding protein C Deposited 2023-11-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–377（377 aa）
Chain B 1–377（377 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name B6VNT8_PIG
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–377； UniProt 1–377 Author chain C； PDBConstruct 1–377； UniProt 1–377 Author chain D； PDBConstruct 1–377； UniProt 1–377 Author chain E； PDBConstruct 1–377； UniProt 1–377 Author chain F； PDBConstruct 1–377； UniProt 1–377

Tropomyosin alpha-1 chain

Homo sapiens

UniProt P09493

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count Chain O； UniProt 1–284 Chain P； UniProt 1–284 Not recorded Myosin-7 × 1 （P12883） Actin, alpha cardiac muscle 1 × 5 （B6VNT8） ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8ENC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3MUD Structure of the Tropomyosin Overlap Complex from Chicken Smooth Muscle Deposited 2010-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–29（29 aa）
Chain D 1–29（29 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；18% MePEG 2000, 100 mM Bis-Tris, 120 mM MgSO4 , pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.20 Å R-free 0.250
5KHT Crystal structure of the N-terminal fragment of tropomyosin isoform Tpm1.1 at 1.5 A resolution Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–28（28 aa）
Chain C 1–28（28 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PEG 8000, Hepes/sodium hydroxide
Resolution 1.50 Å R-free 0.249
5KHT Crystal structure of the N-terminal fragment of tropomyosin isoform Tpm1.1 at 1.5 A resolution Deposited 2016-06-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–28（28 aa）
Chain D 1–28（28 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PEG 8000, Hepes/sodium hydroxide
Resolution 1.50 Å R-free 0.249
6KN7 Structure of human cardiac thin filament in the calcium free state Deposited 2019-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain P 11–284（274 aa）
Chain Q 11–284（274 aa）
Chain R 1–29（29 aa）
Chain S 1–29（29 aa）
Chain W 11–284（274 aa）
Chain X 11–284（274 aa）
Chain Y 1–29（29 aa）
Chain Z 1–29（29 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 15 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
6KN8 Structure of human cardiac thin filament in the calcium bound state Deposited 2019-08-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain P 11–284（274 aa）
Chain Q 11–284（274 aa）
Chain R 1–29（29 aa）
Chain S 1–29（29 aa）
Chain W 11–284（274 aa）
Chain X 11–284（274 aa）
Chain Y 1–29（29 aa）
Chain Z 1–29（29 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 15 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6UT2 3D structure of the leiomodin/tropomyosin binding interface Deposited 2019-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–14（14 aa）
Chain C 1–14（14 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.081；Pressure 1
NMR sample composition 0.5 mM [U-13C; U-15N] leiomodin peptide, 1 mM tropomyosin peptide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.5 mM [U-13C; U-15N] tropomyosin peptide, 1 mM leiomodin peptide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.3 mM [U-15N] leiomodin peptide, 0.6 mM tropomyosin peptide, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 0.3 mM [U-15N] tropomyosin peptide, 0.6 mM leiomodin peptide, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
6X5Z Bovine Cardiac Myosin in Complex with Chicken Skeletal Actin and Human Cardiac Tropomyosin in the Rigor State Deposited 2020-05-27 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain O 1–284（284 aa）
Chain P 1–284（284 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Thin filaments were reconstituted by first mixing F-actin and tropomyosin to final concentrations of 10 uM actin and 7 uM tropomyosin. Just before applying 1.5 uL actin-tropomyosin to a freshly glow discharged holey-carbon grid, the surfactant octyl B-D-glucopyranoside was added to the protein solution to a concentration of 12 nM. The grid sample was manually blotted for 1 second and a 1.5 uL drop of 7.5 uM myosin-S1 sub-fragment was then applied to the blotted grid sample. The sample was immediately blotted for 4 seconds and plunge-frozen in liquid ethane.
Resolution 4.24 Å
7UTI ALTERNATIVE MODELING OF TROPOMYOSIN IN HUMAN CARDIAC THIN FILAMENT IN THE CALCIUM BOUND STATE Deposited 2022-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain W 1–284（284 aa）
Chain b 1–284（284 aa）
Chain e 1–284（284 aa）
Chain f 1–284（284 aa）
Chain g 1–284（284 aa）
Chain h 1–284（284 aa）
Chain i 1–284（284 aa）
Chain j 1–284（284 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) ADP ADENOSINE-5'-DIPHOSPHATE × 16 MG MAGNESIUM ION × 16 CA CALCIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7UTL ALTERNATIVE MODELING OF TROPOMYOSIN IN HUMAN CARDIAC THIN FILAMENT IN THE CALCIUM FREE STATE Deposited 2022-04-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 34 PDB declaration: 34-meric
Chain W 1–284（284 aa）
Chain Z 1–284（284 aa）
Chain a 1–284（284 aa）
Chain b 1–284（284 aa）
Chain g 1–284（284 aa）
Chain h 1–284（284 aa）
Chain i 1–284（284 aa）
Chain j 1–284（284 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 18 MG MAGNESIUM ION × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.60 Å
8EFH Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in complex with ADP-Mg2+ Deposited 2022-09-08 Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain O 1–284（284 aa）
Chain P 1–284（284 aa）
Not recorded MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8EFI Helical reconstruction of the human cardiac actin-tropomyosin-myosin complex in the rigor form Deposited 2022-09-08 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain O 1–284（284 aa）
Chain P 1–284（284 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 5 MG MAGNESIUM ION × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8ZB7 Human left ventricle ATM complex Deposited 2024-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain L 45–210（166 aa）
Chain N 45–210（166 aa）
Chain O 45–210（166 aa）
Chain P 45–210（166 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.19 Å
9ZBL Helical Reconstruction of the Human Cardiac F-Actin-Tropomyosin Complex Deposited 2025-11-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain M 1–284（284 aa）
Chain N 1–284（284 aa）
Chain O 1–284（284 aa）
Chain P 1–284（284 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Blotting was performed with a blot force of 3 and a blot time of 3 s.
Resolution 2.79 Å
9ZBP Helical Reconstruction of the Complex of Pseudo-Acetylated Human Cardiac Actin (K326/328Q) and Tropomyosin Deposited 2025-11-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain M 1–284（284 aa）
Chain N 1–284（284 aa）
Chain O 1–284（284 aa）
Chain P 1–284（284 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE；Blotting was performed with a blot force of 3 and a blot time of 3 s.
Resolution 3.12 Å

13 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name TPM1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain O； PDBConstruct 1–284； UniProt 1–284 Author chain P； PDBConstruct 1–284； UniProt 1–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8enc

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8enc
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8enc
Deposition date deposition_date2022-09-29
Structure title titleHelical reconstruction of the human cardiac actin-tropomyosin-myosin loop 4 7G mutant complex
Keywords keywordsactin, tropomyosin, myosin, cardiac, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier55.73 Å
Radius of gyration Rg (electron density) rg_electron55.95 Å
Forward intensity I(0) i01589260000.00
Molecular weight molecular_weight330880.0 kDa
Excluded volume excluded_volume413270 ų
Envelope volume envelope_volume611010 ų
Hydration-shell volume shell_volume93911 ų
Envelope diameter envelope_diameter247.2 Å
Shell Rg shell_rg55.29 Å
Envelope Rg envelope_rg56.28 Å
Shape Rg shape_rg55.95 Å
Total Rg total_rg55.94 Å
Total atoms total_atoms23220
Residues n_residues2929
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax227.8 Å
Rg (real space) rg_real55.90 Å
Rg uncertainty (real space) rg_real_error3.68 Å
I(0) (real space) i0_real1.5890e+09
I(0) uncertainty (real space) i0_real_error3.4460e+07
Rg (reciprocal space) rg_reciprocal55.59 Å
I(0) (reciprocal space) i0_reciprocal1589000000.0000
Solution quality estimate total_estimate0.7981
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary57.0 Å
Skewness Skewness skewness0.435
Kurtosis Kurtosis kurtosis-0.126
Angular range angular_range— – 0.1400 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha148300000.0000
Real-space data points n_real_points29
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.518; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.993
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id8encB01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id8encC01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id8encD01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id8encE01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id8encF01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily10 — ATPase, substrate binding domain, subdomain 4
Domain ID domain_id8encM01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily60 —
▶

8. Citations (1)

▶

9. Files and Curves (10)
