9zbp

Helical Reconstruction of the Complex of Pseudo-Acetylated Human Cardiac Actin (K326/328Q) and Tropomyosin

Method: ELECTRON MICROSCOPY D_max: 201.8 Å Quality: REASONABLE

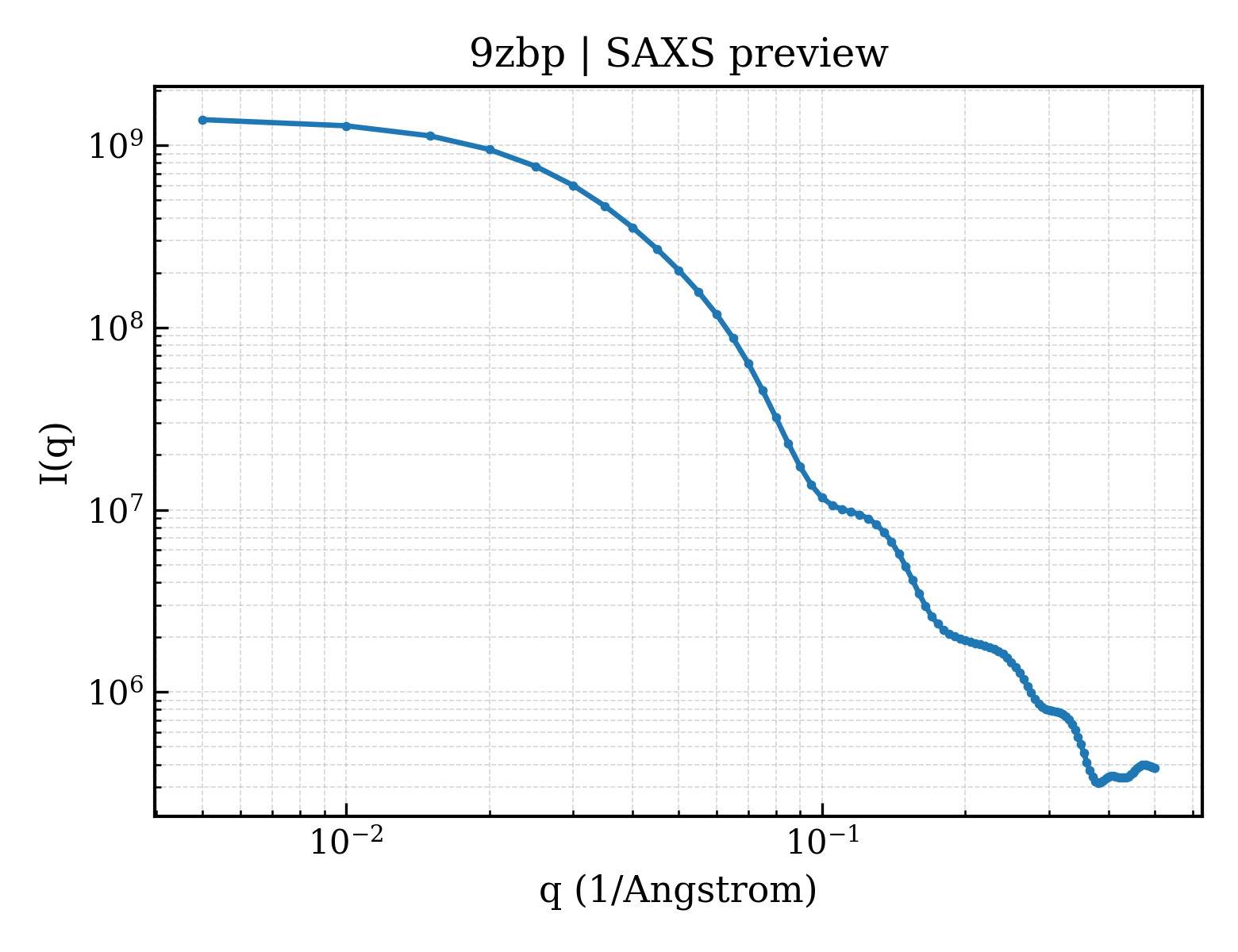

SAXS Profile

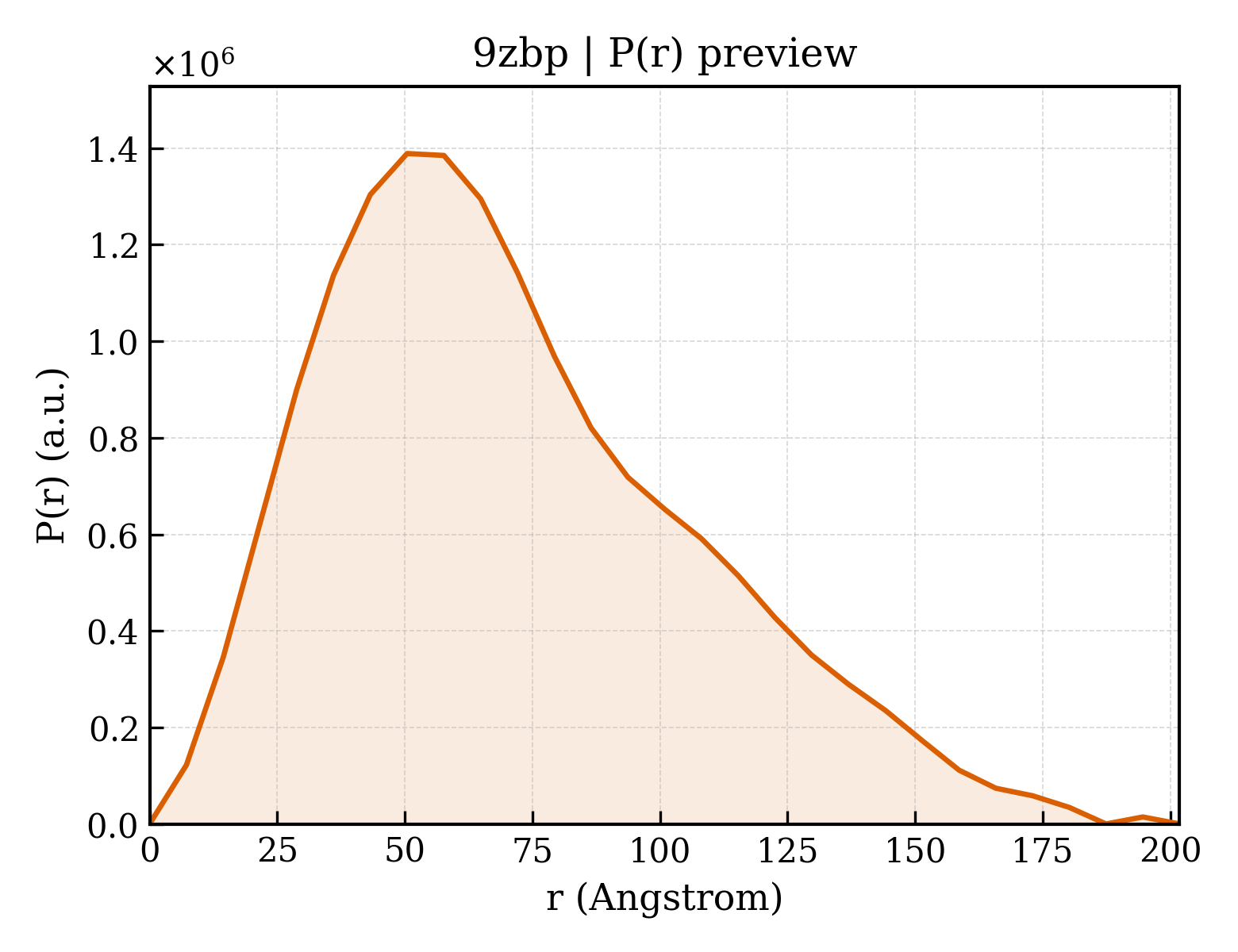

P(r) Distribution

▼

1. Structure Basics

entry_id	9zbp
deposition_date	2025-11-21
title	Helical Reconstruction of the Complex of Pseudo-Acetylated Human Cardiac Actin (K326/328Q) and Tropomyosin
keywords	Lysine acetylation, F-actin, tropomyosin, muscle, steric regulation, cryo-EM structure, motor proteins, MOTOR PROTEIN; MOTOR PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	55.45 Å
rg_electron	56.01 Å
i0	1419830000.00
molecular_weight	307720.0 kDa
excluded_volume	382450 Å³
envelope_volume	538100 Å³
shell_volume	85021 Å³
envelope_diameter	214.2 Å
shell_rg	53.12 Å
envelope_rg	55.70 Å
shape_rg	56.02 Å
total_rg	55.90 Å
total_atoms	21570
n_residues	2722
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	201.8 Å
rg_real	56.00 Å
rg_real_error	2.94 Å
i0_real	1.4200e+09
i0_real_error	2.9320e+07
rg_reciprocal	54.98 Å
i0_reciprocal	1418000000.0000
total_estimate	0.7365
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	50.5 Å
skewness	0.647
kurtosis	-0.080
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	135900000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.567; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.870; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Actin, alpha cardiac muscle 1
formula_weight	42062.8 kDa
ec_number	3.6.4.-
mutation	K326Q, K328Q
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	21570

MCDDEETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVLSGGTTMYPGIADRMQKEITALAPSTMQIQIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDEAGPSIVHRKCF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Tropomyosin alpha-1 chain
formula_weight	32921.8 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	M,N,O,P

ASMDAIKKKMQMLKLDKENALDRAEQAEADKKAAEDRSKQLEDELVSLQKKLKGTEDELDKYSEALKDAQEKLELAEKKATDAEADVASLNRRIQLVEEELDRAQERLATALQKLEEAEKAADESERGMKVIESRAQKDEEKMEIQEIQLKEAKHIAEDADRKYEEVARKLVIIESDLERAEERAELSEGKCAELEEELKTVTNNLKSLEAQAEKYSQKEDRYEEEIKVLSDKLKEAETRAEFAERSVTKLEKSIDDLEDELYAQKLKYKAISEELDHALNDMTSI

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	6

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.120 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.12 Å
resolution_method	—
num_particles	1327189

fit	/app/data/saxs_computation/zb/9zbp/9zbp.fit
pddf	/app/data/pr_computation/zb/9zbp/9zbp.pr.out
profile	/app/data/saxs_computation/zb/9zbp/9zbp.dat
