8eug

Ytm1 associated nascent 60S ribosome State 3

Method: ELECTRON MICROSCOPY D_max: 198.3 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

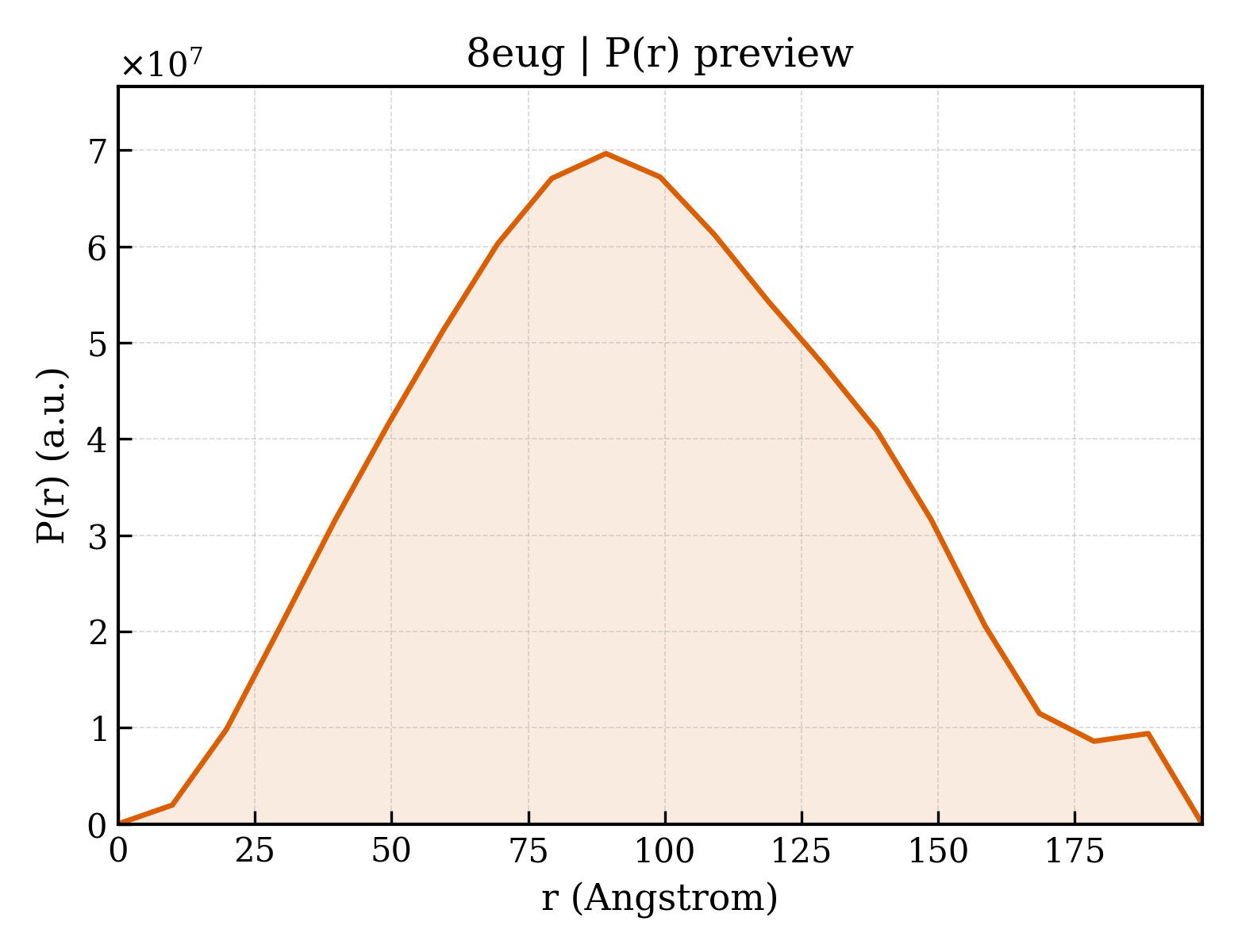

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8eug
沉积日期 deposition_date	2022-10-18
结构标题 title	Ytm1 associated nascent 60S ribosome State 3
关键词 keywords	60S Ribosome, nucleophosmin, ribosome biogenesis, fkbp, ribosome; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	76.23 Å
回转半径 Rg (电子) rg_electron	78.84 Å
零角强度 I(0) i0	91985200000.00
分子量 molecular_weight	1812300.0 kDa
排除体积 excluded_volume	1948400 Å³
包络体积 envelope_volume	3019000 Å³
水化壳体积 shell_volume	295210 Å³
包络直径 envelope_diameter	295.4 Å
壳层 Rg shell_rg	89.81 Å
包络 Rg envelope_rg	79.47 Å
形状 Rg shape_rg	79.03 Å
总 Rg total_rg	78.49 Å
总原子数 total_atoms	123154
残基数 n_residues	10245
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	198.3 Å
Rg (实空间) rg_real	72.88 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	8.8050e+10
I(0) 误差 (实空间) i0_real_error	1.3230e+09
Rg (倒空间) rg_reciprocal	76.48 Å
I(0) (倒空间) i0_reciprocal	92040000000.0000
解质量估计 total_estimate	0.9150
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	89.2 Å
偏度 Skewness skewness	0.185
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.3223
最高正则化参数 α highest_alpha	8585000000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.988; Stabil: 0.987; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (47)

Entity 1 polymer

描述 description	RNA (2863-MER)
分子量 formula_weight	1129828.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	1
原子数 atom_count	123162

AUUUGACCUCAAAUCAGGUAGGACUACGCGCUGAACUUAAGCAUAUCAAUAAGCGCAGGAAAAGAAAAUAACCAUGAUUCCCUCAGUAACGGCGAGUGAAGCGGGAAAAGCUCAAAUUUGAAAUCUGGCAACAUUUCUUUUGUUGUCCGAGUUGUAAUUUCAAGAAGCUGCUUUGAGUGUAGACGAUCGGUCUAAGUUCCUUGGAACAGGACGUCAGAGAGGGUGAGAACCCCGUCUUUGGUCGAUUGGAUAUGCCAUAUAAAGCGCUUUCGAAGAGUCGAGUUGUUUGGGAAUGCAGCUCUAAAUGGGUGGUAAAUUUCAUCUAAAGCUAAAUAUUGGCGAGAGACCGAUAGCGAACAAGUAGAGUGAUCGAAAGAUGAAAAGAACUUUGAAAAGAGAGUUAAAUAGUACGUGAAAUUGCUGAAAGGGAAGCAUUGGAAAUCAGUCUUACCUGGGUGAGAUCAGUAGUCUCUUCGCGAGACUAUGCACUCUGAACCUGUGGUAGGUCAGCAUCAGUUUUCGGGGGCGGAAAAAGAAUAAGGGAAGGUGGCUUUCCGGGUUCUGCCUGGGGAGUGUUUAUAGCCCUUGUUGUAAUACGUCCACUGGGGACUGAGGACUGCGGCUUCGUGCCAAGGAUGCUGACAUAAUGGUUUUCAAUGGCCCGUCUUGAAACACGGACCAAGGAGUCUAGCAUCUAUGCGAGUGUUUGGGUGAUGAAAACCCAUCCGCGAAAUGAAAGUGAAUGCAGGUGGGAACGCCCUUGUGGCGUGCACCAUCGACCGACCCGGAAGUUUGUCAAUGGAAGGGUUUGAGUAAGAGCAUAGCUGUUGGGACCCGAAAGAUGGUGAACUAUGCCUGAAUAGGGUGAAGCCAGAGGAAACUCUGGUGGAGGCUCGUAGAGAUUCUGACGUGCAAAUCGAUCUUCAAAUUUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCUGCCGAAGUUUCCCUCAGGAUAGCAGAAACUCAGAUCAGUUUUAUGAGGUAAAGCGAAUGAUUAGAGGUCUUGGGGAAGGAAUUUCCUCAACCUAUUCUCAAACUUUAAAUAUGUAAGACGCCCUUGUCGCUUAAUUGGACGUGGGCCAUCGAAUGAGAGUUUCUAGUGGGCCAUUUUUGGUAAGCAGAACUGGCGAUGCGGGAUGAACCGAACGUGAGGUUAAGGUGCCGGAAUGUACGCUCAUCAGACACCAGAAAAGGUGUUAGUUCAUCUAGACAGCAGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCUGCCGAAUGAACUAGCCCUGAAAAUGGAUGGCGCUUAAGCGUACUACCCAUACCUCACCGUCUGGGUUAGCUUUGAGAAGCUCAGACGAGUAGGCAGGCGUGGAGGUUUGUGACGAAGCCUUGGGCGUGAGCCUGGGUCGAACAGCCUCUAGUGCAGAUCUUGGUGGAAGUAGCAAAUAUUCAAAUGAGAACUUUGAAGACUGAAGUGGGGAAAGGUUCCAUGUGAACAGCAGUUGGACAUGGGUUAGUCGAUCCUAAGAGAUAGGGAAGCUCCGUAUGAAAGUUGCACGAUUUUUCGUGCCUCCUAUCGAAAGGGAAUCCGGUUAAUAUUCCGGAACCAGAAGGUGGAAUCAACACGGCAACGUAAAUGAAGUUGGAGACGUCGGCGGGAGCCCUGGGAAGAGUUCUCUUUUCUUUUUAACAAACCAUUGAACCACCCUGAAAUCGGUUUAUCCGGAGCUAGGGUAUGGUGUUUGGAAGAGUUCAGCGCCUCAUGCUGAAUCCGGUGCGCUCUCGACGGCCCUUGAAAAUCCAACGGAAGAAUGGACCUUCGGGUCCUUGUUUUCACAUCUGGUCGUACUCAUAACCGCAGCAGGUCUCCAAGGUGAACAGCCUCUAGUUGAUAGAACAAUGUAGAUAAGGGAAGUCGGCAAAAUGGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGUUGGGUACGUUGGGCCUUGGAACCUGAACGGUUGCUGGACUGAGCGUGGACCGAUGUCUUUUCUCGCCUUUCGGGGUGAGAAGGGAUGUUGGACCUGCUUGGACCUUGGCGGCCGGGAAGUCCUUGGUCGGGCUUUUCUCCUUCUCGGGGAUUAUGCUCUUACUGGCGUACGUUUAACAAUCAACUUAGAACUGGUACGGACAAGGGGAAUCUGACUGUCUAAUUAAAACAUAGCAUUGCGAUGGCCAGAAAGUGGUGUUGACGCAAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAACCAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAACUAGUGACGCGCAUGAAUGGAUUAACGAGAUUCCCACUGUCCCUAUCUACUAUCUAGCGAAACCACAGCCUGGGGAACGGGCCAGGCAAAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUUUGACAUUGUGAAGAGACAUAGAGGGUGUAGGAUAAGUGGGAGUAUGUUUCGGCAUACGCCGGUGAAAUACCACUACCUUUAUCGUUUCUUUACUUAAUCAAUGAAGCGGAAUUGGGAUUUAUUUCCCAUAUUCUAGCGUUAAAGUUUCUUCGCGAACUGAUCCGCGUUGAUGACAUUGUCAGGUGGGGAGUUUGGCUGGGGCGGCACAUCUGUUAAAAGAUAACGCAGGUGUCCUAAGGGGGACUCAUCGAGAACAGAAAUCUCGAGUAGAAUAAAAGGGUAAAAGUCCCCUUGAUUUUGAUUUUCAGUGUGAAUACAAACCAUGAAAGUGUGGCCUAUCGAUCCUUUGUUCCCUCGAAAUUUGAGGACAGAGGUGCCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCAGCCAAGCGUUCAUAGCGACGUUGCUUUUUGAUUCUUCGAUGUCGGCUCUUCCUAUCAUACCGAAGCAGAAUUCGGUAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAAGUGUCGUCGCAAUGGUAAUUCAACUUAGUACGAGAGGAACCGUUGAUUCAGAUCAUUGGUAUUUGCGGCUGCCUGACAAGGCAAUGCCGCGGAGCUAUCAUCUGCCGGAUAACGGCUGAACGCCUCUAAGCCAGAAUCCGUGCCAGAAAGCGACGAUUUUUUGGUCCGCAUGAUUUAUAUGUAUAAAAAUAGAGGUAGGACUUGUUCCUACUCUCCUGUAUCGUAGAAGAUGGGCGAUGGUUGAUGAAACGGAAGUGUUUUAUUGACUUGUCCAUGAAAUUCCAUUGAAAUCUUGUGCGGAAUCGAAUCCAUUGCAUACGACUUUAAUGUGGAACGGGGUAUUGUAAGCAGUAGAGUAGCCUUGUUGUUACGAUCUGCUGAGAUUAAGCCUUUGUUCCCAAGAUUUGU

Entity 2 polymer

描述 description	RNA (152-MER)
分子量 formula_weight	52880.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	2

AUUAUUUAAAACUUUCAGCAACGGAUCUCUUGGCUCUCGCAUCGAUGAAGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUGAACGCACAUUGCGCCUUUGGGUUCUACCAAAGGCAUGCCUGUUUGAGUGUCAUU

Entity 3 polymer

描述 description	Protein mak16
分子量 formula_weight	35686.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MQQDEVIWQVVGHEFCSYRIKGEAQNFCRNEYNVTGLCNRQSCPLANSRYATVREDNGKLYLYMKTIERAHFPSKLWQRIKLSKNYAKALEQIDQQLLYWPGRQIHRCKQRLTRLTQYLLKARRLALKHQPALIPIKPKQAHREASRERKALIAAKLEKNIEKELVKRLKSGVYGDQPLNVNEEIWNKVLAAREGLIDEGEEEEEREEAELEFVSDDEDEEEISDLEDWLGSDQSMETSESEEEESSESESDEDEDEDNKGKIRKRKTDDAKKSRKKRAPHIHIEYEQERENEKIPAVQHSW

Entity 4 polymer

描述 description	60S ribosomal protein L39
分子量 formula_weight	6326.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MPSHKSFRTKQKLAKAARQNRPIPQWIRLRTGNTVHYNMKRRHWRRTKLNI

Entity 5 polymer

描述 description	RNA (118-MER)
分子量 formula_weight	73038.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	9

GUUAACCUACUUGAAUAACAGAAUAAAUACUAUUAUUUAACACAACAAAUGUCUACGGCCAUACCUAGGCGAAAACACCAGUUCCCGUCCGAUCACUGCAGUUAAGCGUCUGAGGGCCUCGUUAGUACUAUGGUUGGAGACAACAUGGGAAUCCGGGGUGCUGUAGGCUUCCUUUUAUUCUUUUUGCUUUUUCUGCUUUAUUUUAAUUCCUCGUUUUCGACAUCAAAUC

Entity 6 polymer

描述 description	60S ribosomal protein L2-A
分子量 formula_weight	27151.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MGRVIRAQRKSGGIFQAHTRLRKGAAQLRTLDFAERHGYIRGVVQKIIHDPGRGAPLAKVAFRNPYHYRTDVETFVATEGMYTGQFVYCGKNAALTVGNVLPVGEMPEGTIISNVEEKAGDRGALGRSSGNYVIIVGHDVDTGKTRVKLPSGAKKVVPSSARGVVGIVAGGGRIDKPLLKAGRAFHKYRVKRNCWPRTRGVAMNPVDHPHGGGNHQHVGHSTTVPRQSAPGQKVGLIAARRTGLLRGAAAVEN

Entity 7 polymer

描述 description	60S ribosomal protein L3-A
分子量 formula_weight	43889.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSHCKFEQPRHGSLGFLPRKRASRQRGKVKAFPKDDASKPVHLTAFLGYKAGMTHIVRDLDRPGSKMHKREILEAVTVIETPPMVVVGVVGYVETPRGLRSLTTVWAEHLSEEVKRRFYKNWFKSKKKAFTKYAKKYAESTQSINRELERIKKYCSVVRVLAHTQIRKTPLAQKKAHLMEIQVNGGSVADKVEWAREHFEKTVDIKSTFEQNEMIDVIGVTRGKGNEGTTARWGTKRLPRKTHRGLRKVACIGAWHPANVQWTVARAGNAGYMHRTQLNSKIYRIGAGDDAKNASTDFDATEKRITPMGGFVRYGVVENDFVMLNGATPGPVKRVLTLRKSLLTHTSRKALEPVSLKWIDTASKFGHGRFQTPAEAKQFLGTLKKDVA

Entity 8 polymer

描述 description	60S ribosomal protein L4-B
分子量 formula_weight	39982.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAAARPTVSIYNKDGSVSSETLALPFVFKAPIRPDLVRSVHTAVAKNKRQPYAVSEKAGHQTSAESWGTGRALARIPRVGGGGTHRSGQAAFGNMCRSGRMFAPTKTWRKWHVKVNQNEKRYAIASAVAASGVPSLLLARGHRIEEIPEVPLVVDDAVQSFQKTKEAVALLKEIKAYRDVIKVANSRKLRAGKGKLRNRRHVQRRGPLVVFNEDTGIVKAFRNIPGVEIVNVRRLNLLQLAPGGHLGRFVIWTKSAFGLLDSVFGSTTEVAQLKKNYFLPENIISNADVTRLINSDEIQSIVKAAGPSRVKRAHVQKKNPLKNKAVLSRLNPYAKAYKANVKINSEKTPKAAGEKFLSVLHEN

Entity 9 polymer

描述 description	60S ribosomal protein L5-A
分子量 formula_weight	33513.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MPFIKAVKSSPYFSRYQTKYRRRREGKTDYYARKRLIAQAKNKYNAPKYRLVVRFSNRFVTCQIVSSRVNGDYVLAHAHSSELPRYGIKWGLANWTAAYATGLLVARRALAKVGLADKYEGVTEPEGEFELTEAIEDGPRPFKVFLDVGLKRTSTGSRVFGAMKGASDGGLFIPHSPNRFPGFDIETEELDDETLRKYIYGGHVAEYMEMLIDDDEERYQKQFSGLIADGIESDQLEDIYAEAYAKIREDPSFQKSGKDAAAFKAESLKHTQRKLTAEERKERFNAKVIEAGRA

Entity 10 polymer

描述 description	60S ribosomal protein L6
分子量 formula_weight	21286.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSTVKVNGAKNGGERMVLPAGEAAAKYYPAYRENVPKKARKAVRPTKLRASLAPGTVCILLAGRFRGKRVVVLSQLEDTLVVTGPYKVNGVPIRRVNHRYVIATSAPKIDVSGVSVEKFTKAYFAKQKRSGPVKKDEAFFAENAPKNALPAERIADQKAVDAKLLPAIKAIPNMKEYLAASFALSNGDRPHLMKF

Entity 11 polymer

描述 description	60S ribosomal protein L7-B
分子量 formula_weight	28499.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MVASSTVPSVASIFAPESLLKKTKAQKQSREQIVAAAAEKKSARQKKRELIAKRAEAYEAEYRAAEREQIELARKARAEGNYFVPHEPKLIFVVRIRGINNIPPKARKIMQLLRLLQINNGIFVKFNKAIKEMLQVVEPYVTYGIPNHKTVRELIYKRGFGKVNKQRIPLSDNAIIEAALGKYSILSVEDLIHEIYTVGPNFKQAANFLWPFKLSSPLGGWRERKFKHFIEGGDAGKRDEHINGLVQKML

Entity 12 polymer

描述 description	60S ribosomal protein L8
分子量 formula_weight	28659.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAPKSKKVAPSPFAQPKAAKTTKNPLFVSRPRSFGIGQDIQPKRDLSRFVKWPEYIRLQRRRKILNLRLKVPPAIAQFQKTLDKNTATQVFKLLNKYRPETAAEKKQRLVAEAEAVANGKSAQDVSKKPYNVKYGLNHVVALIEAKKAKLVLIASDVDPIELVVFLPALCKKMGVPYAIVKNKARLGTVIHQKTAAVLAVTEVREEDKNELASIVSAVDANFSAKYDESRRKWGGGIMGGKTQALLAKRAKAAAATVRL

Entity 13 polymer

描述 description	60S ribosomal protein L9-A
分子量 formula_weight	21545.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MGRDIYKDETLTIPKGVTVDIKARNVTVTGPRGTLKQNLRHVDIEMKKQGNTIKFIVWHGSRKHNACIRSVYSIINNMIIGVTQGFRYKMRLVYAHFPININLTENGTVVEIRNFLGERITRVIKCLPGVTVSISSAVKDEIILEGNSLENVSQSAANIKQICNVRNKDIRKFLDGIYVSERGNIEELEE

Entity 14 polymer

描述 description	60S ribosomal protein L10-A
分子量 formula_weight	25421.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MARRPARCYRYCKNKPYPKSRYNRAVPDSKIRIFDLGRKRAGVDEFPLCIHLVSNEYEQITSEALEAARICANKYLVKIGGKDSFHLRVRAHPFHVVRINKMLSCAGADRLQTGMRHAFGKPNGLVARVNIGQILMSVRTKDSSRATAIEALRRCQYKFPGQQRIIVSKKWGFSQYARDEYIEKRSRGEIIPDGCYAKFLNKRGSLQEKLDLFPEASFNLA

Entity 15 polymer

描述 description	60S ribosomal protein L11-A
分子量 formula_weight	19928.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAEKAQNPMKELRISKLVLNISLGESGDRLTRAAKVLEQLSGQTPVFSKARYTIRRFGIRRNEKIACHVTVRGPKAEEILERGLKVKEYELKKRNFSATGNFGFGIQEHIDLGIKYDPSIGIYGMDFYVVMDRPGMRVARRKAQRGRVGYTHKINAEDTINWFKQKYDAVVLGK

Entity 16 polymer

描述 description	60S ribosomal protein L43-A
分子量 formula_weight	10444.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MTKRTKKVGVTGKYGVRYGASLRRDVRKIEVQQHSRYQCPFCGRNTVKRTAAGIWCCNGKGCKKVLAGGAWTVTTAAATSARSTIRRLREMVEV

Entity 17 polymer

描述 description	60S ribosomal protein L13
分子量 formula_weight	23578.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAIHVKGQLPNAHFHKDWQRYVKTWFNQPGRKLRRRQARQTKAAKIAPRPVEAIRPAVKPPTIRYNMKVRAGRGFTLEELKAAGVSRRVASTIGIPVDHRRRNRSEESLQRNVERIKVYLAHLIVFPRKAGQPKKGDATDVSGAEQTDVAAVLPITQEAVEEAKPITEEAKNFNAFSTLSNERAYARYAGARAAFQKKRAEEAEAKKK

Entity 18 polymer

描述 description	60S ribosomal protein L14
分子量 formula_weight	15241.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MEGFKRYVEVGRVVLVTKGEYTGKLAVIVDIVDHKRALIDSPCSEFPRQVIRYGSVVLTHIVMKLPRGARSGIVAKKWKAQDVCNKWASSAWAKKLEAKKVRSQLNDFDRFAVMRLKKQRREQVNVAVAKALKA

Entity 19 polymer

描述 description	60S ribosomal protein L15-A
分子量 formula_weight	23862.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MGAYKYLEELAKKKQSDVNLFLSRVRAWEYRQMNVIHRASRPSRPDKARRLGYKAKQGYVIYRIRVRRGGRKRPVPKGQTYGKPVHQGVNHLKYQRSARCTAEERVGRYCSNLRVLNSYWVNQDATYKFFEVILVDPSHKAIRRDPRINWIVNPVHKHRESRGLTSIGKKSRGIGKGHRFNNSPQHATWLRHNTLSLRRYR

Entity 20 polymer

描述 description	60S ribosomal protein L16-B
分子量 formula_weight	22215.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSEFQKVVVIDAKGHLLGRLASVVAKQLLGGQKVVVVRCEELNISGHFFRNKLKYLAYLRKACRYNPSRGAFHFRAPSRIFQKAVRGMLPHKTARGQAALEHLQAVEGIPPPFDKQKRVVVPAALRVLRLKPGRKYCTVGRLSSEVGWKYNDIVAKLEERRKVKSAAFYQAKLAKQKKIASAKEASPVNQKLSQFGY

Entity 21 polymer

描述 description	60S ribosomal protein L17-A
分子量 formula_weight	20854.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MVRYSASPALETKCAKARGAYLRTHFKNSREVAFTINGMSLKKAFIFLDNVKEHKQAVPFRRFNGGVGRTAQGKEFGVTQARWPVKSVKFFYDLLKNAEANAEAKGLDMDKLIIKHVQVNAAPKQRRRTYRAHGRVTAYLSSPSHIEIIVAEEEEAVPKANDTVSRVSLKQGAKARNLAARKAITAA

Entity 22 polymer

描述 description	60S ribosomal protein L18-A
分子量 formula_weight	21240.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MGIDIERHHVKKSQRSKPASENVYLKLLVKLYRFLARRTDSRFNKAILKRLFQSKTNRPPISISKIAALTSRKSASSQNKTTVVVGTVTDDERMLTVPKLSIAALRFTKSARARILKAGGEVLTLDQLALRAPTGSNTVLVRGKKHAREAYRHFGFGPHKHKAPYVRSEGRKFERARGRRKSRAFKV

Entity 23 polymer

描述 description	60S ribosomal protein L19-A
分子量 formula_weight	22783.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MANLRTQKRLAASVLKCGKRKVWMDPNEISEISNANSRQNVRKLIKDGLVIRKPNLMHSRFRIRKTHAAKRLGRHTGYGKRKGTAEARMPSAVVWMRRQRVLRRLLRKYRESGKIDKHLYHTLYLEAKGNTFKHKRALIEHIQRAKAEANRTKLIQEQQDARRARAKAARQRRAKAVEEKREQLYTAAEKIEE

Entity 24 polymer

描述 description	60S ribosomal protein L20-A
分子量 formula_weight	20642.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MALKEYQVVGRKVPTEHEPVPKLFRMRLFAPNESVAKSRYWYFLKMINKVKKATGEIVAINEISEPKPLKAKVFGIWIRYDSRSGTHNMYKEFRDTTRVGAVEAMYADMAARHRARFRSIRILKVVEVEKKEDVRRNYVKQLLNPHLKFPLPHRRTGVVGLAGKKVFAPHRPSTFY

Entity 25 polymer

描述 description	60S ribosomal protein L21-A
分子量 formula_weight	18418.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPHSYGIRARTRYTFQRGFREHGQIRLSTYLKTYKVGDIVDIKVNGAVQKGMPHKYYHGKTGVVYNVTQSSVGVLIYKVVGNRYMEKRVNVRIEHVKHSKCRQDFLDRVKANEAKRKEAKAQGKTVQLRRQPAPPAKAHFVSTENNEPVTLHPVAYDTTI

Entity 26 polymer

描述 description	60S ribosomal protein L22
分子量 formula_weight	13344.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MVKKNTKVSNKYIIDATAAVNDKIFDVAAFEKYLIDRIKVDGKTGNLGSSVVVSREGSSKIAVIAHIDFSGRYLKYLTKKFLKKHSLRDWLRVVSTKKGVYELRYYNVVVGNDEEEQ

Entity 27 polymer

描述 description	60S ribosomal protein L23-A
分子量 formula_weight	14905.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MSRGRGAASGTKYRMTLGLPVQAIMNCADNSGAKNLYIVSVFGTGARLNRLPAASCGDMVLATVKKGKPDLRKKIMPAIVVRQRKAWRRKDGVYLYFEDNAGVIVNPKGEMKGSAITGPVAKECADLWPRIASNAGTVV

Entity 28 polymer

描述 description	60S ribosomal protein L25-A
分子量 formula_weight	15870.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MSVAKAKGAQKTVQKGIHNKVAKKVRTSTTFRRPKTLQLSRKPKYARKSVAHAPRLDEYKIIVNPINSESAMKKIEDDNTLVFHVHLKANKFTIKEAVRKLYSVEPVKINTLIRPNGTKKAFVKLSADADALDVANRIGFL

Entity 29 polymer

描述 description	60S ribosomal protein L26
分子量 formula_weight	14375.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MKFSRDVTSSRRKQRKAHFGAPSSVRRVLMSAPLSKELREQYKIRSLPVRRDDQITVIRGSNKGREGKITSVYRKKFLLLIERVTREKANGASAPVGIDASKVVITKLHLDKDRKDLIVRKGGKVE

Entity 30 polymer

描述 description	60S ribosomal protein L27-A
分子量 formula_weight	15421.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MVKILKPGKVALITRGRFAGKKVVILQAIDQGSKSHPFGHAVVAGVERYPLKVTKSMGAKRIARRSRVKPFIKVVNYNHLMPTRYALELDNLKGLITADTFKEPTQRSAARKTVKKTFEEKYQSGKSAWFFTPLRF

Entity 31 polymer

描述 description	60S ribosomal protein L28-A
分子量 formula_weight	16691.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MPTHVSKTRKLRGHVSAGHGRIGKHRKHPGGRGKAGGLQHLRSHFDKYHPGYFGKVGMRRFHLMKNPLWRPTVNLDRLWTLLPNEARDKYLGKNTEVAPVINVLQSGYGKVLGKGRLPETPVIVQTRYVSRRAEEKIKQAGGVVELIA

Entity 32 polymer

描述 description	60S ribosomal protein L29
分子量 formula_weight	7224.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MAKSKNHTNHNQNKKAHRNGIKRPQKHRYDSLKYRDAKFRRNQKFANRGTVEAIRQAKASA

Entity 33 polymer

描述 description	60S ribosomal protein L30-2
分子量 formula_weight	12261.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MSAAPTTAPVAAVSKKGKKSGDTINSKLALTMKSGKYVLGYKSTLKTLRSGKAKLILIAANAPPLRKSELEYYAMLSRCSVHHYSGNNIDLGTACGKLFRVGVLAVIDAGDSDILAA

Entity 34 polymer

描述 description	60S ribosomal protein L31
分子量 formula_weight	13290.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MANTKKSAINQVVTRDYTIHMHKRLYGVSFKKRAPRAIKEIVAFAQKHMQTKEVRVDPSLNKEVWKRGIRNVPHRLRLRLSRKRSDEDDKALYTYVQAVDVANPKMETTVVEE

Entity 35 polymer

描述 description	60S ribosomal protein L32-A
分子量 formula_weight	14491.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MAAVNIIKKRTKPFKRHQSDRFKRVGESWRKPRGIDSCVRRRFRGTISMPKIGYGNNKKTRYCMPNGLKAFLVRNVSDVELLLMHNKTYAAEIAGNVSARKRVEIVEKARALGVKVTNAGAKVRSQE

Entity 36 polymer

描述 description	60S ribosomal protein L33-B
分子量 formula_weight	12133.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MPAQGHRLYVKAKHLSFQRSKHVIHPGTSIVKIEGCDSKEEAQFYLGKRVCYVYKSSKAVRGSKIRVIWGTIARPHGNSGAVRARFVHNLPAKTFGSSLRVMLYPSNI

Entity 37 polymer

描述 description	60S ribosomal protein L34-A
分子量 formula_weight	12898.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MAQRVTYRRRLAYNTRSNRTRIIKTPGNNIRYLHIKKLGTIPRCGDTGVPLQGIPALRPREFARLSHNKKTVQRAYGGCLSANAVKDRIVRAFLIEEQKIVKQKLKQLSSQK

Entity 38 polymer

描述 description	60S ribosomal protein L35
分子量 formula_weight	14333.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MALKTFELRKQSQENLAEQLQELRQELASLRVQKIAGGSGSKLSKIKTTRKDIARILTVINESNRLAAREAYKNKKYIPLDLRQKKTRAIRRALTPYEQSRKTLKQIKKERYFPLRKYALKA

Entity 39 polymer

描述 description	60S ribosomal protein L36-B
分子量 formula_weight	11287.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MAPGLVVGLNKGKTLTKRQLPERPSRRKGHLSKRTAFVRSIVREVAGFAPYERRVMELIRNSQDKRARKLAKKRLGTLKRAKGKIEELTSVIQSSRLAH

Entity 40 polymer

描述 description	60S ribosomal protein L37-B
分子量 formula_weight	10112.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MTKGTQSFGMRHNKSHTICRRCGKRSFHIQKSTCACCGYPAAKTRSYNWGAKAKRRRTTGTGRMSYLKKVHRSFKNGFRSGKPAAAVAASA

Entity 41 polymer

描述 description	60S ribosomal protein L38-1
分子量 formula_weight	8511.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MPRQISDIKQFLEIARRKDATSARIKKNTNKDVKFKLRCSKYLYTLVVADAKKAEKLRQSLPPDLTVTEVGKKA

Entity 42 polymer

描述 description	Ribosome biogenesis protein erb1
分子量 formula_weight	83052.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

METGMNRKRSRSKRANSNVGVEKDKEKEKSKGVSNVPNEVETESSSHEPSFKKDVDEEIPSLTAELSEEEEGEYSSESGRSTPELSPDDFEDADDEEEFEEIDAGYSSDSSTEDVAPGLYESPYDENLYINYDIDGKKITRPATPAALDSLIASIDKDKGWTGIVDPMTGKPVNLTTEELGLLKRLAQSEIPDENFDPYPDYDDFFTNTVRETPLSSAPEPKRRFAPSKHEQKRILQLAYAIRKGRILTSEQRAERERESQSNYADHDLWADDDQATVNQRKLDYAPAPKLPPPSHEESYNPPEEYLKQSSDFPKKYKSLRVVPAYSNLIKEKFERCLDLYLAPRVRRTKLNIDPESLLPKLPTPSELRPFPTRCTNVFIGHKGRVRCLSVHVSGNWLASGGDDGVLRIWEVMTGRCVWKCSLDSFGNAHNIDSDEDAVNESLSHSTKSSIIQSLAWGPLSDSPVLAVAVDETVYFITPPIFSDEQIEASKELFTSAPYQESSAIWRRGAKQSLQLHGGIVHATVSTPSSIKSLSWHRRGDYLATSSPTSSSQAVLIHQLSRGASQSPFSKSKGSVQAVTFHPTMPYLLVATQRYVRIYNLVKQELVKTLLTGVKWVSSLSVHSSGDHVIIGSYDKRLCWFDLDFSSKPYKNLRYHSRALRDVSYHPSLPLFCSGSDDGDVQVFHGRVYSDLLANPLIVPLKILRNHKVVDNVGVLSTCWHPKEAWLFSAGAGGEIRMWT

Entity 43 polymer

描述 description	Pescadillo homolog
分子量 formula_weight	69294.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MARVKQKGKAGAARIYITRNQALKKLQLTLADFRRICILKGVYPREPKNKKKANKGSTAPVTFYYTKDIQYLLHEPIVQKFREYKVFARKLSKALGKGELETAKRLEARKPTYSLDHIIKERYPTFHDALKDIDDALSMLFLFSTMPVTDKIGAATVANCERLCAEFQHYVIRSNSLRKAFLSIKGIYYQAEIFGEQITWIVPYKFAQSVPTDVDFRIMHTFLEFYQALMGFVNFKLYNTLGLRYPPKIDVAKSESAAGLAAYELEESSSLPAIVHGNNKNARKNIATLKSKIRDIVNSDANVVEQSEKTTEDADEEPETEENLDEFKPADGADNEDSKSLVSHISSSNTSLFSNFTFFLSREVPRFSLEFVIRAFGGKVGWDPILGSGSPFSESDPVITHHICDRPHISQKYEGRIYIQPQWVYDSINKGILERTDLYACGATLPPHLSPFVKVGENDYDPEAELSAEENDDVSEALDDNISGEAVPISKKNDEPENVEQIDDAEEEDLEHQRELEAEAGGVAYSEYVKQNSKSAKKTKKRQRDTLTAEEKEEKEAKELSKMMMSNKQRKLYSKLKNENSKNENYNNALRNRKRDIEKRKKLKVEN

Entity 44 polymer

描述 description	60S ribosomal protein L42
分子量 formula_weight	12239.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MVNIPKTRKTYCPGKNCRKHTVHRVTQYKKGPDSKLAQGKRRYDRKQSGFGGQTKPVFHKKAKVTKKVVLRLECVSCKYKNQLVLKRCKHFELGGEKKTKGAAIQF

Entity 45 polymer

描述 description	Ribosome biogenesis protein ytm1
分子量 formula_weight	48388.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MDAQSAPSGQVQVRFTTRNEDLAVGDTPIFVPTSLKRYGLSQIVNHLLKTEKPTPFDFLVQGQLLKTTLDEYIVQNGLSTESILDIEYIQSTLPPAYLASFSHDDWISGIQLTSDTILTSSYDGIARVWDKSGEIKFQSTGCGSSLKSASWHIPNQSFLTASLDQKIFHWVIEEPESMLDAEKKSSGILQTLFVGHKDIVERVRSLESSSVFISASADNTVGIWDFERSPETTLESFSSSISKKRRRKNAEFTPQAGARSPLILCEGHTGPVMDIVFSDDPSVAYSVGQDHTIKTWDLITGQNVDSKITKAPLLCVEKLTDLHLVICGSSARHIVVHDPRAGSDKIVSHTLSGHKNLVSGLSASPENPYMFASVSHDNTCRVWDVRATSGSIYTISRAEKTGSQWDKLFAVDWNKSIGIVTGGTDKQLQINQSSSFGKSE

Entity 46 polymer

描述 description	Ribosome biogenesis protein rlp24
分子量 formula_weight	22323.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MRVHTCYFCSGPVYPGHGIMFVRNDSKVFRFCRSKCHKNFKMKRNPRKVAWTKAYRKAHGKEMVYDTALAVTAARRNVPVRYDRNVIATTLNAMKRVSQVHAKRERLFYKKRLAGKRAQELQEAQKLIAQNVPQFTEPEGEVETAEVQEPQIVSDEEYTMEEEVAEPVKIPVLAKKRKNKKSRNSSSAMQMD

Entity 47 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	35000

fit	/app/data/saxs_computation/eu/8eug/8eug.fit
pddf	/app/data/pr_computation/eu/8eug/8eug.pr.out
profile	/app/data/saxs_computation/eu/8eug/8eug.dat

Ytm1 associated nascent 60S ribosome State 3

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (47)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
