8i7o

In situ structure of axonemal doublet microtubules in mouse sperm with 16-nm repeat

Method: ELECTRON MICROSCOPY D_max: 466.0 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8i7o
沉积日期 deposition_date	2023-02-01
结构标题 title	In situ structure of axonemal doublet microtubules in mouse sperm with 16-nm repeat
关键词 keywords	microtubules, axoneme, sperm, filament, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

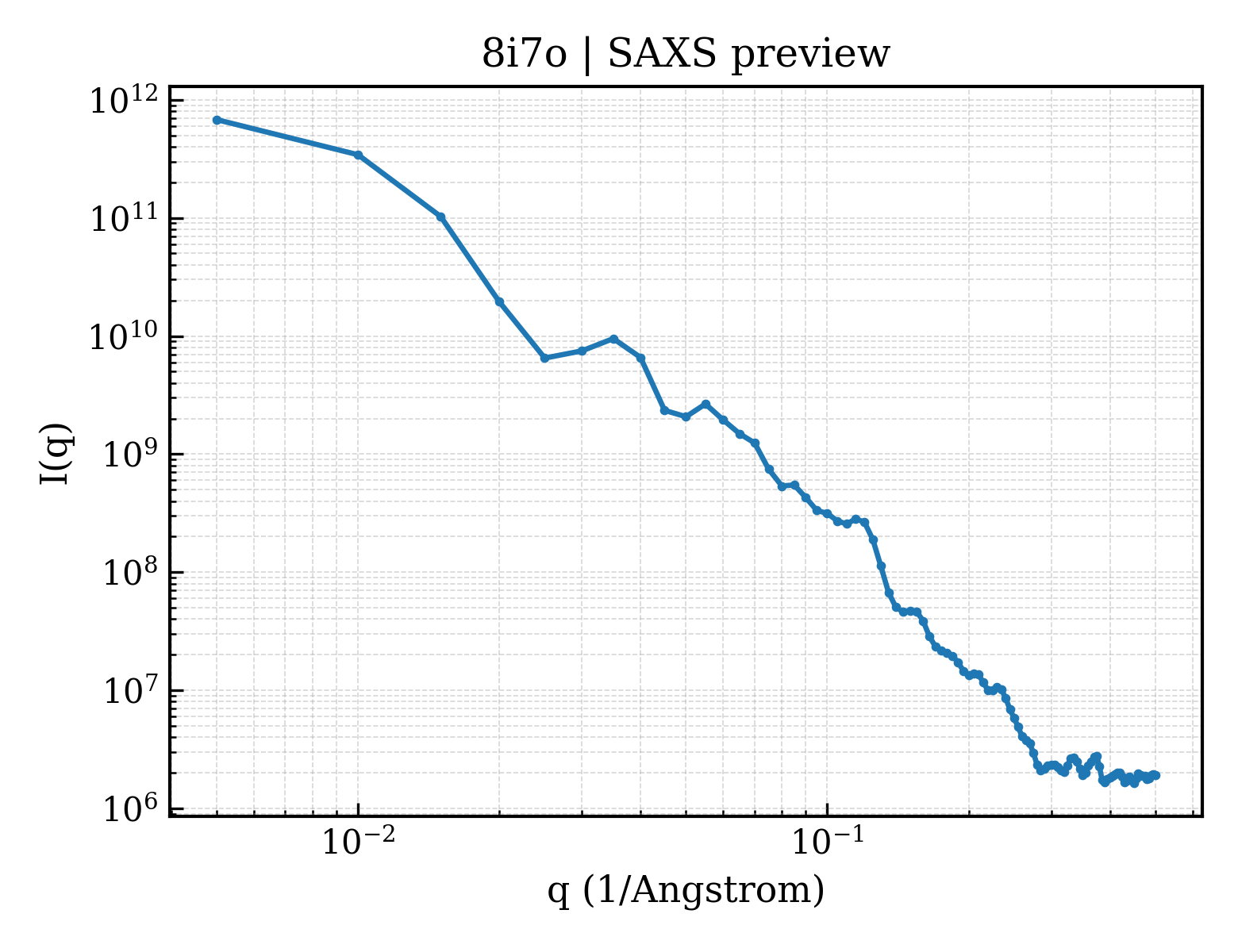

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	162.20 Å
零角强度 I(0) i0	847598000000.00
分子量 molecular_weight	7705600.0 kDa
排除体积 excluded_volume	9554700 Å³
包络体积 envelope_volume	21115000 Å³
水化壳体积 shell_volume	1048800 Å³
包络直径 envelope_diameter	501.8 Å
壳层 Rg shell_rg	168.50 Å
包络 Rg envelope_rg	151.30 Å
形状 Rg shape_rg	162.20 Å
总 Rg total_rg	162.10 Å
总原子数 total_atoms	540760
残基数 n_residues	67953
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

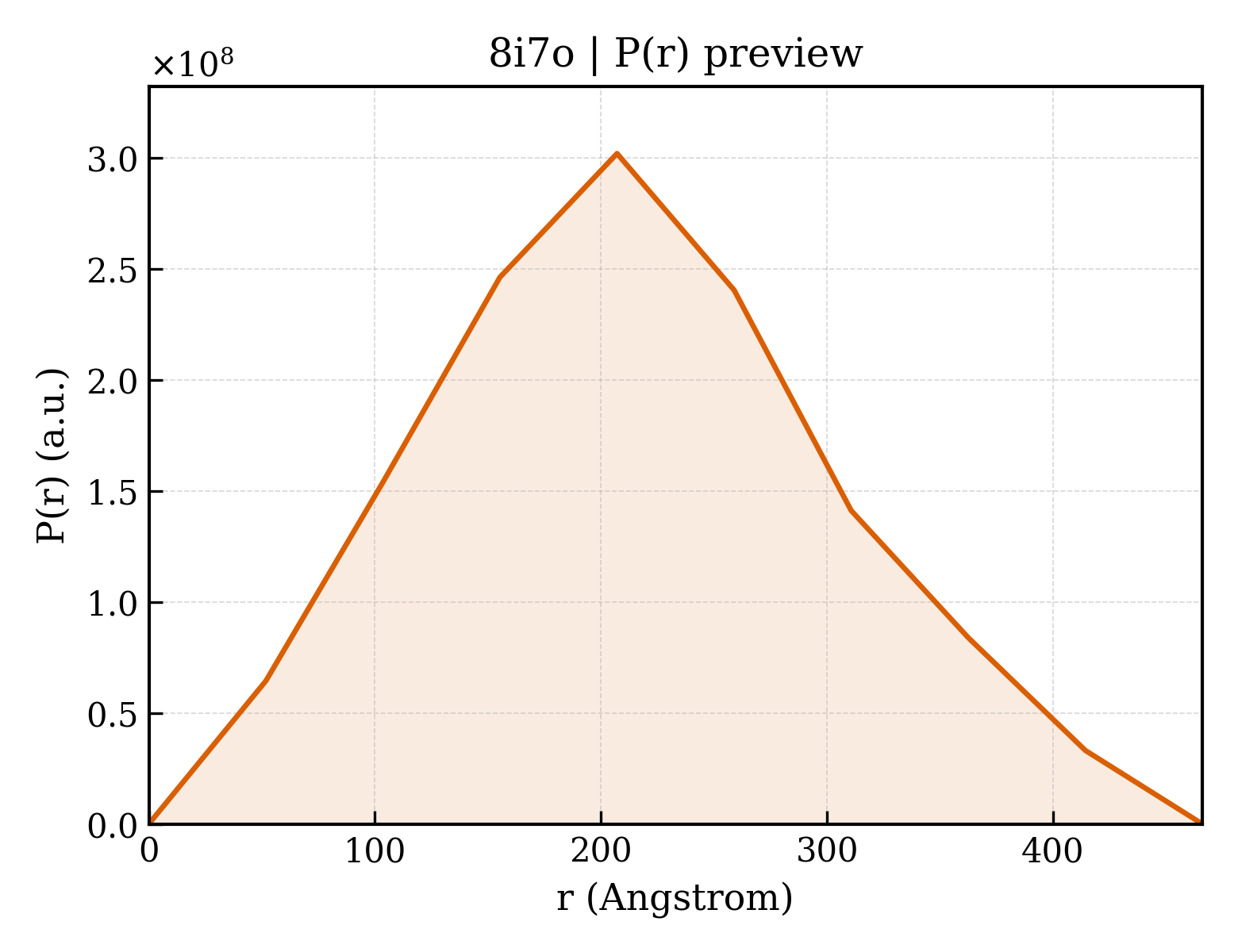

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	466.0 Å
Rg (实空间) rg_real	162.90 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	8.2320e+11
I(0) 误差 (实空间) i0_real_error	1.8300e+10
Rg (倒空间) rg_reciprocal	168.50 Å
I(0) (倒空间) i0_reciprocal	862100000000.0000
解质量估计 total_estimate	0.9009
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	207.1 Å
偏度 Skewness skewness	0.206
峰度 Kurtosis kurtosis	-0.460
角度范围 angular_range	— – 0.0450 Å⁻¹
当前正则化参数 α current_alpha	2.1000
最高正则化参数 α highest_alpha	26990000000.0000
实空间数据点数 n_real_points	10
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.986; Stabil: 0.922; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (25)

Entity 1 polymer

描述 description	Tektin-1
分子量 formula_weight	48713.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A2,A3
原子数 atom_count	540760

MAKLLQSPPRFLPEEWYIANKSQYHRAEAQRSQSERLVAESQRLVEEIEKTTRKSQSDVNKKLEQRLEEVRFWKKELDDKLEQLVNQTDDLLTYKTRLERSLESYKEPLHITEKCLEYREKRVGIDLVHDVVEQELQKEADIIHGVMNLLIRTLEESTEQIRLNRSAKYNLEKDLRDKFTAITIDDVCFSLNNNSPNINFSEKVVRIEPNSVSLEDWLDFSNANVEKADKQLNNSTALKTLVDQILSQTANDLRRQCEVVDEAFINGLKETKDARNKLADHLAKVMEEIASQEKNIMALENAITQQEGPAKVAHTRLETRTHRPNVELCRDIAQYRLIKEIQEINHNVARLKETLAQAQTQLKALYRRQLALQEEIQVKENTIYIDQVLCMEMRKSIPPRDGDDHGAWEGGIRAEAIC

Entity 2 polymer

描述 description	Detyrosinated tubulin alpha-3 chain
分子量 formula_weight	48689.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	61

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	;AE,AG,AI,BE,BG,BI,CG,CI,DE,DG,EE,EG,FE,FG,GE,GG,GI,HE,HG,HI,IE,IG,II,JE,JG,KE,KG,KI,LE,LG,LI,ME,MG,MI,NE,NG,NI,OE,OG,OI,PE,PG,PI,QE,QG,QI,RE,RG,RI,SE,SG,SI,TG,TI,UE,UG,VE,VG,WE,WG,WI ;

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVVDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIVDLVLDRIRKLADLCTGLQGFLIFHSFGGGTGSGFASLLMERLSVDYGKKSKLEFAIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLIGQIVSSITASLRFDGALNVDLTEFQTNLVPYPRIHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCMLYRGDVVPKDVNAAIATIKTKRTIQFVDWCPTGFKVGINYQPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDLAALEKDYEEVGVD

Entity 3 polymer

描述 description	Tubulin beta-4B chain
分子量 formula_weight	47897.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	62

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	;AF,AH,BF,BH,CF,CH,CJ,DD,DF,DH,ED,EF,EH,FD,FF,FH,GD,GF,GH,HD,HF,HH,IF,IH,JD,JF,JH,KD,KF,KH,LD,LF,LH,MF,MH,ND,NF,NH,OD,OF,OH,PF,PH,QF,QH,RF,RH,RJ,SF,SH,SJ,TF,TH,TJ,UD,UF,UH,VD,VF,VH,WF,WH ;

MREIVHLQAGQCGNQIGAKFWEVISDEHGIDPTGTYHGDSDLQLERINVYYNEATGGKYVPRAVLVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKEAESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQD

Entity 4 polymer

描述 description	Tektin-2
分子量 formula_weight	50385.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B2,B3,B7,B8

MATLSFKPSERYRLSDWRTNSYLLSTNAERQRDASHQIRQEARILRNETNNQIVWDEHDNRTRLAERIDTVNRWKETLDKCLTDLDAEIDSLAQAKESAEQNLQAKNLPLDVAIECLTLRESRRDIDVVRDPVEEELLKEVEVIEATKKVLQEKISQAFQHLCLLQEIRQQLNSDHRDKMETLEIDRGCLSLNLTSPNISLKVNPTRIPKDSTTLQQWDEFTRFNKNRAEAEMKASIELREAIALAIAQTNNELDAQRVATEFTFRKRLREMESFYSELKWQEKNTLEEIAELQGDIRRLEEDLRRKMMNLKLAHTRLESRTYRSNVELCRDQTQYGLIDEVHQLEATINTMKQKLAQTQNALDALFKHLARIQADIACKTNTLLLDTKCMDTRRKLTVPAEKFVPQVDTFTRTTNRTLSPLKICQLELT

Entity 5 polymer

描述 description	Tektin-3
分子量 formula_weight	56754.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C2,C3,C4,C7,C8,Cb,Cc

MELLGSTLTATYAHPPPASASFLPAIGTITSSYKDRFPHRNLTHSLSLPWRPNTYYKTAYNYPTLAPYSSRSQRVCESTMLPFVSNRTTFFTRYTPDDWYRSNLVSFQESNSSRHNSERLRVDTSRLIQDKYQQIRKTQAHSTQNLGERVNDLAFWKSEITHELDEMIGETNALTDIKRRLERGLIETEGPLQVSRECLFHREKRMGIDLVHDEAEKELLAEVDTILCCQERMRQHLDKANAQLASDRSAQHELEKDLSDKQAALRIDDKCQHLRNTSEGVSYFRGVERVDATVSVPETWAKFTDDNVLRSQSERAASAKLREETENLLIVTANEMWNQFNKVNLAFTNRIAETVDAKNKIHTHLTKTLQEIFQIEMTIESIKKAIKEKSAFLKVAQTRLDERTRRPNVELCRDMAQLRLVNEVYEVDETIQTLQQRLRDSEDTLQSLAHTKATLEHDLAVKANTLYIDQEKCMSMRNSYPSTLRLVGYC

Entity 6 polymer

描述 description	Tektin-4
分子量 formula_weight	52121.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D2,D3,D4,D7,D8,D9

MAQTGVLLTKEPAPQSIDVCELPRKEYEVACNTGAYTSSGLATAGFRTAKYLRDEWFQNSYARYHQAFADRDYSERQRHESGQLVAETGALAQRTQLDSTRKVGERLEDMHCWKSELQREIDELSSETDLMMAQKLRLQRALDATSVPYSIATDNLQCRERRQHPDLVRDYVEVELLKETELIRNIQELLKRTIGQAVDQIRLNREHKESCEMNWSDKVEVYNIDDTCSRYTNESTQVQFYPHSSKFEESASTPETWAKFNHDNLLRAERERLASVNLRKLIDCILRDTAEDLRLQCDAVNSAFSSRCQELDDSLQKLQYHLRKTLTEITDQEHQIAALKQAIKDKEAPLRVAQTRLYQRSHRPNVELCRDNAQFRLLSEVEELNMSLRALKEKLQDAEQALRNLEDSRMSLEKDIAVKTNSLFIDRQKCMTHRNRYPSVLQLAGYQ

Entity 7 polymer

描述 description	Tektin bundle-interacting protein 1
分子量 formula_weight	23987.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E2,E3

MENVRREATRPSVPSGTLELYFPDHLYRNDYVSLEGPRWAPAIKQAVRWKFTPMGRDAAGQVWFTGLTNSEPGDAWYKLPRALDTPYREAHTRWHGCFQSRQRGLPPAYTQHLREMAFWDPAITAQYLNSGPRWGCMQWRDRQIRGKEFVVTRNQFGAKLPWRSDYVPLLSLPQRPRFTAQDFRQRGLQRPCPAIGQPPPAFTPAL

Entity 8 polymer

描述 description	Tektin-5
分子量 formula_weight	62817.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F2,F3,F6,F7,Fa,Fb,Fc,Fl

MEFLGTTQTASFCGPKKGCGLQALPPAGQEPVVQECYQPFHLPGYRYLNAWRPSVFHKIATSQTIPEECSGIRRPPTILPSLRSALFCRYTPRDWDRSNDLQIRNAEASRLWASRLTGDSLRIMQDKDQLIHQMQEGTSRNLGQRLSDLGFWKSELCYELDRLLTENSSMDTLKRRLECAAEEVNCPLQVALECLYNREKRIGIDLVHDNVEKNLIREVDLLKCCQDQMRKLAKRIDFQIRDNRDAQHSLERDIEDKSSAQYIDENCFNLRSTSDSISFFHGVEKFDGTVSIPETWAKFSNDNIRHAQNMRANSIRLREEAEHLFETLSDQMWKQFTNTNLAFNARISEETDVKNKLQTQLAKILQEIFQAENTIMLLERAIVAKEYPLKMAQTMLACRTRRPNVELCRDVPQFRLVNEVFTIDDTLQTLKLRLRETQDTLQLLVMTKSRLEHELAIKANTLCIDKDKCMSMRKSFPSTPRLTGYTCSAIGSGPYANHAPRISSGPCSGSALCKGPASCGGGASCGGGASCGGHAPCGSALCSHSVSRSGPGFAPVC

Entity 9 polymer

描述 description	EF-hand domain-containing protein 1
分子量 formula_weight	75235.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G1,G2

MGTNPVHGLPFLPGSSFTDSTKTAFHRSQTLNYRNGYAVVRRPTMGIGGDRLHYNQLSQAELDELANKAPILTYGPLKQAPLAEFVPAHVAFDKKVLKFSAYFQEDVPISMEEHYRIRHVNIYYYLEDDSMSVIEPVVENSGIPQGKLIKRQRFTKNDMGDHYHWKDLNRGINLTVYGKTFRIVDCDRFTQDFLESQGIELNPSEKIPLDPYTQLRKEPVRKYVTPSDFDQLKQFLTFDKQVLRFYAIWDDTDSLFGECRHYIIHYYLMDDTVEIREVHERNNGRDPFPLLMNRQRMPKVLVENAKNFPKCVLEISDQEVLEWYTAKDFIVGKPLTILGRTFFIYDCDPFTRQFYKDKFGMPDLPPVDVTKKEPPPVKQELPPYNGYGLIEDSAQNCFALIPKAPRKDVVKMLMNDNKVLRYLAALESPIPEDKDRRFVFSYFLATDMISIFEPPVRNSGIIGGKFLGRTKVVKSFSPVDNPIYYSPSDFFIGAVIEVFGHRFVILDTDEYVLKYMESNASQYSPEALASIQNRIQKPELPAPELESKQATGEPMVQGTEESKVQDLDALIDQIHMHLKYNSYKENLRETFQMYDKDESGYVDRETFFKICETLNVPVDDSLIKELIRLCTHGEGRINYYNFVRAFSN

Entity 10 polymer

描述 description	EF-hand domain-containing family member C2
分子量 formula_weight	87758.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G5

MALPFLPGNSFNRNIGKERFHKSQHWGFCNNVRMLVSENKPGVGGDLLYGQKIKPKHSVFPKGDGTDAPSWVAFDKQVLSFDAYLEDEISDKRQEIFRIRYYKIYFYLEDDTIQVNEPEVINSGLPQGTSIRRQRIPYPPPNDDQFYTVYDFNINISVVFYGRTFKIYDCDPFTKNFLKKIGIKLNPPGQCPLDPYMKMRRETLEFVDPFRPYQSFDTLKRFIQYDGKVLRFFCLWDDSTSLFGDRREFVLHYFLCDGTVEIREVLPSNSGRDAMSSFLRRGKLPKYGPPGIYQPGQITDRAVLNVYGGLSEWRADGYLLDKYQLGKVEQDFYTDQDLSIGATINVWGRKVLLCDCDEFTKTYYRTKYGVDNFTPISCKPPHLPKIERKYPPYTGFGSEEDSFRSCVGLKPTPHRKNFKKFMELDSFGNISNILRYFGKLITHKCADVDRIFVIAFYLSDDTISVFEPIENNSGNAGGMFLKRSRVKKPGQEVFKSEFSEYIKAEELYIGATVNINGYLFILLNADEYTLNYMENNTDKFPYSNFELAIQKLKQEKSKSREITQVFAAADYNHTKVVPYNTFRDILMSITMGKLIDQELITIARHYRVPEIMDPDLAYLIARAHEKFKKNIFENFDMFIYNCVYEDREKKGVLPTKDIRRMCKSSRLPLDDDFLDCLLSRFEDKDHQINYEIFFSVLNWRMNPTPDLQAPPYLKEKCEDVWVGMPSPIPVKYVRYLDFLIDVYGLEDNML

Entity 11 polymer

描述 description	Protein FAM166A
分子量 formula_weight	36659.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H3,H4

MTATQKHNLFTPEPHYIPGYAGFYPQLRYQVGNTYGRTTAQLLTDPSVQKSPCSVLSPMTKPKFIEDFSKSKPPWIPCRDLREPYIPHYTSLKPYKNFEILGQLPRQDVDTQGPPQVENRQGPLTAGFMPYPPYPACPPGRKGEARDLGHPGLLLAYGEEAWKDAAPLQDTPGKNNQLYHCRRDEYLPPHPPQETLDVGRFQRLPQLDHPNLIQRKAISGYAGFVPRFAWVMGMNYRDGVTQAMDDFDKNQFVFRHPVCALGERLPRTHWPNTTIYRSQGLIPFYMGFIPSMQDNYALTFGNSTRRAYQKELDRRSHTL

Entity 12 polymer

描述 description	Protein FAM166C
分子量 formula_weight	23098.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I2,I3

MAFRSAGTLMTEFNAAFVPPALMPGYKGHVPGVASSFGSSYGNTTFKYFQDLRNTGLEKSYALLSGGCFPTIFSPNSPLVLTDNSQNWDRWLHQPTYSRSNQDNGRTTELTNFYKTVQQQRKYYQDKTGILSRVPYFVLPVKEPDRYPLPTDLPPLSEKSKWNLLRLSPDYKRTYQTFPSGKRVSSQERQRRDLYFEFRA

Entity 13 polymer

描述 description	Dual specificity phosphatase 21
分子量 formula_weight	21527.6 kDa
EC 编号 ec_number	3.1.3.16,3.1.3.48
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J2,J3

MTTASCIFPSQATQQDNIYGLSQITASLFISNSAVANDKLTLSNNHITTIINVSAEVVNTFFEDIQYVQVPVSDAPNSYLYDFFDPIADHIHGVEMRNGRTLLHCAAGVSRSATLCLAYLMKYHNMTLLDAHTWTKTCRPIIRPNNGFWEQLIHYEFKLFSRNTVRMIYSPIGLIPNIYEKEAYLMELM

Entity 14 polymer

描述 description	Coiled-coil domain-containing protein 105
分子量 formula_weight	57406.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K2,K3,K4

MPVLLPSTDPGQDSRVGAPEWRQAAKATSRKAHLLTDRCGQEAVTMWQPKDSVLDPNVAHHLGRAAYMEPWRFRVEMLKGGGTLEKPPPGEGVTLWKGKMKPPAWYARLPLPMHRDARAQQTAEVVHAHARGARLTAARLGRAQHQINGQLRLLLRQREATDRRLSEVRKGLLINQQSVKLRGYRPKCEKIPDKADSLLVWEKKELKSMKRKMEKDMEISEDLLKALASCRDTLDFYCQERLQAVELMNQPLDKVLEQAGRHSWVDITRPPTPRTQGLKTPPPDPIGTYTPACAKALFEAKRLLMESKDILTEMAKNEVDIQNQQQEISNRVCSSLAQKMRETLELKERMTMTLGLMRGTIHRCMKFNQEMYVTRGIIKGPLLKRNLEAREKLNRPLVRMYQRHVGTQLPEATRLAQGTDLLTRHNLHMEKNLKELRTTHDNLAWGLNCKKIGHDVDYDVVRLRLRQRHPHVCYEQAQRLVNDWDPPTPARSQTNTASK

Entity 15 polymer

描述 description	Enkurin
分子量 formula_weight	29587.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L2,L3

MDSPCTSESIYNLIPSDLKEPPQHPRYTSLFRATIKNDMKKFKTAMKTMGPAKVEIPSPKDFLKKHSKEKTLPPKKKFNRCSPKKPAVPLRTDHPVMGIQSGKNFINTNAADVIMGVAKKPKPIYVDKRTGDKHDLETSGLFPKYINKKDYGITPEYICKRNEDVKKAQEEYDNYIQENLKKAAMKRLSDEEREAVLQGLKKNWEEVHKEFQSLSVFIDSVPKKIRKQKLEKEMKQLEHDISVIEKHKIIYIANK

Entity 16 polymer

描述 description	Testis-expressed protein 43
分子量 formula_weight	16305.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M2,M3

MASEKDDGPALPKLDDDNQTAENTCKPAEEQPQQLRWDDIHLPRFSLKQGMIPTRYVMPWKENMKFRNVNLQQAEACGIYAGPLEDSLFWGYSERLCHGEDRKAVLKKGLPEIKITDMPLHSPLSRYQSTVISHGFRRRLI

Entity 17 polymer

描述 description	Cilia- and flagella-associated protein 276
分子量 formula_weight	18960.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N2,N3

MLQPQETFSNPALRDEDKHLGNLWASKKSLYKNPAHLAQQQDPWSRLSSTPTATSRSRDTFFDSKIPKDDLDFRLATLYNHHTGAFKNKTEILLHQETIEDIQGTKIQFPGECFHAPSAPITSRTTIRHWINPKKESIHSIQGSIVSPHTAATNGGYSRKNDGGFFST

Entity 18 polymer

描述 description	Protein Flattop
分子量 formula_weight	20575.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O1,O2

MATNYSANQYEKAYLPTYLQNWSPARPTKEKIAAHEGYTQIIANDRGHLLPSVPRSKASPWGSFMGTWQMPLKIPPAKVTLTARTTTAADNLTKWIHKNPDLLNACNGLRPEISGKPFDPDSQTKQKKSVTKTVQQAPNPTIIPSSPVIQGDNPDEPQSSHPSAGHTPGPQTPVNSPNNPPPSPCKSTK

Entity 19 polymer

描述 description	Cilia- and flagella-associated protein 52
分子量 formula_weight	68322.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P1,P2

MEEQVLPELDVAELELQAVIGFNGHVPNGLKCHPDQEHLIYPLGCTVLIQAINTNEQNFLHGHGNNVSCVTISKEGDYIASGQVTFMGFKADIILWDFKKRELIARLSLHKGKIEALAFSPNDLYLVSLGGPDDGSVVVWSIAKRDAICGSPAAGLNVGNATSVVFSRCRDEMFVTAGNGTIRVWELDLPNRKIWPTECQTGQMKRIVLSTGMADDDSFFYLGTTTGDILKMNPKTKLLADTGPVKDKFSLGVSALRCLKMGGLLVGSGAGLLIFCKSPSYKPIKKVQLQGGITSITLRGEGHQFFVGTEESHIYRVNFTDFKETLIATCHFEAVQDIVFPFGTAELFATCAKKDIRVWHTMSKRELLRITVPNMTCHGIDFMRDGKSIISAWDDGKIRAFAPESGRLMYTINSAHRIGVTAIATTSDCKRIISGGGEGEVRVWQVGCQTQKLEEALKEHKSSVSCIRVKKNNEECVTASTDGTCIIWDLVRLRRNQMILANTLFQCVCYHPEEFQIITSGTDRKIAYWEVFDGSVIRELEGSLSGSINGMDITQEGGHFVTGGHDHLVKVWDYNEGEVTHVGVGHSGNIMAMRISPGNQYIVSVSADGAILRWKYPFAS

Entity 20 polymer

描述 description	EF-hand calcium-binding domain-containing protein 6
分子量 formula_weight	176028.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q1,Q2

MKRNGTRLNFAKANSTKSGSTRARDLMNKMSIIPEWHSLYSNTRKLPCSRPHSSPCKMQRTIFQDLCRPSSSTTAIANPVLSYLDIERILAQKISSRRDDIKKVFQILDRNHNQMVTKGDLKRVITAFLIPLTKDQFQDLLAQIPISSLGNVPYLEFLSRFGGGIDININGIKRVNENEVDNRRTVKEVQLTEKIFRNMRSIRKVFQVMDVNNTGLVQPQELRRVLETFCLRMQDGDYEKFLEQYNIDKTTAVDYNAFLKNLSVKNDASFKYLLSNAAELSRETQQGKNGKRLLDTGSSEDVWKNYSLDDLEKTFCQEFSKSYEKIEKALSAGDPSKGGYISLNYLKVVLDTFIYRLPRRIFIQLIRRFGLKTSTKINWKQFLTAIYERQKLEVSKTLPLKKRSSTEARNRSRKENIIKKLFKYSEDRYTALKKTLLIISSTPSGHITWEELRHILNCMVAKLNDSEFSELKQTFDPEGTGAVRVNSLLDVLDDSTKVRKMSPSTDTKTPLPVAWDSVEELVLDSITRNLQAFYSMLQSYDLRDTGTIGKNNFRKVMRVFCPYLSNEHLVRFSSKFQEAGSGRILYKKFLLSIGVGIPPPTPPLSSPKVQLSDQFQIEEPGQQDERTQPSGEKTSEINNMTKEEVIDGLKHRIQQKDPVFRKQFLSISKEPDVKINQEEFRKVLERSGMPMNDCQYAMLASKLGFKNEEGMSYQDFTMGFEDCMLSGLETVPLQSRTASRTNMDEHFISAEECLRIFPKKLKESFRDVYSAFFRIDLDRDGIISMHDFHRLLQYLQLNMVDLEFERFLSLLGLRLSVTLNFREFQNLCEKRPWKSDEAPQRLIRCKQKVADSELACEQAHQYLIMKAKTRWADLSKNFIETDNEGNGILRRRDIKNSLYGFDIPLTPREFEKLWQNYDTEGRGYITYQEFLHRLGIRYSPKVHRPYKEDYFNFLGHFTKPKQVQEEIQELQQISEREKLMNHYEEISKAFNAMEKSKPVALCRVQKVLQECGCPLKEEELISLLKSLDVSVHNNHIDPVEFLRALEISWASKARPKEKEESSPPPISFSKVTPDEVIKTMQEVVESSQPALVEAFSALDKEDTGFVKAMEFGDVLRSVCQKLTDNQYHYFLRRLRLHLTPNIHWKYFLENFSTFQDETADDWAENMPKAPPPMSPKETAHRDIVARVQKAVASHYHTIVQEFENFDTLKSNTVSRDEFRSICTRHIQILTDEQFDRLWSELPVNAKGRLKYQDFLSKLSIERVPSPPMAAGDSGESTMAQRGSSAPEFSQGTRSNLYSPPRDSRVGLKSRSHPCTPVGTPPLQNCEPIESRLRKQIQGCWRELLRECKEKDTDKQGTISAAEFLALVEKFKLDISREESQQLIVKYDLKNNGKFAYCDFIQSCVLLLKAKETSLMRRMRIQNADKMKEAGMETPSFYSALLRIQPKIVHCWRPMRRSFKTYDKNGTGLLSVADFRKVLRQYSINLSEEEFFHVLEYYDKSLSSKISYNDFLRAFLQ

Entity 21 polymer

描述 description	Cilia and flagella-associated protein 77
分子量 formula_weight	32786.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R2

MPDPAKPGKDLTAWKKKKQPVHRTVSQICPPPRRPLTVVDIRTGMENERLGVVRDSMFQNPLIVKAELGKPRERSCSLPGINFNYGLYIRGLDGGVPEAIGHWNVFKQQPTCPHELTRNYIAMNRGAVKAGLVTARENMLYRELNDIRINDQEDRRQKEPPPIPPNMTFGIRSRPSTPFFDLLQHRYQQLWVQEQKATQQAIKMEKKQKVILGKLYETRSSQLRKYKPPVKLDALWHMPHFKKVASHLATFPTEADRQRALKAHKEEYAVRQGTLRMGNYTHP

Entity 22 polymer

描述 description	Cilia- and flagella-associated protein 20
分子量 formula_weight	22781.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	XC,XD,XE

MFKNTFQSGFLSILYSIGSKPLQIWDKKVRNGHIKRITDNDIQSLVLEIEGTNVSTTYITCPADPKKTLGIKLPFLVMIIKNLKKYFTFEVQVLDDKNVRRRFRASNYQSTTRVKPFICTMPMRLDDGWNQIQFNLSDFTRRAYGTNYIETLRVQIHANCRIRRVYFSDRLYSEDELPAEFKLYLPVQNKAKQ

Entity 23 polymer

描述 description	Parkin coregulated gene protein homolog
分子量 formula_weight	27763.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	XJ,XK,XL

MPKRTKLLPQQTFQVHQPRSLVSEGFTVKAMMKNSVVRGPPVAGAFKERPAKPTTFRKCYERGDFPIALEHDSKGNKIAWKVEIEKLDYHHYLPLFFDGLSEMTFPYEFFARRGIHDMLEHGGNKILPVIPQLIIPIKNALNLRNRQIICVTLKVLQHLVVSSEMVGEALLPYYRQILPILNIFKNMNVNSGDGIDYSQQKRENIGDLIQETLEAFERYGGEDAFINIKYMVPTYESCLLN

Entity 24 polymer

描述 description	Sperm acrosome-associated protein 9
分子量 formula_weight	19512.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	YI,YJ,YK,YL,YM,YN

MNEVKESLRSIEQKYKLFQQQQFTFIAALEHCRENAHDKIRPISSIEQVQSYMEHYCNNSTHRRILIMFMDICSELSKLCQHFEALHSGTPVTNSLLEKCKTLVSQSNDLSSLRAKYPHEVVNHLSCDEARNHYGGVVSLIPIVLDFMKEWIAHSEKLPRKVLQHGTT

Entity 25 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	123

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	37018

fit	/app/data/saxs_computation/i7/8i7o/8i7o.fit
pddf	/app/data/pr_computation/i7/8i7o/8i7o.pr.out
profile	/app/data/saxs_computation/i7/8i7o/8i7o.dat
