12dl

Native structure of the cytoplasmic lattice (CPL) asymmetric unit from mouse MII eggs

Method: ELECTRON MICROSCOPY Dmax: 274.2 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 12dl

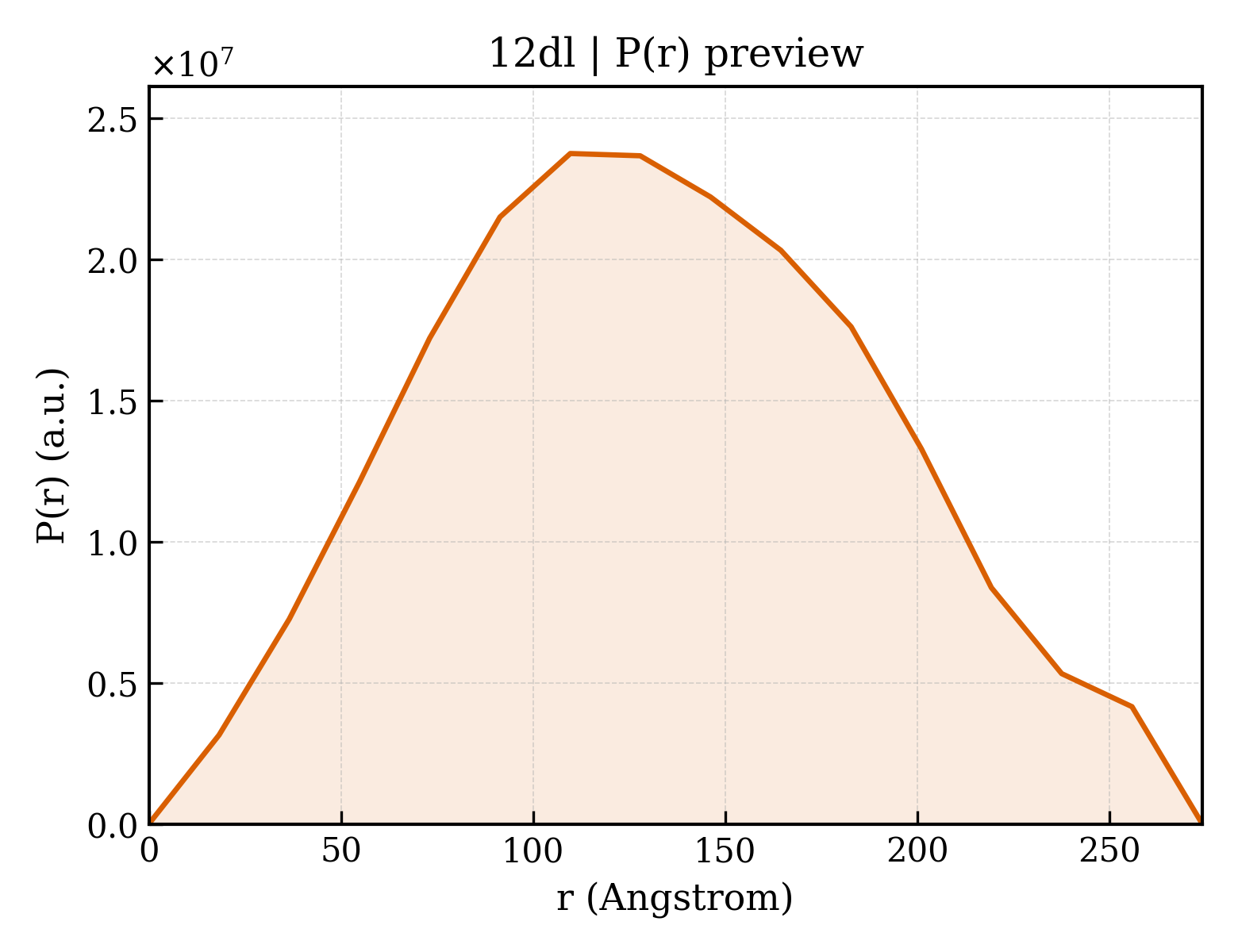

P(r) Distribution

P(r) distribution for 12dl

1. Structure Basics

entry_id12dl
deposition_date2026-03-29
titleNative structure of the cytoplasmic lattice (CPL) asymmetric unit from mouse MII eggs
keywordscytoplasmic lattice, egg, filamentous assembly, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier
rg_electron105.40
i048076700000.00
molecular_weight1900300.0 kDa
excluded_volume2388200 ų
envelope_volume4125900 ų
shell_volume330370 ų
envelope_diameter381.1
shell_rg97.61
envelope_rg101.30
shape_rg105.30
total_rg105.40
total_atoms133296
n_residues16739
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax274.2
rg_real101.50
rg_real_error0.76
i0_real4.5940e+10
i0_real_error9.5130e+08
rg_reciprocal105.40
i0_reciprocal48030000000.0000
total_estimate0.9107
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary109.7
skewness0.136
kurtosis-0.625
angular_range— – 0.0750 −1
current_alpha0.8773
highest_alpha1741000000.0000
n_real_points16
gnom_version4.1.3
quality_criteria AN1: 0.001; Oscil: 0.999; Stabil: 0.962; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (20)

6. Citations (1)

7. Files & Curves (10)
