8pfr

Mouse RPL39L integrated into the yeast 60S ribosomal subunit

Method: ELECTRON MICROSCOPY D_max: 279.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

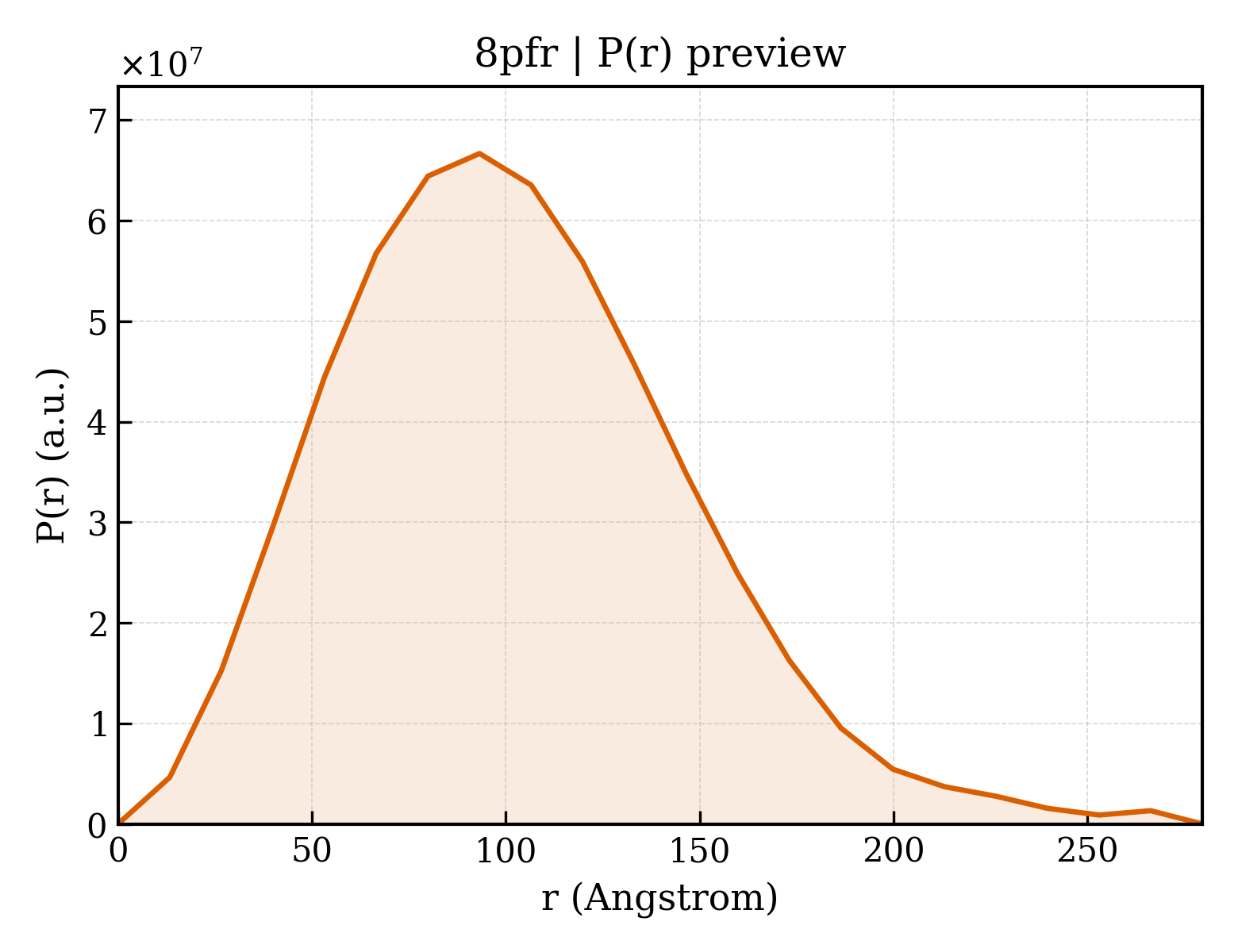

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8pfr
沉积日期 deposition_date	2023-06-16
结构标题 title	Mouse RPL39L integrated into the yeast 60S ribosomal subunit
关键词 keywords	RPL39, RPL39L, ribosomal protein, protein exit tunnel, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	75.12 Å
回转半径 Rg (电子) rg_electron	76.43 Å
零角强度 I(0) i0	91679700000.00
分子量 molecular_weight	1765200.0 kDa
排除体积 excluded_volume	1871600 Å³
包络体积 envelope_volume	3014800 Å³
水化壳体积 shell_volume	298430 Å³
包络直径 envelope_diameter	252.3 Å
壳层 Rg shell_rg	90.44 Å
包络 Rg envelope_rg	76.39 Å
形状 Rg shape_rg	76.52 Å
总 Rg total_rg	76.32 Å
总原子数 total_atoms	119405
残基数 n_residues	9385
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	279.6 Å
Rg (实空间) rg_real	78.35 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	9.1710e+10
I(0) 误差 (实空间) i0_real_error	1.6870e+09
Rg (倒空间) rg_reciprocal	75.86 Å
I(0) (倒空间) i0_reciprocal	91860000000.0000
解质量估计 total_estimate	0.8819
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	93.2 Å
偏度 Skewness skewness	0.545
峰度 Kurtosis kurtosis	0.358
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.9786
最高正则化参数 α highest_alpha	13240000000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.658; Stabil: 0.890; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.885

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (49)

Entity 1 polymer

描述 description	25S rRNA
分子量 formula_weight	1097493.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	120018

GUUUGACCUCAAAUCAGGUAGGAGUACCCGCUGAACUUAAGCAUAUCAAUAAGCGGAGGAAAAGAAACCAACCGGGAUUGCCUUAGUAACGGCGAGUGAAGCGGCAAAAGCUCAAAUUUGAAAUCUGGUACCUUCGGUGCCCGAGUUGUAAUUUGGAGAGGGCAACUUUGGGGCCGUUCCUUGUCUAUGUUCCUUGGAACAGGACGUCAUAGAGGGUGAGAAUCCCGUGUGGCGAGGAGUGCGGUUCUUUGUAAAGUGCCUUCGAAGAGUCGAGUUGUUUGGGAAUGCAGCUCUAAGUGGGUGGUAAAUUCCAUCUAAAGCUAAAUAUUGGCGAGAGACCGAUAGCGAACAAGUACAGUGAUGGAAAGAUGAAAAGAACUUUGAAAAGAGAGUGAAAAAGUACGUGAAAUUGUUGAAAGGGAAGGGCAUUUGAUCAGACAUGGUGUUUUGUGCCCUCUGCUCCUUGUGGGUAGGGGAAUCUCGCAUUUCACUGGGCCAGCAUCAGUUUUGGUGGCAGGAUAAAUCCAUAGGAAUGUAGCUUGCCUCGGUAAGUAUUAUAGCCUGUGGGAAUACUGCCAGCUGGGACUGAGGACUGCGACGUAAGUCAAGGAUGCUGGCAUAAUGGUUAUAUGCCGCCCGUCUUGAAACACGGACCAAGGAGUCUAACGUCUAUGCGAGUGUUUGGGUGUAAAACCCAUACGCGUAAUGAAAGUGAACGUAGGUUGGGGCCUCGCAAGAGGUGCACAAUCGACCGAUCCUGAUGUCUUCGGAUGGAUUUGAGUAAGAGCAUAGCUGUUGGGACCCGAAAGAUGGUGAACUAUGCCUGAAUAGGGUGAAGCCAGAGGAAACUCUGGUGGAGGCUCGUAGCGGUUCUGACGUGCAAAUCGAUCGUCGAAUUUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCUGCCGAAGUUUCCCUCAGGAUAGCAGAAGCUCGUAUCAGUUUUAUGAGGUAAAGCGAAUGAUUAGAGGUUCCGGGGUCGAAAUGACCUUGACCUAUUCUCAAACUUUAAAUAUGUAAGAAGUCCUUGUUACUUAAUUGAACGUGGACAUUUGAAUGAAGAGCUUUUAGUGGGCCAUUUUUGGUAAGCAGAACUGGCGAUGCGGGAUGAACCGAACGUAGAGUUAAGGUGCCGGAAUACACGCUCAUCAGACACCACAAAAGGUGUUAGUUCAUCUAGACAGCCGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCGGCCGAAUGAACUAGCCCUGAAAAUGGAUGGCGCUCAAGCGUGUUACCUAUACUCUACCGUCAGGGUUGAUAUGAUGCCCUGACGAGUAGGCAGGCGUGGAGGUCAGUGACGAAGCCUAGACCGUAAGGUCGGGUCGAACGGCCUCUAGUGCAGAUCUUGGUGGUAGUAGCAAAUAUUCAAAUGAGAACUUUGAAGACUGAAGUGGGGAAAGGUUCCACGUCAACAGCAGUUGGACGUGGGUUAGUCGAUCCUAAGAGAUGGGGAAGCUCCGUUUCAAAGGCCUGAUUUUAUGCAGGCCACCAUCGAAAGGGAAUCCGGUUAAGAUUCCGGAACCUGGAUAUGGAUUCUUCACGGUAACGUAACUGAAUGUGGAGACGUCGGCGCGAGCCCUGGGAGGAGUUAUCUUUUCUUCUUAACAGCUUAUCACCCCGGAAUUGGUUUAUCCGGAGAUGGGGUCUUAUGGCUGGAAGAGGCCAGCACCUUUGCUGGCUCCGGUGCGCUUGUGACGGCCCGUGAAAAUCCACAGGAAGGAAUAGUUUUCAUGCCAGGUCGUACUGAUAACCGCAGCAGGUCUCCAAGGUGAACAGCCUCUAGUUGAUAGAAUAAUGUAGAUAAGGGAAGUCGGCAAAAUAGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGUCGGGUAGUGAGGGCCUUGGUCAGACGCAGCGGGCGUGCUUGUGGACUGCUUGGUGGGGCUUGCUCUGCUAGGCGGACUACUUGCGUGCCUUGUUGUAGACGGCCUUGGUAGGUCUCUUGUAGACCGUCGCUUGCUACAAUUAACGAUCAACUUAGAACUGGUACGGACAAGGGGAAUCUGACUGUCUAAUUAAAACAUAGCAUUGCGAUGGUCAGAAAGUGAUGUUGACGCAAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAACCAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAAUUAGUGACGCGCAUGAAUGGAUUAACGAGAUUCCCACUGUCCCUAUCUACUAUCUAGCGAAACCACAGCCAAGGGAACGGGCUUGGCAGAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUUUGACAUUGUGAAGAGACAUAGAGGGUGUAGAAUAAGUGGGAGCUUCGGCGCCAGUGAAAUACCACUACCUUUAUAGUUUCUUUACUUAUUCAAUGAAGCGGAGCUGGAAUUCAUUUUCCACGUUCUAGCAUUCAAGGUCCCAUUCGGGGCUGAUCCGGGUUGAAGACAUUGUCAGGUGGGGAGUUUGGCUGGGGCGGCACAUCUGUUAAACGAUAACGCAGAUGUCCUAAGGGGGGCUCAUGGAGAACAGAAAUCUCCAGUAGAACAAAAGGGUAAAAGCCCCCUUGAUUUUGAUUUUCAGUGUGAAUACAAACCAUGAAAGUGUGGCCUAUCGAUCCUUUAGUCCCUCGGAAUUUGAGGCUAGAGGUGCCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCAGUCAAGCGUUCAUAGCGACAUUGCUUUUUGAUUCUUCGAUGUCGGCUCUUCCUAUCAUACCGAAGCAGAAUUCGGUAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAAUGUUACCGCAAUAGUAAUUGAACUUAGUACGAGAGGAACAGUUCAUUCGGAUAAUUGGUUUUUGCGGCUGUCUGAUCAGGCAUUGCCGCGAAGCUACCAUCCGCUGGAUUAUGGCUGAACGCCUCUAAGUCAGAAUCCAUGCUAGAACGCGGUGAUUUCUUUGCUCCACACAAUAUAGAUGGAUACGAAUAAGGCGUCCUUGUGGCGUCGCUGAACCAUAGCAGGCUAGCAACGGUGCACUUGGCGGAAAGGCCUUGGGUGCUUGCUGGCGAAUUGCAAUGUCAUUUUGCGUGGGGAUAAAUCAUUUGUAUACGACUUAGAUGUACAACGGGGUAUUGUAAGCAGUAGAGUAGCCUUGUUGUUACGAUCUGCUGAGAUUAAGCCUUUGUUGUCUGAUUUGU

Entity 2 polymer

描述 description	60S ribosomal protein L32
分子量 formula_weight	14809.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RE

MASLPHPKIVKKHTKKFKRHHSDRYHRVAENWRKQKGIDSVVRRRFRGNISQPKIGYGSNKKTKFLSPSGHKTFLVANVKDLETLTMHTKTYAAEIAHNISAKNRVVILARAKALGIKVTNPKGRLALEA

Entity 3 polymer

描述 description	60S ribosomal protein L8-A
分子量 formula_weight	28175.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LL

MAPGKKVAPAPFGAKSTKSNKTRNPLTHSTPKNFGIGQAVQPKRNLSRYVKWPEYVRVQRQKKILSIRLKVPPTIAQFQYTLDRNTAAETFKLFNKYRPETAAEKKERLTKEAAAVAEGKSKQDASPKPYAVKYGLNHVVALIENKKAKLVLIANDVDPIELVVFLPALCKKMGVPYAIVKGKARLGTLVNQKTSAVAALTEVRAEDEAALAKLVSTIDANFADKYDEVKKHWGGGILGNKAQAKMDKRAKNSDSA

Entity 4 polymer

描述 description	60S ribosomal protein L22-A
分子量 formula_weight	13711.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QU

MAPNTSRKQKIAKTFTVDVSSPTENGVFDPASYAKYLIDHIKVEGAVGNLGNAVTVTEDGTVVTVVSTAKFSGKYLKYLTKKYLKKNQLRDWIRFVSTKTNEYRLAFYQVTPEEDEEEDEE

Entity 5 polymer

描述 description	60S ribosomal protein L26-A
分子量 formula_weight	14265.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QY

MAKQSLDVSSDRRKARKAYFTAPSSQRRVLLSAPLSKELRAQYGIKALPIRRDDEVLVVRGSKKGQEGKISSVYRLKFAVQVDKVTKEKVNGASVPINLHPSKLVITKLHLDKDRKALIQRKGGKLE

Entity 6 polymer

描述 description	60S ribosomal protein L2-A
分子量 formula_weight	27463.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LF

MGRVIRNQRKGAGSIFTSHTRLRQGAAKLRTLDYAERHGYIRGIVKQIVHDSGRGAPLAKVVFRDPYKYRLREEIFIANEGVHTGQFIYAGKKASLNVGNVLPLGSVPEGTIVSNVEEKPGDRGALARASGNYVIIIGHNPDENKTRVRLPSGAKKVISSDARGVIGVIAGGGRVDKPLLKAGRAFHKYRLKRNSWPKTRGVAMNPVDHPHGGGNHQHIGKASTISRGAVSGQKAGLIAARRTGLLRGSQKTQD

Entity 7 polymer

描述 description	60S ribosomal protein L39-like
分子量 formula_weight	6355.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RN

MASHKTFRIKRFLAKKQKQNRPIPQWIQMKTGNKIMYNSKRRHWRRTKLGL

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 8 polymer

描述 description	60S ribosomal protein L23-A
分子量 formula_weight	14494.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QV

MSGNGAQGTKFRISLGLPVGAIMNCADNSGARNLYIIAVKGSGSRLNRLPAASLGDMVMATVKKGKPELRKKVMPAIVVRQAKSWRRRDGVFLYFEDNAGVIANPKGEMKGSAITGPVGKECADLWPRVASNSGVVV

Entity 9 polymer

描述 description	60S ribosomal protein L13-A
分子量 formula_weight	22604.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	JT

MAISKNLPILKNHFRKHWQERVKVHFDQAGKKVSRRNARATRAAKIAPRPLDLLRPVVRAPTVKYNRKVRAGRGFTLAEVKAAGLTAAYARTIGIAVDHRRQNRNQEIFDANVQRLKEYQSKIIVFPRNGKAPEAEQVLSAAATFPIAQPATDVEARAVQDNGESAFRTLRLARSEKKFRGIREKRAREKAEAEAEKKK

Entity 10 polymer

描述 description	60S ribosomal protein L33-A
分子量 formula_weight	12177.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RF

MAESHRLYVKGKHLSYQRSKRVNNPNVSLIKIEGVATPQDAQFYLGKRIAYVYRASKEVRGSKIRVMWGKVTRTHGNSGVVRATFRNNLPAKTFGASVRIFLYPSNI

Entity 11 polymer

描述 description	60S ribosomal protein L9-A
分子量 formula_weight	21605.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LM

MKYIQTEQQIEVPEGVTVSIKSRIVKVVGPRGTLTKNLKHIDVTFTKVNNQLIKVAVHNGGRKHVAALRTVKSLVDNMITGVTKGYKYKMRYVYAHFPINVNIVEKDGAKFIEVRNFLGDKKIRNVPVRDGVTIEFSTNVKDEIVLSGNSVEDVSQNAADLQQICRVRNKDIRKFLDGIYVSHKGFITEDL

Entity 12 polymer

描述 description	60S ribosomal protein L24-A
分子量 formula_weight	17661.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QW

MKVEIDSFSGAKIYPGRGTLFVRGDSKIFRFQNSKSASLFKQRKNPRRIAWTVLFRKHHKKGITEEVAKKRSRKTVKAQRPITGASLDLIKERRSLKPEVRKANREEKLKANKEKKKAEKAARKAEKAKSAGTQSSKFSKQQAKGAFQKVAATSR

Entity 13 polymer

描述 description	60S ribosomal protein L27-A
分子量 formula_weight	15568.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QZ

MAKFLKAGKVAVVVRGRYAGKKVVIVKPHDEGSKSHPFGHALVAGIERYPLKVTKKHGAKKVAKRTKIKPFIKVVNYNHLLPTRYTLDVEAFKSVVSTETFEQPSQREEAKKVVKKAFEERHQAGKNQWFFSKLRF

Entity 14 polymer

描述 description	60S ribosomal protein L3
分子量 formula_weight	43850.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LG

MSHRKYEAPRHGHLGFLPRKRAASIRARVKAFPKDDRSKPVALTSFLGYKAGMTTIVRDLDRPGSKFHKREVVEAVTVVDTPPVVVVGVVGYVETPRGLRSLTTVWAEHLSDEVKRRFYKNWYKSKKKAFTKYSAKYAQDGAGIERELARIKKYASVVRVLVHTQIRKTPLAQKKAHLAEIQLNGGSISEKVDWAREHFEKTVAVDSVFEQNEMIDAIAVTKGHGFEGVTHRWGTKKLPRKTHRGLRKVACIGAWHPAHVMWSVARAGQRGYHSRTSINHKIYRVGKGDDEANGATSFDRTKKTITPMGGFVHYGEIKNDFIMVKGCIPGNRKRIVTLRKSLYTNTSRKALEEVSLKWIDTASKFGKGRFQTPAEKHAFMGTLKKDL

Entity 15 polymer

描述 description	Ubiquitin-60S ribosomal protein L40
分子量 formula_weight	14583.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RO

MQIFVKTLTGKTITLEVESSDTIDNVKSKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGIIEPSLKALASKYNCDKSVCRKCYARLPPRATNCRKRKCGHTNQLRPKKKLK

Entity 16 polymer

描述 description	60S ribosomal protein L25
分子量 formula_weight	15787.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QX

MAPSAKATAAKKAVVKGTNGKKALKVRTSATFRLPKTLKLARAPKYASKAVPHYNRLDSYKVIEQPITSETAMKKVEDGNILVFQVSMKANKYQIKKAVKELYEVDVLKVNTLVRPNGTKKAYVRLTADYDALDIANRIGYI

Entity 17 polymer

描述 description	60S ribosomal protein L14-A
分子量 formula_weight	15195.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	JU

MSTDSIVKASNWRLVEVGRVVLIKKGQSAGKLAAIVEIIDQKKVLIDGPKAGVPRQAINLGQVVLTPLTFALPRGARTATVSKKWAAAAVCEKWAASSWAKKIAQRERRAALTDFERFQVMVLRKQKRYTVKKALAKA

Entity 18 polymer

描述 description	60S ribosomal protein L34-A
分子量 formula_weight	13673.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RG

MAQRVTFRRRNPYNTRSNKIKVVKTPGGILRAQHVKKLATRPKCGDCGSALQGISTLRPRQYATVSKTHKTVSRAYGGSRCANCVKERIIRAFLIEEQKIVKKVVKEQTEAAKKSEKKAKK

Entity 19 polymer

描述 description	60S ribosomal protein L10
分子量 formula_weight	25410.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LN

MARRPARCYRYQKNKPYPKSRYNRAVPDSKIRIYDLGKKKATVDEFPLCVHLVSNELEQLSSEALEAARICANKYMTTVSGRDAFHLRVRVHPFHVLRINKMLSCAGADRLQQGMRGAWGKPHGLAARVDIGQIIFSVRTKDSNKDVVVEGLRRARYKFPGQQKIILSKKWGFTNLDRPEYLKKREAGEVKDDGAFVKFLSKKGSLENNIREFPEYFAAQA

Entity 20 polymer

描述 description	60S ribosomal protein L4-A
分子量 formula_weight	39159.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LH

MSRPQVTVHSLTGEATANALPLPAVFSAPIRPDIVHTVFTSVNKNKRQAYAVSEKAGHQTSAESWGTGRAVARIPRVGGGGTGRSGQGAFGNMCRGGRMFAPTKTWRKWNVKVNHNEKRYATASAIAATAVASLVLARGHRVEKIPEIPLVVSTDLESIQKTKEAVAALKAVGAHSDLLKVLKSKKLRAGKGKYRNRRWTQRRGPLVVYAEDNGIVKALRNVPGVETANVASLNLLQLAPGAHLGRFVIWTEAAFTKLDQVWGSETVASSKVGYTLPSHIISTSDVTRIINSSEIQSAIRPAGQATQKRTHVLKKNPLKNKQVLLRLNPYAKVFAAEKLGSKKAEKTGTKPAAVFTETLKHD

Entity 21 polymer

描述 description	60S ribosomal protein L28
分子量 formula_weight	16761.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RA

MPSRFTKTRKHRGHVSAGKGRIGKHRKHPGGRGMAGGQHHHRINMDKYHPGYFGKVGMRYFHKQQAHFWKPVLNLDKLWTLIPEDKRDQYLKSASKETAPVIDTLAAGYGKILGKGRIPNVPVIVKARFVSKLAEEKIRAAGGVVELIA

Entity 22 polymer

描述 description	60S ribosomal protein L35-A
分子量 formula_weight	13942.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RH

MAGVKAYELRTKSKEQLASQLVDLKKELAELKVQKLSRPSLPKIKTVRKSIACVLTVINEQQREAVRQLYKGKKYQPKDLRAKKTRALRRALTKFEASQVTEKQRKKQIAFPQRKYAIKA

Entity 23 polymer

描述 description	60S ribosomal protein L42-A
分子量 formula_weight	12246.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RQ

MVNVPKTRKTYCKGKTCRKHTQHKVTQYKAGKASLFAQGKRRYDRKQSGFGGQTKPVFHKKAKTTKKVVLRLECVKCKTRAQLTLKRCKHFELGGEKKQKGQALQF

Entity 24 polymer

描述 description	60S ribosomal protein L5
分子量 formula_weight	33764.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LI

MAFQKDAKSSAYSSRFQTPFRRRREGKTDYYQRKRLVTQHKAKYNTPKYRLVVRFTNKDIICQIISSTITGDVVLAAAYSHELPRYGITHGLTNWAAAYATGLLIARRTLQKLGLDETYKGVEEVEGEYELTEAVEDGPRPFKVFLDIGLQRTTTGARVFGALKGASDGGLYVPHSENRFPGWDFETEEIDPELLRSYIFGGHVSQYMEELADDDEERFSELFKGYLADDIDADSLEDIYTSAHEAIRADPAFKPTEKKFTKEQYAAESKKYRQTKLSKEERAARVAAKIAALAGQQ

Entity 25 polymer

描述 description	60S ribosomal protein L15-A
分子量 formula_weight	24482.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	JV

MGAYKYLEELQRKKQSDVLRFLQRVRVWEYRQKNVIHRAARPTRPDKARRLGYKAKQGFVIYRVRVRRGNRKRPVPKGATYGKPTNQGVNELKYQRSLRATAEERVGRRAANLRVLNSYWVNQDSTYKYFEVILVDPQHKAIRRDARYNWICDPVHKHREARGLTATGKKSRGINKGHKFNNTKAGRRKTWKRQNTLSLWRYRK

Entity 26 polymer

描述 description	60S ribosomal protein L36-A
分子量 formula_weight	11151.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RI

MTVKTGIAIGLNKGKKVTSMTPAPKISYKKGAASNRTKFVRSLVREIAGLSPYERRLIDLIRNSGEKRARKVAKKRLGSFTRAKAKVEEMNNIIAASRRH

Entity 27 polymer

描述 description	60S ribosomal protein L11-A
分子量 formula_weight	19755.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LO

MSAKAQNPMRDLKIEKLVLNISVGESGDRLTRASKVLEQLSGQTPVQSKARYTVRTFGIRRNEKIAVHVTVRGPKAEEILERGLKVKEYQLRDRNFSATGNFGFGIDEHIDLGIKYDPSIGIFGMDFYVVMNRPGARVTRRKRCKGTVGNSHKTTKEDTVSWFKQKYDADVLDK

Entity 28 polymer

描述 description	60S ribosomal protein L6-A
分子量 formula_weight	20000.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LJ

MSAQKAPKWYPSEDVAALKKTRKAARPQKLRASLVPGTVLILLAGRFRGKRVVYLKHLEDNTLLISGPFKVNGVPLRRVNARYVIATSTKVSVEGVNVEKFNVEYFAKEKLTKKEKKEANLFPEQQNKEIKAERVEDQKVVDKALIAEIKKTPLLKQYLSASFSLKNGDKPHMLKF

Entity 29 polymer

描述 description	60S ribosomal protein L29
分子量 formula_weight	6691.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RB

MAKSKNHTAHNQTRKAHRNGIKKPKTYKYPSLKGVDPKFRRNHKHALHGTAKALAAAKK

Entity 30 polymer

描述 description	60S ribosomal protein L37-A
分子量 formula_weight	9877.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RJ

MGKGTPSFGKRHNKSHTLCNRCGRRSFHVQKKTCSSCGYPAAKTRSYNWGAKAKRRHTTGTGRMRYLKHVSRRFKNGFQTGSASKASA

Entity 31 polymer

描述 description	60S ribosomal protein L43-A
分子量 formula_weight	10113.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RT

MAKRTKKVGITGKYGVRYGSSLRRQVKKLEIQQHARYDCSFCGKKTVKRGAAGIWTCSCCKKTVAGGAYTVSTAAAATVRSTIRRLREMVEA

Entity 32 polymer

描述 description	60S ribosomal protein L7-A
分子量 formula_weight	27686.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	LK

MAAEKILTPESQLKKSKAQQKTAEQVAAERAARKAANKEKRAIILERNAAYQKEYETAERNIIQAKRDAKAAGSYYVEAQHKLVFVVRIKGINKIPPKPRKVLQLLRLTRINSGTFVKVTKATLELLKLIEPYVAYGYPSYSTIRQLVYKRGFGKINKQRVPLSDNAIIEANLGKYGILSIDDLIHEIITVGPHFKQANNFLWPFKLSNPSGGWGVPRKFKHFIQGGSFGNREEFINKLVKSMN

Entity 33 polymer

描述 description	60S ribosomal protein L16-A
分子量 formula_weight	22247.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	JW

MSVEPVVVIDGKGHLVGRLASVVAKQLLNGQKIVVVRAEELNISGEFFRNKLKYHDFLRKATAFNKTRGPFHFRAPSRIFYKALRGMVSHKTARGKAALERLKVFEGIPPPYDKKKRVVVPQALRVLRLKPGRKYTTLGKLSTSVGWKYEDVVAKLEAKRKVSSAEYYAKKRAFTKKVASANATAAESDVAKQLAALGY

Entity 34 polymer

描述 description	60S ribosomal protein L38
分子量 formula_weight	8845.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RM

MAREITDIKQFLELTRRADVKTATVKINKKLNKAGKPFRQTKFKVRGSSSLYTLVINDAGKAKKLIQSLPPTLKVNRL

Entity 35 polymer

描述 description	60S ribosomal protein L17-A
分子量 formula_weight	20589.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QO

MARYGATSTNPAKSASARGSYLRVSFKNTRETAQAINGWELTKAQKYLEQVLDHQRAIPFRRFNSSIGRTAQGKEFGVTKARWPAKSVKFVQGLLQNAAANAEAKGLDATKLYVSHIQVNQAPKQRRRTYRAHGRINKYESSPSHIELVVTEKEEAVAKAAEKKVVRLTSRQRGRIAAQKRIAA

Entity 36 polymer

描述 description	60S ribosomal protein L30
分子量 formula_weight	11430.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RC

MAPVKSQESINQKLALVIKSGKYTLGYKSTVKSLRQGKSKLIIIAANTPVLRKSELEYYAMLSKTKVYYFQGGNNELGTAVGKLFRVGVVSILEAGDSDILTTLA

Entity 37 polymer

描述 description	60S ribosomal protein L18-A
分子量 formula_weight	20609.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QP

MGIDHTSKQHKRSGHRTAPKSDNVYLKLLVKLYTFLARRTDAPFNKVVLKALFLSKINRPPVSVSRIARALKQEGAANKTVVVVGTVTDDARIFEFPKTTVAALRFTAGARAKIVKAGGECITLDQLAVRAPKGQNTLILRGPRNSREAVRHFGMGPHKGKAPRILSTGRKFERARGRRRSKGFKV

Entity 38 polymer

描述 description	5.8S rRNA
分子量 formula_weight	50682.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	LD

AAACUUUCAACAACGGAUCUCUUGGUUCUCGCAUCGAUGAAGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUGAACGCACAUUGCGCCCCUUGGUAUUCCAGGGGGCAUGCCUGUUUGAGCGUCAUUU

Entity 39 polymer

描述 description	60S ribosomal protein L19-A
分子量 formula_weight	21762.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QQ

MANLRTQKRLAASVVGVGKRKVWLDPNETSEIAQANSRNAIRKLVKNGTIVKKAVTVHSKSRTRAHAQSKREGRHSGYGKRKGTREARLPSQVVWIRRLRVLRRLLAKYRDAGKIDKHLYHVLYKESKGNAFKHKRALVEHIIQAKADAQREKALNEEAEARRLKNRAARDRRAQRVAEKRDALLKEDA

Entity 40 polymer

描述 description	60S ribosomal protein L31-A
分子量 formula_weight	12980.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	RD

MAGLKDVVTREYTINLHKRLHGVSFKKRAPRAVKEIKKFAKLHMGTDDVRLAPELNQAIWKRGVKGVEYRLRLRISRKRNEEEDAKNPLFSYVEPVLVASAKGLQTVVVEEDA

Entity 41 polymer

描述 description	60S ribosomal protein L20-A
分子量 formula_weight	20478.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QS

MAHFKEYQVIGRRLPTESVPEPKLFRMRIFASNEVIAKSRYWYFLQKLHKVKKASGEIVSINQINEAHPTKVKNFGVWVRYDSRSGTHNMYKEIRDVSRVAAVETLYQDMAARHRARFRSIHILKVAEIEKTADVKRQYVKQFLTKDLKFPLPHRVQKSTKTFSYKRPSTFY

Entity 42 polymer

描述 description	5S rRNA
分子量 formula_weight	38951.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	LE

GGUUGCGGCCAUAUCUACCAGAAAGCACCGUUUCCCGUCCGAUCAACUGUAGUUAAGCUGGUAAGAGCCUGACCGAGUAGUGUAGUGGGUGACCAUACGCGAAACUCAGGUGCUGCAAUCU

Entity 43 polymer

描述 description	60S ribosomal protein L21-A
分子量 formula_weight	18279.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	QT

MGKSHGYRSRTRYMFQRDFRKHGAVHLSTYLKVYKVGDIVDIKANGSIQKGMPHKFYQGKTGVVYNVTKSSVGVIINKMVGNRYLEKRLNLRVEHIKHSKCRQEFLERVKANAAKRAEAKAQGVAVQLKRQPAQPRESRIVSTEGNVPQTLAPVPYETFI

Entity 44 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	170

Entity 45 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	24

Entity 46 non-polymer

描述 description	SPERMINE
分子量 formula_weight	202.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 47 non-polymer

描述 description	SPERMIDINE
分子量 formula_weight	145.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 48 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 49 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	580

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.15 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	610925

fit	/app/data/saxs_computation/pf/8pfr/8pfr.fit
pddf	/app/data/pr_computation/pf/8pfr/8pfr.pr.out
profile	/app/data/saxs_computation/pf/8pfr/8pfr.dat

Mouse RPL39L integrated into the yeast 60S ribosomal subunit

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (49)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

来源 Source

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer
