8usy

HIV-1 Integrase F185H N222K Complexed with Allosteric Inhibitor BI-D

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrase

Human immunodeficiency virus 1

UniProt P12497

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 2 (2S)-tert-butoxy[4-(3,4-dihydro-2H-chromen-6-yl)-2-methylquinolin-3-yl]ethanoic acid × 2 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1b92 1b9d 1b9f 2gol 2gon 2gon 2gon 2gon 2h3f 2h3i 2h3q 2h3v

39 assemblies; showing the first 12

Homodimer
1a43 1a8o 1aum 1b92 1b9d 1b9f 1baj 1bhl 1bis 1biu 1biu 1itg

67 assemblies; showing the first 12

Homotetramer
4ipy 8a1p 8a1q 8buv 8cbr 8cbs 8cbt 8cbu 8cbv 8t5b 8v9c

11 assemblies

Other homooligomers
1bi4 1bl3 3h47 3h4e 3h4e 3mge 4qnb 8f22 8f22 8vc0 8vc0 8vxv

22 assemblies; showing the first 12

Heteromeric or nucleic-acid complex
1afv 1ak4 1ak4 2b4j 2b4j 2xv6 2xv6 2xxm 3av9 3ava 3avb 3avc

73 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name POL_HV1N5
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–288； UniProt 1149–1435 Author chain B； PDBConstruct 2–288； UniProt 1149–1435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8usy
Deposition date deposition_date2023-10-30
Structure title titleHIV-1 Integrase F185H N222K Complexed with Allosteric Inhibitor BI-D
Keywords keywordsHIV-1, Viral Protein, HIV-1 Integrase, Allosteric Inhibitor, ALLINI, VIRAL PROTEIN-INHIBITOR complex; VIRAL PROTEIN/INHIBITOR
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8usy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

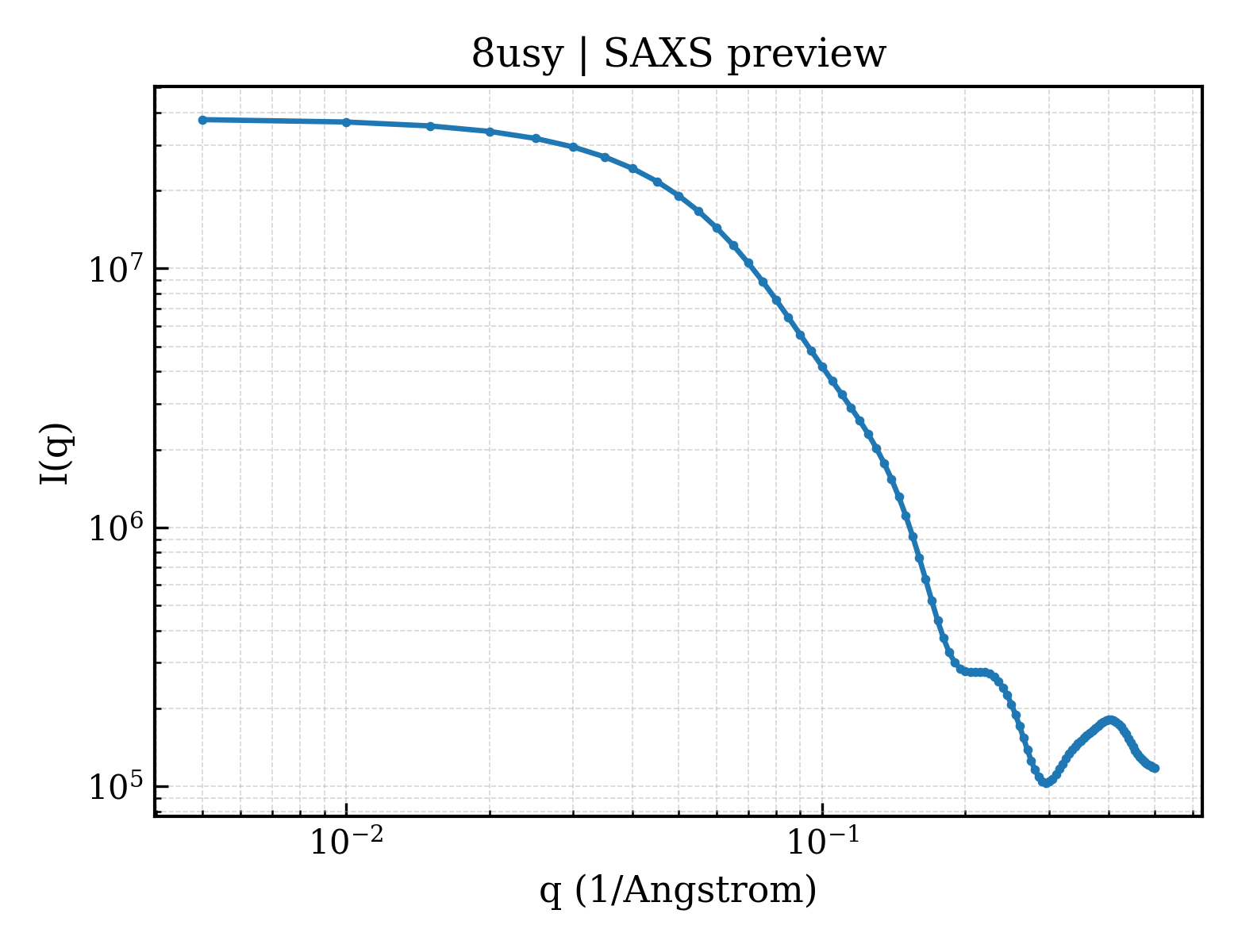

8usy__assembly_1__model_1 | I(q)

10-2 10-1 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8usy__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）28.85 Å
Rg (electron density)28.36 Å
Total Rg28.85 Å
Atom count4324
Residues430
Excluded volume62036 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8usy__assembly_1__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶
