9cgc

Yeast 26S proteasome non-substrate-engaged (S1 state)

Method: ELECTRON MICROSCOPY D_max: 232.8 Å Quality: EXCELLENT

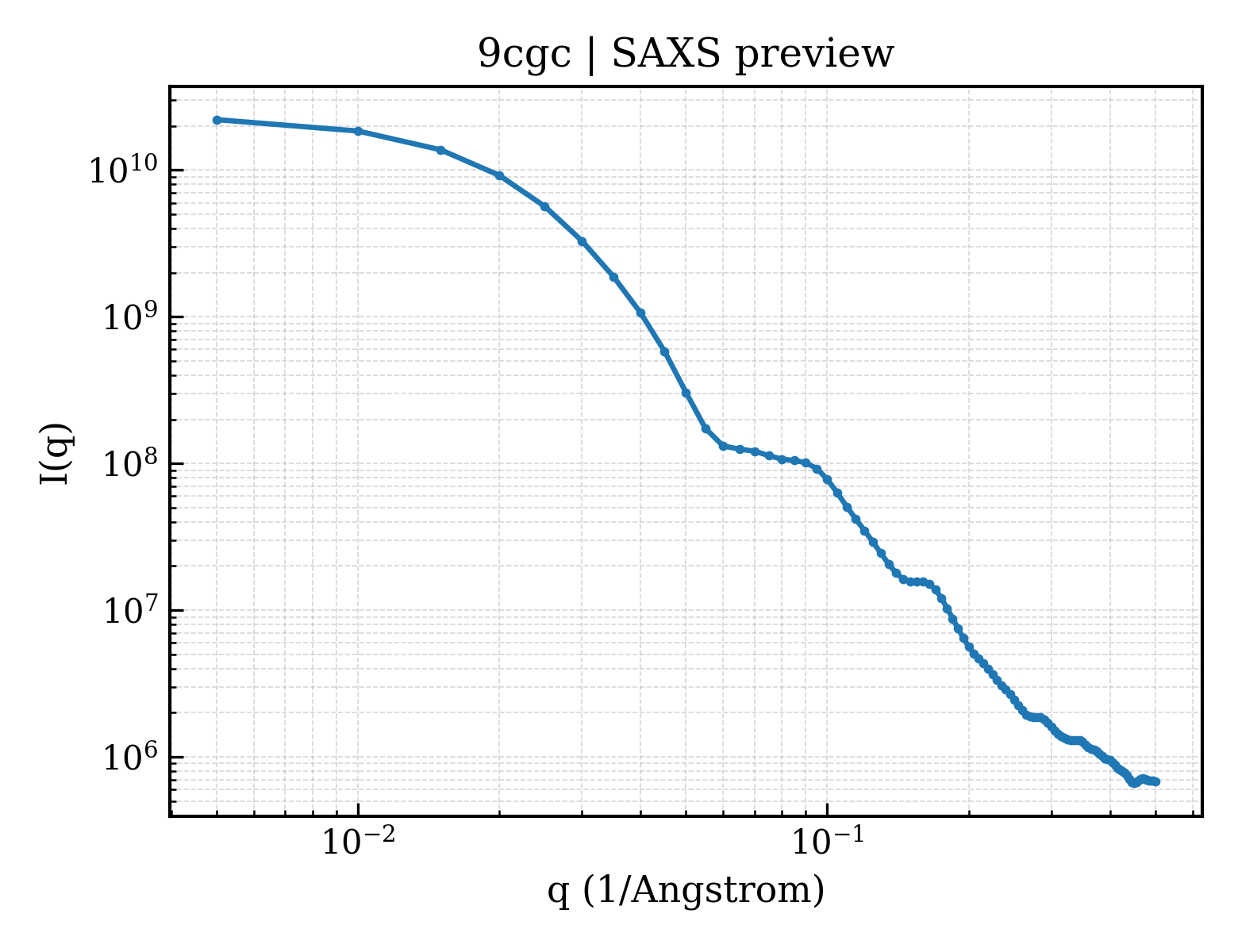

SAXS 散射曲线 SAXS Profile

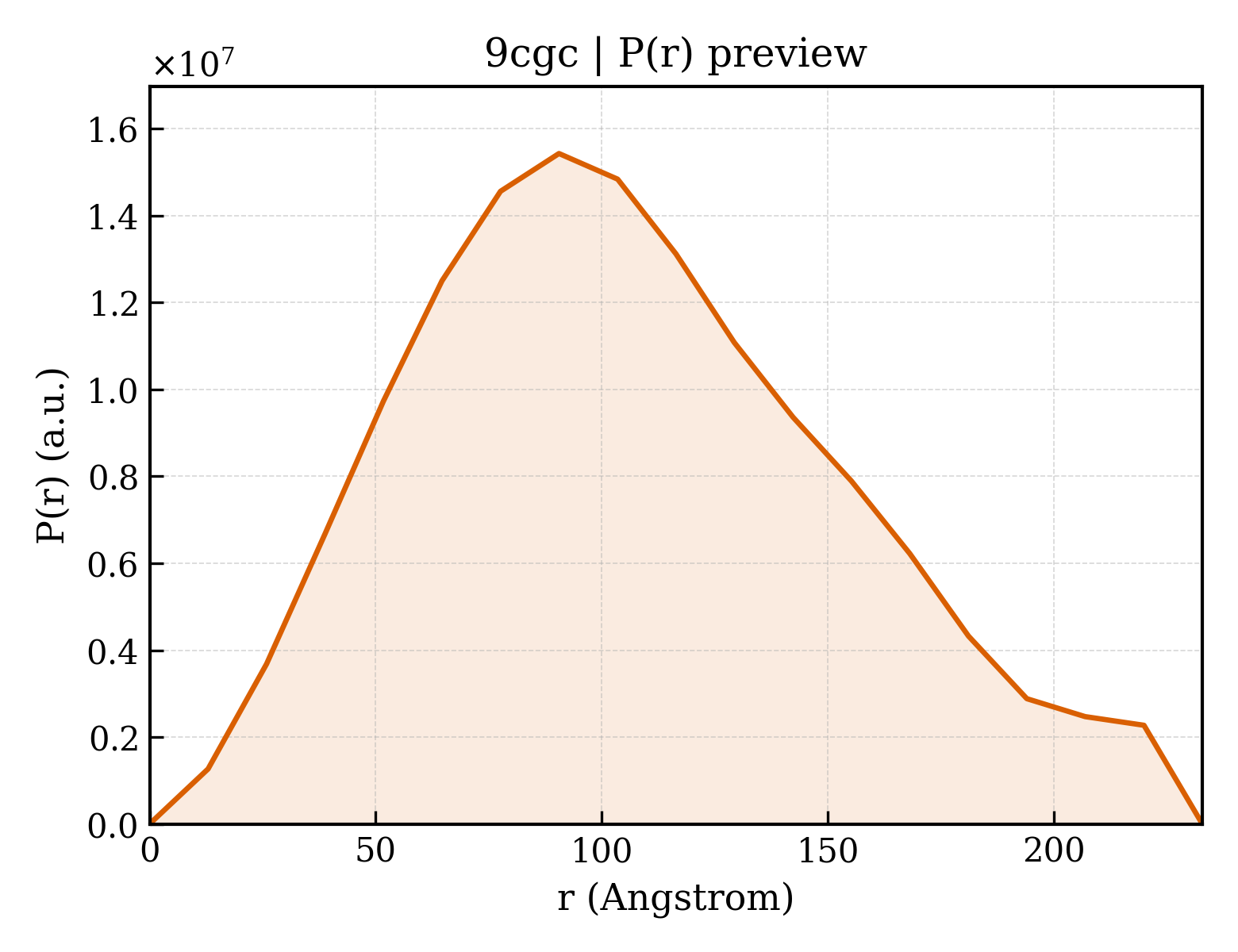

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cgc
沉积日期 deposition_date	2024-06-28
结构标题 title	Yeast 26S proteasome non-substrate-engaged (S1 state)
关键词 keywords	26S protease complex, MOTOR PROTEIN, HYDROLASE-PROTEIN BINDING complex, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.65 Å
回转半径 Rg (电子) rg_electron	85.07 Å
零角强度 I(0) i0	23473300000.00
分子量 molecular_weight	1321200.0 kDa
排除体积 excluded_volume	1660700 Å³
包络体积 envelope_volume	2592800 Å³
水化壳体积 shell_volume	253710 Å³
包络直径 envelope_diameter	296.6 Å
壳层 Rg shell_rg	83.53 Å
包络 Rg envelope_rg	82.68 Å
形状 Rg shape_rg	85.12 Å
总 Rg total_rg	84.89 Å
总原子数 total_atoms	92952
残基数 n_residues	11779
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.8 Å
Rg (实空间) rg_real	81.74 Å
Rg 误差 (实空间) rg_real_error	0.64 Å
I(0) (实空间) i0_real	2.2480e+10
I(0) 误差 (实空间) i0_real_error	4.2160e+08
Rg (倒空间) rg_reciprocal	83.73 Å
I(0) (倒空间) i0_reciprocal	23410000000.0000
解质量估计 total_estimate	0.9111
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	90.5 Å
偏度 Skewness skewness	0.365
峰度 Kurtosis kurtosis	-0.414
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.9930
最高正则化参数 α highest_alpha	1850000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.978; Stabil: 0.962; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.027

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (36)

Entity 1 polymer

描述 description	Proteasome subunit beta type-1
分子量 formula_weight	23573.6 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,b
原子数 atom_count	92952

MNGIQVDINRLKKGEVSLGTSIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAGSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

Entity 2 polymer

描述 description	Proteasome subunit beta type-2
分子量 formula_weight	28299.9 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,i

MAGLSFDNYQRNNFLAENSHTQPKATSTGTTIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

Entity 3 polymer

描述 description	Proteasome subunit beta type-3
分子量 formula_weight	22627.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3,h

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

Entity 4 polymer

描述 description	Proteasome subunit beta type-4
分子量 formula_weight	22545.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4,g

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFSLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQ

Entity 5 polymer

描述 description	Proteasome subunit beta type-5
分子量 formula_weight	31670.5 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5,f

MQAIADSFSVPNRLVKELQYDNEQNLESDFVTGASQFQRLAPSLTVPPIASPQQFLRAHTDDSRNPDCKIKIAHGTTTLAFRFQGGIIVAVDSRATAGNWVASQTVKKVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

Entity 6 polymer

描述 description	Proteasome subunit beta type-6
分子量 formula_weight	26905.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6,e

MATIASEYSSEASNTPIEHQFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

Entity 7 polymer

描述 description	Proteasome subunit beta type-7
分子量 formula_weight	29471.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7,a

MNHDPFSWGRPADSTYGAYNTQIANAGASPMVNTQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

Entity 8 polymer

描述 description	Proteasome subunit alpha type-1
分子量 formula_weight	28033.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

Entity 9 polymer

描述 description	Proteasome subunit alpha type-2
分子量 formula_weight	27191.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

Entity 10 polymer

描述 description	Proteasome subunit alpha type-3
分子量 formula_weight	28748.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

Entity 11 polymer

描述 description	Proteasome subunit alpha type-4
分子量 formula_weight	28478.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

Entity 12 polymer

描述 description	Proteasome subunit alpha type-5
分子量 formula_weight	28649.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

Entity 13 polymer

描述 description	Proteasome subunit alpha type-6
分子量 formula_weight	25634.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

Entity 14 polymer

描述 description	Probable proteasome subunit alpha type-7
分子量 formula_weight	31575.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

Entity 15 polymer

描述 description	26S proteasome regulatory subunit 4 homolog
分子量 formula_weight	48898.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MGQGVSSGQDKKKKKGSNQKPKYEPPVQSKFGRKKRKGGPATAEKLPNIYPSTRCKLKLLRMERIKDHLLLEEEFVSNSEILKPFEKKQEEEKKQLEEIRGNPLSIGTLEEIIDDDHAIVTSPTMPDYYVSILSFVDKELLEPGCSVLLHHKTMSIVGVLQDDADPMVSVMKMDKSPTESYSDIGGLESQIQEIKESVELPLTHPELYEEMGIKPPKGVILYGAPGTGKTLLAKAVANQTSATFLRIVGSELIQKYLGDGPRLCRQIFKVAGENAPSIVFIDEIDAIGTKRYDSNSGGEREIQRTMLELLNQLDGFDDRGDVKVIMATNKIETLDPALIRPGRIDRKILFENPDLSTKKKILGIHTSKMNLSEDVNLETLVTTKDDLSGADIQAMCTEAGLLALRERRMQVTAEDFKQAKERVMKNKVEENLEGLYL

Entity 16 polymer

描述 description	26S proteasome regulatory subunit 6B homolog
分子量 formula_weight	47953.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MEELGIVTPVEKAVEEKPAVKSYASLLAQLNGTVNNNSALSNVNSDIYFKLKKLEKEYELLTLQEDYIKDEQRHLKRELKRAQEEVKRIQSVPLVIGQFLEPIDQNTGIVSSTTGMSYVVRILSTLDRELLKPSMSVALHRHSNALVDILPPDSDSSISVMGENEKPDVTYADVGGLDMQKQEIREAVELPLVQADLYEQIGIDPPRGVLLYGPPGTGKTMLVKAVANSTKAAFIRVNGSEFVHKYLGEGPRMVRDVFRLARENAPSIIFIDEVDSIATKRFDAQTGSDREVQRILIELLTQMDGFDQSTNVKVIMATNRADTLDPALLRPGRLDRKIEFPSLRDRRERRLIFGTIASKMSLAPEADLDSLIIRNDSLSGAVIAAIMQEAGLRAVRKNRYVILQSDLEEAYATQVKTDNTVDKFDFYK

Entity 17 polymer

描述 description	26S proteasome subunit RPT4
分子量 formula_weight	49480.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSEEQDPLLAGLGETSGDNHTQQSHEQQPEQPQETEEHHEEEPSRVDPEQEAHNKALNQFKRKLLEHRRYDDQLKQRRQNIRDLEKLYDKTENDIKALQSIGQLIGEVMKELSEEKYIVKASSGPRYIVGVRNSVDRSKLKKGVRVTLDITTLTIMRILPRETDPLVYNMTSFEQGEITFDGIGGLTEQIRELREVIELPLKNPEIFQRVGIKPPKGVLLYGPPGTGKTLLAKAVAATIGANFIFSPASGIVDKYIGESARIIREMFAYAKEHEPCIIFMDEVDAIGGRRFSEGTSADREIQRTLMELLTQMDGFDNLGQTKIIMATNRPDTLDPALLRPGRLDRKVEIPLPNEAGRLEIFKIHTAKVKKTGEFDFEAAVKMSDGFNGADIRNCATEAGFFAIRDDRDHINPDDLMKAVRKVAEVKKLEGTIEYQKL

Entity 18 polymer

描述 description	26S proteasome regulatory subunit RPN9
分子量 formula_weight	45839.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MFNNHEIDTILSTLRMEADPSLHPLFEQFEKFYEEKLWFQLSESLTKFFDDAKSTPLRLRLYDNFVSKFYDKINQLSVVKYLLASLKDSKDFDESLKYLDDLKAQFQELDSKKQRNNGSKDHGDGILLIDSEIARTYLLKNDLVKARDLLDDLEKTLDKKDSIPLRITNSFYSTNSQYFKFKNDFNSFYYTSLLYLSTLEPSTSITLAERQQLAYDLSISALLGDKIYNFGELLHHPIMETIVNDSNYDWLFQLLNALTVGDFDKFDSLIKVQISKIPILAQHESFLRQKICLMTLIETVFVKNIRMLSFEDISKATHLPKDNVEHLVMRAISLGLLKGSIDQVNELVTISWVQPRIISGDQITKMKDRLVEWNDQVEKLGKKMEARGQSIWV

Entity 19 polymer

描述 description	26S proteasome regulatory subunit RPN5
分子量 formula_weight	51840.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MSRDAPIKADKDYSQILKEEFPKIDSLAQNDCNSALDQLLVLEKKTRQASDLASSKEVLAKIVDLLASRNKWDDLNEQLTLLSKKHGQLKLSIQYMIQKVMEYLKSSKSLDLNTRISVIETIRVVTENKIFVEVERARVTKDLVEIKKEEGKIDEAADILCELQVETYGSMEMSEKIQFILEQMELSILKGDYSQATVLSRKILKKTFKNPKYESLKLEYYNLLVKISLHKREYLEVAQYLQEIYQTDAIKSDEAKWKPVLSHIVYFLVLSPYGNLQNDLIHKIQNDNNLKKLESQESLVKLFTTNELMRWPIVQKTYEPVLNEDDLAFGGEANKHHWEDLQKRVIEHNLRVISEYYSRITLLRLNELLDLTESQTETYISDLVNQGIIYAKVNRPAKIVNFEKPKNSSQLLNEWSHNVDELLEHIETIGHLITKEEIMHGLQAK

Entity 20 polymer

描述 description	26S proteasome regulatory subunit RPN7
分子量 formula_weight	49016.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MVDVEEKSQEVEYVDPTVNRVPNYEVSEKAFLLTQSKVSIEQRKEAAEFVLAKIKEEEMAPYYKYLCEEYLVNNGQSDLEHDEKSDSLNEWIKFDQELYNELCKKNESKIKELNEKIQKLEEDDEGELEQAQAWINLGEYYAQIGDKDNAEKTLGKSLSKAISTGAKIDVMLTIARLGFFYNDQLYVKEKLEAVNSMIEKGGDWERRNRYKTYYGIHCLAVRNFKEAAKLLVDSLATFTSIELTSYESIATYASVTGLFTLERTDLKSKVIDSPELLSLISTTAALQSISSLTISLYASDYASYFPYLLETYANVLIPCKYLNRHADFFVREMRRKVYAQLLESYKTLSLKSMASAFGVSVAFLDNDLGKFIPNKQLNCVIDRVNGIVETNRPDNKNAQYHLLVKQGDGLLTKLQKYGAAVRLTGSDRV

Entity 21 polymer

描述 description	26S proteasome regulatory subunit RPN3
分子量 formula_weight	60464.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MASTAVMMDVDSSGVNDLHHSEKKYAEEDQVQELLKVLNEISKTTLTLDPRYIWRSLKDLSSLRNQELLNAETLCFTVNVLYPDSSSFKKNLLKFITSNHKSSVPGSAELRNSYPASFYSVNTEKKTIEVTAEINCFMHLLVQLFLWDSKELEQLVEFNRKVVIPNLLCYYNLRSLNLINAKLWFYIYLSHETLARSSEEINSDNQNIILRSTMMKFLKIASLKHDNETKAMLINLILRDFLNNGEVDSASDFISKLEYPHTDVSSSLEARYFFYLSKINAIQLDYSTANEYIIAAIRKAPHNSKSLGFLQQSNKLHCCIQLLMGDIPELSFFHQSNMQKSLLPYYHLTKAVKLGDLKKFTSTITKYKQLLLKDDTYQLCVRLRSNVIKTGIRIISLTYKKISLRDICLKLNLDSEQTVEYMVSRAIRDGVIEAKINHEDGFIETTELLNIYDSEDPQQVFDERIKFANQLHDEYLVSMRYPEDKKTQQNEKSENGENDDDTLDGDLMDDMSDISDLDDLGFL

Entity 22 polymer

描述 description	Ubiquitin carboxyl-terminal hydrolase RPN11
分子量 formula_weight	34442.3 kDa
EC 编号 ec_number	3.4.19.12
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MERLQRLMMNSKVGSADTGRDDTKETVYISSIALLKMLKHGRAGVPMEVMGLMLGEFVDDYTVNVVDVFAMPQSGTGVSVEAVDDVFQAKMMDMLKQTGRDQMVVGWYHSHPGFGCWLSSVDVNTQKSFEQLNSRAVAVVVDPIQSVKGKVVIDAFRLIDTGALINNLEPRQTTSNTGLLNKANIQALIHGLNRHYYSLNIDYHKTAKETKMLMNLHKEQWQSGLKMYDYEEKEESNLAATKSMVKIAEQYSKRIEEEKELTEEELKTRYVGRQDPKKHLSETADETLENNIVSVLTAGVNSVAIK

Entity 23 polymer

描述 description	26S proteasome regulatory subunit RPN10
分子量 formula_weight	29776.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MVLEATVLVIDNSEYSRNGDFPRTRFEAQIDSVEFIFQAKRNSNPENTVGLISGAGANPRVLSTFTAEFGKILAGLHDTQIEGKLHMATALQIAQLTLKHRQNKVQHQRIVAFVCSPISDSRDELIRLAKTLKKNNVAVDIINFGEIEQNTELLDEFIAAVNNPQEETSHLLTVTPGPRLLYENIASSPIILEEGSSGMGAFGGSGGDSDANGTFMDFGVDPSMDPELAMALRLSMEEEQQRQERLRQQQQQQDQPEQSEQPEQHQDK

Entity 24 polymer

描述 description	26S proteasome complex subunit SEM1
分子量 formula_weight	10392.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MSTDTAAGQAQTKIDSTKKKNEEVNKRSLEEDDEFEDFPIDTWANGETIKSNTTTQTNIWEENWDDVEVDDDFTNELKAELDRYKRESQ

Entity 25 polymer

描述 description	26S proteasome regulatory subunit 8 homolog
分子量 formula_weight	45342.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MTAAVTSSNIVLETHESGIKPYFEQKIQETELKIRSKTENVRRLEAQRNALNDKVRFIKDELRLLQEPGSYVGEVIKIVSDKKVLVKVQPEGKYIVDVAKDINVKDLKASQRVCLRSDSYMLHKVLENKADPLVSLMMVEKVPDSTYDMVGGLTKQIKEIKEVIELPVKHPELFESLGIAQPKGVILYGPPGTGKTLLARAVAHHTDCKFIRVSGAELVQKYIGEGSRMVRELFVMAREHAPSIIFMDEIDSIGSTRVEGSGGGDSEVQRTMLELLNQLDGFETSKNIKIIMATNRLDILDPALLRPGRIDRKIEFPPPSVAARAEILRIHSRKMNLTRGINLRKVAEKMNGCSGADVKGVCTEAGMYALRERRIHVTQEDFELAVGKVMNKNQETAISVAKLFK

Entity 26 polymer

描述 description	26S proteasome regulatory subunit 7 homolog
分子量 formula_weight	52054.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MPPKEDWEKYKAPLEDDDKKPDDDKIVPLTEGDIQVLKSYGAAPYAAKLKQTENDLKDIEARIKEKAGVKESDTGLAPSHLWDIMGDRQRLGEEHPLQVARCTKIIKGNGESDETTTDNNNSGNSNSNSNQQSTDADEDDEDAKYVINLKQIAKFVVGLGERVSPTDIEEGMRVGVDRSKYNIELPLPPRIDPSVTMMTVEEKPDVTYSDVGGCKDQIEKLREVVELPLLSPERFATLGIDPPKGILLYGPPGTGKTLCARAVANRTDATFIRVIGSELVQKYVGEGARMVRELFEMARTKKACIIFFDEIDAVGGARFDDGAGGDNEVQRTMLELITQLDGFDPRGNIKVMFATNRPNTLDPALLRPGRIDRKVEFSLPDLEGRANIFRIHSKSMSVERGIRWELISRLCPNSTGAELRSVCTEAGMFAIRARRKVATEKDFLKAVDKVISGYKKFSSTSRYMQYN

Entity 27 polymer

描述 description	26S proteasome regulatory subunit 6A
分子量 formula_weight	48315.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MATLEELDAQTLPGDDELDQEILNLSTQELQTRAKLLDNEIRIFRSELQRLSHENNVMLEKIKDNKEKIKNNRQLPYLVANVVEVMDMNEIEDKENSESTTQGGNVNLDNTAVGKAAVVKTSSRQTVFLPMVGLVDPDKLKPNDLVGVNKDSYLILDTLPSEFDSRVKAMEVDEKPTETYSDVGGLDKQIEELVEAIVLPMKRADKFKDMGIRAPKGALMYGPPGTGKTLLARACAAQTNATFLKLAAPQLVQMYIGEGAKLVRDAFALAKEKAPTIIFIDELDAIGTKRFDSEKSGDREVQRTMLELLNQLDGFSSDDRVKVLAATNRVDVLDPALLRSGRLDRKIEFPLPSEDSRAQILQIHSRKMTTDDDINWQELARSTDEFNGAQLKAVTVEAGMIALRNGQSSVKHEDFVEGISEVQARKSKSVSFYA

Entity 28 polymer

描述 description	26S proteasome regulatory subunit RPN6
分子量 formula_weight	49839.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MSLPGSKLEEARRLVNEKQYNEAEQVYLSLLDKDSSQSSAAAGASVDDKRRNEQETSILELGQLYVTMGAKDKLREFIPHSTEYMMQFAKSKTVKVLKTLIEKFEQVPDSLDDQIFVCEKSIEFAKREKRVFLKHSLSIKLATLHYQKKQYKDSLALINDLLREFKKLDDKPSLVDVHLLESKVYHKLRNLAKSKASLTAARTAANSIYCPTQTVAELDLMSGILHCEDKDYKTAFSYFFESFESYHNLTTHNSYEKACQVLKYMLLSKIMLNLIDDVKNILNAKYTKETYQSRGIDAMKAVAEAYNNRSLLDFNTALKQYEKELMGDELTRSHFNALYDTLLESNLCKIIEPFECVEISHISKIIGLDTQQVEGKLSQMILDKIFYGVLDQGNGWLYVYETPNQDATYDSALELVGQLNKVVDQLFEKASVLY

Entity 29 polymer

描述 description	26S proteasome regulatory subunit RPN8
分子量 formula_weight	38365.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MSLQHEKVTIAPLVLLSALDHYERTQTKENKRCVGVILGDANSSTIRVTNSFALPFEEDEKNSDVWFLDHNYIENMNEMCKKINAKEKLIGWYHSGPKLRASDLKINELFKKYTQNNPLLLIVDVKQQGVGLPTDAYVAIEQVKDDGTSTEKTFLHLPCTIEAEEAEEIGVEHLLRDVRDQAAGGLSIRLTNQLKSLKGLQSKLKDVVEYLDKVINKELPINHTILGKLQDVFNLLPNLGTPDDDEIDVENHDRINISNNLQKALTVKTNDELMVIYISNLVRSIIAFDDLIENKIQNKKIQEQRVKDKQSKVSDDSESESGDKEATAPLIQRKNKKN

Entity 30 polymer

描述 description	26S proteasome regulatory subunit RPN2
分子量 formula_weight	104351.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MSLTTAAPLLALLRENQDSVKTYALESINNVVDQLWSEISNELPDIEALYDDDTFSDREMAALIASKVYYNLGEYESAVKYALAAKDRFDIDEKSQFVETIVSKSIEMYVQEASKQYTKDEQFYTKDIIDPKLTSIFERMIEKCLKASELKLALGIALEGYRLDIIESALKSKLDQDSTSENVKIINYLLTLAITTVTNSKFRSSILRKSFDFLMNMPNCDYLTLNKVVVNLNDAGLALQLFKKLKEENDEGLSAQIAFDLVSSASQQLLEILVTELTAQGYDPALLNILSGLPTCDYYNTFLLNNKNIDIGLLNKSKSSLDGKFSLFHTAVSVANGFMHAGTTDNSFIKANLPWLGKAQNWAKFTATASLGVIHKGNLLEGKKVMAPYLPGSRASSRFIKGGSLYGLGLIYAGFGRDTTDYLKNIIVENSGTSGDEDVDVLLHGASLGIGLAAMGSANIEVYEALKEVLYNDSATSGEAAALGMGLCMLGTGKPEAIHDMFTYSQETQHGNITRGLAVGLALINYGRQELADDLITKMLASDESLLRYGGAFTIALAYAGTGNNSAVKRLLHVAVSDSNDDVRRAAVIALGFVLLRDYTTVPRIVQLLSKSHNAHVRCGTAFALGIACAGKGLQSAIDVLDPLTKDPVDFVRQAAMIALSMILIQQTEKLNPQVADINKNFLSVITNKHQEGLAKFGACVAQGIMNAGGRNVTIQLENADTGTLDTKSVVGLVMFSQFWYWFPLAHFLSLSFTPTTVIGIRGSDQAIPKFQMNCYAKEDAFSYPRMYEEASGKEVEKVATAVLSTTARAKARAKKTKKEKGPNEEEKKKEHEEKEKERETNKKGIKETKENDEEFYKNKYSSKPYKVDNMTRILPQQSRYISFIKDDRFVPVRKFKGNNGVVVLRDREPKEPVALIETVRQMKDVNAPLPTPFKVDDNVDFPSA

Entity 31 polymer

描述 description	26S proteasome regulatory subunit RPN12
分子量 formula_weight	31952.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPSLAELTKSLSIAFENGDYAACEKLLPPIKIELIKNNLLIPDLSIQNDIYLNDLMITKRILEVGALASIQTFNFDSFENYFNQLKPYYFSNNHKLSESDKKSKLISLYLLNLLSQNNTTKFHSELQYLDKHIKNLEDDSLLSYPIKLDRWLMEGSYQKAWDLLQSGSQNISEFDSFTDILKSAIRDEIAKNTELSYDFLPLSNIKALLFFNNEKETEKFALERNWPIVNSKVYFNNQSKEKADYEDEMMHEEDQKTNIIEKAMDYAISIENIV

Entity 32 polymer

描述 description	26S proteasome regulatory subunit RPN1
分子量 formula_weight	109601.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MVDESDKKQQTIDEQSQISPEKQTPNKKDKKKEEEEQLSEEDAKLKTDLELLVERLKEDDSSLYEASLNALKESIKNSTSSMTAVPKPLKFLRPTYPDLCSIYDKWTDPNLKSSLADVLSILAMTYSENGKHDSLRYRLLSDVSDFEGWGHEYIRHLALEIGEVYNDQVEKDAEDETSSDGSKSDGSAATSGFEFSKEDTLRLCLDIVPYFLKHNGEEDAVDLLLEIESIDKLPQFVDENTFQRVCQYMVACVPLLPPPEDVAFLKTAYSIYLSQNELTDAIALAVRLGEEDMIRSVFDATSDPVMHKQLAYILAAQKTSFEYEGVQDIIGNGKLSEHFLYLAKELNLTGPKVPEDIYKSHLDNSKSVFSSAGLDSAQQNLASSFVNGFLNLGYCNDKLIVDNDNWVYKTKGDGMTSAVASIGSIYQWNLDGLQQLDKYLYVDEPEVKAGALLGIGISASGVHDGEVEPALLLLQDYVTNPDTKISSAAILGLGIAFAGSKNDEVLGLLLPIAASTDLPIETAAMASLALAHVFVGTCNGDITTSIMDNFLERTAIELKTDWVRFLALALGILYMGQGEQVDDVLETISAIEHPMTSAIEVLVGSCAYTGTGDVLLIQDLLHRLTPKNVKGEEDADEEETAEGQTNSISDFLGEQVNEPTKNEEAEIEVDEMEVDAEGEEVEVKAEITEKKNGESLEGEEIKSEEKKGKSSDKDATTDGKNDDEEEEKEAGIVDELAYAVLGIALIALGEDIGKEMSLRHFGHLMHYGNEHIRRMVPLAMGIVSVSDPQMKVFDTLTRFSHDADLEVSMNSIFAMGLCGAGTNNARLAQLLRQLASYYSREQDALFITRLAQGLLHLGKGTMTMDVFNDAHVLNKVTLASILTTAVGLVSPSFMLKHHQLFYMLNAGIRPKFILALNDEGEPIKVNVRVGQAVETVGQAGRPKKITGWITQSTPVLLNHGERAELETDEYISYTSHIEGVVILKKNPDYREEE

Entity 33 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 34 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 35 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 36 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.61 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	110527

fit	/app/data/saxs_computation/cg/9cgc/9cgc.fit
pddf	/app/data/pr_computation/cg/9cgc/9cgc.pr.out
profile	/app/data/saxs_computation/cg/9cgc/9cgc.dat

Yeast 26S proteasome non-substrate-engaged (S1 state)

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (36)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 non-polymer

Entity 34 non-polymer

Entity 35 non-polymer

Entity 36 non-polymer

7. 引用文献 (1)
