SAXSdb — 9cyd

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9cyd
沉积日期 deposition_date	2024-08-02
结构标题 title	SARS-CoV-2 PLpro in complex with inhibitor WEHI-P4
关键词 keywords	SARS CoV-2, papain-like protease, COVID19, inhibitor, HYDROLASE, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.59 Å
回转半径 Rg (电子) rg_electron	22.76 Å
零角强度 I(0) i0	21345400.00
分子量 molecular_weight	35429.0 kDa
排除体积 excluded_volume	44371 Å³
包络体积 envelope_volume	52770 Å³
水化壳体积 shell_volume	20722 Å³
包络直径 envelope_diameter	87.8 Å
壳层 Rg shell_rg	28.27 Å
包络 Rg envelope_rg	23.26 Å
形状 Rg shape_rg	22.74 Å
总 Rg total_rg	23.54 Å
总原子数 total_atoms	4899
残基数 n_residues	309
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.2 Å
Rg (实空间) rg_real	23.76 Å
Rg 误差 (实空间) rg_real_error	0.92 Å
I(0) (实空间) i0_real	2.1350e+07
I(0) 误差 (实空间) i0_real_error	3.5300e+05
Rg (倒空间) rg_reciprocal	23.72 Å
I(0) (倒空间) i0_reciprocal	21340000.0000
解质量估计 total_estimate	0.8335
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	23.7 Å
偏度 Skewness skewness	0.554
峰度 Kurtosis kurtosis	-0.035
角度范围 angular_range	— – 0.3350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4121000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.701; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.773; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Papain-like protease
分子量 formula_weight	35927.7 kDa
EC 编号 ec_number	3.4.19.12
突变 mutation	C111S
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4899

SNAEVRTIKVFTTVDNINLHTQVVDMSMTYGQQFGPTYLDGADVTKIKPHNSHEGKTFYVLPNDDTLRVEAFEYYHTTDPSFLGRYMSALNHTKKWKYPQVNGLTSIKWADNNSYLATALLTLQQIELKFNPPALQDAYYRARAGEAANFCALILAYCNKTVGELGDVRETMSYLFQHANLDSCKRVLNVVCKTCGQQQTTLKGVEAVMYMGTLSYEQFKKGVQIPCTCGKQATKYLVQQESPFVMMSAPPAQYELKHGTFTCASEYTGNYQCGHYKHITSKETLYCIDGALLTKSSEYKGPITDVFYKENSYTTTIK

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	(1S,4s)-4-{(3R)-3-[(E)-(methoxyimino)(6-methoxynaphthalen-2-yl)methyl]piperidin-1-yl}cyclohexan-1-ol
分子量 formula_weight	396.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (9)

A novel PLpro inhibitor improves outcomes in a pre-clinical model of long COVID.

Nat Commun (2025)

PMID: 40180914 · DOI: 10.1038/s41467-025-57905-4 PRIMARY

;MX2: a high-flux undulator microfocus beamline serving both the chemical and macromolecular crystallography communities at the Australian Synchrotron. ;

J Synchrotron Radiat (2018)

PMID: 29714201 · DOI: 10.1107/S1600577518003120

CCP4i2: the new graphical user interface to the CCP4 program suite.

Acta Crystallogr D Struct Biol (2018)

PMID: 29533233 · DOI: 10.1107/S2059798317016035

An introduction to data reduction: space-group determination, scaling and intensity statistics.

Acta Crystallogr D Biol Crystallogr (2011)

PMID: 21460446 · DOI: 10.1107/S090744491003982X

XDS for crystallography

Acta Crystallogr D Biol Crystallogr (2010)

PMID: 20124692 · DOI: 10.1107/S0907444909047337

Features and development of Coot.

Acta Crystallogr D Biol Crystallogr (2010)

PMID: 20383002 · DOI: 10.1107/S0907444910007493

Phaser crystallographic software.

J Appl Crystallogr (2007)

PMID: 19461840 · DOI: 10.1107/S0021889807021206

Scaling and assessment of data quality.

Acta Crystallogr D Biol Crystallogr (2006)

PMID: 16369096 · DOI: 10.1107/S0907444905036693

Recent developments in the PHENIX software for automated crystallographic structure determination.

J Synchrotron Radiat (2004)

PMID: 14646133 · DOI: 10.1107/s0909049503024130

▶

晶胞边长 a length_a	156.584 Å
晶胞边长 b length_b	156.584 Å
晶胞边长 c length_c	156.584 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 43 3 2
空间群编号 int_tables_number	212
晶系 crystal_system	cubic

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	49.520 Å
R 因子 r_factor	0.2419
R_work r_work	0.2406
R_free r_free	0.2645

fit	/app/data/saxs_computation/cy/9cyd/9cyd.fit
pddf	/app/data/pr_computation/cy/9cyd/9cyd.pr.out
profile	/app/data/saxs_computation/cy/9cyd/9cyd.dat

SARS-CoV-2 PLpro in complex with inhibitor WEHI-P4

SAXS 散射曲线 SAXS Profile

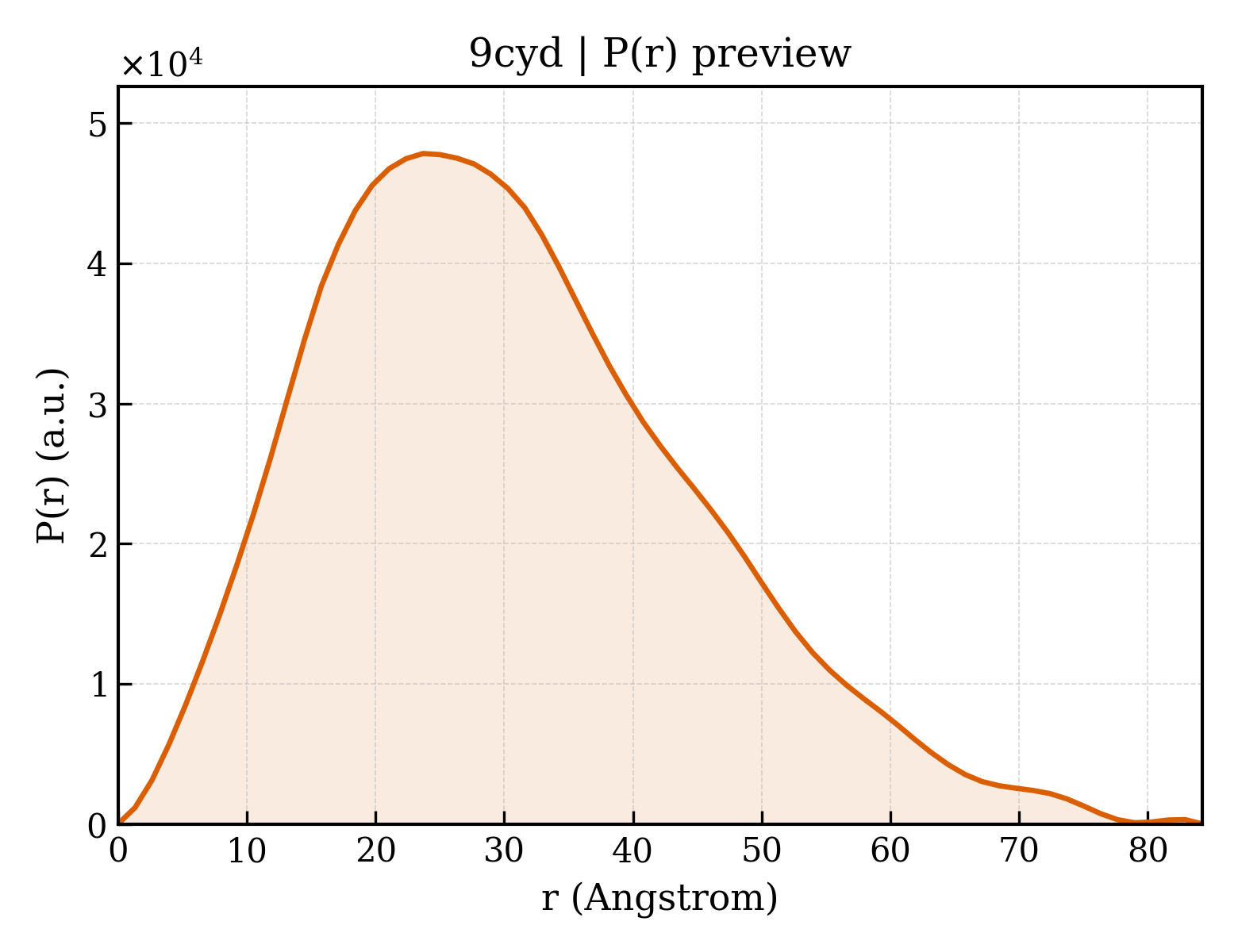

P(r) 距离分布 P(r) Distribution
