1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9czm
沉积日期 deposition_date	2024-08-05
结构标题 title	Ca2+ bound open-inactivated hSlo1 + beta2N-beta4 channel in nanodisc.
关键词 keywords	;Potassium ion channel, calcium and voltage gated ion channel, big potassium channel, human BK, hSlo1, open-inactivated hSlo1, ball and chain inactivation, hSlo1 inactivating subunit complex, beta2 beta4, nanodisc, membrane protein ;; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.92 Å
回转半径 Rg (电子) rg_electron	53.69 Å
零角强度 I(0) i0	3258270000.00
分子量 molecular_weight	513060.0 kDa
排除体积 excluded_volume	654980 Å³
包络体积 envelope_volume	933770 Å³
水化壳体积 shell_volume	137860 Å³
包络直径 envelope_diameter	167.9 Å
壳层 Rg shell_rg	62.72 Å
包络 Rg envelope_rg	52.16 Å
形状 Rg shape_rg	53.70 Å
总 Rg total_rg	53.90 Å
总原子数 total_atoms	36052
残基数 n_residues	4367
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	168.7 Å
Rg (实空间) rg_real	54.62 Å
Rg 误差 (实空间) rg_real_error	0.82 Å
I(0) (实空间) i0_real	3.2580e+09
I(0) 误差 (实空间) i0_real_error	5.7990e+07
Rg (倒空间) rg_reciprocal	55.16 Å
I(0) (倒空间) i0_reciprocal	3261000000.0000
解质量估计 total_estimate	0.6436
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	69.8 Å
偏度 Skewness skewness	0.090
峰度 Kurtosis kurtosis	-0.529
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	483500000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 0.001; Positv: 1.000; Valcen: 0.954; Smooth: 0.613

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Large-conductance Ca2+-activated K+ channel beta2 subunit,Calcium-activated potassium channel subunit beta-4
分子量 formula_weight	27431.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,H,G
原子数 atom_count	36052

FIWTSGRTSSSYRHDEKRNIYQKIRDHDLLDKRKTVTALKAGEDKSIRLGLFLIISGVVSLFIFGFCWLSPALQDLQATEANCTVLSVQQIGEVFECTFTCGADCRGTSQYPCVQVYVNNSESNSRALLHSDEHQLLTNPKCSYIPPCKRENQKNLESVMNWQQYWKDEIGSQPFTCYFNQHQRPDDVLLHRTHDEIVLLHCFLWPLVTFVVGVLIVVLTICAKSLAVKAEAMKKRKFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Isoform 5 of Calcium-activated potassium channel subunit alpha-1
分子量 formula_weight	118969.9 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

MDALIIPVTMEVPCDSRGQRMWWAFLASSMVTFFGGLFIILLWRTLKYLWTVCCHCGGKTKEAQKINNGSSQADGTLKPVDEKEEAVAAEVGWMTSVKDWAGVMISAQTLTGRVLVVLVFALSIGALVIYFIDSSNPIESCQNFYKDFTLQIDMAFNVFFLLYFGLRFIAANDKLWFWLEVNSVVDFFTVPPVFVSVYLNRSWLGLRFLRALRLIQFSEILQFLNILKTSNSIKLVNLLSIFISTWLTAAGFIHLVENSGDPWENFQNNQALTYWECVYLLMVTMSTVGYGDVYAKTTLGRLFMVFFILGGLAMFASYVPEIIELIGNRKKYGGSYSAVSGRKHIVVCGHITLESVSNFLKDFLHKDRDDVNVEIVFLHNISPNLELEALFKRHFTQVEFYQGSVLNPHDLARVKIESADACLILANKYCADPDAEDASNIMRVISIKNYHPKIRIITQMLQYHNKAHLLNIPSWNWKEGDDAICLAELKLGFIAQSCLAQGLSTMLANLFSMRSFIKIEEDTWQKYYLEGVSNEMYTEYLSSAFVGLSFPTVCELCFVKLKLLMIAIEYKSANRESRILINPGNHLKIQEGTLGFFIASDAKEVKRAFFYCKACHDDITDPKRIKKCGCKRLEDEQPSTLSPKKKQRNGGMRNSPNTSPKLMRHDPLLIPGNDQIDNMDSNVKKYDSTGMFHWCAPKEIEKVILTRSEAAMTVLSGHVVVCIFGDVSSALIGLRNLVMPLRASNFHYHELKHIVFVGSIEYLKREWETLHNFPKVSILPGTPLSRADLRAVNINLCDMCVILSANQNNIDDTSLQDKECILASLNIKSMQFDDSIGVLQANSQGFTPPGMDRSSPDNSPVHGMLRQPSITTGVNIPIITELVNDTNVQFLDQDDDDDPDTELYLTQPFACGTAFAVSVLDSLMSATYFNDNILTLIRTLVTGGATPELEALIAEENALRGGYSTPQTLANRDRCRVAQLALLDGPFADLGDGGCYGDLFCKALKTYNMLCFGIYRLRDAHLSTPSQCTKRYVITNPPYEFELVPTDLIFCLMQFD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 non-polymer

描述 description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
分子量 formula_weight	760.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	32

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 6 non-polymer

描述 description	CHOLESTEROL
分子量 formula_weight	386.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 7 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.57 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	175971

fit	/app/data/saxs_computation/cz/9czm/9czm.fit
pddf	/app/data/pr_computation/cz/9czm/9czm.pr.out
profile	/app/data/saxs_computation/cz/9czm/9czm.dat

Ca2+ bound open-inactivated hSlo1 + beta2N-beta4 channel in nanodisc.

SAXS 散射曲线 SAXS Profile

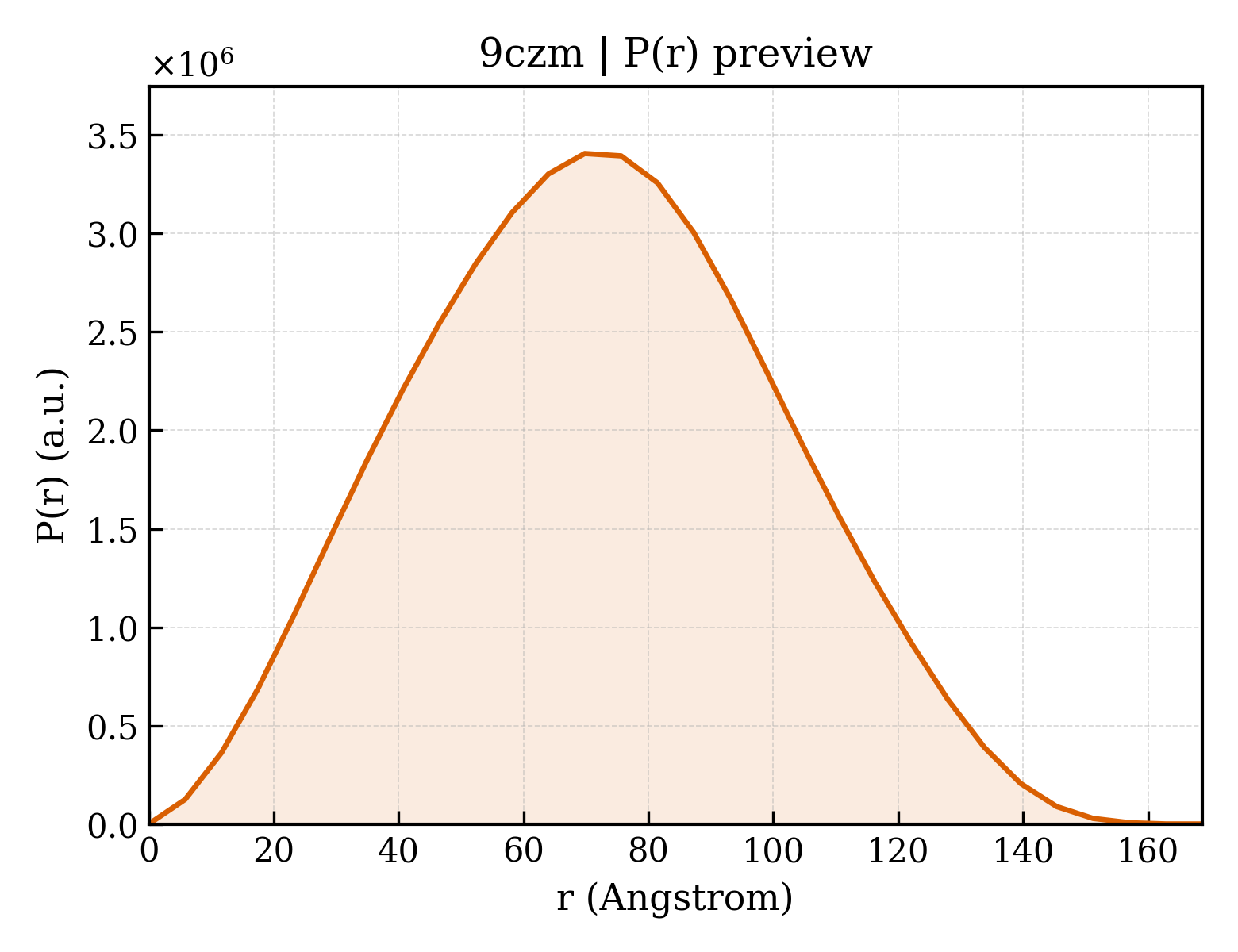

P(r) 距离分布 P(r) Distribution
