9d4c

Proteasome core particle assembly intermediate Blm10:alpha-ring purified from Saccharomyces cerevisiae.

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteasome subunit alpha type-1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–252； UniProt 1–252

Proteasome subunit alpha type-2

Saccharomyces cerevisiae

UniProt P23639

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–250； UniProt 1–250

Proteasome subunit alpha type-3

Saccharomyces cerevisiae

UniProt P23638

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–258； UniProt 1–258

Proteasome subunit alpha type-4

Saccharomyces cerevisiae

UniProt P40303

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA4_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–254； UniProt 1–254

Proteasome subunit alpha type-5

Saccharomyces cerevisiae

UniProt P32379

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA5_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–260； UniProt 1–260

Proteasome subunit alpha type-6

Saccharomyces cerevisiae

UniProt P40302

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA6_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–234； UniProt 1–234

Probable proteasome subunit alpha type-7

Saccharomyces cerevisiae

UniProt P21242

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Proteasome subunit beta type-2 × 1 （P25043） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSA7_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–288； UniProt 1–288

Proteasome subunit beta type-2

Saccharomyces cerevisiae

UniProt P25043

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome activator BLM10 × 1 （P43583）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PSB2_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain I； PDBConstruct 1–261； UniProt 1–261

Proteasome activator BLM10

Saccharomyces cerevisiae

UniProt P43583

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	Proteasome subunit alpha type-1 × 1 （P21243） Proteasome subunit alpha type-2 × 1 （P23639） Proteasome subunit alpha type-3 × 1 （P23638） Proteasome subunit alpha type-4 × 1 （P40303） Proteasome subunit alpha type-5 × 1 （P32379） Proteasome subunit alpha type-6 × 1 （P40302） Probable proteasome subunit alpha type-7 × 1 （P21242） Proteasome subunit beta type-2 × 1 （P25043）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLM10_YEAST
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain O； PDBConstruct 1–2143； UniProt 1–2143

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9d4c
Deposition date deposition_date	2024-08-12
Structure title title	Proteasome core particle assembly intermediate Blm10:alpha-ring purified from Saccharomyces cerevisiae.
Keywords keywords	Proteasome, Cryo-EM, Assembly, assembly chaperone, Blm10, PA200, Blm10-13S, Pba1, CP, HYDROLASE; HYDROLASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9d4c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

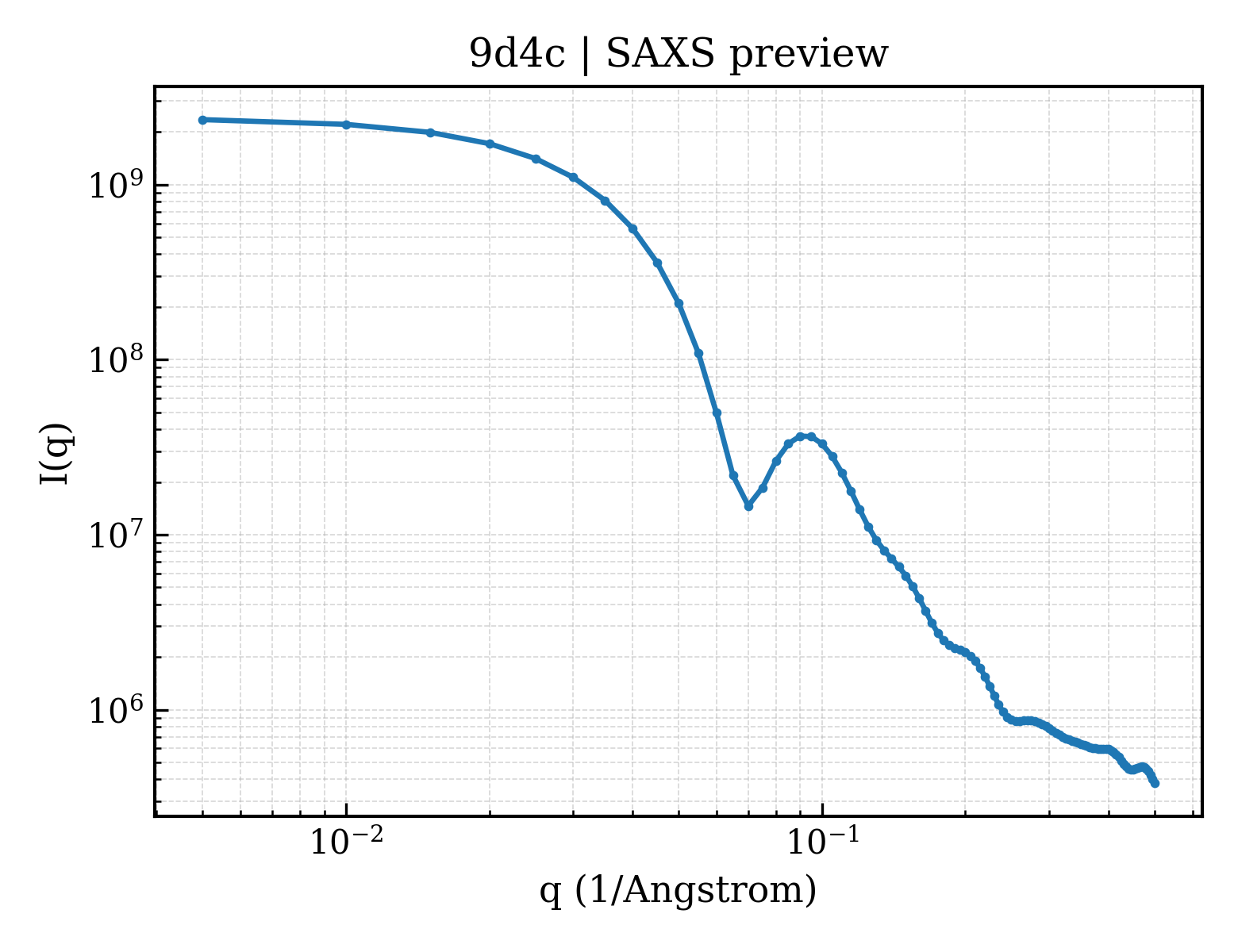

9d4c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

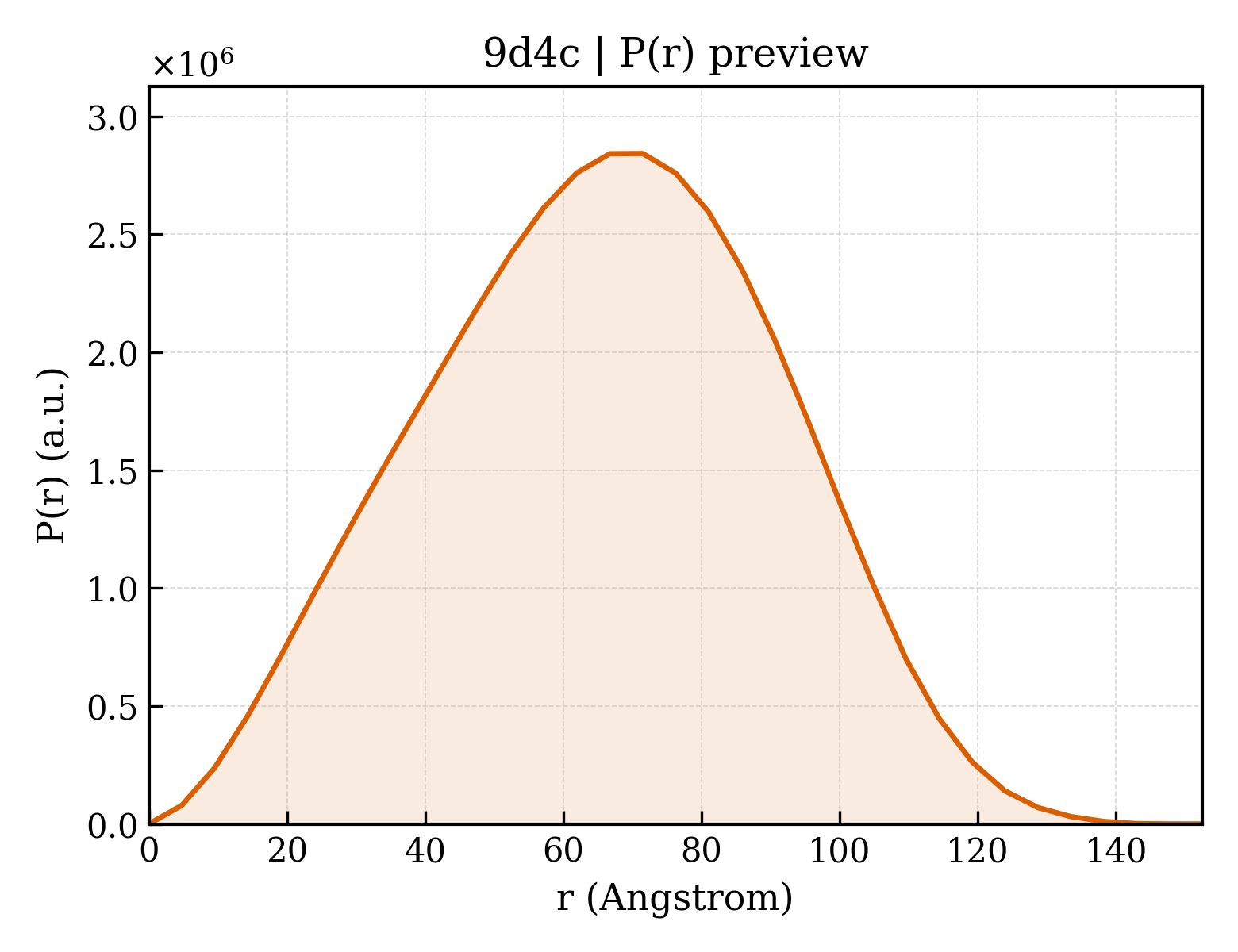

9d4c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.95 Å
Rg (electron density)	49.20 Å
Total Rg	49.55 Å
Atom count	59192
Residues	3731
Excluded volume	529320 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9d4c__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Proteasome subunit alpha type-1
Molecular weight formula_weight	28033.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	59192

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Proteasome subunit alpha type-2
Molecular weight formula_weight	27191.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	Proteasome subunit alpha type-3
Molecular weight formula_weight	28748.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 polymer

Description description	Proteasome subunit alpha type-4
Molecular weight formula_weight	28478.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 5 Entity 5 polymer

Description description	Proteasome subunit alpha type-5
Molecular weight formula_weight	28649.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 6 Entity 6 polymer

Description description	Proteasome subunit alpha type-6
Molecular weight formula_weight	25634.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 7 Entity 7 polymer

Description description	Probable proteasome subunit alpha type-7
Molecular weight formula_weight	31575.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 8 Entity 8 polymer

Description description	Proteasome subunit beta type-2
Molecular weight formula_weight	28299.9 kDa
EC 编号 ec_number	3.4.25.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MAGLSFDNYQRNNFLAENSHTQPKATSTGTTIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 9 Entity 9 polymer

Description description	Proteasome activator BLM10
Molecular weight formula_weight	246282.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	O

MTANNDDDIKSPIPITNKTLSQLKRFERSPGRPSSSQGEIKRKKSRLYAADGRPHSPLRARSATPTLQDQKLFNGMDSTSLLNERLQHYTLDYVSDRAQHMKNIYDPSSRWFSRSVRPEFPIEEFLPYKTESHEDQAKYLCHVLVNLYIAISSLDIQGLISISSKDLADLKKEVDDLALKTDLFRLSNNTAENDLLGNDIADYDDAEGLEDELDEYFDLAGPDFNATGKITAKSATIVNVNHWTNELKNCLHFDFPVALRKSLATVYYYLSLVQGQKVYRQMHVDMFERLVSLDDDRTNFTELLQKQGLLLDHQIMLNFLCEFLPYPDPDYARYELSSKEDLQLFRLLLKHAHNAKPFFDKSKESLLVDTMNFLLSSLAPSTMMAVMPIVTSVVPYHYHIHSKIIDYFPFCYSIWSSVSANVAIDTHMYDFVGSISKDVHNKILSSEHEKDVVGVEFGEFGIFTDDQMTFMFNRLQGHLRTDGQIHSYSRTVKPFVYAINGSKKDRFFEKLVSLAKAIETFIHPSNNGFWTKPNAKFVHAFIKSYHGRVKYEEDICARGVTNGICLTSFCHEEIVEIFLNIISLGSQNKNPDIANYYISCFAYLLELDPSNAYLIYDKILIDLYDTLADQFINSRHRIISSLKQFTRVIRFIVMDKLYRVHITNVLSMLVSKLDMNDTNLTSNLINGIVSIAAFIPIQDLTGEDDYISFESDTLPLVQQHFYHIKCGESSKTFRVDDELLNNAFKASTTVFQSMLKVYVEKIFQLVDVDLEDSLVTKINQTTMILQESMDDKIFNYFASLLQRNFWSNDSFKEKDPNYELVTIPLAALVRRNNGLSKELVRTLLFHIKEQIKRGAGSVRSTSEIQQRDVKLVLYLTALNDVLRQCHESLLEYSDELITFMKYLYDNVTNPPLDVITSIVIHSALATLCTTEITDCRLFPEDSKIPEKDRWGGLQFDPRRFDKQHLSFQWHVPSSDEITLSISILESLSEYCINNVEELMKAPRHDSEYGDMIQKYVLVMTHTLSGSSLLFDPDFNKYRTQSNLSYREKLILLKNIRENNCDPQELDIDIEQIRSGKDDEDYIESKDIEAGLNAGVSDVVQLRDEFPDELIVDEEVVSEMPSGVNTPIAGTHGTDNSAMSSDLAFRDLDIYTCNYYFGNTTEEKLQNPQYLQVHRVRARIGHFFHKLYVFLSTNFENNTNMFQILLHGLKVWFTDLGQETVFNEDPNAFIDVDFLENVQSLSHVNEPFTRTNFAIRANSLHQSRVLLHSTNRKASKLENLLLVDIIQLATSLYPDIYKPAQGTLVHCMKQLVGSYGVVINKIIPSLEKAIKDHDYMKIQVILNVLLIKKIHRKLMTDYKDIGRLIFLLIECCRVNELEIGMYADKILTDIVIGIKIPSSVCVISDQAFLPLAPPDGTINLQVEAVKLAKKKKREYYLSLLVDLQDKLLDKLDNEKDMGWKIRMFILRFVTQIQSNLESKPDKRAVFSIISQISTKHPEIIHLVVKSLLSTCNKIISLSDYEYDITRAYKNEFNPSFVEILDTSTTSFPKTFTEEMNNFDNPKYFIDLRAYVGWLCWGRLMYVMSPKALKLNLRENELEVLKTAGHLLTREFLRDVTMNLVQDNETRGVFSSGNVSFFSLVILLISSGFCELNMSDLFELCESYYNKDDKASMIMSVEIVAGLVCGSKFMSVSDLDKRDTFIENFLAKCLDYELNHDAFEIWSTLAWWLPAVVDLRRSKTFFCHFINADGMFDRESDAATHQTSKIYMLRSILMSMEFRAPDVGKLFDELVFDHPYDQVRQAVAKLLTTLVQNQSNPSISDPTTLLEAERNDPDGLGLPLKSVPEKVDAYIKKQFEIIKNLEDSVVGLNPQQFIKTDYFYRTSTIFYWIKEMARGPNKVLLVPYLVDYVLPFLIGLVKHKDVCALASLDPVRLYAGLGYMPIRKNHVAAIVDYVCSSNVALSSNQTKLQLAFIQHFLSAELLQLTEEEKNKILEFVVSNLYNEQFVEVRVRAASILSDIVHNWKEEQPLLSLIERFAKGLDVNKYTSKERQKLSKTDIKIHGNVLGLGAIISAFPYVFPLPPWIPKQLSNLSSWARTSGMTGQAAKNTISEFKKVRADTWKFDRASFNTEELEDLEGVLWRSYYA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.75 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	414121

Proteasome core particle assembly intermediate Blm10:alpha-ring purified from Saccharomyces cerevisiae.

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteasome subunit alpha type-1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit alpha type-2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit alpha type-3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit alpha type-4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit alpha type-5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit alpha type-6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Probable proteasome subunit alpha type-7

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome subunit beta type-2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome activator BLM10

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

9d4c__assembly_1__model_1

9d4c__assembly_1__model_1 | I(q)

9d4c__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment
