9gbk

Blm10-20S proteasome complex from pre1-1

Method: ELECTRON MICROSCOPY D_max: 207.8 Å Quality: REASONABLE

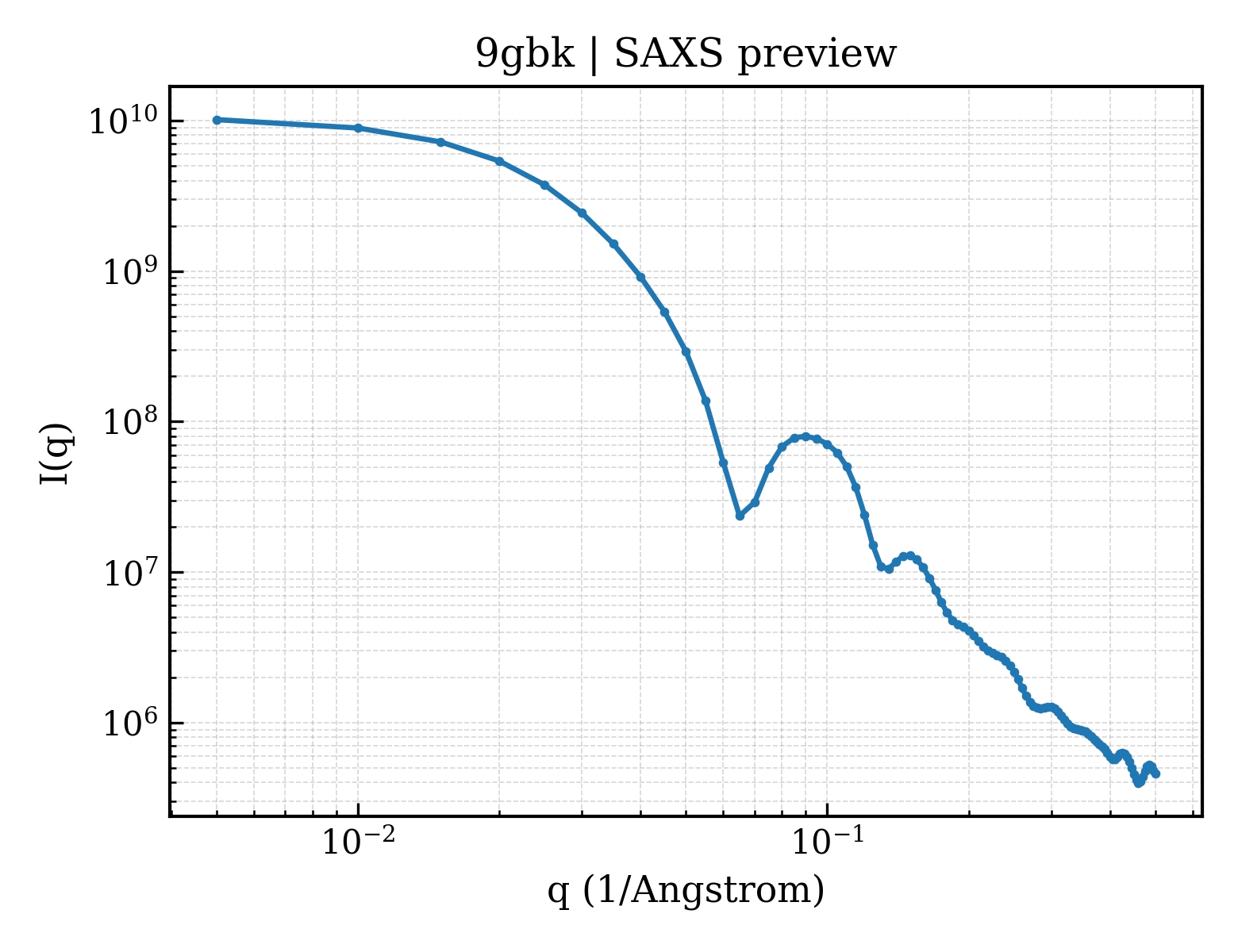

SAXS 散射曲线 SAXS Profile

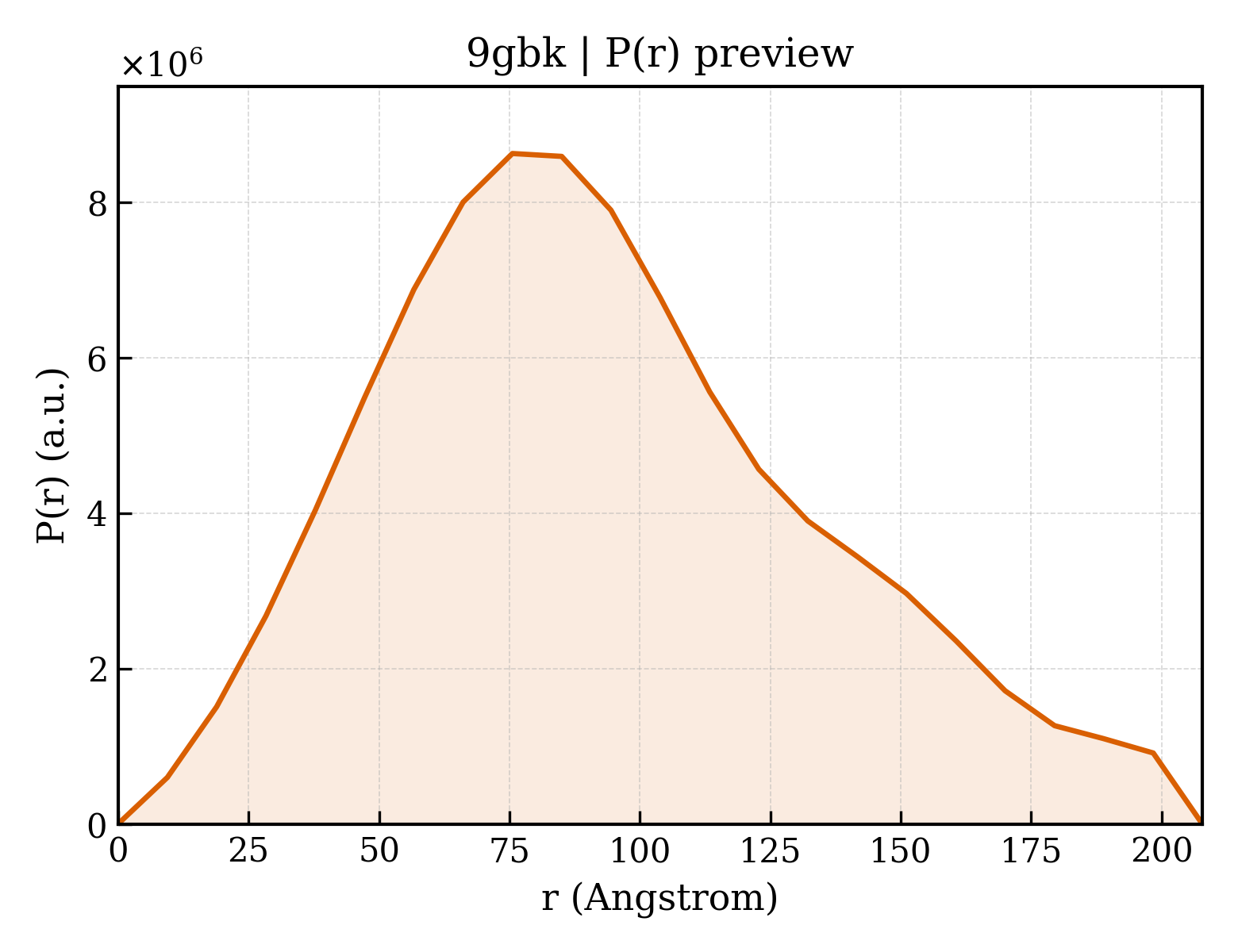

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9gbk
沉积日期 deposition_date	2024-07-31
结构标题 title	Blm10-20S proteasome complex from pre1-1
关键词 keywords	proteasome biogenesis, Ump1, pre1-1, cryo-EM, propertied maturation, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	71.59 Å
回转半径 Rg (电子) rg_electron	71.72 Å
零角强度 I(0) i0	10595800000.00
分子量 molecular_weight	886660.0 kDa
排除体积 excluded_volume	1114900 Å³
包络体积 envelope_volume	1725000 Å³
水化壳体积 shell_volume	199660 Å³
包络直径 envelope_diameter	238.1 Å
壳层 Rg shell_rg	73.82 Å
包络 Rg envelope_rg	69.28 Å
形状 Rg shape_rg	71.72 Å
总 Rg total_rg	71.76 Å
总原子数 total_atoms	62494
残基数 n_residues	7941
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	207.8 Å
Rg (实空间) rg_real	71.33 Å
Rg 误差 (实空间) rg_real_error	0.68 Å
I(0) (实空间) i0_real	1.0550e+10
I(0) 误差 (实空间) i0_real_error	1.8450e+08
Rg (倒空间) rg_reciprocal	71.19 Å
I(0) (倒空间) i0_reciprocal	10590000000.0000
解质量估计 total_estimate	0.6087
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	75.6 Å
偏度 Skewness skewness	0.440
峰度 Kurtosis kurtosis	-0.302
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0724
最高正则化参数 α highest_alpha	1559000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 0.999; Sysdev: 0.006; Positv: 1.000; Valcen: 0.995; Smooth: 0.109

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (16)

Entity 1 polymer

描述 description	Proteasome subunit beta type-6
分子量 formula_weight	24883.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,M
原子数 atom_count	64984

QFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

Entity 2 polymer

描述 description	Proteasome subunit beta type-7
分子量 formula_weight	25945.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2,N

TQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

Entity 3 polymer

描述 description	Proteasome activator BLM10
分子量 formula_weight	246282.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MTANNDDDIKSPIPITNKTLSQLKRFERSPGRPSSSQGEIKRKKSRLYAADGRPHSPLRARSATPTLQDQKLFNGMDSTSLLNERLQHYTLDYVSDRAQHMKNIYDPSSRWFSRSVRPEFPIEEFLPYKTESHEDQAKYLCHVLVNLYIAISSLDIQGLISISSKDLADLKKEVDDLALKTDLFRLSNNTAENDLLGNDIADYDDAEGLEDELDEYFDLAGPDFNATGKITAKSATIVNVNHWTNELKNCLHFDFPVALRKSLATVYYYLSLVQGQKVYRQMHVDMFERLVSLDDDRTNFTELLQKQGLLLDHQIMLNFLCEFLPYPDPDYARYELSSKEDLQLFRLLLKHAHNAKPFFDKSKESLLVDTMNFLLSSLAPSTMMAVMPIVTSVVPYHYHIHSKIIDYFPFCYSIWSSVSANVAIDTHMYDFVGSISKDVHNKILSSEHEKDVVGVEFGEFGIFTDDQMTFMFNRLQGHLRTDGQIHSYSRTVKPFVYAINGSKKDRFFEKLVSLAKAIETFIHPSNNGFWTKPNAKFVHAFIKSYHGRVKYEEDICARGVTNGICLTSFCHEEIVEIFLNIISLGSQNKNPDIANYYISCFAYLLELDPSNAYLIYDKILIDLYDTLADQFINSRHRIISSLKQFTRVIRFIVMDKLYRVHITNVLSMLVSKLDMNDTNLTSNLINGIVSIAAFIPIQDLTGEDDYISFESDTLPLVQQHFYHIKCGESSKTFRVDDELLNNAFKASTTVFQSMLKVYVEKIFQLVDVDLEDSLVTKINQTTMILQESMDDKIFNYFASLLQRNFWSNDSFKEKDPNYELVTIPLAALVRRNNGLSKELVRTLLFHIKEQIKRGAGSVRSTSEIQQRDVKLVLYLTALNDVLRQCHESLLEYSDELITFMKYLYDNVTNPPLDVITSIVIHSALATLCTTEITDCRLFPEDSKIPEKDRWGGLQFDPRRFDKQHLSFQWHVPSSDEITLSISILESLSEYCINNVEELMKAPRHDSEYGDMIQKYVLVMTHTLSGSSLLFDPDFNKYRTQSNLSYREKLILLKNIRENNCDPQELDIDIEQIRSGKDDEDYIESKDIEAGLNAGVSDVVQLRDEFPDELIVDEEVVSEMPSGVNTPIAGTHGTDNSAMSSDLAFRDLDIYTCNYYFGNTTEEKLQNPQYLQVHRVRARIGHFFHKLYVFLSTNFENNTNMFQILLHGLKVWFTDLGQETVFNEDPNAFIDVDFLENVQSLSHVNEPFTRTNFAIRANSLHQSRVLLHSTNRKASKLENLLLVDIIQLATSLYPDIYKPAQGTLVHCMKQLVGSYGVVINKIIPSLEKAIKDHDYMKIQVILNVLLIKKIHRKLMTDYKDIGRLIFLLIECCRVNELEIGMYADKILTDIVIGIKIPSSVCVISDQAFLPLAPPDGTINLQVEAVKLAKKKKREYYLSLLVDLQDKLLDKLDNEKDMGWKIRMFILRFVTQIQSNLESKPDKRAVFSIISQISTKHPEIIHLVVKSLLSTCNKIISLSDYEYDITRAYKNEFNPSFVEILDTSTTSFPKTFTEEMNNFDNPKYFIDLRAYVGWLCWGRLMYVMSPKALKLNLRENELEVLKTAGHLLTREFLRDVTMNLVQDNETRGVFSSGNVSFFSLVILLISSGFCELNMSDLFELCESYYNKDDKASMIMSVEIVAGLVCGSKFMSVSDLDKRDTFIENFLAKCLDYELNHDAFEIWSTLAWWLPAVVDLRRSKTFFCHFINADGMFDRESDAATHQTSKIYMLRSILMSMEFRAPDVGKLFDELVFDHPYDQVRQAVAKLLTTLVQNQSNPSISDPTTLLEAERNDPDGLGLPLKSVPEKVDAYIKKQFEIIKNLEDSVVGLNPQQFIKTDYFYRTSTIFYWIKEMARGPNKVLLVPYLVDYVLPFLIGLVKHKDVCALASLDPVRLYAGLGYMPIRKNHVAAIVDYVCSSNVALSSNQTKLQLAFIQHFLSAELLQLTEEEKNKILEFVVSNLYNEQFVEVRVRAASILSDIVHNWKEEQPLLSLIERFAKGLDVNKYTSKERQKLSKTDIKIHGNVLGLGAIISAFPYVFPLPPWIPKQLSNLSSWARTSGMTGQAAKNTISEFKKVRADTWKFDRASFNTEELEDLEGVLWRSYYA

Entity 4 polymer

描述 description	Proteasome subunit alpha type-1
分子量 formula_weight	28033.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,O

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

Entity 5 polymer

描述 description	Proteasome subunit alpha type-2
分子量 formula_weight	27191.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,P

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

Entity 6 polymer

描述 description	Proteasome subunit alpha type-3
分子量 formula_weight	28748.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,Q

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

Entity 7 polymer

描述 description	Proteasome subunit alpha type-4
分子量 formula_weight	28478.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,R

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

Entity 8 polymer

描述 description	Proteasome subunit alpha type-5
分子量 formula_weight	28649.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,S

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

Entity 9 polymer

描述 description	Proteasome subunit alpha type-6
分子量 formula_weight	25634.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,T

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

Entity 10 polymer

描述 description	Probable proteasome subunit alpha type-7
分子量 formula_weight	31575.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,U

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

Entity 11 polymer

描述 description	Proteasome subunit beta type-1
分子量 formula_weight	21517.2 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,V

TSIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAGSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

Entity 12 polymer

描述 description	Proteasome subunit beta type-2
分子量 formula_weight	25114.5 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,W

TTIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

Entity 13 polymer

描述 description	Proteasome subunit beta type-3
分子量 formula_weight	22627.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,X

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

Entity 14 polymer

描述 description	Proteasome subunit beta type-4
分子量 formula_weight	24431.6 kDa
突变 mutation	S142F
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K,Y

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFFLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQDYKDDDDKHHHHHH

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 15 polymer

描述 description	Proteasome subunit beta type-5
分子量 formula_weight	23325.2 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,Z

TTTLAFRFQGGIIVAVDSRATAGNWVASQTVKKVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

Entity 16 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2483

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.39 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	129737

fit	/app/data/saxs_computation/gb/9gbk/9gbk.fit
pddf	/app/data/pr_computation/gb/9gbk/9gbk.pr.out
profile	/app/data/saxs_computation/gb/9gbk/9gbk.dat
