9edr

Tubulin Cofactors D,E,G,C and Tubulin complex -- TBCC N Terminus Bound to Tubulin

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromosome instability protein 1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GTP-binding protein CIN4 × 1 （P39110） Tubulin alpha-1A chain × 1 （P02550） Tubulin beta chain × 1 （P02554） Tubulin-specific chaperone C × 1 （P46670） iiH5 alphaRep × 1 Protein PAC2 × 1 （P39937） GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CIN1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 8–1021； UniProt 1–1014

GTP-binding protein CIN4

Saccharomyces cerevisiae

UniProt P39110

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Chromosome instability protein 1 × 1 （P40987） Tubulin alpha-1A chain × 1 （P02550） Tubulin beta chain × 1 （P02554） Tubulin-specific chaperone C × 1 （P46670） iiH5 alphaRep × 1 Protein PAC2 × 1 （P39937） GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CIN4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–191； UniProt 1–191

Tubulin alpha-1A chain

OrganismNot specified

UniProt P02550

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Chromosome instability protein 1 × 1 （P40987） GTP-binding protein CIN4 × 1 （P39110） Tubulin beta chain × 1 （P02554） Tubulin-specific chaperone C × 1 （P46670） iiH5 alphaRep × 1 Protein PAC2 × 1 （P39937） GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBA1A_PIG
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–451； UniProt 1–451

Tubulin beta chain

OrganismNot specified

UniProt P02554

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Chromosome instability protein 1 × 1 （P40987） GTP-binding protein CIN4 × 1 （P39110） Tubulin alpha-1A chain × 1 （P02550） Tubulin-specific chaperone C × 1 （P46670） iiH5 alphaRep × 1 Protein PAC2 × 1 （P39937） GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBB_PIG
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain B； PDBConstruct 1–445； UniProt 1–445

Tubulin-specific chaperone C

Saccharomyces cerevisiae

UniProt P46670

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Chromosome instability protein 1 × 1 （P40987） GTP-binding protein CIN4 × 1 （P39110） Tubulin alpha-1A chain × 1 （P02550） Tubulin beta chain × 1 （P02554） iiH5 alphaRep × 1 Protein PAC2 × 1 （P39937） GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBCC_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain C； PDBConstruct 1–268； UniProt 1–268

Protein PAC2

Saccharomyces cerevisiae

UniProt P39937

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	Chromosome instability protein 1 × 1 （P40987） GTP-binding protein CIN4 × 1 （P39110） Tubulin alpha-1A chain × 1 （P02550） Tubulin beta chain × 1 （P02554） Tubulin-specific chaperone C × 1 （P46670） iiH5 alphaRep × 1 GUANOSINE-5'-TRIPHOSPHATE × 2 GUANOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAC2_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain E； PDBConstruct 325–421； UniProt 422–518

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9edr
Deposition date deposition_date	2024-11-17
Structure title title	Tubulin Cofactors D,E,G,C and Tubulin complex -- TBCC N Terminus Bound to Tubulin
Keywords keywords	Cytoskeleton, tubulin, tubulin cofactors, microtubules, tubulin biogenesis, tubulin degredation, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9edr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9edr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

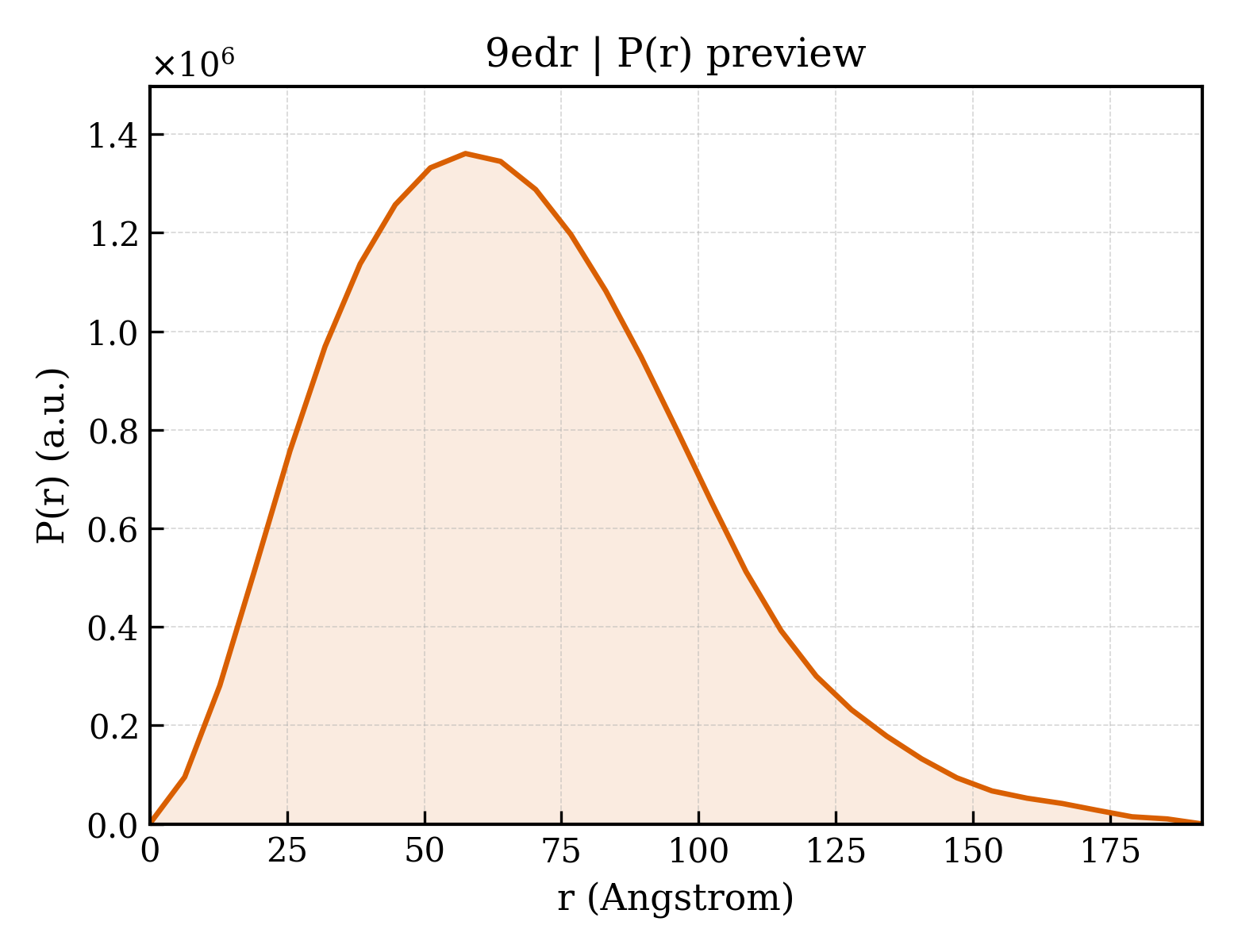

9edr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.53 Å
Rg (electron density)	51.73 Å
Total Rg	51.41 Å
Atom count	40253
Residues	2850
Excluded volume	377520 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9edr__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Chromosome instability protein 1
Molecular weight formula_weight	117739.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	40253

MHHHHHHMNNIRALLDSIQSGVQTVSPEKHQQTIAAINKFQDDPALLDTILPRCVPLLTKSFFCMSQRDQKLVAELFYNLDKISHSKVLKSLDTSIFRLNEILNYLQDRASPSSFSDVLCVYLNLSWLSVILLSPYAFKDKFNKTLQVSSRFENYPICIPPINKIKAVLYFKNFTDAFDQLPEREQANVPFLNQFLKLFIQSSEKANYYFSNENLRHLQQVALSNDGIKLLPKLFQISFNHGSHDILDAIVEFFHDHLSSNSTDTRFQLAHSFAKIAKFLHQADPASFIELIDYTIENTVSLLQAPCDSIDSNELHTSLLIIAEVALAKILPIDLVDRVLTLIIPKTCHFQKSHFQIIKGHHIRDSTNFIIWSVIRSNRSNSLSPQVLQSLLSHLLINAFFDPELIIRYSSFAALQELLGRSNKSLALNQNDIALILQANWKDLPRSFEENSGLIRRLFNPENTSKSAVCVWKVFRDWSFNWNLLENLHLTTMKLNIDYNLVPLIKSKLSSPALLQEVLNKAGSSVTQNCQILYLYLKLFENDVNCPKISEICIDIYQKKIKFQLTTQAKRQFNDNSPELFQIFVILKYWQLTGQNDFNQELFWKFVDIVSPQKKLNLYNEFIPIIQQIISQCVSLNYTRIVQLIKSDNELTCRSICHMPDQEKMCSLFFSQFPLLSPQSRSLLIGELDHHWDVRISLLPSNSYRKFRNIIINCLDDYTITQQGDVGRLVRIQALKLMQSHPDFLSGDCDSINPKLTRLLAEPVPEIRKLSYQLLASATSQITVLSDSSILNFRHKQGLSEEFWKGYAVSAGAIHFTDSQLTSSIDSFIVYYRSLSPSQQLELCHDLIRIIPSAKQIAESRIRDRNKDPLTGGMRFDTIKFTIHCVKFWTRIMESGLVVLHPNFNFQGVFAKFYNLHLLDCTTLRVSVIKFFPFLAISCYHTMRENADQKNLSNIILKRLLVLVKREYAATKSKFMTDQNVALQGMFQIFLELGVTRQLQALQVACQKHELANILESDITL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GTP-binding protein CIN4
Molecular weight formula_weight	22081.7 kDa
Mutation mutation	Q73L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MGLLSIIRKQKLRDKEIRCLILGLDNSGKSTIVNKLLPKDEQNNDGIMPTVGFQIHSLMIKDVTISLWDIGGLRTLRPFWDNYFDKTQAMIWCIDVSLSMRFDETLQELKELINRDENRIGYECAVIVVLNKIDLVEDKSELHRRCLLVESELKCLFKPDIRIELVKCSGVTGEGIDNLRDRLVESCHFTQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Tubulin alpha-1A chain
Molecular weight formula_weight	50121.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFSVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLIGQIVSSITASLRFDGALNVDLTEFQTNLVPYPRAHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRTIQFVDWCPTGFKVGINYEPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 4 Entity 4 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	49907.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEAAGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEGEEDEA

Entity 5 Entity 5 polymer

Description description	Tubulin-specific chaperone C
Molecular weight formula_weight	30750.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MDFTAKIKELERELSETSDYKTLQKKTISLRSELNTLSHSLTSYEKEHFSNDIENVLKSINAKLSESKGKKRLFSFKQKNSSSAVHKNVERTELANAPAYTTTLKKHYVLEKGDSAFENLEFCTVTSTTDYSGNSALSGSLCFRNITKCVINLQRIFFQTGSIFITDCTDSIIFLRSPSDKDFQIRLRDLKNCKILIEKLSPSIDCKQVVIIENCHKCIFNASTRDHLIIQDFSNPFQSEETEDNSAFAFEDFDICNKDTMQLFRAYL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	iiH5 alphaRep
Molecular weight formula_weight	18866.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MRGSHHHHHHTDPEKVEMYIKNLQDDSPPVRFNAAVALGKIGDERAVEPLIKALKDEDWQVRKTAAYALGKIGDERAVEPLIKALKDEDRYVRSRAALALGKIGDERAVEPLIKALKDEDEYVRLSAASALGKIGGERVRAAMEKLAETGTGFARKVAVNYLETHKSLIS

Entity 7 Entity 7 polymer

Description description	Protein PAC2
Molecular weight formula_weight	38682.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXQSLVLKIKIRAGKKPSSDLDYWVLPSFTVRYVKSVICRKLNFDILNVKLFHENSEGMINEIKYNFRPISDFNVVNGDIIHVSSPVNNKSIQKVNSPS

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	370000
