9eds

Tubulin cofactors D,E,G,C bound to tubulin dimer -- TBCC N terminus unbound

Method: ELECTRON MICROSCOPY D_max: 191.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

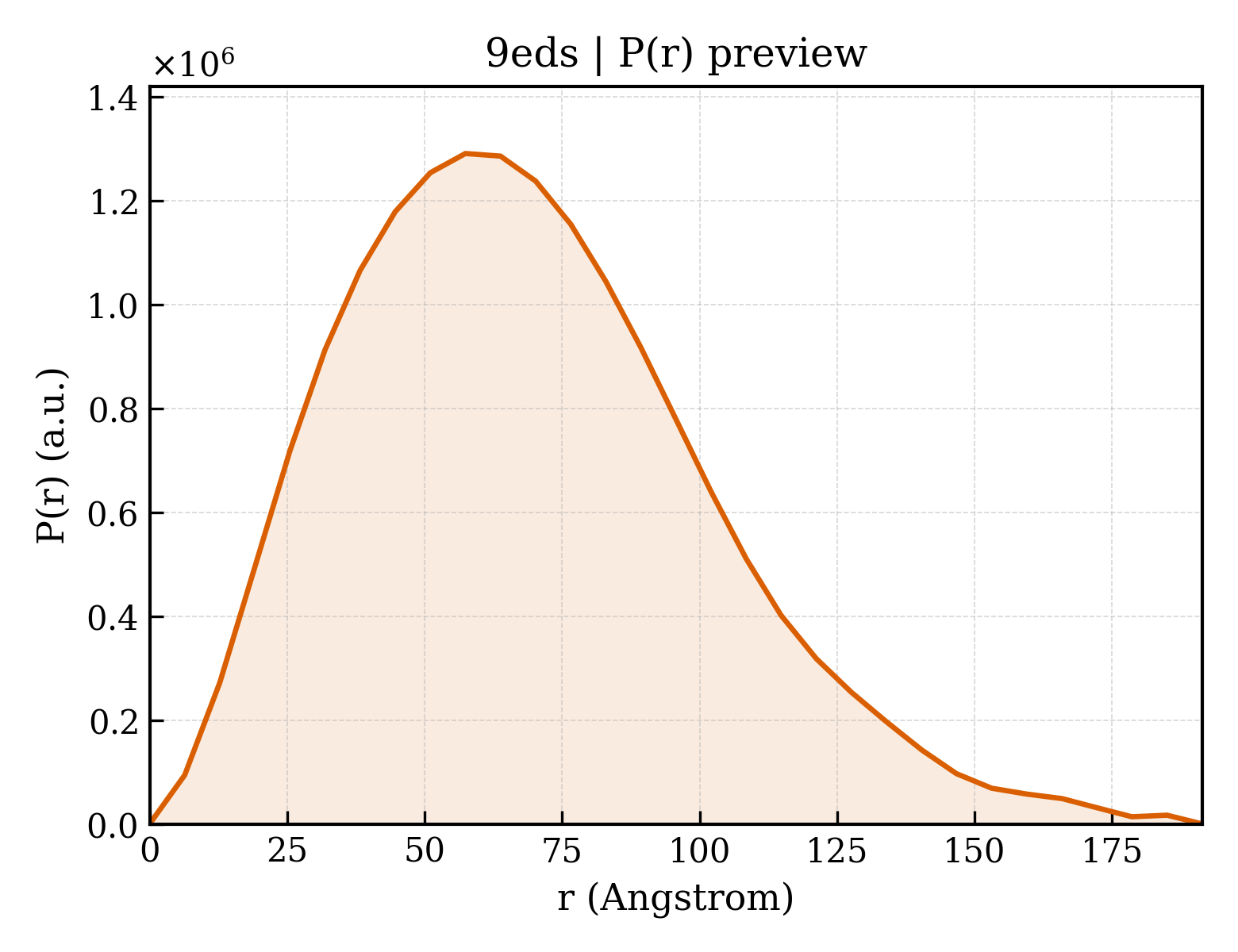

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9eds
沉积日期 deposition_date	2024-11-18
结构标题 title	Tubulin cofactors D,E,G,C bound to tubulin dimer -- TBCC N terminus unbound
关键词 keywords	Tubulin, Cofactors, Tubulin biogeneis, Tubulin degradation, microtubules, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	53.21 Å
回转半径 Rg (电子) rg_electron	52.46 Å
零角强度 I(0) i0	1323000000.00
分子量 molecular_weight	297370.0 kDa
排除体积 excluded_volume	369620 Å³
包络体积 envelope_volume	565600 Å³
水化壳体积 shell_volume	90461 Å³
包络直径 envelope_diameter	203.1 Å
壳层 Rg shell_rg	53.89 Å
包络 Rg envelope_rg	53.92 Å
形状 Rg shape_rg	52.57 Å
总 Rg total_rg	52.11 Å
总原子数 total_atoms	39102
残基数 n_residues	2818
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	191.4 Å
Rg (实空间) rg_real	53.47 Å
Rg 误差 (实空间) rg_real_error	2.19 Å
I(0) (实空间) i0_real	1.3230e+09
I(0) 误差 (实空间) i0_real_error	2.7600e+07
Rg (倒空间) rg_reciprocal	53.00 Å
I(0) (倒空间) i0_reciprocal	1322000000.0000
解质量估计 total_estimate	0.8501
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	57.4 Å
偏度 Skewness skewness	0.558
峰度 Kurtosis kurtosis	0.117
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	129600000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.745; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.816

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Chromosome instability protein 1
分子量 formula_weight	117739.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D
原子数 atom_count	39102

MHHHHHHMNNIRALLDSIQSGVQTVSPEKHQQTIAAINKFQDDPALLDTILPRCVPLLTKSFFCMSQRDQKLVAELFYNLDKISHSKVLKSLDTSIFRLNEILNYLQDRASPSSFSDVLCVYLNLSWLSVILLSPYAFKDKFNKTLQVSSRFENYPICIPPINKIKAVLYFKNFTDAFDQLPEREQANVPFLNQFLKLFIQSSEKANYYFSNENLRHLQQVALSNDGIKLLPKLFQISFNHGSHDILDAIVEFFHDHLSSNSTDTRFQLAHSFAKIAKFLHQADPASFIELIDYTIENTVSLLQAPCDSIDSNELHTSLLIIAEVALAKILPIDLVDRVLTLIIPKTCHFQKSHFQIIKGHHIRDSTNFIIWSVIRSNRSNSLSPQVLQSLLSHLLINAFFDPELIIRYSSFAALQELLGRSNKSLALNQNDIALILQANWKDLPRSFEENSGLIRRLFNPENTSKSAVCVWKVFRDWSFNWNLLENLHLTTMKLNIDYNLVPLIKSKLSSPALLQEVLNKAGSSVTQNCQILYLYLKLFENDVNCPKISEICIDIYQKKIKFQLTTQAKRQFNDNSPELFQIFVILKYWQLTGQNDFNQELFWKFVDIVSPQKKLNLYNEFIPIIQQIISQCVSLNYTRIVQLIKSDNELTCRSICHMPDQEKMCSLFFSQFPLLSPQSRSLLIGELDHHWDVRISLLPSNSYRKFRNIIINCLDDYTITQQGDVGRLVRIQALKLMQSHPDFLSGDCDSINPKLTRLLAEPVPEIRKLSYQLLASATSQITVLSDSSILNFRHKQGLSEEFWKGYAVSAGAIHFTDSQLTSSIDSFIVYYRSLSPSQQLELCHDLIRIIPSAKQIAESRIRDRNKDPLTGGMRFDTIKFTIHCVKFWTRIMESGLVVLHPNFNFQGVFAKFYNLHLLDCTTLRVSVIKFFPFLAISCYHTMRENADQKNLSNIILKRLLVLVKREYAATKSKFMTDQNVALQGMFQIFLELGVTRQLQALQVACQKHELANILESDITL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Protein PAC2
分子量 formula_weight	42767.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXQSLVLKIKIRAGKKPSSDLDYWVLPSFTVRYVKSVICRKLNFDILNVKLFHENSEGMINEIKYNFRPISDFNVVNGDIIHVSSPVNNKSIQKVNSPS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	GTP-binding protein CIN4
分子量 formula_weight	22081.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MGLLSIIRKQKLRDKEIRCLILGLDNSGKSTIVNKLLPKDEQNNDGIMPTVGFQIHSLMIKDVTISLWDIGGLRTLRPFWDNYFDKTQAMIWCIDVSLSMRFDETLQELKELINRDENRIGYECAVIVVLNKIDLVEDKSELHRRCLLVESELKCLFKPDIRIELVKCSGVTGEGIDNLRDRLVESCHFTQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Tubulin alpha-1A chain
分子量 formula_weight	50121.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MRECISIHVGQAGVQIGNACWELYCLEHGIQPDGQMPSDKTIGGGDDSFNTFFSETGAGKHVPRAVFVDLEPTVIDEVRTGTYRQLFHPEQLITGKEDAANNYARGHYTIGKEIIDLVLDRIRKLADQCTGLQGFSVFHSFGGGTGSGFTSLLMERLSVDYGKKSKLEFSIYPAPQVSTAVVEPYNSILTTHTTLEHSDCAFMVDNEAIYDICRRNLDIERPTYTNLNRLIGQIVSSITASLRFDGALNVDLTEFQTNLVPYPRAHFPLATYAPVISAEKAYHEQLSVAEITNACFEPANQMVKCDPRHGKYMACCLLYRGDVVPKDVNAAIATIKTKRTIQFVDWCPTGFKVGINYEPPTVVPGGDLAKVQRAVCMLSNTTAIAEAWARLDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDMAALEKDYEEVGVDSVEGEGEEEGEEY

Entity 5 polymer

描述 description	Tubulin beta chain
分子量 formula_weight	49907.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGSYHGDSDLQLERINVYYNEAAGNKYVPRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVVRKESESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVVEPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCLRFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQMFDAKNMMAACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRGLKMSATFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATADEQGEFEEEGEEDEA

Entity 6 polymer

描述 description	iih5 Alpha Repeating
分子量 formula_weight	18866.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MRGSHHHHHHTDPEKVEMYIKNLQDDSPPVRFNAAVALGKIGDERAVEPLIKALKDEDWQVRKTAAYALGKIGDERAVEPLIKALKDEDRYVRSRAALALGKIGDERAVEPLIKALKDEDEYVRLSAASALGKIGGERVRAAMEKLAETGTGFARKVAVNYLETHKSLIS

Entity 7 polymer

描述 description	Tubulin-specific chaperone C
分子量 formula_weight	30750.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MDFTAKIKELERELSETSDYKTLQKKTISLRSELNTLSHSLTSYEKEHFSNDIENVLKSINAKLSESKGKKRLFSFKQKNSSSAVHKNVERTELANAPAYTTTLKKHYVLEKGDSAFENLEFCTVTSTTDYSGNSALSGSLCFRNITKCVINLQRIFFQTGSIFITDCTDSIIFLRSPSDKDFQIRLRDLKNCKILIEKLSPSIDCKQVVIIENCHKCIFNASTRDHLIIQDFSNPFQSEETEDNSAFAFEDFDICNKDTMQLFRAYL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 8 non-polymer

描述 description	GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	GUANOSINE-5'-DIPHOSPHATE
分子量 formula_weight	443.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.800 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/ed/9eds/9eds.fit
pddf	/app/data/pr_computation/ed/9eds/9eds.pr.out
profile	/app/data/saxs_computation/ed/9eds/9eds.dat
