1. Protein Identity and Related Structures Protein Identity & Related Structures

Matrix protein p17

Human immunodeficiency virus type 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 39	MYRISTIC ACID × 39	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1N5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–115； UniProt 2–116 Author chain B； PDBConstruct 1–115； UniProt 2–116 Author chain C； PDBConstruct 1–115； UniProt 2–116 Author chain D； PDBConstruct 1–115； UniProt 2–116 Author chain E； PDBConstruct 1–115； UniProt 2–116 Author chain F； PDBConstruct 1–115； UniProt 2–116 Author chain G； PDBConstruct 1–115； UniProt 2–116 Author chain H； PDBConstruct 1–115； UniProt 2–116 Author chain I； PDBConstruct 1–115； UniProt 2–116 Author chain J； PDBConstruct 1–115； UniProt 2–116 Author chain K； PDBConstruct 1–115； UniProt 2–116 Author chain L； PDBConstruct 1–115； UniProt 2–116 Author chain M； PDBConstruct 1–115； UniProt 2–116 Author chain N； PDBConstruct 1–115； UniProt 2–116 Author chain O； PDBConstruct 1–115； UniProt 2–116 Author chain P； PDBConstruct 1–115； UniProt 2–116 Author chain Q； PDBConstruct 1–115； UniProt 2–116 Author chain R； PDBConstruct 1–115； UniProt 2–116 Author chain S； PDBConstruct 1–115； UniProt 2–116 Author chain T； PDBConstruct 1–115； UniProt 2–116 Author chain U； PDBConstruct 1–115； UniProt 2–116 Author chain V； PDBConstruct 1–115； UniProt 2–116 Author chain W； PDBConstruct 1–115； UniProt 2–116 Author chain X； PDBConstruct 1–115； UniProt 2–116 Author chain Y； PDBConstruct 1–115； UniProt 2–116 Author chain Z； PDBConstruct 1–115； UniProt 2–116 Author chain a； PDBConstruct 1–115； UniProt 2–116 Author chain b； PDBConstruct 1–115； UniProt 2–116 Author chain c； PDBConstruct 1–115； UniProt 2–116 Author chain d； PDBConstruct 1–115； UniProt 2–116 Author chain e； PDBConstruct 1–115； UniProt 2–116 Author chain f； PDBConstruct 1–115； UniProt 2–116 Author chain g； PDBConstruct 1–115； UniProt 2–116 Author chain h； PDBConstruct 1–115； UniProt 2–116 Author chain i； PDBConstruct 1–115； UniProt 2–116 Author chain j； PDBConstruct 1–115； UniProt 2–116 Author chain k； PDBConstruct 1–115； UniProt 2–116 Author chain l； PDBConstruct 1–115； UniProt 2–116 Author chain m； PDBConstruct 1–115； UniProt 2–116

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ek2
Deposition date deposition_date	2024-11-30
Structure title title	HIV-1 immature L20K/E73K/A82T matrix protein p17 lattice
Keywords keywords	MATRIX, HIV-1, p17, HIV-1 p17, VIRUS, GAG, STRUCTURAL PROTEIN, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ek2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

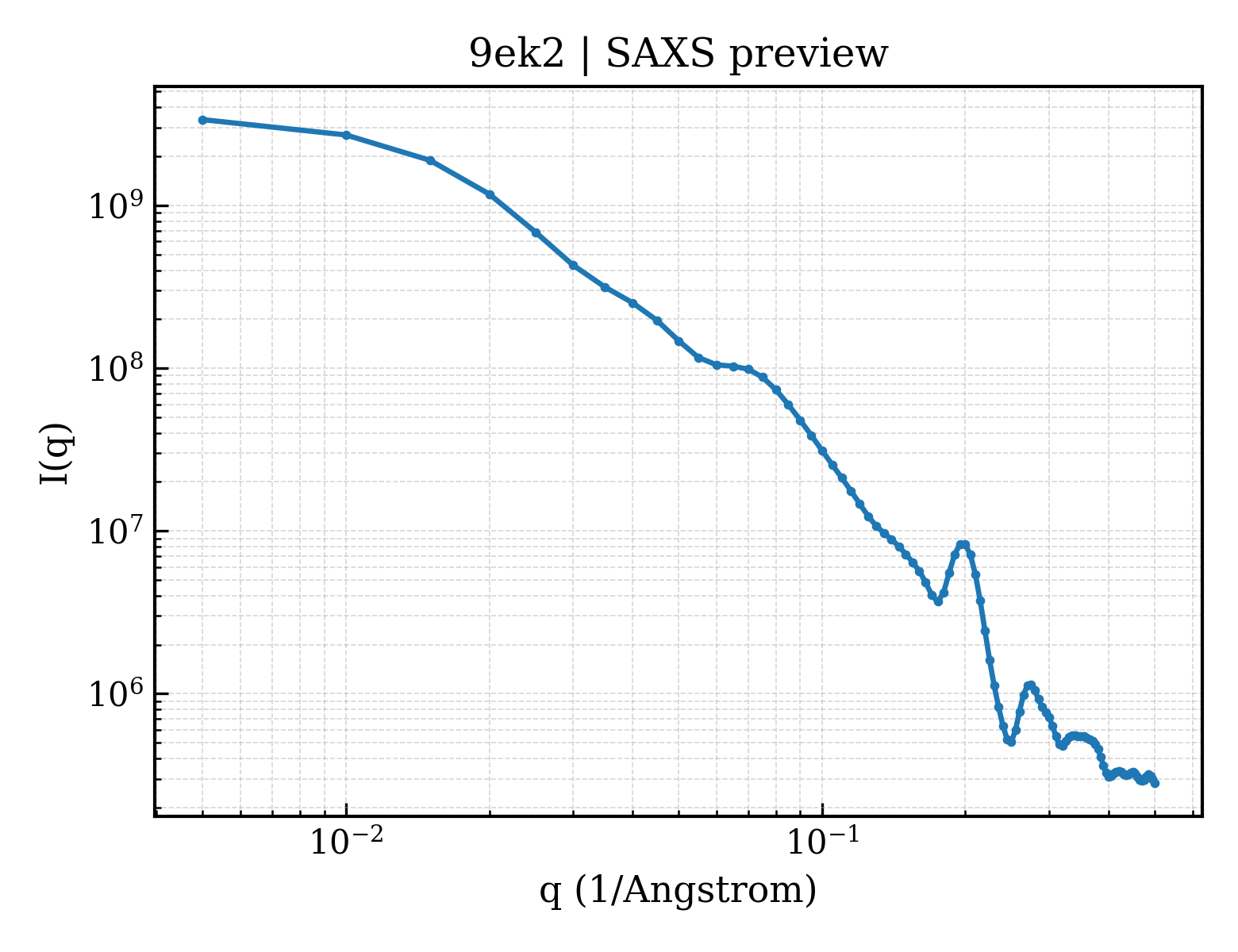

9ek2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

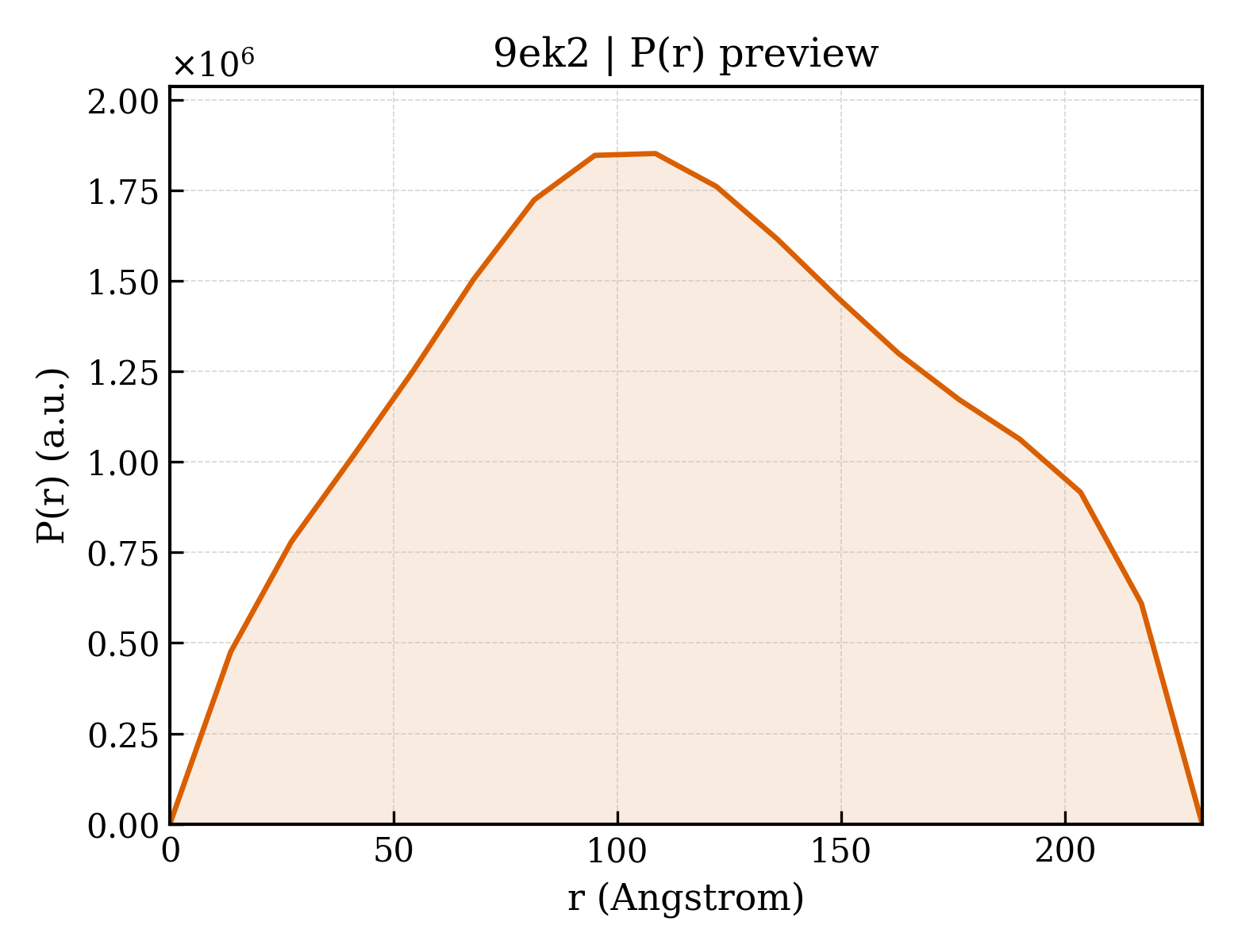

9ek2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	93.15 Å
Rg (electron density)	93.57 Å
Total Rg	93.41 Å
Atom count	36504
Residues	4485
Excluded volume	656190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ek2__assembly_1__model_1`	39-meric （39）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	8.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	8600

Description description	Matrix protein p17
Molecular weight formula_weight	13131.1 kDa
Mutation mutation	L20K,E73K,A82T
Source method src_method	man
Copy count entity_count	39

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,e,h,k,G,J,M,P,S,V,Y,b,B,E,f,i,l,H,K,N,Q,T,W,Z,c,C,F,g,j,m,I,L,O,R,U,X,a,d
Atom count atom_count	36504

HIV-1 immature L20K/E73K/A82T matrix protein p17 lattice

1. Protein Identity and Related Structures Protein Identity & Related Structures

Matrix protein p17

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

9ek2__assembly_1__model_1

9ek2__assembly_1__model_1 | I(q)

9ek2__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

7. Citations (1)

Source organism organism	Human immunodeficiency virus type 1
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Homo sapiens

Description description	MYRISTIC ACID
Molecular weight formula_weight	228.4 kDa
Source method src_method	syn
Copy count entity_count	39
