9rbf

Structure of a stalled E. coli 70S RNC-NuoK-86 in complex with the membrane protein insertase SecYEG-YidC

Method: ELECTRON MICROSCOPY Dmax: 220.1 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9rbf

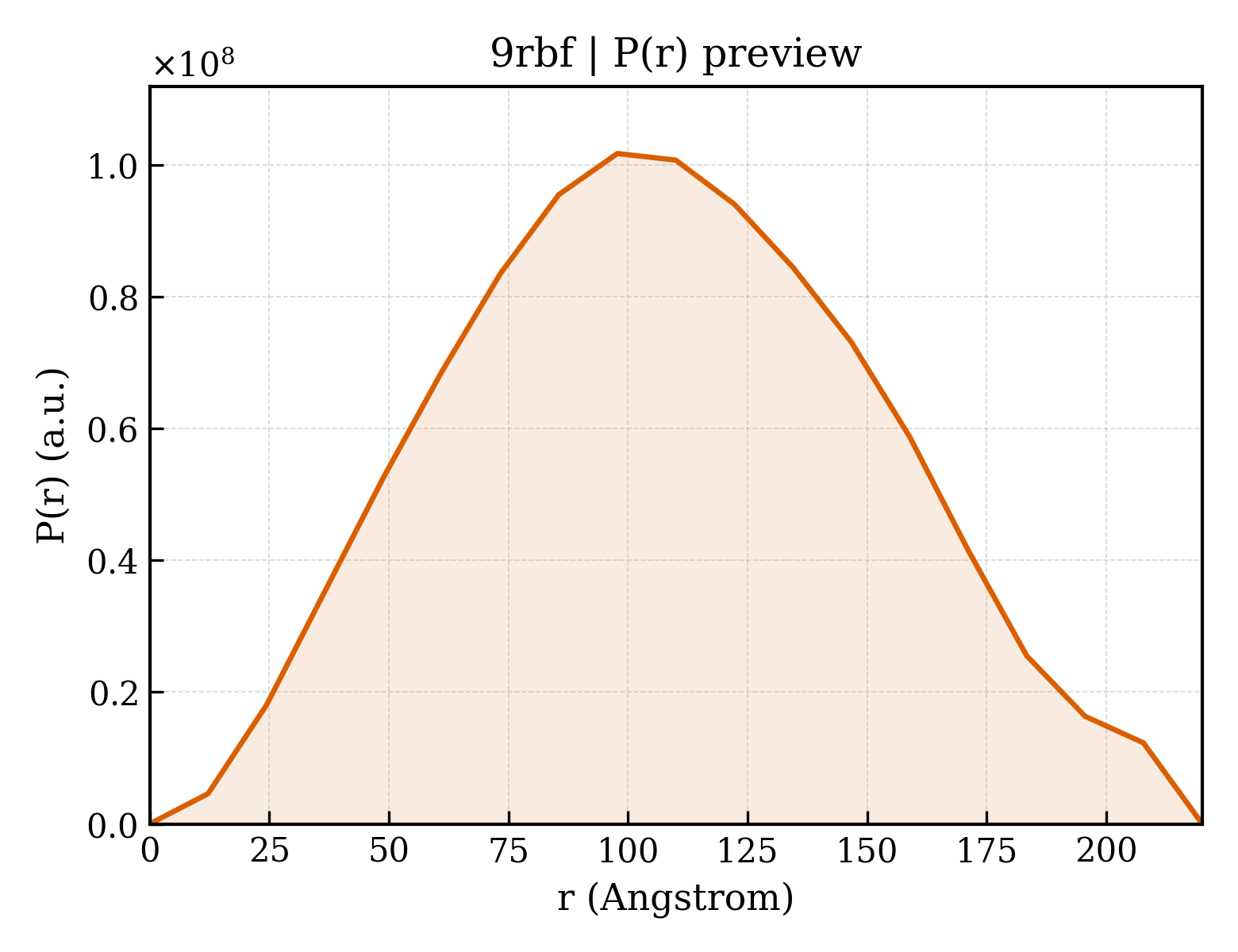

P(r) Distribution

P(r) distribution for 9rbf
▼

1. Structure Basics

entry_id9rbf
deposition_date2025-05-22
titleStructure of a stalled E. coli 70S RNC-NuoK-86 in complex with the membrane protein insertase SecYEG-YidC
keywords70S Ribosome, SecYEG translocon, YidC, NuoK, PROTEIN TRANSPORT; PROTEIN TRANSPORT
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier85.57 Å
rg_electron88.41 Å
i0156441000000.00
molecular_weight2237800.0 kDa
excluded_volume2329500 ų
envelope_volume4025900 ų
shell_volume354530 ų
envelope_diameter353.2 Å
shell_rg98.86 Å
envelope_rg88.32 Å
shape_rg88.58 Å
total_rg88.10 Å
total_atoms150736
n_residues11256
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax220.1 Å
rg_real82.00 Å
rg_real_error0.33 Å
i0_real1.4850e+11
i0_real_error2.1540e+09
rg_reciprocal86.20 Å
i0_reciprocal156700000000.0000
total_estimate0.9073
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary97.8 Å
skewness0.119
kurtosis-0.583
angular_range— – 0.0900 Å−1
current_alpha0.9953
highest_alpha8032000000.0000
n_real_points19
gnom_version4.1.3
quality_criteria AN1: 0.001; Oscil: 1.000; Stabil: 0.960; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.000
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (65)

▶

6. Citations (1)

▶

7. Files & Curves (10)
