9rbt

X-ray structure of decavanadate/lysozyme adduct obtained when the protein is treated with Cs2[V(V)2O4(mal)2]2H2O (structure B)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lysozyme C

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CHLORIDE ION × 1 SODIUM ION × 1 ACETATE ION × 2 DECAVANADATE × 1 ;2-[(4~{S})-1,1,6,6-tetrakis(oxidanyl)-3-oxidanylidene-2,5$l^{3},7-trioxa-1$l^{5},6$l^{4}-divanadabicyclo[3.2.0]heptan-4-yl]ethanoic acid ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LYSC_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 1–129； UniProt 19–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rbt
Deposition date deposition_date	2025-05-27
Structure title title	X-ray structure of decavanadate/lysozyme adduct obtained when the protein is treated with Cs2[V(V)2O4(mal)2]2H2O (structure B)
Keywords keywords	Vanadium compounds, decavanadate, lysozyme, protein metalation, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rbt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

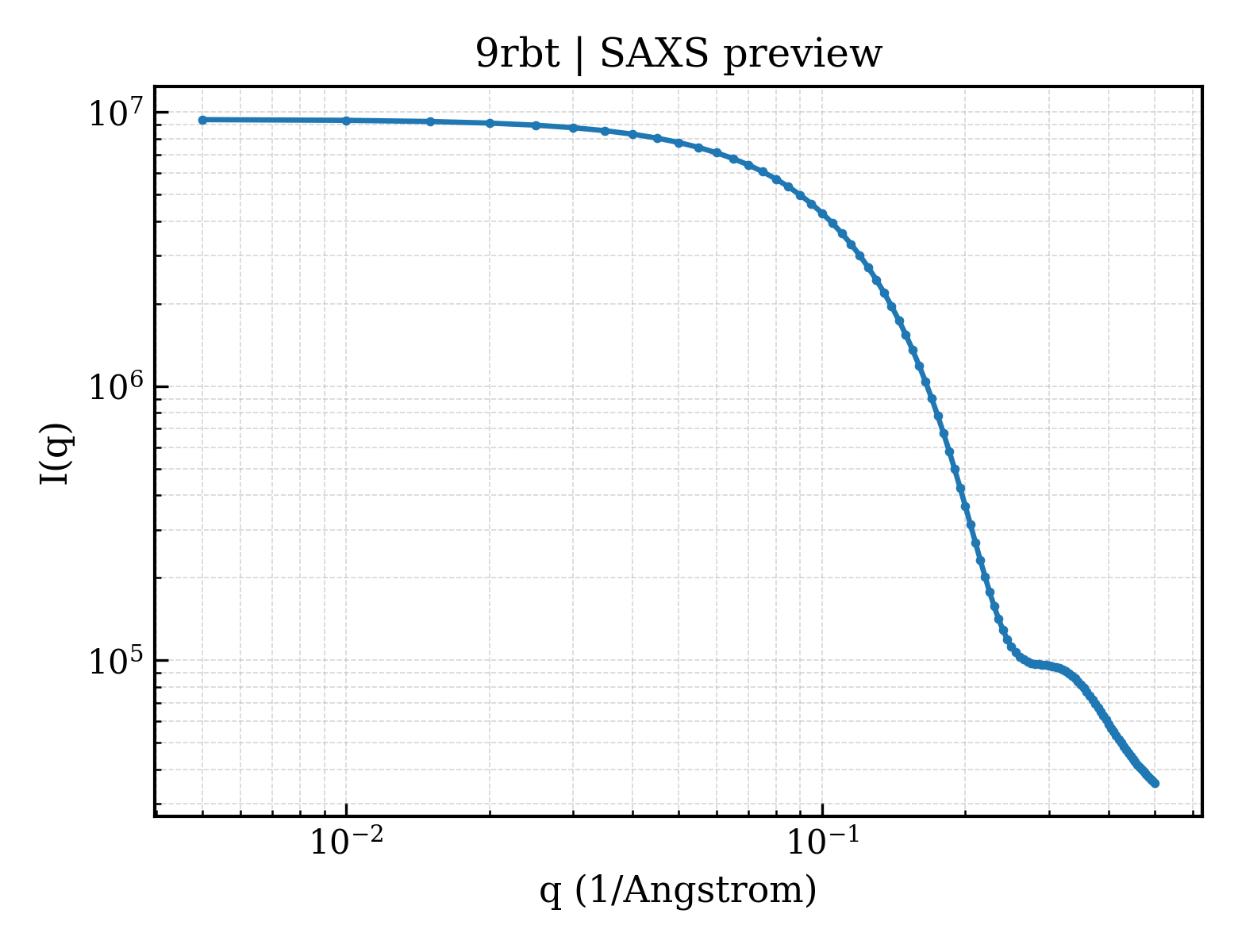

9rbt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

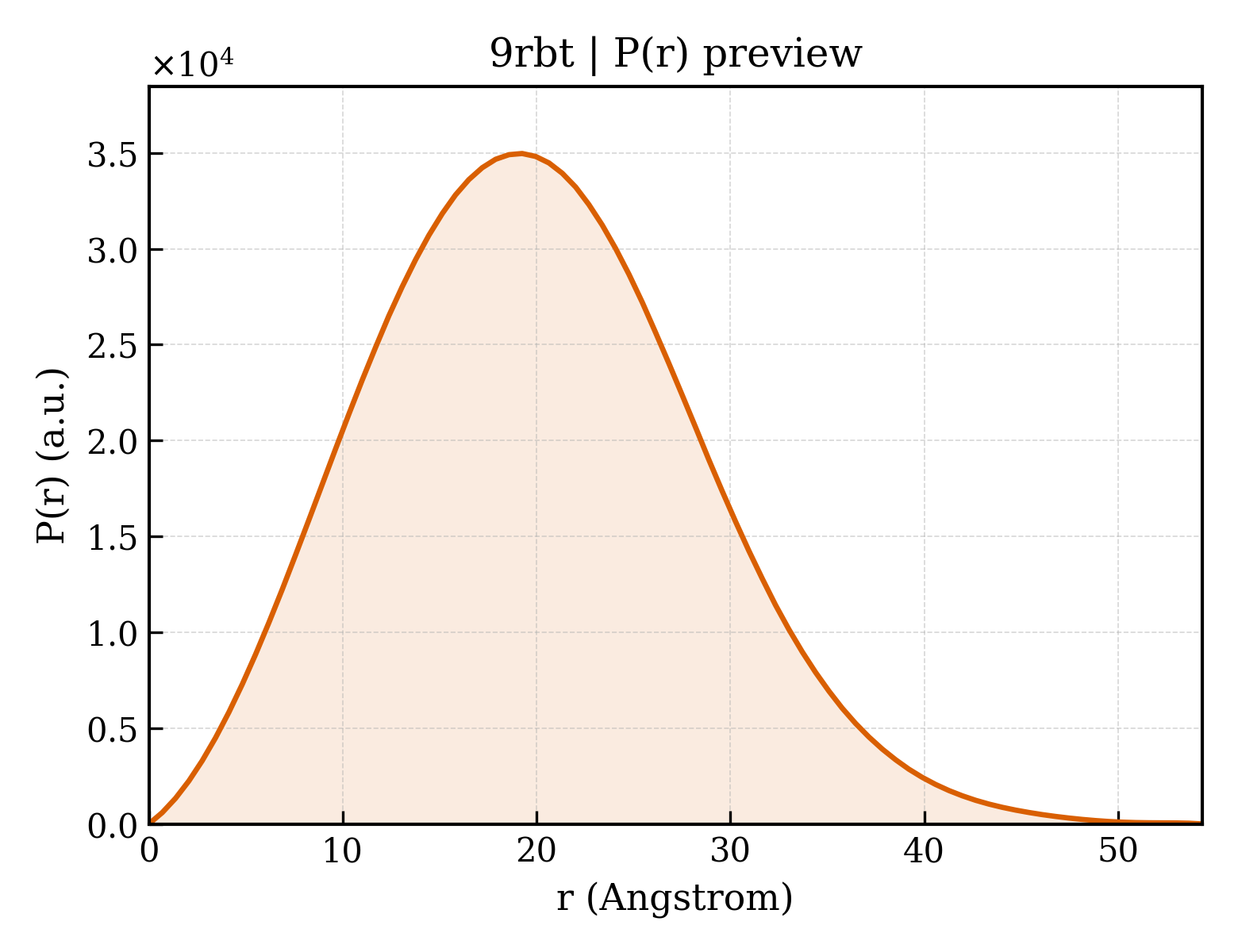

9rbt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.52 Å
Rg (electron density)	14.18 Å
Total Rg	15.31 Å
Atom count	1046
Residues	129
Excluded volume	18190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rbt__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Lysozyme C
Molecular weight formula_weight	14331.2 kDa
EC 编号 ec_number	3.2.1.17
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA
Atom count atom_count	1184

KVFGRCELAAAMKRHGLDNYRGYSLGNWVCAAKFESNFNTQATNRNTDGSTDYGILQINSRWWCNDGRTPGSRNLCNIPCSALLSSDITASVNCAKKIVSDGNGMNAWVAWRNRCKGTDVQAWIRGCRL

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	DECAVANADATE
Molecular weight formula_weight	957.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	;2-[(4~{S})-1,1,6,6-tetrakis(oxidanyl)-3-oxidanylidene-2,5$l^{3},7-trioxa-1$l^{5},6$l^{4}-divanadabicyclo[3.2.0]heptan-4-yl]ethanoic acid ;
Molecular weight formula_weight	318.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	109

▶

Unit-cell length a length_a	80.010 Å
Unit-cell length b length_b	80.010 Å
Unit-cell length c length_c	36.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.180 Å
Low-resolution limit resolution_low	40.010 Å
R factor r_factor	—
R_work r_work	0.1914
R_free r_free	0.2347
