9rbv
X-ray structure of lysozyme when is treated with Cs2[V(V)2O4(mal)2]2H2O at 310K
SAXS Profile

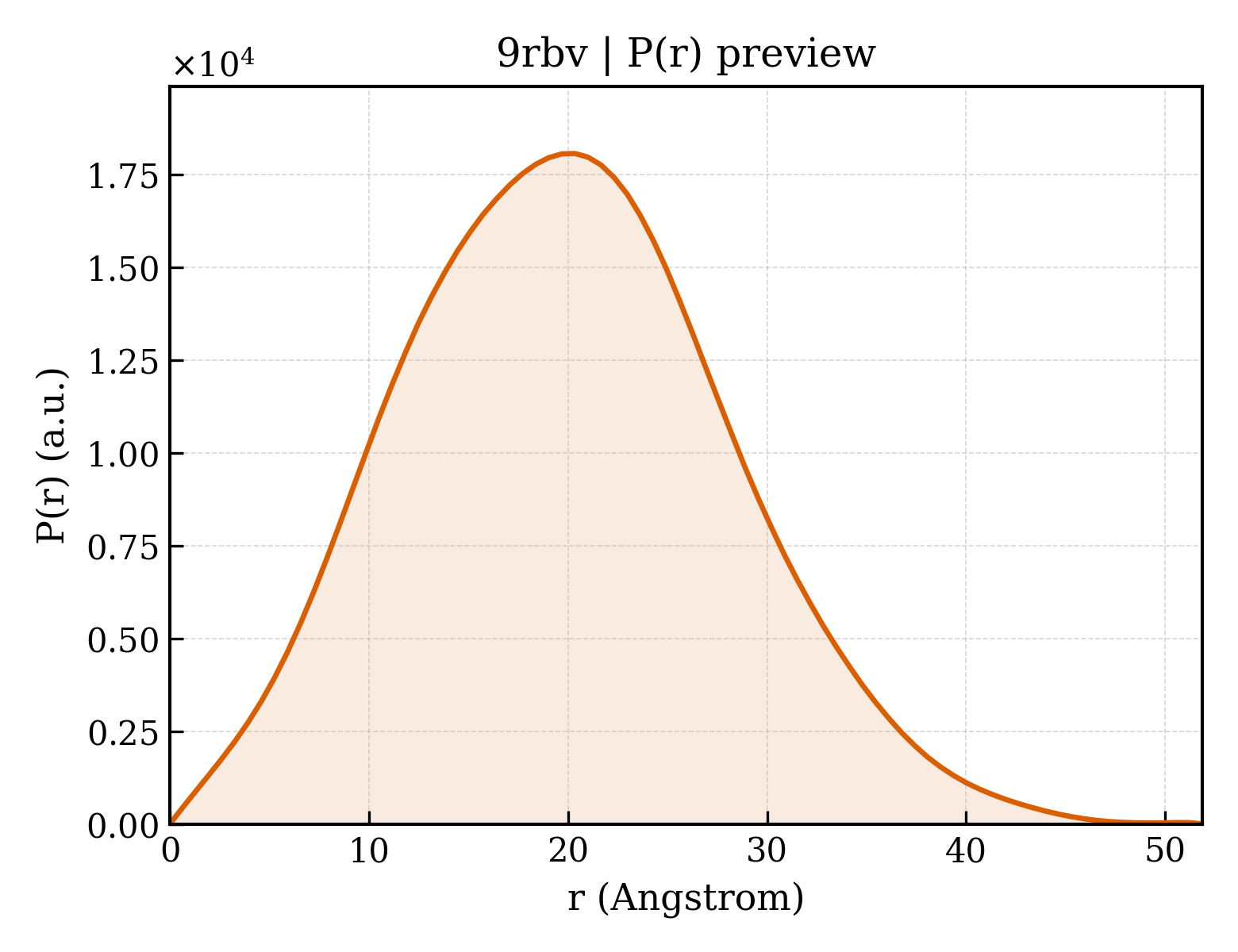

P(r) Distribution
1. Structure Basics
| entry_id | 9rbv |
| deposition_date | 2025-05-27 |
| title | X-ray structure of lysozyme when is treated with Cs2[V(V)2O4(mal)2]2H2O at 310K |
| keywords | Vanadium compounds, lysozyme, protein metalation, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.30 Å |
| rg_electron | 13.98 Å |
| i0 | 4790200.00 |
| molecular_weight | 14447.0 kDa |
| excluded_volume | 17555 ų |
| envelope_volume | 19618 ų |
| shell_volume | 12048 ų |
| envelope_diameter | 52.1 Å |
| shell_rg | 19.55 Å |
| envelope_rg | 14.27 Å |
| shape_rg | 13.95 Å |
| total_rg | 15.11 Å |
| total_atoms | 1005 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.9 Å |
| rg_real | 15.22 Å |
| rg_real_error | 0.34 Å |
| i0_real | 4.7900e+06 |
| i0_real_error | 5.8940e+04 |
| rg_reciprocal | 15.23 Å |
| i0_reciprocal | 4790000.0000 |
| total_estimate | 0.8677 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.4 Å |
| skewness | 0.225 |
| kurtosis | -0.222 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 843900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.760; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.999 |
