9rv6
5 micrometer HEWL crystals solved at room-temperature using fixed-target serial crystallography.
SAXS Profile

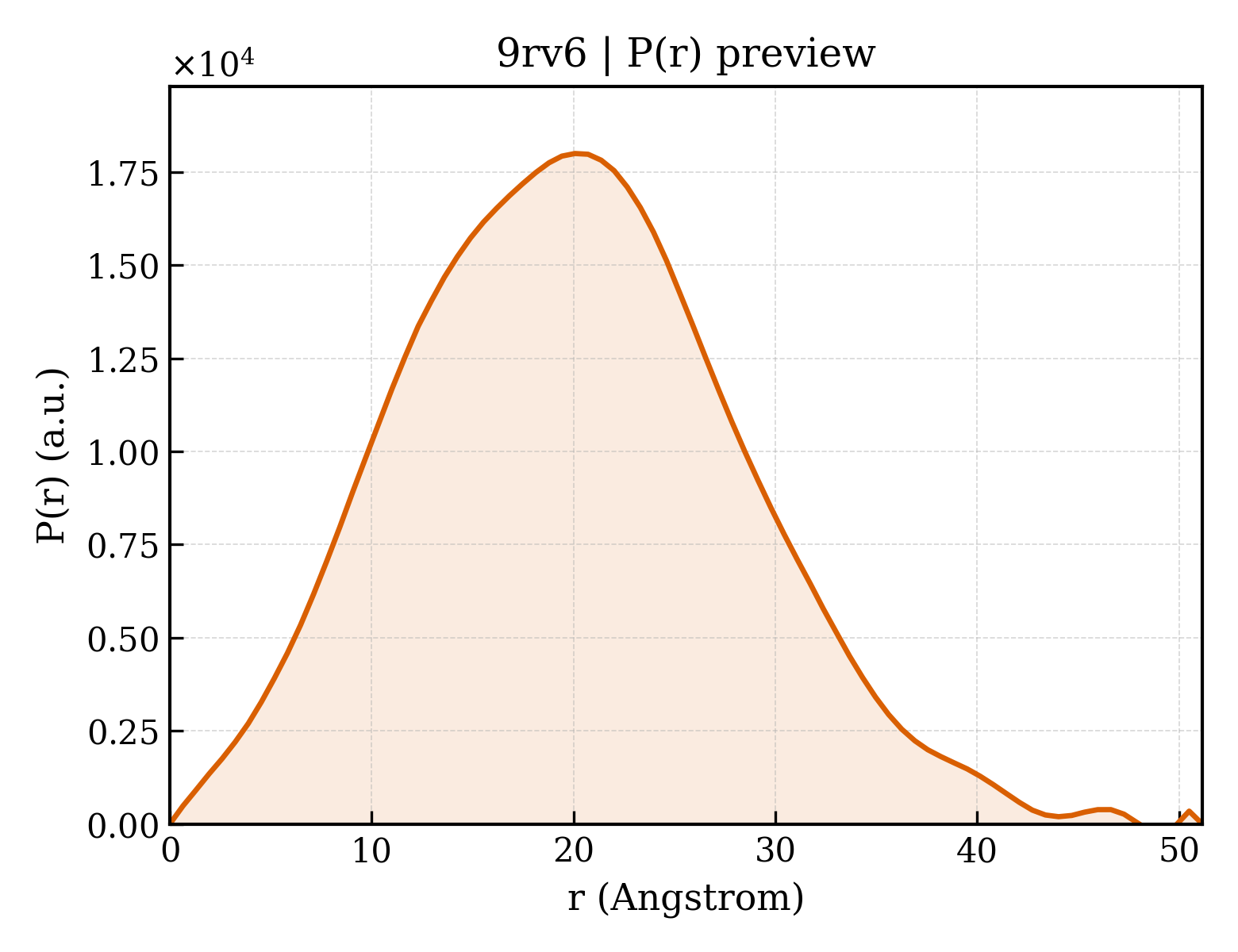

P(r) Distribution
1. Structure Basics
| entry_id | 9rv6 |
| deposition_date | 2025-07-07 |
| last_revision | 2025-11-12 |
| title | 5 micrometer HEWL crystals solved at room-temperature using fixed-target serial crystallography. |
| keywords | glycoside hydrolase, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.28 Å |
| rg_electron | 13.98 Å |
| i0 | 4764230.00 |
| molecular_weight | 14434.0 kDa |
| excluded_volume | 17540 ų |
| envelope_volume | 19478 ų |
| shell_volume | 11984 ų |
| envelope_diameter | 52.1 Å |
| shell_rg | 19.56 Å |
| envelope_rg | 14.29 Å |
| shape_rg | 13.95 Å |
| total_rg | 15.11 Å |
| total_atoms | 1004 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.1 Å |
| rg_real | 15.21 Å |
| rg_real_error | 0.38 Å |
| i0_real | 4.7640e+06 |
| i0_real_error | 6.0860e+04 |
| rg_reciprocal | 15.22 Å |
| i0_reciprocal | 4764000.0000 |
| total_estimate | 0.7906 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.1 Å |
| skewness | 0.243 |
| kurtosis | -0.190 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 782200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.764; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
