9rvi
10 micrometer HEWL crystals solved at room-temperature using fixed-target serial crystallography.
SAXS Profile

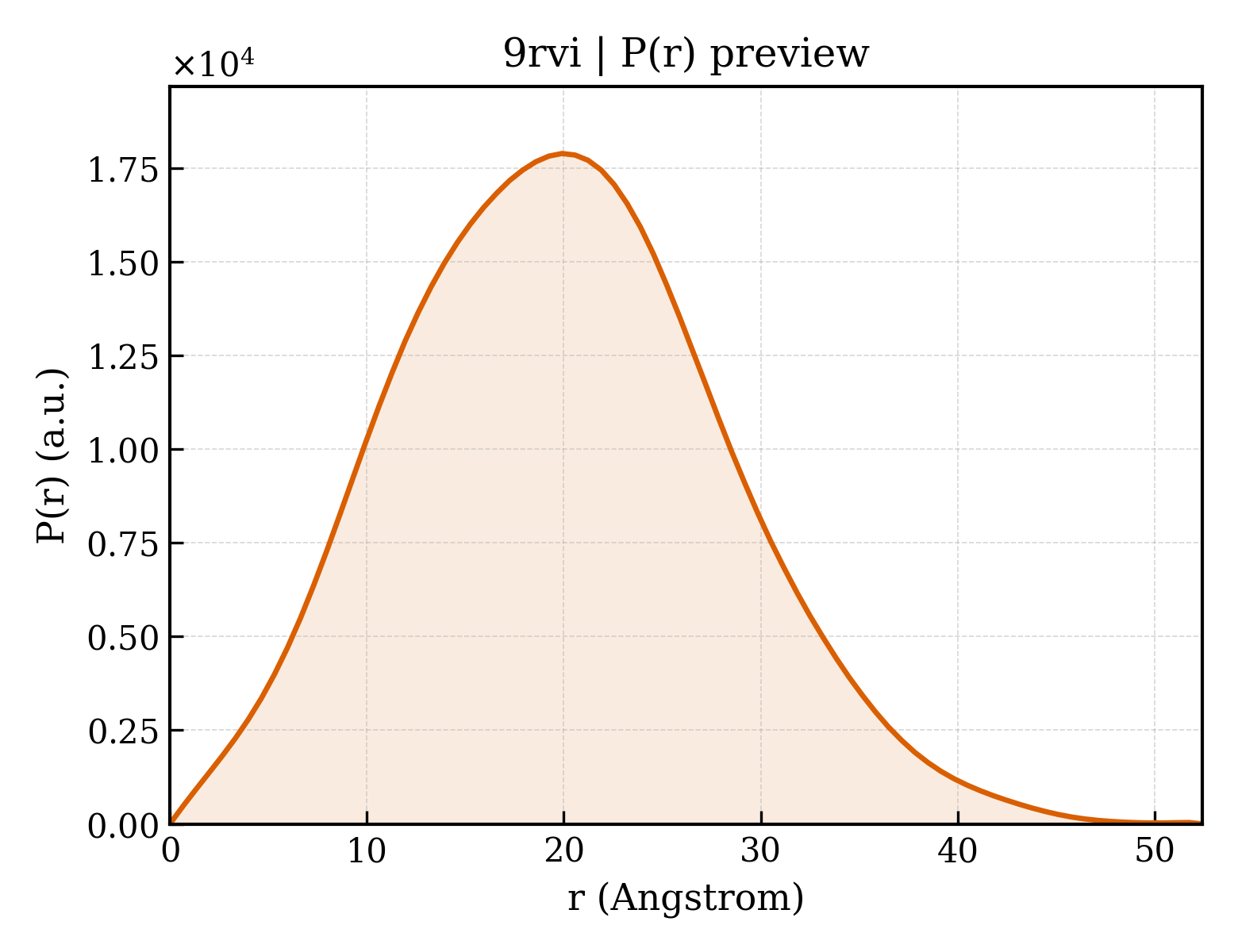

P(r) Distribution
1. Structure Basics
| entry_id | 9rvi |
| deposition_date | 2025-07-08 |
| last_revision | 2025-09-10 |
| title | 10 micrometer HEWL crystals solved at room-temperature using fixed-target serial crystallography. |
| keywords | glycoside hydrolase, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.29 Å |
| rg_electron | 13.99 Å |
| i0 | 4759220.00 |
| molecular_weight | 14434.0 kDa |
| excluded_volume | 17540 ų |
| envelope_volume | 19547 ų |
| shell_volume | 12010 ų |
| envelope_diameter | 51.9 Å |
| shell_rg | 19.58 Å |
| envelope_rg | 14.31 Å |
| shape_rg | 13.96 Å |
| total_rg | 15.12 Å |
| total_atoms | 1004 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.4 Å |
| rg_real | 15.22 Å |
| rg_real_error | 0.35 Å |
| i0_real | 4.7590e+06 |
| i0_real_error | 6.2080e+04 |
| rg_reciprocal | 15.23 Å |
| i0_reciprocal | 4759000.0000 |
| total_estimate | 0.8629 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.9 Å |
| skewness | 0.248 |
| kurtosis | -0.186 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 818000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.742; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.998 |
