9rzt
Hen Egg-White Lysozyme (HEWL) complexed with a Lindqvist-type hexavanadate (V6-Man) polyoxometalate

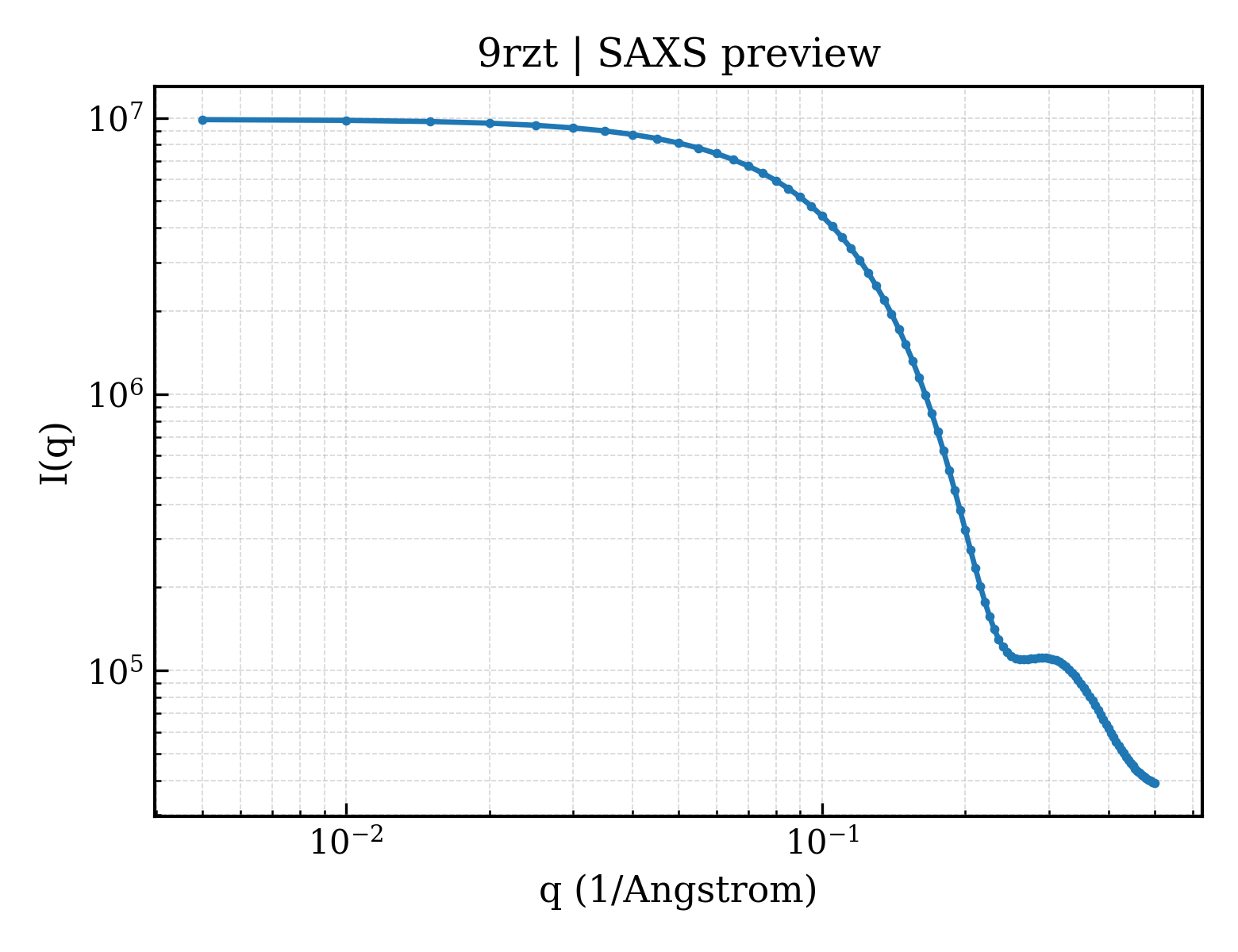

SAXS Profile

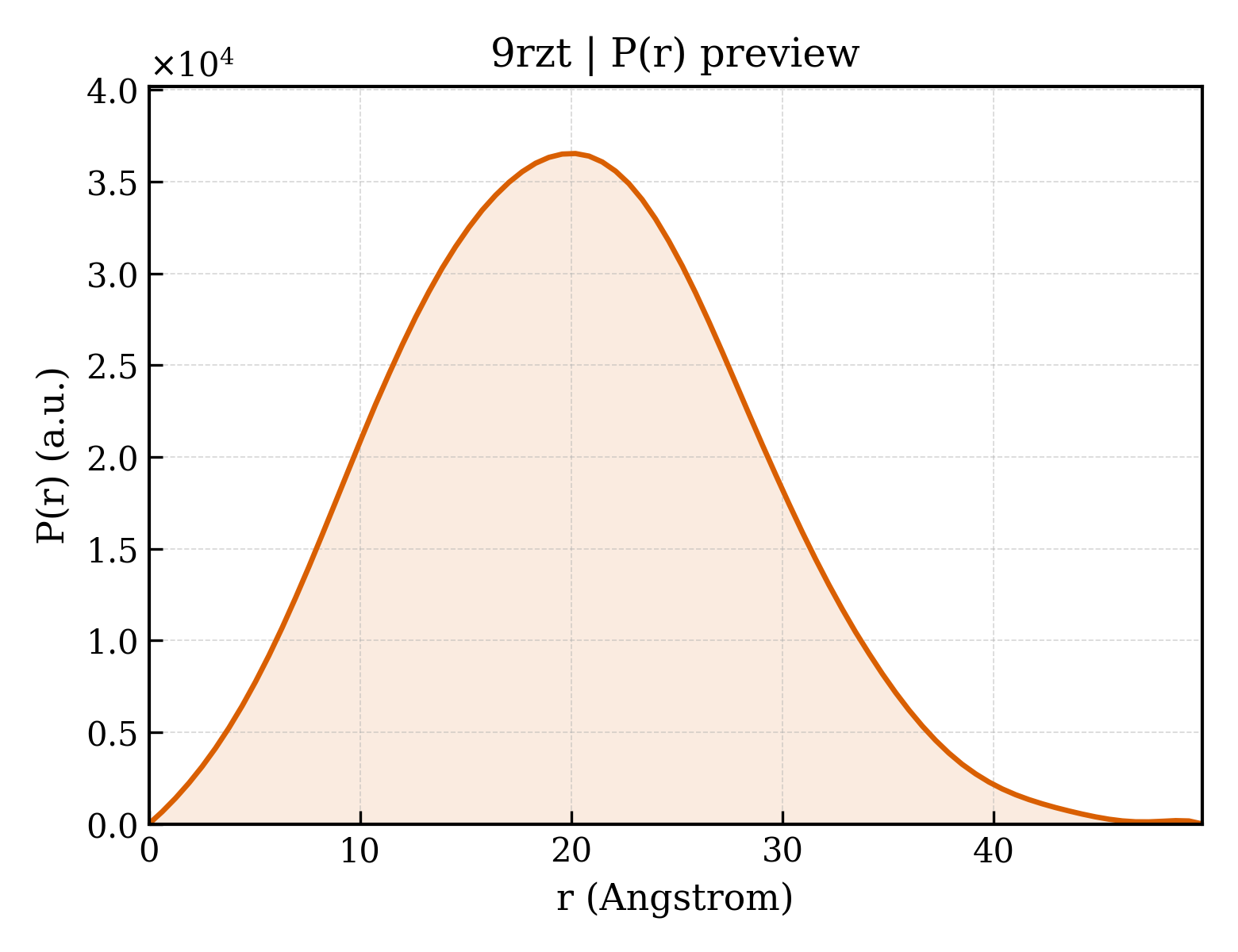

P(r) Distribution
1. Structure Basics
| entry_id | 9rzt |
| deposition_date | 2025-07-16 |
| title | Hen Egg-White Lysozyme (HEWL) complexed with a Lindqvist-type hexavanadate (V6-Man) polyoxometalate |
| keywords | Complex, Polyoxometalate, Protein binding, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.39 Å |
| rg_electron | 14.35 Å |
| i0 | 9873510.00 |
| molecular_weight | 14653.0 kDa |
| excluded_volume | 13550 ų |
| envelope_volume | 20635 ų |
| shell_volume | 12403 ų |
| envelope_diameter | 52.4 Å |
| shell_rg | 19.88 Å |
| envelope_rg | 14.54 Å |
| shape_rg | 14.29 Å |
| total_rg | 15.18 Å |
| total_atoms | 1078 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.9 Å |
| rg_real | 15.31 Å |
| rg_real_error | 0.20 Å |
| i0_real | 9.8730e+06 |
| i0_real_error | 1.0420e+05 |
| rg_reciprocal | 15.32 Å |
| i0_reciprocal | 9874000.0000 |
| total_estimate | 0.6593 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 20.2 Å |
| skewness | 0.190 |
| kurtosis | -0.315 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0009 |
| highest_alpha | 1062000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.996 |
