9tej
Lysozyme crystal structure by beam sweeping serial crystallography with pink beam
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9tej |
| deposition_date | 2025-11-25 |
| last_revision | 2026-03-04 |
| title | Lysozyme crystal structure by beam sweeping serial crystallography with pink beam |
| keywords | serial crystallography, beam sweeping, pink beam, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.19 Å |
| rg_electron | 13.89 Å |
| i0 | 4677590.00 |
| molecular_weight | 14340.0 kDa |
| excluded_volume | 17446 ų |
| envelope_volume | 19161 ų |
| shell_volume | 11866 ų |
| envelope_diameter | 51.4 Å |
| shell_rg | 19.52 Å |
| envelope_rg | 14.21 Å |
| shape_rg | 13.87 Å |
| total_rg | 14.99 Å |
| total_atoms | 1960 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

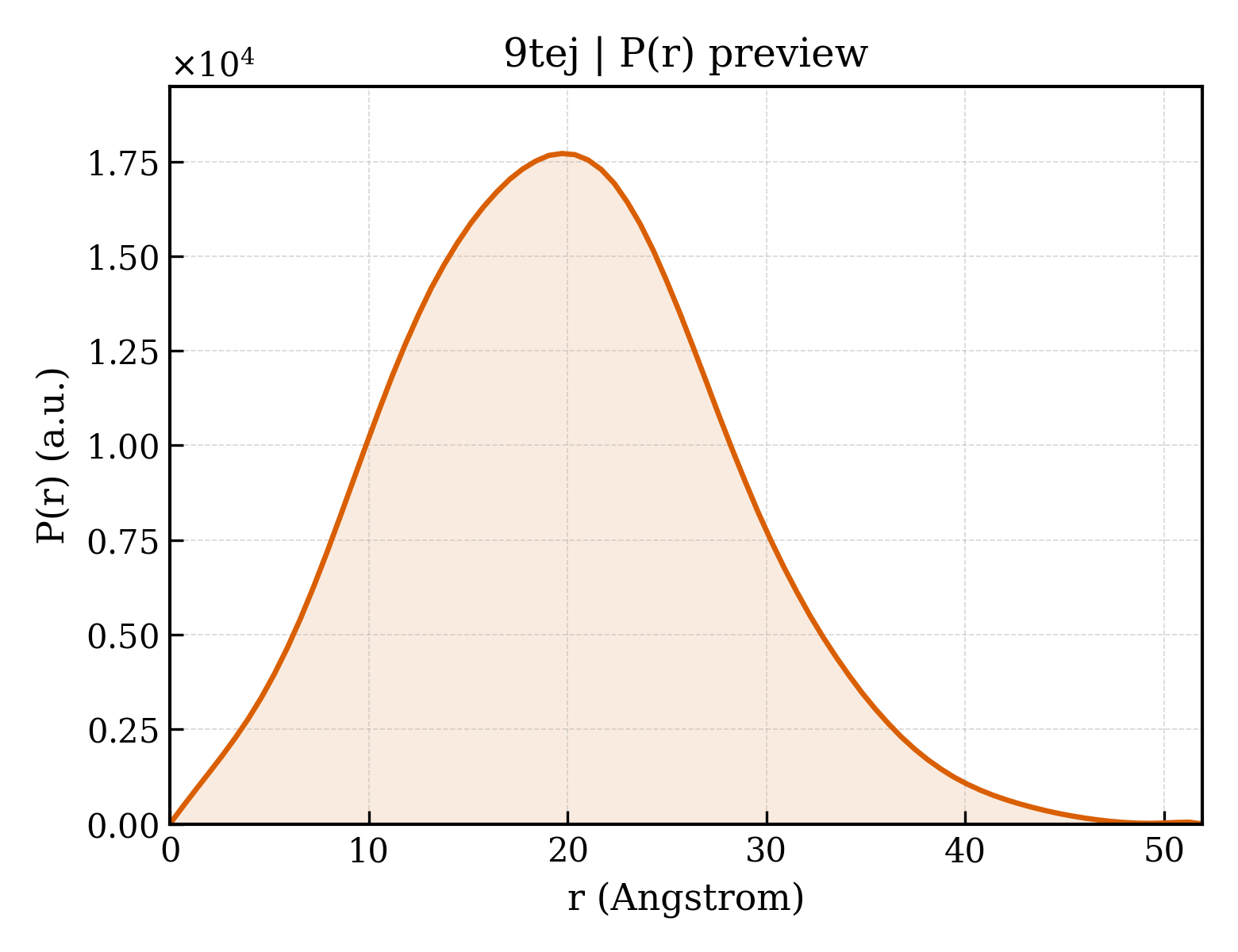

3. P(r) Analysis (GNOM)
| dmax | 51.9 Å |
| rg_real | 15.12 Å |
| rg_real_error | 0.36 Å |
| i0_real | 4.6780e+06 |
| i0_real_error | 5.0080e+04 |
| rg_reciprocal | 15.12 Å |
| i0_reciprocal | 4678000.0000 |
| total_estimate | 0.8635 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.7 Å |
| skewness | 0.249 |
| kurtosis | -0.180 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 749600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.746; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.993 |
