9uga

SARM1 senses DNA to promote NAD degradation

Method: ELECTRON MICROSCOPY D_max: 185.8 Å Quality: REASONABLE

SAXS Profile

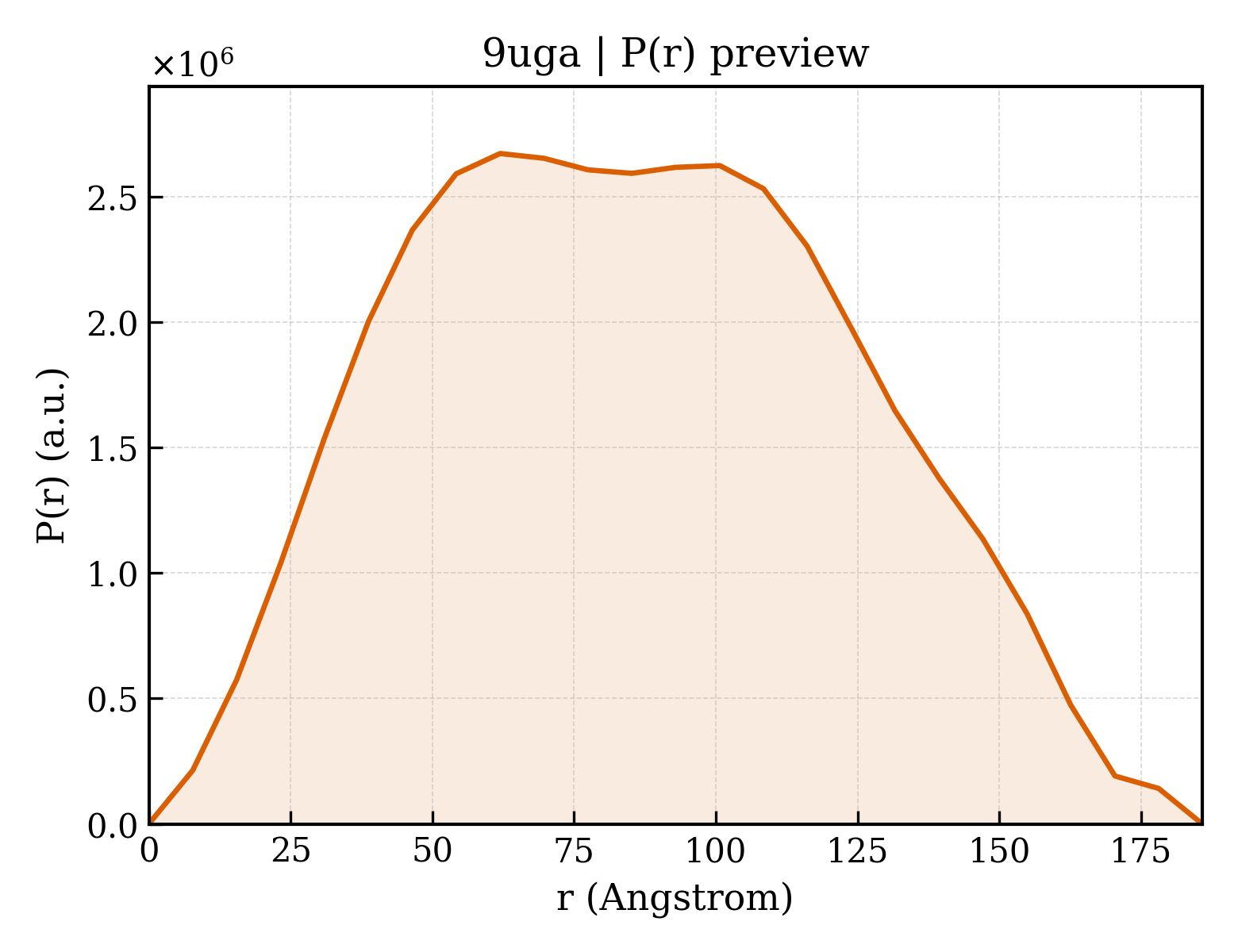

P(r) Distribution

P(r) distribution for 9uga

▼

1. Structure Basics

entry_id	9uga
deposition_date	2025-04-11
title	SARM1 senses DNA to promote NAD degradation
keywords	DNA BINDING PROTEIN, OCTAMER, HYDROLASE; HYDROLASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	66.29 Å
rg_electron	66.58 Å
i0	3766330000.00
molecular_weight	525490.0 kDa
excluded_volume	661480 Å³
envelope_volume	1071900 Å³
shell_volume	128370 Å³
envelope_diameter	200.3 Å
shell_rg	71.40 Å
envelope_rg	64.89 Å
shape_rg	66.60 Å
total_rg	66.59 Å
total_atoms	36976
n_residues	4720
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	185.8 Å
rg_real	66.11 Å
rg_real_error	1.15 Å
i0_real	3.7660e+09
i0_real_error	7.0770e+07
rg_reciprocal	66.37 Å
i0_reciprocal	3768000000.0000
total_estimate	0.6186
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	62.0 Å
skewness	0.140
kurtosis	-0.763
angular_range	— – 0.1200 Å⁻¹
current_alpha	0.0000
highest_alpha	699800000.0000
n_real_points	25
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 1.000; Sysdev: 0.013; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
