9v33

Calypso/Asx/NCP-ub complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3

Xenopus laevis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polycomb group protein Asx × 2 （Q9V727） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A310TTQ1_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Xenopus laevis

UniProt P62799

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polycomb group protein Asx × 2 （Q9V727） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H4_XENLA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A

Xenopus laevis

UniProt Q6AZJ8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polycomb group protein Asx × 2 （Q9V727） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6AZJ8_XENLA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 3–132； UniProt 1–130 Author chain G； PDBConstruct 3–132； UniProt 1–130

Histone H2B

Xenopus laevis

UniProt A0A8J0U496

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polycomb group protein Asx × 2 （Q9V727） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8J0U496_XENLA
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 2–123； UniProt 5–126 Author chain H； PDBConstruct 2–123； UniProt 5–126

Ubiquitin carboxyl-terminal hydrolase calypso

Drosophila melanogaster

UniProt Q7K5N4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Polycomb group protein Asx × 2 （Q9V727） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CALYP_DROME
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain K； PDBConstruct 42–512； UniProt 1–471 Author chain N； PDBConstruct 42–512； UniProt 1–471

Polycomb group protein Asx

Drosophila melanogaster

UniProt Q9V727

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polyubiquitin-B × 1 （P0CG47）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASX_DROME
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain L； PDBConstruct 1–340； UniProt 1–340 Author chain O； PDBConstruct 1–340； UniProt 1–340

Polyubiquitin-B

Homo sapiens

UniProt P0CG47

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 13 DNA 2	Histone H3 × 2 （A0A310TTQ1） Histone H4 × 2 （P62799） Histone H2A × 2 （Q6AZJ8） Histone H2B × 2 （A0A8J0U496） DNA (147-MER) × 1 DNA (147-MER) × 1 Ubiquitin carboxyl-terminal hydrolase calypso × 2 （Q7K5N4） Polycomb group protein Asx × 2 （Q9V727）	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UBB_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain M； PDBConstruct 13–87； UniProt 77–151

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9v33
Deposition date deposition_date	2025-05-21
Structure title title	Calypso/Asx/NCP-ub complex
Keywords keywords	PR-DUB, Calypso, Polycomb, TRANSCRIPTION/DNA, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9v33__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9v33__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

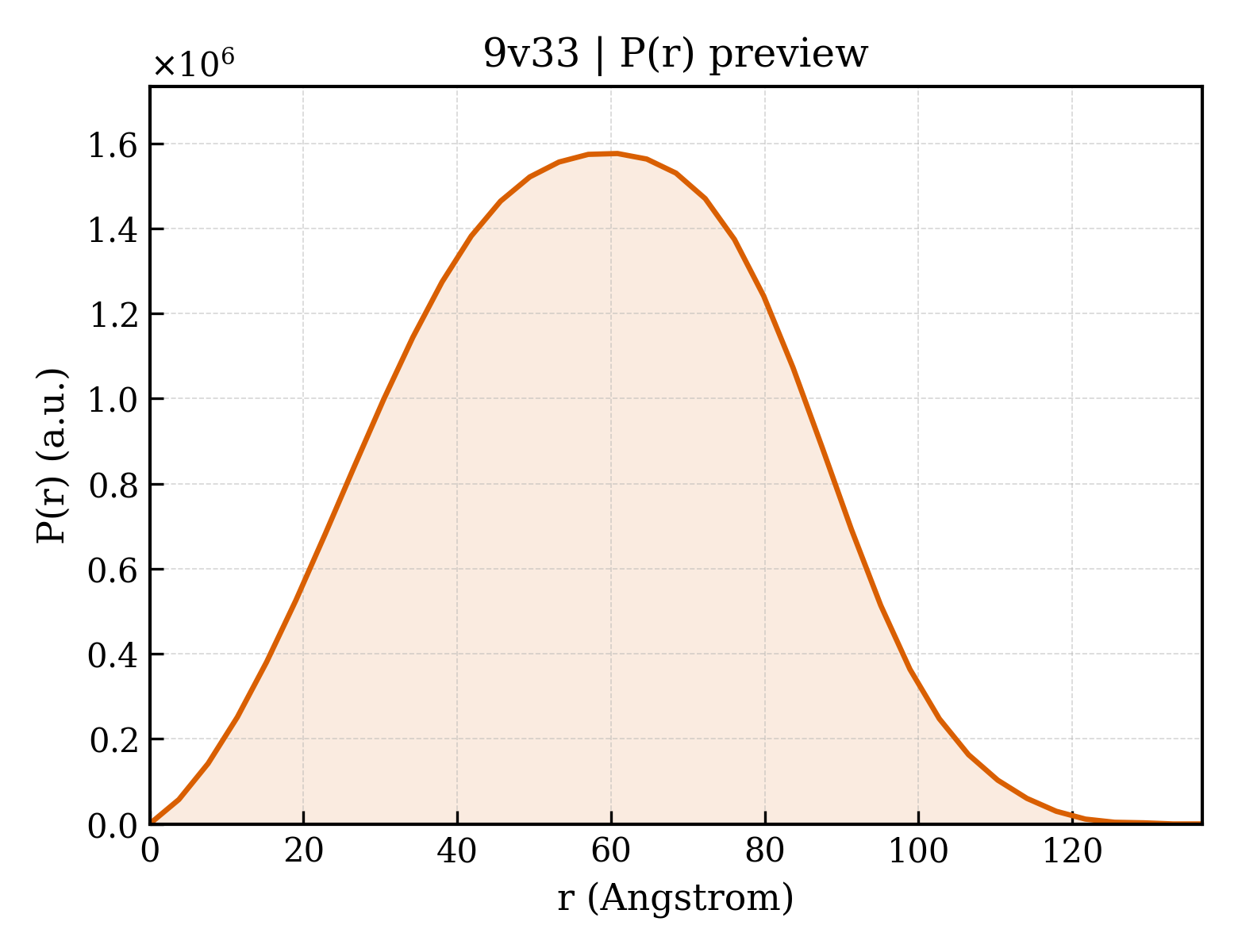

9v33__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.15 Å
Rg (electron density)	42.82 Å
Total Rg	43.31 Å
Atom count	16504
Residues	1651
Excluded volume	276810 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9v33__assembly_1__model_1`	15-meric （15）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Histone H3
Molecular weight formula_weight	15435.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	16504

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	14297.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MGMSGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B
Molecular weight formula_weight	13655.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MAKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

Source Source

Source organism organism	Xenopus laevis
Common name common_name	African clawed frog
NCBI taxonomy ID ncbi_taxonomy_id	8355
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45178.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

CTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCGATA

Entity 6 Entity 6 polymer

Description description	DNA (147-MER)
Molecular weight formula_weight	45570.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

TATCGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAG

Entity 7 Entity 7 polymer

Description description	Ubiquitin carboxyl-terminal hydrolase calypso
Molecular weight formula_weight	55928.8 kDa
EC 编号 ec_number	3.4.19.12
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,N

MWSHPQFEKGGGSGGGSGGGSWSHPQFEKGSSENLYFQGEFMNAAGGGSGAQAAAVAAGNNSLSHNALLSTASGATTMPMAQLADGWLELESDPGLFTLLLKDFGCHDVQVEEVYDLQKPIESPYGFIFLFRWIEERRARRKIVETTAEIFVKDEEAISSIFFAQQVVPNSCATHALLSVLLNCNENNLQLGDTLSRLKTHTKGMSPENKGLAIGNTPELACAHNSHAMPQARRRLERTGAGVSSCRFTGEAFHFVSFVPINGQLFELDGLKPYPMNHGGWEDSEDWTDKFRRVMAERLGIATGEQDIRFNLMAVVPDRRIAITHKLKMLRTNQAIVSGTLQKLLKADEQGESGNGDSQRPDTPTTLLEPSAFTARDLQSLLKNLDTEIAINEQHLADENDRRHMFKVDASRRTHNYDKFICTFLSMLAHQGVLGELVSQHLLPSKKVSGQGAANRISKQSTTASAGGSTAAGTASTPKTQQQQAAAAKNGKSPSKTPGRRRKGRNKCRKRK

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Trichoplusia ni

Entity 8 Entity 8 polymer

Description description	Polycomb group protein Asx
Molecular weight formula_weight	37098.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,O

MKTITPDTTTTTSSQHQQLLIPQADQHHQPMLQQQSLLAAPPPTMIMEHVNLVDDDEKDPLALEQLEVSPSTKHTHSLRRHLPRIIVKPIPPEKKPMAPSEEAAVSTAPAPPTRLICSRRIQQQQQVKAAAAAAAAAAAAAAAAAAAAQAQATSSYPSAISPGSKAGTSQASTMREVLASIPGFSVKPRRRSNKKLTTAAQIEQTKDGKIDLETPDSILASTNLRALLNKQTFSLLPPLYQYNLIQLLPSVDREASELEQPSSSASGGSPSEAIRLSASCLNNEFFARACLEWRERLSEGEFTPENQLKLKTEAEREKNKLDPWKLKHFEPFWGEKNSRG

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Trichoplusia ni

Entity 9 Entity 9 polymer

Description description	Polyubiquitin-B
Molecular weight formula_weight	10001.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M

GPHHHHHHLGSHMQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Resolution resolution	5.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	27764
