9ya3

Cryo-EM structure of the apical region of subpellicular microtubule (SPMT) from Toxoplasma gondii (8-nm repeat)

Method: ELECTRON MICROSCOPY D_max: 338.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule associated protein SPM1

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain 0； UniProt 1–351 Chain 1； UniProt 1–351 Chain 10； UniProt 1–351 Chain 11； UniProt 1–351 Chain 12； UniProt 1–351 Chain 13； UniProt 1–351 Chain 14； UniProt 1–351 Chain 15； UniProt 1–351 Chain 16； UniProt 1–351 Chain 17； UniProt 1–351 Chain 18； UniProt 1–351 Chain 19； UniProt 1–351 Chain 2； UniProt 1–351 Chain 22； UniProt 1–351 Chain 23； UniProt 1–351 Chain 3； UniProt 1–351 Chain 4； UniProt 1–351 Chain 5； UniProt 1–351 Chain 6； UniProt 1–351 Chain 7； UniProt 1–351 Chain 8； UniProt 1–351 Chain 9； UniProt 1–351	Not recorded	TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MIZ Atomic structure of cortical microtubule from Toxoplasma gondii Deposited 2021-04-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain 0 1–351（351 aa） Chain 1 1–351（351 aa） Chain 10 1–351（351 aa） Chain 11 1–351（351 aa） Chain 12 1–351（351 aa） Chain 13 1–351（351 aa） Chain 14 1–351（351 aa） Chain 15 1–351（351 aa） Chain 16 1–351（351 aa） Chain 17 1–351（351 aa） Chain 18 1–351（351 aa） Chain 19 1–351（351 aa） Chain 2 1–351（351 aa） Chain 20 1–351（351 aa） Chain 21 1–351（351 aa） Chain 22 1–351（351 aa） Chain 23 1–351（351 aa） Chain 3 1–351（351 aa） Chain 4 1–351（351 aa） Chain 5 1–351（351 aa） Chain 6 1–351（351 aa） Chain 7 1–351（351 aa） Chain 8 1–351（351 aa） Chain 9 1–351（351 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds with a blot force of -15	Resolution 3.40 Å
9Y9Z Cryo-EM structure of conoid fiber from Toxoplasma gondii (24-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 378 PDB declaration: 378-meric	Chain C1 1–351（351 aa） Chain C2 1–351（351 aa） Chain C3 1–351（351 aa） Chain C4 1–351（351 aa） Chain C5 1–351（351 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 63 MG MAGNESIUM ION × 54 GDP GUANOSINE-5'-DIPHOSPHATE × 57	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain A 1–351（351 aa） Chain B 1–351（351 aa） Chain C 1–351（351 aa） Chain D 1–351（351 aa） Chain E 1–351（351 aa） Chain F 1–351（351 aa） Chain G 1–351（351 aa） Chain H 1–351（351 aa） Chain I 1–351（351 aa） Chain J 1–351（351 aa） Chain K 1–351（351 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain A 1–351（351 aa） Chain B 1–351（351 aa） Chain C 1–351（351 aa） Chain D 1–351（351 aa） Chain E 1–351（351 aa） Chain F 1–351（351 aa） Chain G 1–351（351 aa） Chain H 1–351（351 aa） Chain I 1–351（351 aa） Chain J 1–351（351 aa） Chain K 1–351（351 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A7J6K285_TOXGO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 0； PDBConstruct 1–351； UniProt 1–351 Author chain 1； PDBConstruct 1–351； UniProt 1–351 Author chain 10； PDBConstruct 1–351； UniProt 1–351 Author chain 11； PDBConstruct 1–351； UniProt 1–351 Author chain 12； PDBConstruct 1–351； UniProt 1–351 Author chain 13； PDBConstruct 1–351； UniProt 1–351 Author chain 14； PDBConstruct 1–351； UniProt 1–351 Author chain 15； PDBConstruct 1–351； UniProt 1–351 Author chain 16； PDBConstruct 1–351； UniProt 1–351 Author chain 17； PDBConstruct 1–351； UniProt 1–351 Author chain 18； PDBConstruct 1–351； UniProt 1–351 Author chain 19； PDBConstruct 1–351； UniProt 1–351 Author chain 2； PDBConstruct 1–351； UniProt 1–351 Author chain 22； PDBConstruct 1–351； UniProt 1–351 Author chain 23； PDBConstruct 1–351； UniProt 1–351 Author chain 3； PDBConstruct 1–351； UniProt 1–351 Author chain 4； PDBConstruct 1–351； UniProt 1–351 Author chain 5； PDBConstruct 1–351； UniProt 1–351 Author chain 6； PDBConstruct 1–351； UniProt 1–351 Author chain 7； PDBConstruct 1–351； UniProt 1–351 Author chain 8； PDBConstruct 1–351； UniProt 1–351 Author chain 9； PDBConstruct 1–351； UniProt 1–351

TLAP3 (apical cap protein AC5), TGME49_235380

OrganismNot specified

UniProt A0A151H4L4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain A； UniProt 1–583 Chain B； UniProt 1–583 Chain C； UniProt 1–583	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain O 1–583（583 aa） Chain P 1–583（583 aa） Chain R 1–583（583 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain O 1–583（583 aa） Chain P 1–583（583 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A151H4L4_TOXGO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–583； UniProt 1–583 Author chain B； PDBConstruct 1–583； UniProt 1–583 Author chain C； PDBConstruct 1–583； UniProt 1–583

Tubulin alpha chain

OrganismNot specified

UniProt P10873

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain A0； UniProt 1–453 Chain A2； UniProt 1–453 Chain A4； UniProt 1–453 Chain A6； UniProt 1–453 Chain A8； UniProt 1–453 Chain B0； UniProt 1–453 Chain B2； UniProt 1–453 Chain B4； UniProt 1–453 Chain B6； UniProt 1–453 Chain B8； UniProt 1–453 Chain C0； UniProt 1–453 Chain C2； UniProt 1–453 Chain C4； UniProt 1–453 Chain C6； UniProt 1–453 Chain C8； UniProt 1–453 Chain D0； UniProt 1–453 Chain D2； UniProt 1–453 Chain D4； UniProt 1–453 Chain D6； UniProt 1–453 Chain D8； UniProt 1–453 Chain E0； UniProt 1–453 Chain E2； UniProt 1–453 Chain E4； UniProt 1–453 Chain E6； UniProt 1–453 Chain E8； UniProt 1–453 Chain F0； UniProt 1–453	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MIZ Atomic structure of cortical microtubule from Toxoplasma gondii Deposited 2021-04-18	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain A0 1–453（453 aa） Chain A2 1–453（453 aa） Chain A4 1–453（453 aa） Chain A6 1–453（453 aa） Chain A8 1–453（453 aa） Chain B0 1–453（453 aa） Chain B2 1–453（453 aa） Chain B4 1–453（453 aa） Chain B6 1–453（453 aa） Chain B8 1–453（453 aa） Chain C0 1–453（453 aa） Chain C2 1–453（453 aa） Chain C4 1–453（453 aa） Chain C6 1–453（453 aa） Chain C8 1–453（453 aa） Chain D0 1–453（453 aa） Chain D2 1–453（453 aa） Chain D4 1–453（453 aa） Chain D6 1–453（453 aa） Chain D8 1–453（453 aa） Chain E0 1–453（453 aa） Chain E2 1–453（453 aa） Chain E4 1–453（453 aa） Chain E6 1–453（453 aa） Chain E8 1–453（453 aa） Chain F0 1–453（453 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds with a blot force of -15	Resolution 3.40 Å
7TNQ The symmetry-released subpellicular microtubule map from detergent-extracted Toxoplasma cells Deposited 2022-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain A0 1–453（453 aa） Chain A2 1–453（453 aa） Chain A4 1–453（453 aa） Chain A6 1–453（453 aa） Chain A8 1–453（453 aa） Chain B0 1–453（453 aa） Chain B2 1–453（453 aa） Chain B4 1–453（453 aa） Chain B6 1–453（453 aa） Chain B8 1–453（453 aa） Chain C0 1–453（453 aa） Chain C2 1–453（453 aa） Chain C4 1–453（453 aa） Chain C6 1–453（453 aa） Chain C8 1–453（453 aa） Chain D0 1–453（453 aa） Chain D2 1–453（453 aa） Chain D4 1–453（453 aa） Chain D6 1–453（453 aa） Chain D8 1–453（453 aa） Chain E0 1–453（453 aa） Chain E2 1–453（453 aa） Chain E4 1–453（453 aa） Chain E6 1–453（453 aa） Chain E8 1–453（453 aa） Chain F0 1–453（453 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；Phosphate Buffered Saline cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.40 Å
7TNS Subpellicular microtubule from detergent-extract Toxoplasma gondii cells Deposited 2022-01-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 101 PDB declaration: 101-meric	Chain A0 1–453（453 aa） Chain A2 1–453（453 aa） Chain A4 1–453（453 aa） Chain A6 1–453（453 aa） Chain A8 1–453（453 aa） Chain B0 1–453（453 aa） Chain B2 1–453（453 aa） Chain B4 1–453（453 aa） Chain B6 1–453（453 aa） Chain B8 1–453（453 aa） Chain C0 1–453（453 aa） Chain C2 1–453（453 aa） Chain C4 1–453（453 aa） Chain C6 1–453（453 aa） Chain C8 1–453（453 aa） Chain D0 1–453（453 aa） Chain D2 1–453（453 aa） Chain D4 1–453（453 aa） Chain D6 1–453（453 aa） Chain D8 1–453（453 aa） Chain E0 1–453（453 aa） Chain E2 1–453（453 aa） Chain E4 1–453（453 aa） Chain E6 1–453（453 aa） Chain E8 1–453（453 aa） Chain F0 1–453（453 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；Phosphate-Buffered Saline cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.70 Å
7TNT The tubulin-based conoid from detergent-extract Toxoplasma gondii cells Deposited 2022-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain 2A 1–437（437 aa） Chain 2B 1–437（437 aa） Chain 2C 1–437（437 aa） Chain 2D 1–437（437 aa） Chain 2E 1–437（437 aa） Chain 2F 1–437（437 aa） Chain 2G 1–437（437 aa） Chain 2H 1–437（437 aa） Chain 2I 1–437（437 aa） Chain 4A 1–437（437 aa） Chain 4B 1–437（437 aa） Chain 4C 1–437（437 aa） Chain 4D 1–437（437 aa） Chain 4E 1–437（437 aa） Chain 4F 1–437（437 aa） Chain 4G 1–437（437 aa） Chain 4H 1–437（437 aa） Chain 4I 1–437（437 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2；Phosphate Buffered Saline cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.30 Å
9Y9Z Cryo-EM structure of conoid fiber from Toxoplasma gondii (24-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 378 PDB declaration: 378-meric	Chain 1A 1–453（453 aa） Chain 1C 1–453（453 aa） Chain 1E 1–453（453 aa） Chain 1G 1–453（453 aa） Chain 1I 1–453（453 aa） Chain 1K 1–453（453 aa） Chain 1M 1–453（453 aa） Chain 2A 1–453（453 aa） Chain 2C 1–453（453 aa） Chain 2E 1–453（453 aa） Chain 2G 1–453（453 aa） Chain 2I 1–453（453 aa） Chain 2K 1–453（453 aa） Chain 2M 1–453（453 aa） Chain 3A 1–453（453 aa） Chain 3C 1–453（453 aa） Chain 3E 1–453（453 aa） Chain 3G 1–453（453 aa） Chain 3I 1–453（453 aa） Chain 3K 1–453（453 aa） Chain 3M 1–453（453 aa） Chain 4A 1–453（453 aa） Chain 4C 1–453（453 aa） Chain 4E 1–453（453 aa） Chain 4G 1–453（453 aa） Chain 4I 1–453（453 aa） Chain 4K 1–453（453 aa） Chain 4M 1–453（453 aa） Chain 5A 1–453（453 aa） Chain 5C 1–453（453 aa） Chain 5E 1–453（453 aa） Chain 5G 1–453（453 aa） Chain 5I 1–453（453 aa） Chain 5K 1–453（453 aa） Chain 5M 1–453（453 aa） Chain 6A 1–453（453 aa） Chain 6C 1–453（453 aa） Chain 6E 1–453（453 aa） Chain 6G 1–453（453 aa） Chain 6I 1–453（453 aa） Chain 6K 1–453（453 aa） Chain 6M 1–453（453 aa） Chain 7A 1–453（453 aa） Chain 7C 1–453（453 aa） Chain 7E 1–453（453 aa） Chain 7G 1–453（453 aa） Chain 7I 1–453（453 aa） Chain 7K 1–453（453 aa） Chain 7M 1–453（453 aa） Chain 8A 1–453（453 aa） Chain 8C 1–453（453 aa） Chain 8E 1–453（453 aa） Chain 8G 1–453（453 aa） Chain 8I 1–453（453 aa） Chain 8K 1–453（453 aa） Chain 8M 1–453（453 aa） Chain 9A 1–453（453 aa） Chain 9C 1–453（453 aa） Chain 9E 1–453（453 aa） Chain 9G 1–453（453 aa） Chain 9I 1–453（453 aa） Chain 9K 1–453（453 aa） Chain 9M 1–453（453 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 63 MG MAGNESIUM ION × 54 GDP GUANOSINE-5'-DIPHOSPHATE × 57	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain A0 1–453（453 aa） Chain A2 1–453（453 aa） Chain A4 1–453（453 aa） Chain A6 1–453（453 aa） Chain A8 1–453（453 aa） Chain B0 1–453（453 aa） Chain B2 1–453（453 aa） Chain B4 1–453（453 aa） Chain B6 1–453（453 aa） Chain B8 1–453（453 aa） Chain C0 1–453（453 aa） Chain C2 1–453（453 aa） Chain C4 1–453（453 aa） Chain C6 1–453（453 aa） Chain C8 1–453（453 aa） Chain D0 1–453（453 aa） Chain D2 1–453（453 aa） Chain D4 1–453（453 aa） Chain D6 1–453（453 aa） Chain D8 1–453（453 aa） Chain E0 1–453（453 aa） Chain E2 1–453（453 aa） Chain E4 1–453（453 aa） Chain E6 1–453（453 aa） Chain E8 1–453（453 aa） Chain F0 1–453（453 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain A0 1–453（453 aa） Chain A2 1–453（453 aa） Chain A4 1–453（453 aa） Chain A6 1–453（453 aa） Chain A8 1–453（453 aa） Chain B0 1–453（453 aa） Chain B2 1–453（453 aa） Chain B4 1–453（453 aa） Chain B6 1–453（453 aa） Chain B8 1–453（453 aa） Chain C0 1–453（453 aa） Chain C2 1–453（453 aa） Chain C4 1–453（453 aa） Chain C6 1–453（453 aa） Chain C8 1–453（453 aa） Chain D0 1–453（453 aa） Chain D2 1–453（453 aa） Chain D4 1–453（453 aa） Chain D6 1–453（453 aa） Chain D8 1–453（453 aa） Chain E0 1–453（453 aa） Chain E2 1–453（453 aa） Chain E4 1–453（453 aa） Chain E6 1–453（453 aa） Chain E8 1–453（453 aa） Chain F0 1–453（453 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TBA_TOXGO
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A0； PDBConstruct 1–453； UniProt 1–453 Author chain A2； PDBConstruct 1–453； UniProt 1–453 Author chain A4； PDBConstruct 1–453； UniProt 1–453 Author chain A6； PDBConstruct 1–453； UniProt 1–453 Author chain A8； PDBConstruct 1–453； UniProt 1–453 Author chain B0； PDBConstruct 1–453； UniProt 1–453 Author chain B2； PDBConstruct 1–453； UniProt 1–453 Author chain B4； PDBConstruct 1–453； UniProt 1–453 Author chain B6； PDBConstruct 1–453； UniProt 1–453 Author chain B8； PDBConstruct 1–453； UniProt 1–453 Author chain C0； PDBConstruct 1–453； UniProt 1–453 Author chain C2； PDBConstruct 1–453； UniProt 1–453 Author chain C4； PDBConstruct 1–453； UniProt 1–453 Author chain C6； PDBConstruct 1–453； UniProt 1–453 Author chain C8； PDBConstruct 1–453； UniProt 1–453 Author chain D0； PDBConstruct 1–453； UniProt 1–453 Author chain D2； PDBConstruct 1–453； UniProt 1–453 Author chain D4； PDBConstruct 1–453； UniProt 1–453 Author chain D6； PDBConstruct 1–453； UniProt 1–453 Author chain D8； PDBConstruct 1–453； UniProt 1–453 Author chain E0； PDBConstruct 1–453； UniProt 1–453 Author chain E2； PDBConstruct 1–453； UniProt 1–453 Author chain E4； PDBConstruct 1–453； UniProt 1–453 Author chain E6； PDBConstruct 1–453； UniProt 1–453 Author chain E8； PDBConstruct 1–453； UniProt 1–453 Author chain F0； PDBConstruct 1–453； UniProt 1–453

Tubulin beta chain

OrganismNot specified

UniProt I7BFC9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain A1； UniProt 1–449 Chain A3； UniProt 1–449 Chain A5； UniProt 1–449 Chain A7； UniProt 1–449 Chain A9； UniProt 1–449 Chain B1； UniProt 1–449 Chain B3； UniProt 1–449 Chain B5； UniProt 1–449 Chain B7； UniProt 1–449 Chain B9； UniProt 1–449 Chain C1； UniProt 1–449 Chain C3； UniProt 1–449 Chain C5； UniProt 1–449 Chain C7； UniProt 1–449 Chain C9； UniProt 1–449 Chain D1； UniProt 1–449 Chain D3； UniProt 1–449 Chain D5； UniProt 1–449 Chain D7； UniProt 1–449 Chain D9； UniProt 1–449 Chain E1； UniProt 1–449 Chain E3； UniProt 1–449 Chain E5； UniProt 1–449 Chain E7； UniProt 1–449 Chain E9； UniProt 1–449 Chain F1； UniProt 1–449	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MIZ Atomic structure of cortical microtubule from Toxoplasma gondii Deposited 2021-04-18	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain A1 1–449（449 aa） Chain A3 1–449（449 aa） Chain A5 1–449（449 aa） Chain A7 1–449（449 aa） Chain A9 1–449（449 aa） Chain B1 1–449（449 aa） Chain B3 1–449（449 aa） Chain B5 1–449（449 aa） Chain B7 1–449（449 aa） Chain B9 1–449（449 aa） Chain C1 1–449（449 aa） Chain C3 1–449（449 aa） Chain C5 1–449（449 aa） Chain C7 1–449（449 aa） Chain C9 1–449（449 aa） Chain D1 1–449（449 aa） Chain D3 1–449（449 aa） Chain D5 1–449（449 aa） Chain D7 1–449（449 aa） Chain D9 1–449（449 aa） Chain E1 1–449（449 aa） Chain E3 1–449（449 aa） Chain E5 1–449（449 aa） Chain E7 1–449（449 aa） Chain E9 1–449（449 aa） Chain F1 1–449（449 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds with a blot force of -15	Resolution 3.40 Å
9Y9Z Cryo-EM structure of conoid fiber from Toxoplasma gondii (24-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 378 PDB declaration: 378-meric	Chain 1B 1–449（449 aa） Chain 1D 1–449（449 aa） Chain 1F 1–449（449 aa） Chain 1H 1–449（449 aa） Chain 1J 1–449（449 aa） Chain 1L 1–449（449 aa） Chain 1N 1–449（449 aa） Chain 2B 1–449（449 aa） Chain 2D 1–449（449 aa） Chain 2F 1–449（449 aa） Chain 2H 1–449（449 aa） Chain 2J 1–449（449 aa） Chain 2L 1–449（449 aa） Chain 3B 1–449（449 aa） Chain 3D 1–449（449 aa） Chain 3F 1–449（449 aa） Chain 3H 1–449（449 aa） Chain 3J 1–449（449 aa） Chain 3L 1–449（449 aa） Chain 4B 1–449（449 aa） Chain 4D 1–449（449 aa） Chain 4F 1–449（449 aa） Chain 4H 1–449（449 aa） Chain 4J 1–449（449 aa） Chain 4L 1–449（449 aa） Chain 5B 1–449（449 aa） Chain 5D 1–449（449 aa） Chain 5F 1–449（449 aa） Chain 5H 1–449（449 aa） Chain 5J 1–449（449 aa） Chain 5L 1–449（449 aa） Chain 5N 1–449（449 aa） Chain 6B 1–449（449 aa） Chain 6D 1–449（449 aa） Chain 6F 1–449（449 aa） Chain 6H 1–449（449 aa） Chain 6J 1–449（449 aa） Chain 6L 1–449（449 aa） Chain 6N 1–449（449 aa） Chain 7B 1–449（449 aa） Chain 7D 1–449（449 aa） Chain 7F 1–449（449 aa） Chain 7H 1–449（449 aa） Chain 7J 1–449（449 aa） Chain 7L 1–449（449 aa） Chain 8B 1–449（449 aa） Chain 8D 1–449（449 aa） Chain 8F 1–449（449 aa） Chain 8H 1–449（449 aa） Chain 8J 1–449（449 aa） Chain 8L 1–449（449 aa） Chain 9B 1–449（449 aa） Chain 9D 1–449（449 aa） Chain 9F 1–449（449 aa） Chain 9H 1–449（449 aa） Chain 9J 1–449（449 aa） Chain 9L 1–449（449 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 63 MG MAGNESIUM ION × 54 GDP GUANOSINE-5'-DIPHOSPHATE × 57	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain A1 1–449（449 aa） Chain A3 1–449（449 aa） Chain A5 1–449（449 aa） Chain A7 1–449（449 aa） Chain A9 1–449（449 aa） Chain B1 1–449（449 aa） Chain B3 1–449（449 aa） Chain B5 1–449（449 aa） Chain B7 1–449（449 aa） Chain B9 1–449（449 aa） Chain C1 1–449（449 aa） Chain C3 1–449（449 aa） Chain C5 1–449（449 aa） Chain C7 1–449（449 aa） Chain C9 1–449（449 aa） Chain D1 1–449（449 aa） Chain D3 1–449（449 aa） Chain D5 1–449（449 aa） Chain D7 1–449（449 aa） Chain D9 1–449（449 aa） Chain E1 1–449（449 aa） Chain E3 1–449（449 aa） Chain E5 1–449（449 aa） Chain E7 1–449（449 aa） Chain E9 1–449（449 aa） Chain F1 1–449（449 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain A1 1–449（449 aa） Chain A3 1–449（449 aa） Chain A5 1–449（449 aa） Chain A7 1–449（449 aa） Chain A9 1–449（449 aa） Chain B1 1–449（449 aa） Chain B3 1–449（449 aa） Chain B5 1–449（449 aa） Chain B7 1–449（449 aa） Chain B9 1–449（449 aa） Chain C1 1–449（449 aa） Chain C3 1–449（449 aa） Chain C5 1–449（449 aa） Chain C7 1–449（449 aa） Chain C9 1–449（449 aa） Chain D1 1–449（449 aa） Chain D3 1–449（449 aa） Chain D5 1–449（449 aa） Chain D7 1–449（449 aa） Chain D9 1–449（449 aa） Chain E1 1–449（449 aa） Chain E3 1–449（449 aa） Chain E5 1–449（449 aa） Chain E7 1–449（449 aa） Chain E9 1–449（449 aa） Chain F1 1–449（449 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	I7BFC9_TOXGO
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A1； PDBConstruct 1–449； UniProt 1–449 Author chain A3； PDBConstruct 1–449； UniProt 1–449 Author chain A5； PDBConstruct 1–449； UniProt 1–449 Author chain A7； PDBConstruct 1–449； UniProt 1–449 Author chain A9； PDBConstruct 1–449； UniProt 1–449 Author chain B1； PDBConstruct 1–449； UniProt 1–449 Author chain B3； PDBConstruct 1–449； UniProt 1–449 Author chain B5； PDBConstruct 1–449； UniProt 1–449 Author chain B7； PDBConstruct 1–449； UniProt 1–449 Author chain B9； PDBConstruct 1–449； UniProt 1–449 Author chain C1； PDBConstruct 1–449； UniProt 1–449 Author chain C3； PDBConstruct 1–449； UniProt 1–449 Author chain C5； PDBConstruct 1–449； UniProt 1–449 Author chain C7； PDBConstruct 1–449； UniProt 1–449 Author chain C9； PDBConstruct 1–449； UniProt 1–449 Author chain D1； PDBConstruct 1–449； UniProt 1–449 Author chain D3； PDBConstruct 1–449； UniProt 1–449 Author chain D5； PDBConstruct 1–449； UniProt 1–449 Author chain D7； PDBConstruct 1–449； UniProt 1–449 Author chain D9； PDBConstruct 1–449； UniProt 1–449 Author chain E1； PDBConstruct 1–449； UniProt 1–449 Author chain E3； PDBConstruct 1–449； UniProt 1–449 Author chain E5； PDBConstruct 1–449； UniProt 1–449 Author chain E7； PDBConstruct 1–449； UniProt 1–449 Author chain E9； PDBConstruct 1–449； UniProt 1–449 Author chain F1； PDBConstruct 1–449； UniProt 1–449

TLAP4 (thioredoxin-like associated protein), TGME49_201760

OrganismNot specified

UniProt A0A7J6K913

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain E； UniProt 1–336 Chain F； UniProt 1–336 Chain G； UniProt 1–336	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain U 1–336（336 aa） Chain V 1–336（336 aa） Chain W 1–336（336 aa） Chain X 1–336（336 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain R 1–336（336 aa） Chain S 1–336（336 aa） Chain T 1–336（336 aa） Chain U 1–336（336 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A7J6K913_TOXGO
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–336； UniProt 1–336 Author chain F； PDBConstruct 1–336； UniProt 1–336 Author chain G； PDBConstruct 1–336； UniProt 1–336

TLAP2 (thioredoxin-like associated protein), TGME49_232130

OrganismNot specified

UniProt A0A125YLA3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain H； UniProt 1–446 Chain I； UniProt 1–446 Chain J； UniProt 1–446 Chain K； UniProt 1–446	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TRXL1, TGME49_232410 × 22 （Q8MPF4） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	A0A125YLA3_TOXGM
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 1–446； UniProt 1–446 Author chain I； PDBConstruct 1–446； UniProt 1–446 Author chain J； PDBConstruct 1–446； UniProt 1–446 Author chain K； PDBConstruct 1–446； UniProt 1–446

TRXL1, TGME49_232410

OrganismNot specified

UniProt Q8MPF4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain a； UniProt 1–220 Chain b； UniProt 1–220 Chain c； UniProt 1–220 Chain d； UniProt 1–220 Chain e； UniProt 1–220 Chain f； UniProt 1–220 Chain g； UniProt 1–220 Chain h； UniProt 1–220 Chain i； UniProt 1–220 Chain j； UniProt 1–220 Chain m； UniProt 1–220 Chain n； UniProt 1–220 Chain o； UniProt 1–220 Chain p； UniProt 1–220 Chain q； UniProt 1–220 Chain r； UniProt 1–220 Chain s； UniProt 1–220 Chain t； UniProt 1–220 Chain u； UniProt 1–220 Chain v； UniProt 1–220 Chain w； UniProt 1–220 Chain x； UniProt 1–220	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL2, TGME49_225790 × 2 （A0A7J6K232） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MIZ Atomic structure of cortical microtubule from Toxoplasma gondii Deposited 2021-04-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain a 1–220（220 aa） Chain b 1–220（220 aa） Chain c 1–220（220 aa） Chain d 1–220（220 aa） Chain e 1–220（220 aa） Chain f 1–220（220 aa） Chain g 1–220（220 aa） Chain h 1–220（220 aa） Chain i 1–220（220 aa） Chain j 1–220（220 aa） Chain m 1–220（220 aa） Chain n 1–220（220 aa） Chain o 1–220（220 aa） Chain p 1–220（220 aa） Chain q 1–220（220 aa） Chain r 1–220（220 aa） Chain s 1–220（220 aa） Chain t 1–220（220 aa） Chain u 1–220（220 aa） Chain v 1–220（220 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds with a blot force of -15	Resolution 3.40 Å
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain a 1–220（220 aa） Chain b 1–220（220 aa） Chain c 1–220（220 aa） Chain d 1–220（220 aa） Chain e 1–220（220 aa） Chain f 1–220（220 aa） Chain g 1–220（220 aa） Chain h 1–220（220 aa） Chain i 1–220（220 aa） Chain j 1–220（220 aa） Chain m 1–220（220 aa） Chain n 1–220（220 aa） Chain o 1–220（220 aa） Chain p 1–220（220 aa） Chain q 1–220（220 aa） Chain r 1–220（220 aa） Chain s 1–220（220 aa） Chain t 1–220（220 aa） Chain u 1–220（220 aa） Chain v 1–220（220 aa） Chain w 1–220（220 aa） Chain x 1–220（220 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain a 1–220（220 aa） Chain b 1–220（220 aa） Chain c 1–220（220 aa） Chain d 1–220（220 aa） Chain e 1–220（220 aa） Chain f 1–220（220 aa） Chain g 1–220（220 aa） Chain h 1–220（220 aa） Chain i 1–220（220 aa） Chain j 1–220（220 aa） Chain m 1–220（220 aa） Chain n 1–220（220 aa） Chain o 1–220（220 aa） Chain p 1–220（220 aa） Chain q 1–220（220 aa） Chain r 1–220（220 aa） Chain s 1–220（220 aa） Chain t 1–220（220 aa） Chain u 1–220（220 aa） Chain v 1–220（220 aa） Chain w 1–220（220 aa） Chain x 1–220（220 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q8MPF4_TOXGO
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain a； PDBConstruct 1–220； UniProt 1–220 Author chain b； PDBConstruct 1–220； UniProt 1–220 Author chain c； PDBConstruct 1–220； UniProt 1–220 Author chain d； PDBConstruct 1–220； UniProt 1–220 Author chain e； PDBConstruct 1–220； UniProt 1–220 Author chain f； PDBConstruct 1–220； UniProt 1–220 Author chain g； PDBConstruct 1–220； UniProt 1–220 Author chain h； PDBConstruct 1–220； UniProt 1–220 Author chain i； PDBConstruct 1–220； UniProt 1–220 Author chain j； PDBConstruct 1–220； UniProt 1–220 Author chain m； PDBConstruct 1–220； UniProt 1–220 Author chain n； PDBConstruct 1–220； UniProt 1–220 Author chain o； PDBConstruct 1–220； UniProt 1–220 Author chain p； PDBConstruct 1–220； UniProt 1–220 Author chain q； PDBConstruct 1–220； UniProt 1–220 Author chain r； PDBConstruct 1–220； UniProt 1–220 Author chain s； PDBConstruct 1–220； UniProt 1–220 Author chain t； PDBConstruct 1–220； UniProt 1–220 Author chain u； PDBConstruct 1–220； UniProt 1–220 Author chain v； PDBConstruct 1–220； UniProt 1–220 Author chain w； PDBConstruct 1–220； UniProt 1–220 Author chain x； PDBConstruct 1–220； UniProt 1–220

TRXL2, TGME49_225790

OrganismNot specified

UniProt A0A7J6K232

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 108 PDB declaration: 108-meric（108） Consistent with protein copy count	Chain k； UniProt 1–166 Chain l； UniProt 1–166	Not recorded	Microtubule associated protein SPM1 × 22 （A0A7J6K285） TLAP3 (apical cap protein AC5), TGME49_235380 × 3 （A0A151H4L4） Tubulin alpha chain × 26 （P10873） Tubulin beta chain × 26 （I7BFC9） TLAP4 (thioredoxin-like associated protein), TGME49_201760 × 3 （A0A7J6K913） TLAP2 (thioredoxin-like associated protein), TGME49_232130 × 4 （A0A125YLA3） TRXL1, TGME49_232410 × 22 （Q8MPF4） GDP GUANOSINE-5'-DIPHOSPHATE × 26 GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YA3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7MIZ Atomic structure of cortical microtubule from Toxoplasma gondii Deposited 2021-04-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 100 PDB declaration: 100-meric	Chain k 1–166（166 aa） Chain l 1–166（166 aa） Chain w 1–166（166 aa） Chain x 1–166（166 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；blot for 4 seconds with a blot force of -15	Resolution 3.40 Å
9YA1 Cryo-EM structure of intraconoidal microtubule 2 (ICMT2) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 96 PDB declaration: 96-meric	Chain k 1–166（166 aa） Chain l 1–166（166 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9YA2 Cryo-EM structure of intraconoidal microtubule 1 (ICMT1) from Toxoplasma gondii (8-nm repeat) Deposited 2025-09-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 99 PDB declaration: 99-meric	Chain k 1–166（166 aa） Chain l 1–166（166 aa）	Not recorded	GTP GUANOSINE-5'-TRIPHOSPHATE × 26 MG MAGNESIUM ION × 26 GDP GUANOSINE-5'-DIPHOSPHATE × 26	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A7J6K232_TOXGO
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain k； PDBConstruct 1–166； UniProt 1–166 Author chain l； PDBConstruct 1–166； UniProt 1–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ya3
Deposition date deposition_date	2025-09-15
Structure title title	Cryo-EM structure of the apical region of subpellicular microtubule (SPMT) from Toxoplasma gondii (8-nm repeat)
Keywords keywords	;Tubulin, Microtubule, Microtubule Inner Protein, Microtubule-associated Protein, Toxoplasma gondii, conoid, conoid fiber, subpellicular microtubule, SPMT, STRUCTURAL PROTEIN ;; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	— Å
Radius of gyration Rg (electron density) rg_electron	120.50 Å
Forward intensity I(0) i0	149597000000.00
Molecular weight molecular_weight	3251100.0 kDa
Excluded volume excluded_volume	4037400 Å³
Envelope volume envelope_volume	7064500 Å³
Hydration-shell volume shell_volume	470050 Å³
Envelope diameter envelope_diameter	372.6 Å
Shell Rg shell_rg	136.40 Å
Envelope Rg envelope_rg	110.40 Å
Shape Rg shape_rg	120.50 Å
Total Rg total_rg	120.60 Å
Total atoms total_atoms	228257
Residues n_residues	28883
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

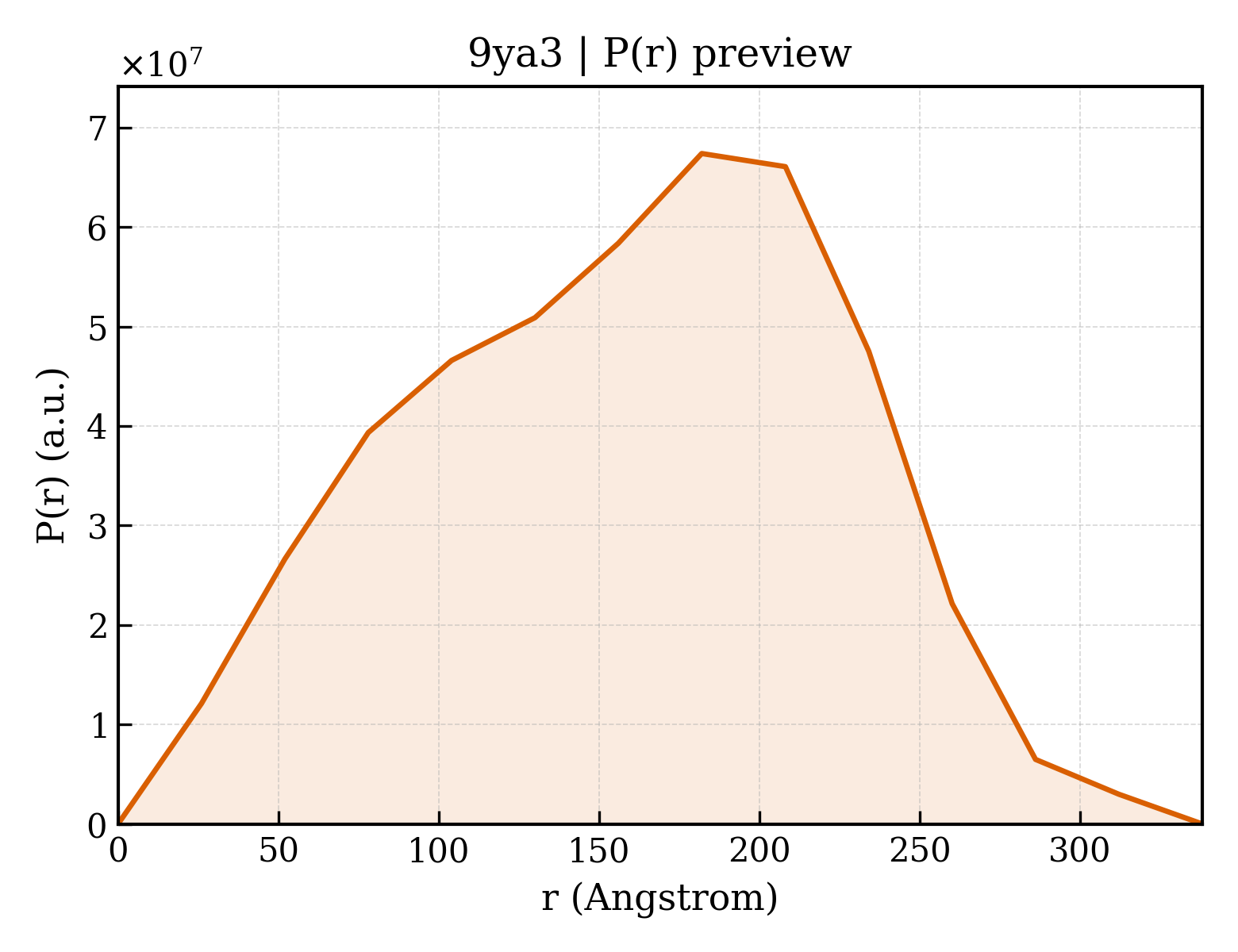

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	338.1 Å
Rg (real space) rg_real	121.20 Å
Rg uncertainty (real space) rg_real_error	1.15 Å
I(0) (real space) i0_real	1.4590e+11
I(0) uncertainty (real space) i0_real_error	3.3570e+09
Rg (reciprocal space) rg_reciprocal	127.20 Å
I(0) (reciprocal space) i0_reciprocal	152600000000.0000
Solution quality estimate total_estimate	0.8932
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	182.0 Å
Skewness Skewness skewness	-0.135
Kurtosis Kurtosis kurtosis	-0.721
Angular range angular_range	— – 0.0650 Å⁻¹
Current regularization parameter α current_alpha	1.7570
Highest regularization parameter α highest_alpha	3476000000.0000
Real-space data points n_real_points	14
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.951; Stabil: 0.930; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Microtubule associated protein SPM1
Molecular weight formula_weight	38845.8 kDa
Source method src_method	nat
Copy count entity_count	22

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	0,1,10,11,12,13,14,15,16,17,18,19,2,22,23,3,4,5,6,7,8,9
Atom count atom_count	228257

MSGGNSNTPKKLPSEEGSDYGYPQKPQKYLPKSEQAEPDYSACCKGNDAYKGASHGTVQFSHPEEAQKYAGAAAGAETIQRGRERVAADRQPRAAGDVPARRLHLSDVDEAHRGQSPSRHPGYCVEELCTCGMHKCIPSRAPVPFTGSTQYRQEFVPKPLPPPTQVSQVTLPPSLPFEAESSYRTEFVAKPLPPPAKFSEVKLPPTLPFHGESAYRTDYVPKPLPEVAKPVEVKLPPTLPFNAQSCYRSEYVAKPLPPPVQTVEVKLPPSLPFEGSTHYRDEFQVKPLPPATKVTEVKLPPSLPFDATSMYRSDYVAKSNPICPVSKLPQYPAATYPQNHVFWDPDTKQWY

Entity 2 Entity 2 polymer

Description description	TLAP3 (apical cap protein AC5), TGME49_235380
Molecular weight formula_weight	65286.1 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C

MPRPGVFELNYGEESRHSPVPKDPSTVTYGDASVGVVHHPLPAAGMYRQPCAFPHGSGFSKQSNETAFPDYPSTEHVAQRYVPPMDDKRQWAGHTSYYAPATMEQRGYQDARYFGAELMPKSQGGENPQNHPIMPSEAAEYGPRKPDCGRLIAAPHEGQVNNLSQVDGRICGTLPVIDNQSFQVEPCFRAPTIATGIPRLQTMKGRDAFAQDATRQRALQGHRTADLLKTPFDYDLFHRTRLPPSAGASIQAAGKEIDWSEKKLFRKAVVSTVFASDQVAERLRQDLPSPNTRDGQRTNADHGNRRNWSENIESLLRQATPVESSAENDPIFTAKVEERSFDSSLLYHGCRHLKKRSAFGHTPDAVAQLLRSSAEAGKGERPLVPSRPSRPSQHDSTQLKRVLSYHPDPEADSKGCFEQRARLRRSQLVTAKNSCRWGVNVFGYDLSPPRRNRLYALRDHLDSKLVPNQSTDDATHIKPRHTNVLSTSLHMSKLVPVTDLSPRPSFRYHADTGSLDATLLPVDAVPQERIGRRLISPPESSLQSNFVPSHEEVGRHKRFLVNSRDSLQGNMIPIVKECTRRRK

Entity 3 Entity 3 polymer

Description description	Tubulin alpha chain
Molecular weight formula_weight	50166.6 kDa
Source method src_method	nat
Copy count entity_count	26

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A0,A2,A4,A6,A8,B0,B2,B4,B6,B8,C0,C2,C4,C6,C8,D0,D2,D4,D6,D8,E0,E2,E4,E6,E8,F0

MREVISIHVGQAGIQIGNACWELFCLEHGIQPDGQMPSDKTIGGGDDAFNTFFSETGAGKHVPRCVFLDLEPTVVDEVRTGTYRHLFHPEQLISGKEDAANNFARGHYTIGKEIVDLSLDRIRKLADNCTGLQGFLMFNAVGGGTGSGLGCLLLERLSVDYGKKSKLNFCSWPSPQVSTAVVEPYNSVLSTHSLLEHTDVAVMLDNEAIYDICRRNLDIERPTYTNLNRLIAQVISSLTASLRFDGALNVDVTEFQTNLVPYPRIHFMLSSYAPIISAEKAYHEQLSVAEITNSAFEPASMMAKCDPRHGKYMACCLMYRGDVVPKDVNAAVATIKTKRTIQFVDWCPTGFKCGINYQPPTVVPGGDLAKVMRAVCMISNSTAIAEVFSRMDHKFDLMYAKRAFVHWYVGEGMEEGEFSEAREDLAALEKDYEEVGIETAEGEGEEEGYGDEY

Entity 4 Entity 4 polymer

Description description	Tubulin beta chain
Molecular weight formula_weight	50119.1 kDa
Source method src_method	nat
Copy count entity_count	26

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A1,A3,A5,A7,A9,B1,B3,B5,B7,B9,C1,C3,C5,C7,C9,D1,D3,D5,D7,D9,E1,E3,E5,E7,E9,F1

MREIVHVQGGQCGNQIGAKFWEVISDEHGIDPTGTYCGDSDLQLERINVFYNEATGGRFVPRAILMDLEPGTMDSVRAGPFGQLFRPDNFVFGQTGAGNNWAKGHYTEGAELIDSVLDVVRKEAEGCDCLQGFQITHSLGGGTGSGMGTLLISKVREEYPDRIMETFSVFPSPKVSDTVVEPYNATLSVHQLVENADEVQVIDNEALYDICFRTLKLTTPTYGDLNHLVSAAMSGVTCCLRFPGQLNSDLRKLAVNLIPFPRLHFFLIGFAPLTSRGSQQYRALSVPELTQQMFDAKNMMCASDPRHGRYLTASAMFRGRMSTKEVDEQMLNVQNKNSSYFVEWIPNNMKSSVCDIPPKGLKMSVTFVGNSTAIQEMFKRVSDQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVSEYQQYQDATAEEEGEFDEEEGEMGAEEGA

Entity 5 Entity 5 polymer

Description description	TLAP4 (thioredoxin-like associated protein), TGME49_201760
Molecular weight formula_weight	37360.2 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G

MERSGHLCKMEPWKQKVPQCLSLHGSNSLRGGKRTYNCNVLMDNWRNDRLDAHNDQKLTSWRIPHPLYTELPQGSKYETHYRQSYDYEDWARRPVRLSKYGLLGHDDSGAESWTTETRSEYEPPRLRRDQLKAAGQWPYGEDIYPRHVHGNEEFMCPHPMAIHVSRTHREDYIRSLTPRPAYERPPAGVPSSSGRLPGVPPYANDPISHHGGSQEQRHFCRMPCRNPSGSSSVQGTTGVDARASPAGSPVFAGQVPAQVKQEGGECGQGYAGIAATEDGLVDHGNSQTDRSAGQHCMLNASGGSERAHAAANTSTCPQRKESDPQPTVSWAAVPCQ

Entity 6 Entity 6 polymer

Description description	TLAP2 (thioredoxin-like associated protein), TGME49_232130
Molecular weight formula_weight	47924.4 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,J,K

MDPRGQPVGPARPGVPPQMMRPQGGPPPGAFPGGPRGPAGAPFGAPMGPGGPMGPPRGPGPQMGPPRGPGPQMGPPRGQQGPPPPGVRGLMPGMTPQGPPGARPGMPPPGTMPMGPDGKLRMQPQTAPGAPPAGMPGTGMPPQQVPRGPMGHVGGGTGGMPAPDARQPVPSKTDSHGLQQKDLAQRSRNLRTLEDDERSDHQFGEEILNKGLQTFARLVALNDVGDLGAWNGYTWKSRRPPSVFFINITHDPEGRLWAVTESNEVGKLTVKGFKAIGHIGQEDVVDITFDPKDGTLWAINRVGELLHWNGYTWDKKYHAGFHKLRAATFDRKGNLWVVNTAGEIAMWDEEEQQWDLKKVPGATRLHTLAFDENNKLWVLGSHGELMLLAANRWVVYGWVGCWKFRDISFRWSKTAIEQLRAVRSTGTVFGGRSSALADRLPVPQGA

Entity 7 Entity 7 polymer

Description description	TRXL1, TGME49_232410
Molecular weight formula_weight	24939.3 kDa
Source method src_method	nat
Copy count entity_count	22

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,b,c,d,e,f,g,h,i,j,m,n,o,p,q,r,s,t,u,v,w,x

MSQPVFASPLNVEKRRLNEERALMQAQKAGGEGVNIQLPPNYGDMDLILFPEGSLKNSNNTVIPQSHLKGKSVALYFADGADPKCASLLPFLLNYYRTMNEGGANQKIEIIFVSLDRDREAFESHRAHMPWLSIDLENPLTEILKRHFRVMKEYEVPTYGYGSRTGVPSVIVIGSDGREAQFLPICSGLEEGDRALLRWDWRNTKFASDQFHVRPTLLEQ

Entity 8 Entity 8 polymer

Description description	TRXL2, TGME49_225790
Molecular weight formula_weight	21687.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	k,l

MLAADCFFGPDVVKRTQQGNYVPVRPDHFAGVSVALFFAKAGHSKCAQIVPVVRQFYKTTNFSGEKAVIEIIYVSLDKDEQDFERVRALMPWCSVEYKSCLRKKLIERYRVPNGELAFGTVRIPSTAIPLLIVIGPNGEEAGRMNFQQSDEFVLQRWDYRFNKWPGSAQRLRTLNDATDPWKKRLPQNV

Entity 9 Entity 9 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	26

Entity 10 Entity 10 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	26

Entity 11 Entity 11 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	26

▶

8. Citations (1)

▶

Resolution resolution	3.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	225207

fit	/app/data/saxs_computation/ya/9ya3/9ya3.fit
pddf	/app/data/pr_computation/ya/9ya3/9ya3.pr.out
profile	/app/data/saxs_computation/ya/9ya3/9ya3.dat

Cryo-EM structure of the apical region of subpellicular microtubule (SPMT) from Toxoplasma gondii (8-nm repeat)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule associated protein SPM1

State in the Current Structure

Other States of the Same Protein in the Database

TLAP3 (apical cap protein AC5), TGME49_235380

State in the Current Structure

Other States of the Same Protein in the Database

Tubulin alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Tubulin beta chain

State in the Current Structure

Other States of the Same Protein in the Database

TLAP4 (thioredoxin-like associated protein), TGME49_201760

State in the Current Structure

Other States of the Same Protein in the Database

TLAP2 (thioredoxin-like associated protein), TGME49_232130

State in the Current Structure

Other States of the Same Protein in the Database

TRXL1, TGME49_232410

State in the Current Structure

Other States of the Same Protein in the Database

TRXL2, TGME49_225790

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 polymer

Polymer Polymer

Entity 7 Entity 7 polymer

Polymer Polymer

Entity 8 Entity 8 polymer

Polymer Polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 non-polymer

Entity 11 Entity 11 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
