I-PPOL HOMING ENDONUCLEASE/DNA COMPLEX

entry_id	1a74
deposition_date	1998-03-19
title	I-PPOL HOMING ENDONUCLEASE/DNA COMPLEX
keywords	HOMING ENDONUCLEASE, INTRON, ZINC FINGER, DNA BINDING, PROTEIN FOLDING, COMPLEX (HOMING ENDONUCLEASE-DNA), HYDROLASE-DNA COMPLEX; HYDROLASE/DNA
method	X-RAY DIFFRACTION

rg_guinier	24.72 Å
rg_electron	24.49 Å
i0	55095800.00
molecular_weight	48461.0 kDa
excluded_volume	56397 ų
envelope_volume	70718 ų
shell_volume	24620 ų
envelope_diameter	80.7 Å
shell_rg	31.35 Å
envelope_rg	24.56 Å
shape_rg	24.50 Å
total_rg	25.11 Å
total_atoms	3348
n_residues	366
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	89.8 Å
rg_real	24.76 Å
rg_real_error	0.82 Å
i0_real	5.5100e+07
i0_real_error	8.7040e+05
rg_reciprocal	24.75 Å
i0_reciprocal	55100000.0000
total_estimate	0.7642
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.1 Å
skewness	0.350
kurtosis	-0.485
angular_range	— – 0.3200 Å−1
current_alpha	0.0000
highest_alpha	6559000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.720; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.770; Smooth: 0.000

Unit Cell

length_a	113.400 Å
length_b	113.400 Å
length_c	88.200 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

Symmetry

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

Refinement

resolution	2.200 Å
resolution_low	100.000 Å
r_factor	0.2160
r_work	0.2160
r_free	0.2650

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/a7/1a74/pr_distribution.json
• pr_output /app/data/pr_computation/a7/1a74/1a74.pr.out
• pr_plot /app/data/visualization/pr_computation/a7/1a74/1a74_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/a7/1a74/1a74.dat
• saxs_fit /app/data/saxs_computation/a7/1a74/1a74.fit
• saxs_log /app/data/saxs_computation/a7/1a74/1a74.log

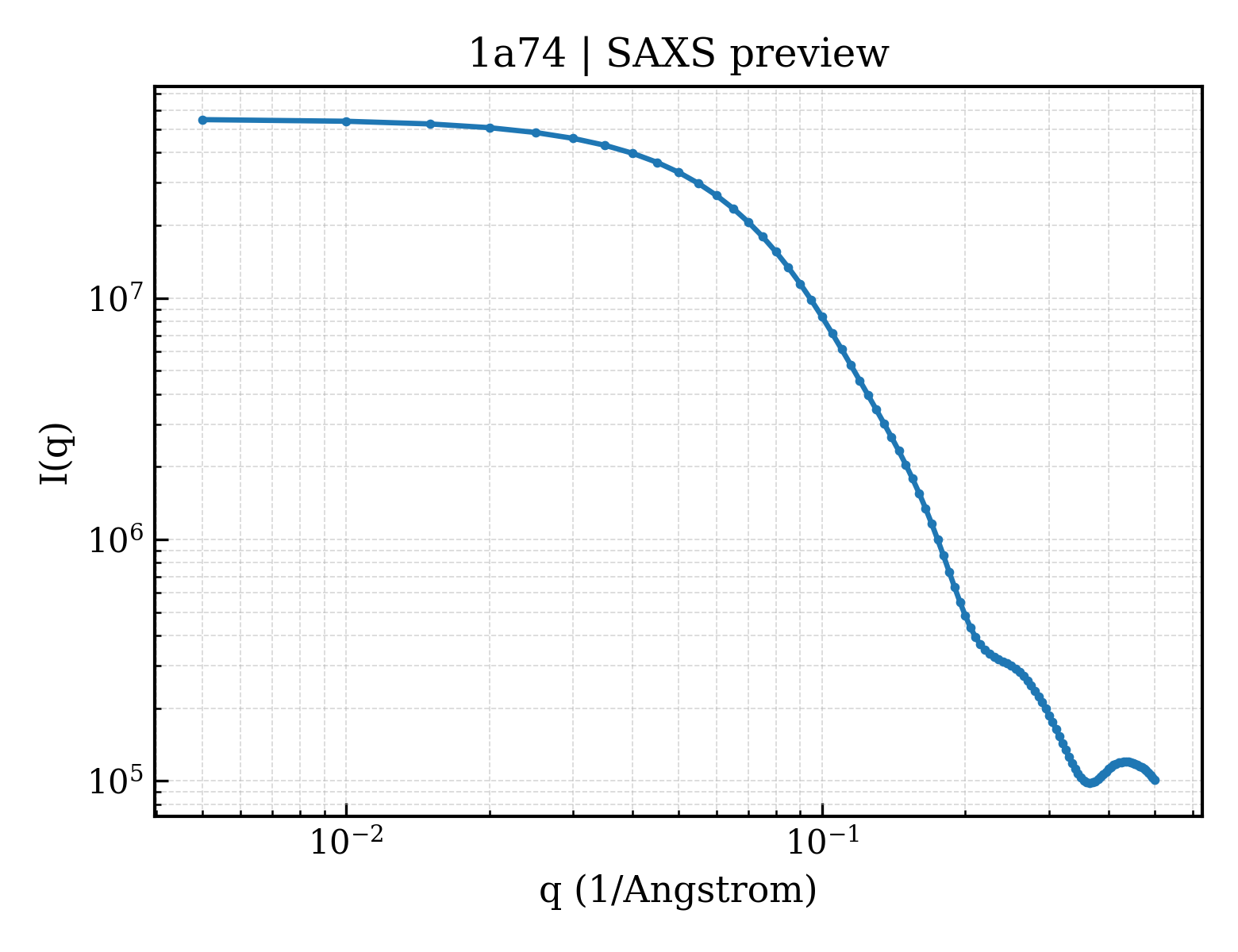

• saxs_plot /app/data/visualization/saxs_computation/a7/1a74/1a74_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/a7/1a74/1a74.fit
pddf	/app/data/pr_computation/a7/1a74/1a74.pr.out
profile	/app/data/saxs_computation/a7/1a74/1a74.dat
