1cjk

COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH ADENOSINE 5'-(ALPHA THIO)-TRIPHOSPHATE (RP), MG, AND MN

Method: X-RAY DIFFRACTION D_max: 102.4 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADENYLATE CYCLASE, TYPE V

Canis lupus familiaris

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 364–580	Fragment：C1A DOMAIN OF ADENYLYL CYCLASE Mutation：V476M	ADENYLATE CYCLASE, TYPE II × 1 （P26769） GUANINE NUCLEOTIDE-BINDING PROTEIN G(S) × 1 （P04896） MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.266

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CJK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AZS COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE Deposited 1997-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 442–656（215 aa） Fragment：C1A DOMAIN OF ADENYLYL CYCLASE	Mutation：V476M, N-TERMINAL HEXAHISTIDINE TAG	FKP METHYLPIPERAZINOFORSKOLIN × 2 MG MAGNESIUM ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM (PH 5.4-5.6), vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.282
1CJT COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MN, AND MG Deposited 1999-04-16	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 364–580（217 aa） Fragment：C1A DOMAIN OF ADENYLYL CYCLASE	Mutation：V476M	MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.252
1CJU COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP AND MG Deposited 1999-04-16	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 364–580（217 aa） Fragment：C1A DOMAIN OF ADENYLYL CYCLASE	Mutation：V476M	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.284
1CJV COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MG, AND ZN Deposited 1999-04-19	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 364–580（217 aa） Fragment：C1A DOMAIN OF ADENYLYL CYCLASE	Mutation：V476M	ZN ZINC ION × 2 MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.262
1CS4 COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE, PYROPHOSPHATE AND MG Deposited 1999-08-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 363–580（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 POP PYROPHOSPHATE 2- × 1 101 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER, VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.50 Å R-free 0.264
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 364–580（217 aa） Fragment：C1A DOMAIN	Mutation：V476M	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 3PO TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 364–580（217 aa） Fragment：C1A DOMAIN	Mutation：V476M	MG MAGNESIUM ION × 6 FOK FORSKOLIN × 2 3PO TRIPHOSPHATE × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 2 CL CHLORIDE ION × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1TL7 Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With 2'(3')-O-(N-methylanthraniloyl)-guanosine 5'-triphosphate and Mn Deposited 2004-06-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 445–661（217 aa） Fragment：C1A Domain Of Adenylyl Cyclase	Not recorded	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.298
1U0H STRUCTURAL BASIS FOR THE INHIBITION OF MAMMALIAN ADENYLYL CYCLASE BY MANT-GTP Deposited 2004-07-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 442–661（220 aa） Fragment：C1A domain of Adenylyl Cyclase	Not recorded	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.90 Å R-free 0.280
2GVD Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With TNP-ATP and Mn Deposited 2006-05-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A domain, residues 440-657	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 128 SPIRO(2,4,6-TRINITROBENZENE[1,2A]-2O',3O'-METHYLENE-ADENINE-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.90 Å R-free 0.279
2GVZ Crystal Structure of Complex of Gs- with The Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with MANT-ATP and Mn Deposited 2006-05-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN, residues 440-657	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 ONA 3'-O-[2-(METHYLAMINO)BENZOYL]ADENOSINE 5'-(TETRAHYDROGEN TRIPHOSPHATE) × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8 %PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.27 Å R-free 0.330
3C14 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Ca Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.68 Å R-free 0.291
3C15 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Mg Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	MG MAGNESIUM ION × 1 FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.78 Å R-free 0.291
3C16 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine-5'-Triphosphate and Ca Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	CA CALCIUM ION × 2 FOK FORSKOLIN × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.87 Å R-free 0.299
3G82 Complex of GS-alpha with the catalytic domains of mammalian adenylyl cyclase: complex with MANT-ITP and Mn Deposited 2009-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 MI3 3'-O-{[2-(methylamino)phenyl]carbonyl}inosine 5'-(tetrahydrogen triphosphate) × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；289 K；7.2-7.8% PEG8000, 0.5M NACL, 0.1M 2-morpholinoethanesulfonic acid, pH 5.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.11 Å R-free 0.294
3MAA Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine 5-O-(l-Thiophosphate) and Low Ca Concentration Deposited 2010-03-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 444–661（218 aa） Fragment：C1A DOMAIN	Mutation：V476M	FKP METHYLPIPERAZINOFORSKOLIN × 1 CA CALCIUM ION × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, temperature 289K	Resolution 3.00 Å R-free 0.309

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ADCY5_CANFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–217； UniProt 364–580

ADENYLATE CYCLASE, TYPE II

Rattus norvegicus

UniProt P26769

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 870–1081	Fragment：C2A DOMAIN OF ADENYLYL CYCLASE	ADENYLATE CYCLASE, TYPE V × 1 （P30803） GUANINE NUCLEOTIDE-BINDING PROTEIN G(S) × 1 （P04896） MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.266

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1CJK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AB8 RAT TYPE II ADENYLYL CYCLASE C2 DOMAIN/FORSKOLIN COMPLEX Deposited 1997-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 871–1090（220 aa） Fragment：C2 DOMAIN Chain B 871–1090（220 aa） Fragment：C2 DOMAIN	Not recorded	FOK FORSKOLIN × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.1 M AM SO4, 0.1 M PHOSPHATE, PH 5.9, 2 % DMSO, 1 MM FORSKOLIN, 10 MM DTT, 80 MM NACL, 50 MM TRIS HCL	Resolution 2.20 Å R-free 0.284
1AB8 RAT TYPE II ADENYLYL CYCLASE C2 DOMAIN/FORSKOLIN COMPLEX Deposited 1997-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 871–1090（220 aa） Fragment：C2 DOMAIN Chain B 871–1090（220 aa） Fragment：C2 DOMAIN	Not recorded	FOK FORSKOLIN × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.9；1.1 M AM SO4, 0.1 M PHOSPHATE, PH 5.9, 2 % DMSO, 1 MM FORSKOLIN, 10 MM DTT, 80 MM NACL, 50 MM TRIS HCL	Resolution 2.20 Å R-free 0.284
1AZS COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE Deposited 1997-11-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN OF ADENYLYL CYCLASE	Not recorded	FKP METHYLPIPERAZINOFORSKOLIN × 2 MG MAGNESIUM ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM (PH 5.4-5.6), vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.282
1CJT COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MN, AND MG Deposited 1999-04-16	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 874–1081（208 aa） Fragment：C2A DOMAIN OF ADENYLYL CYCLASE	Not recorded	MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.252
1CJU COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP AND MG Deposited 1999-04-16	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 874–1081（208 aa） Fragment：C2A DOMAIN OF ADENYLYL CYCLASE	Not recorded	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.284
1CJV COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MG, AND ZN Deposited 1999-04-19	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 874–1081（208 aa） Fragment：C2A DOMAIN OF ADENYLYL CYCLASE	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.262
1CS4 COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE, PYROPHOSPHATE AND MG Deposited 1999-08-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 POP PYROPHOSPHATE 2- × 1 101 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER, VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.50 Å R-free 0.264
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 874–1081（208 aa） Fragment：C2A DOMAIN	Not recorded	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 3PO TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 874–1081（208 aa） Fragment：C2A DOMAIN	Not recorded	MG MAGNESIUM ION × 6 FOK FORSKOLIN × 2 3PO TRIPHOSPHATE × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 2 CL CHLORIDE ION × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1TL7 Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With 2'(3')-O-(N-methylanthraniloyl)-guanosine 5'-triphosphate and Mn Deposited 2004-06-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A Domain Of Adenylyl Cyclase	Not recorded	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.298
1U0H STRUCTURAL BASIS FOR THE INHIBITION OF MAMMALIAN ADENYLYL CYCLASE BY MANT-GTP Deposited 2004-07-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A domain of Adenylyl Cyclase	Not recorded	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.90 Å R-free 0.280
2GVD Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With TNP-ATP and Mn Deposited 2006-05-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A domain, residues 870-1081	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 128 SPIRO(2,4,6-TRINITROBENZENE[1,2A]-2O',3O'-METHYLENE-ADENINE-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.90 Å R-free 0.279
2GVZ Crystal Structure of Complex of Gs- with The Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with MANT-ATP and Mn Deposited 2006-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN, residues 870-1081	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 ONA 3'-O-[2-(METHYLAMINO)BENZOYL]ADENOSINE 5'-(TETRAHYDROGEN TRIPHOSPHATE) × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8 %PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.27 Å R-free 0.330
3C14 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Ca Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.68 Å R-free 0.291
3C15 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Mg Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	MG MAGNESIUM ION × 1 FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.78 Å R-free 0.291
3C16 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine-5'-Triphosphate and Ca Deposited 2008-01-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	CA CALCIUM ION × 2 FOK FORSKOLIN × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.87 Å R-free 0.299
3G82 Complex of GS-alpha with the catalytic domains of mammalian adenylyl cyclase: complex with MANT-ITP and Mn Deposited 2009-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 MI3 3'-O-{[2-(methylamino)phenyl]carbonyl}inosine 5'-(tetrahydrogen triphosphate) × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；289 K；7.2-7.8% PEG8000, 0.5M NACL, 0.1M 2-morpholinoethanesulfonic acid, pH 5.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.11 Å R-free 0.294
3MAA Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine 5-O-(l-Thiophosphate) and Low Ca Concentration Deposited 2010-03-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 870–1081（212 aa） Fragment：C2A DOMAIN	Not recorded	FKP METHYLPIPERAZINOFORSKOLIN × 1 CA CALCIUM ION × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, temperature 289K	Resolution 3.00 Å R-free 0.309

16 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ADCY2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–212； UniProt 870–1081

GUANINE NUCLEOTIDE-BINDING PROTEIN G(S)

Bos taurus

UniProt P04896

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–394	Fragment：TRYPSINIZED FRAGMENT Mutation：N-TERMINAL HEXAHISTIDINE TAG	ADENYLATE CYCLASE, TYPE V × 1 （P30803） ADENYLATE CYCLASE, TYPE II × 1 （P26769） MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.266

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1CJK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AZS COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE Deposited 1997-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–394（394 aa）	Mutation：C-TERMINAL HEXAHISTIDINE TAG, NOT PALMITOYLATED AT AMINO TERMINUS	FKP METHYLPIPERAZINOFORSKOLIN × 2 MG MAGNESIUM ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM (PH 5.4-5.6), vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.282
1AZT GS-ALPHA COMPLEXED WITH GTP-GAMMA-S Deposited 1997-11-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–394（394 aa） Chain B 1–394（394 aa）	Mutation：C-TERMINAL HEXAHISTIDINE TAG, NOT PALMITOYLATED AT AMINO TERMINUS Mutation：C-TERMINAL HEXAHISTIDINE TAG, NOT PALMITOYLATED AT AMINO TERMINUS	MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 16 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION CONSISTING OF 90-100% SATURATED KH2PO4 OR NAH2PO4 (UNBUFFERED)., pH 4.5, vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.282
1CJT COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MN, AND MG Deposited 1999-04-16	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Mutation：N-TERMINAL HEXAHISTIDINE TAG	MG MAGNESIUM ION × 2 MN MANGANESE (II) ION × 1 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.252
1CJU COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP AND MG Deposited 1999-04-16	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Mutation：N-TERMINAL HEXAHISTIDINE TAG	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.284
1CJV COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH BETA-L-2',3'-DIDEOXYATP, MG, AND ZN Deposited 1999-04-19	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Mutation：N-TERMINAL HEXAHISTIDINE TAG	ZN ZINC ION × 2 MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 DAD 2',3'-DIDEOXYADENOSINE-5'-TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；CRYSTALLIZED IN HANGING DROPS CONTAINING PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM PHOSPHATE BUFFER (PH 5.4-5.6), VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.262
1CS4 COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE, PYROPHOSPHATE AND MG Deposited 1999-08-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：GS(ALPHA)	Mutation：TRYPSINIZED, SHORT FORM	MG MAGNESIUM ION × 2 FOK FORSKOLIN × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 POP PYROPHOSPHATE 2- × 1 101 2'-DEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER, VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.50 Å R-free 0.264
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：GS(ALPHA)	Mutation：TRYPSINIZED, SHORT FORM	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 3PO TRIPHOSPHATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 1 CL CHLORIDE ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1CUL COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG Deposited 1999-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–394（394 aa） Fragment：GS(ALPHA)	Mutation：TRYPSINIZED, SHORT FORM	MG MAGNESIUM ION × 6 FOK FORSKOLIN × 2 3PO TRIPHOSPHATE × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 4 103 2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE × 2 CL CHLORIDE ION × 4 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；PROTEIN MIXED 1:1 WITH WELL SOLUTION OF 7.2-7.5% PEG 8000, 500MM NACL AND 100 MM MES BUFFER pH 5.4-5.6. VAPOR DIFFUSION, HANGING DROP at 293 K	Resolution 2.40 Å R-free 0.263
1TL7 Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With 2'(3')-O-(N-methylanthraniloyl)-guanosine 5'-triphosphate and Mn Deposited 2004-06-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa）	Not recorded	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.298
1U0H STRUCTURAL BASIS FOR THE INHIBITION OF MAMMALIAN ADENYLYL CYCLASE BY MANT-GTP Deposited 2004-07-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa）	Not recorded	MG MAGNESIUM ION × 3 FOK FORSKOLIN × 1 ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.90 Å R-free 0.280
2GVD Complex Of Gs- With The Catalytic Domains Of Mammalian Adenylyl Cyclase: Complex With TNP-ATP and Mn Deposited 2006-05-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa）	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 128 SPIRO(2,4,6-TRINITROBENZENE[1,2A]-2O',3O'-METHYLENE-ADENINE-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.90 Å R-free 0.279
2GVZ Crystal Structure of Complex of Gs- with The Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with MANT-ATP and Mn Deposited 2006-05-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa）	Not recorded	MN MANGANESE (II) ION × 3 FKP METHYLPIPERAZINOFORSKOLIN × 1 ONA 3'-O-[2-(METHYLAMINO)BENZOYL]ADENOSINE 5'-(TETRAHYDROGEN TRIPHOSPHATE) × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；289 K；7.5-7.8 %PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.27 Å R-free 0.330
3C14 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Ca Deposited 2008-01-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Not recorded	FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.68 Å R-free 0.291
3C15 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Pyrophosphate and Mg Deposited 2008-01-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Not recorded	MG MAGNESIUM ION × 1 FOK FORSKOLIN × 1 POP PYROPHOSPHATE 2- × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.78 Å R-free 0.291
3C16 Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine-5'-Triphosphate and Ca Deposited 2008-01-22	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT	Not recorded	CA CALCIUM ION × 2 FOK FORSKOLIN × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CL CHLORIDE ION × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；7.5-7.8% PEG 8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 2.87 Å R-free 0.299
3G82 Complex of GS-alpha with the catalytic domains of mammalian adenylyl cyclase: complex with MANT-ITP and Mn Deposited 2009-02-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa） Fragment：TRYPSINIZED FRAGMENT OF G(S)ALPHA SUBUNIT	Not recorded	MN MANGANESE (II) ION × 2 FOK FORSKOLIN × 1 MI3 3'-O-{[2-(methylamino)phenyl]carbonyl}inosine 5'-(tetrahydrogen triphosphate) × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.4；289 K；7.2-7.8% PEG8000, 0.5M NACL, 0.1M 2-morpholinoethanesulfonic acid, pH 5.4, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.11 Å R-free 0.294
3MAA Complex of GS-Alpha with the Catalytic Domains of Mammalian Adenylyl Cyclase: Complex with Adenosine 5-O-(l-Thiophosphate) and Low Ca Concentration Deposited 2010-03-23	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–394（394 aa）	Not recorded	FKP METHYLPIPERAZINOFORSKOLIN × 1 CA CALCIUM ION × 1 TAT ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；289 K；7.5-7.8% PEG8000, 0.5M NACL, 0.1M PHOSPHATE BUFFER, pH 5.6, VAPOR DIFFUSION, temperature 289K	Resolution 3.00 Å R-free 0.309
3SN6 Crystal structure of the beta2 adrenergic receptor-Gs protein complex Deposited 2011-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–380（380 aa）	Mutation：G72S	P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 6.5；293 K；350-450 mM potassium nitrate, 100 mM MES, 1 mM TCEP, 10 mM phosphonoformate, 0.01 mM BI167107, 18-22% PEG400. Crystals were grown in a 10:1 (w:w) MAG 7.7:cholesterol lipid mix. , pH 6.5, Lipidic cubic phase, temperature 293K	Resolution 3.20 Å R-free 0.277
6R3Q The structure of a membrane adenylyl cyclase bound to an activated stimulatory G protein Deposited 2019-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6R4O Structure of a truncated adenylyl cyclase bound to MANT-GTP, forskolin and an activated stimulatory Galphas protein Deposited 2019-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	ONM 3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE × 1 FOK FORSKOLIN × 1 MN MANGANESE (II) ION × 2 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
6R4P Structure of a soluble domain of adenylyl cyclase bound to an activated stimulatory G protein Deposited 2019-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7DTY Structural basis of ligand selectivity conferred by the human glucose-dependent insulinotropic polypeptide receptor Deposited 2021-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Not recorded	CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å
7FIM Cryo-EM structure of the tirzepatide (LY3298176)-bound human GLP-1R-Gs complex Deposited 2021-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7FIN Cryo-EM structure of the GIPR/GLP-1R/GCGR triagonist peptide 20-bound human GIPR-Gs complex Deposited 2021-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Mutation：8	CLR CHOLESTEROL × 7 GGL GAMMA-L-GLUTAMIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7FIY Cryo-EM structure of the tirzepatide-bound human GIPR-Gs complex Deposited 2021-08-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Not recorded	CLR CHOLESTEROL × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7JJO Structural Basis of the Activation of Heterotrimeric Gs-protein by Isoproterenol-bound Beta1-Adrenergic Receptor Deposited 2020-07-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–380（380 aa）	Not recorded	5FW ISOPRENALINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
7PDE Structure of Adenylyl cyclase 9 in complex with Gs protein alpha subunit and MANT-GTP Deposited 2021-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å
7PDF focus refinement of soluble domain of adenylyl cyclase 9 in complex with Gs protein alpha subunit and MANT-GTP Deposited 2021-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
7S0G Isoproterenol bound beta1 adrenergic receptor in complex with heterotrimeric Gi/s chimera protein Deposited 2021-08-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 384–394（11 aa）	Mutation：G203A	5FW ISOPRENALINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.86 Å
7VQX Cryo-EM structure of human vasoactive intestinal polypeptide receptor 2 (VIP2R) in complex with PACAP27 and Gs Deposited 2021-10-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Mutation：S54N, G226A, E268A, N271K, K274D, R280K, T284D, I285T, A366S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.74 Å
7WBJ Cryo-EM structure of N-terminal modified human vasoactive intestinal polypeptide receptor 2 (VIP2R) in complex with PACAP27 and Gs Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–394（394 aa）	Mutation：S54N, G226A, E268A, N271K, K274D, R280K, T284D, I285T, A366S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.42 Å
8BUZ Structure of Adenylyl cyclase 8 bound to stimulatory G-protein, Ca2+/Calmodulin, Forskolin and MANT-GTP Deposited 2022-12-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	FOK FORSKOLIN × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8BV5 Focus refinement of soluble domain of Adenylyl cyclase 8 bound to stimulatory G protein, Forskolin, ATPalphaS, and Ca2+/Calmodulin in lipid nanodisc conditions Deposited 2023-01-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–394（394 aa）	Not recorded	FOK FORSKOLIN × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
8DCR Cryo-EM structure of dobutamine-bound beta1-adrenergic receptor in complex with heterotrimeric Gs-protein Deposited 2022-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–380（380 aa）	Not recorded	Y00 DOBUTAMINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8DCS Cryo-EM structure of cyanopindolol-bound beta1-adrenergic receptor in complex with heterotrimeric Gs-protein Deposited 2022-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–380（380 aa）	Not recorded	P32 Cyanopindolol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
8ITL Cryo-EM structure of GIPR splice variant 1 (SV1) in complex with Gs protein Deposited 2023-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–394（394 aa）	Mutation：S54N,G226A,E268A,N271K,K274D,R280K,T284D,I285T	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.23 Å
8ITM Cryo-EM structure of GIPR splice variant 2 (SV2) in complex with Gs protein Deposited 2023-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–394（394 aa）	Mutation：S54N,G226A,E268A,N271K,K274D,R280K,T284D,I285T	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å
8WA3 Cryo-EM structure of peptide free and Gs-coupled GIPR Deposited 2023-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–394（394 aa）	Mutation：S54N, G226A, E268A, N271K, K274D, R280K, T284D, I285T, A366S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.86 Å
9IJD Carazolol-activated human beta3 adrenergic receptor Deposited 2024-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 26–394（369 aa）	Not recorded	CAU (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.76 Å
9IJE Epinephrine-activated human beta3 adrenergic receptor Deposited 2024-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 26–394（369 aa）	Not recorded	ALE L-EPINEPHRINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.34 Å
9L84 Structure of beta1-AR-Gs complex bound to epinephrine and an allosteric modulator Deposited 2024-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–394（394 aa）	Not recorded	DR7 (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER × 1 ALE L-EPINEPHRINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å
9L8L Structure of GPCR megacomplex bound to agonists Deposited 2024-12-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–394（394 aa）	Not recorded	DR7 (3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER × 1 P0G 8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.22 Å

41 other PDB entries and 42 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GNAS_BOVIN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–394； UniProt 1–394

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cjk
Deposition date deposition_date	1999-04-16
Structure title title	COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH ADENOSINE 5'-(ALPHA THIO)-TRIPHOSPHATE (RP), MG, AND MN
Keywords keywords	COMPLEX (LYASE-HYDROLASE), HYDROLASE, SIGNAL TRANSDUCING PROTEIN, CYCLASE, EFFECTOR ENZYME, LYASE-LYASE-SIGNALING PROTEIN COMPLEX; LYASE/LYASE/SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.22 Å
Radius of gyration Rg (electron density) rg_electron	31.56 Å
Forward intensity I(0) i0	111037000.00
Molecular weight molecular_weight	82345.0 kDa
Excluded volume excluded_volume	102470 Å³
Envelope volume envelope_volume	133670 Å³
Hydration-shell volume shell_volume	35498 Å³
Envelope diameter envelope_diameter	102.7 Å
Shell Rg shell_rg	38.32 Å
Envelope Rg envelope_rg	31.28 Å
Shape Rg shape_rg	31.57 Å
Total Rg total_rg	32.12 Å
Total atoms total_atoms	5765
Residues n_residues	709
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

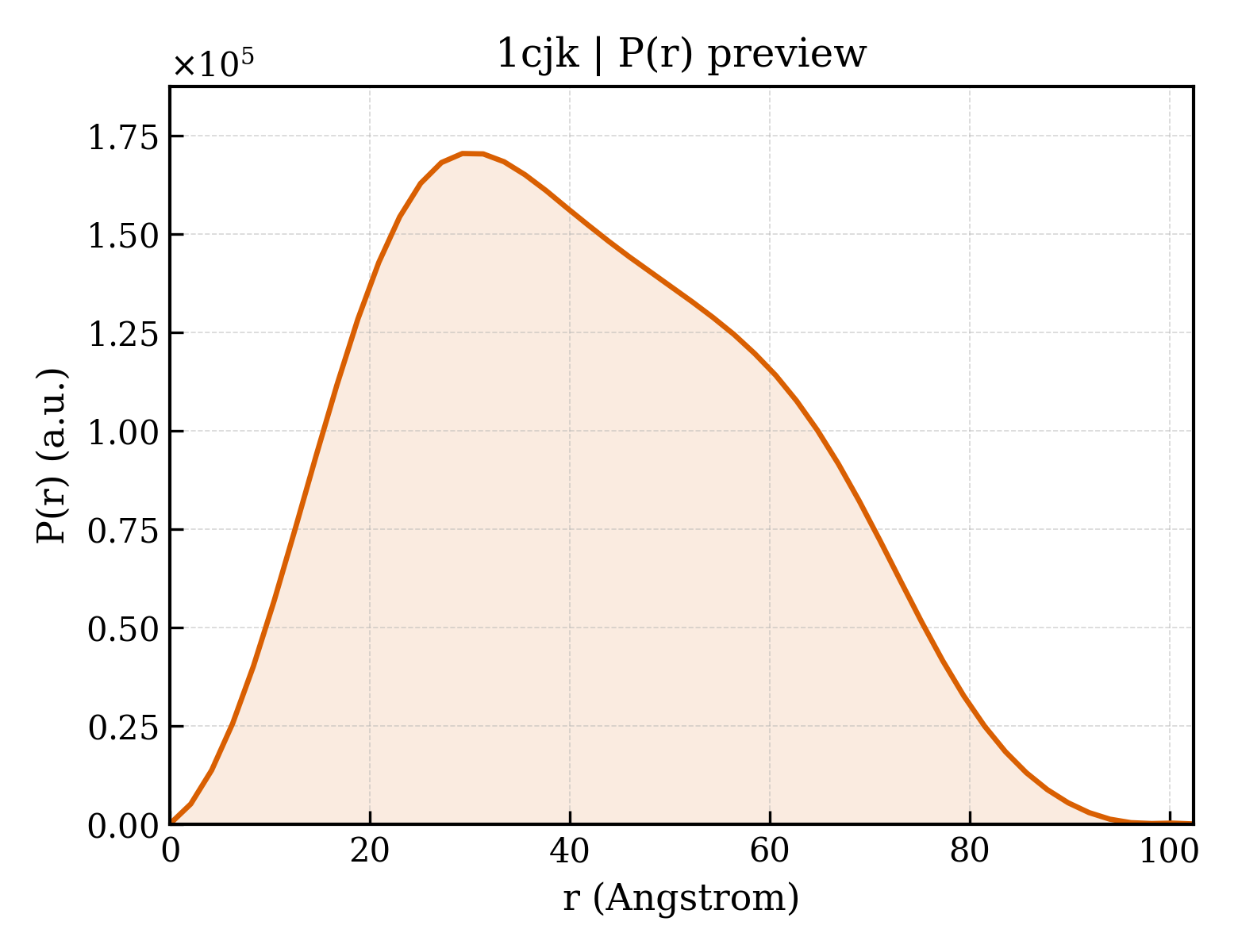

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.4 Å
Rg (real space) rg_real	32.24 Å
Rg uncertainty (real space) rg_real_error	0.58 Å
I(0) (real space) i0_real	1.1100e+08
I(0) uncertainty (real space) i0_real_error	1.6470e+06
Rg (reciprocal space) rg_reciprocal	32.24 Å
I(0) (reciprocal space) i0_reciprocal	111000000.0000
Solution quality estimate total_estimate	0.8960
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.3 Å
Skewness Skewness skewness	0.254
Kurtosis Kurtosis kurtosis	-0.719
Angular range angular_range	— – 0.2450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	31530000.0000
Real-space data points n_real_points	50
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.909

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	ADENYLATE CYCLASE, TYPE V
Molecular weight formula_weight	24495.4 kDa
EC 编号 ec_number	4.6.1.1
Mutation mutation	V476M
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5799

MEMKADINAKQEDMMFHKIYIQKHDNVSILFADIEGFTSLASQCTAQELVMTLNELFARFDKLAAENHCLRIKILGDCYYCVSGLPEARADHAHCCVEMGMDMIEAISLVREMTGVNVNMRVGIHSGRVHCGVLGLRKWQFDVWSNDVTLANHMEAGGKAGRIHITKATLSYLNGDYEVEPGCGGERNAYLKEHSIETFLILRCTQKRKEEKAMIAK

来源 Source

来源生物 organism	Canis lupus familiaris
通用名 common_name	dog
NCBI Class编号 ncbi_taxonomy_id	9615
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	ADENYLATE CYCLASE, TYPE II
Molecular weight formula_weight	23717.0 kDa
EC 编号 ec_number	4.6.1.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RSLKNEELYHQSYDCVCVMFASIPDFKEFYTESDVNKEGLECLRLLNEIIADFDDLLSKPKFSGVEKIKTIGSTYMAATGLSAIPSQEHAQEPERQYMHIGTMVEFAYALVGKLDAINKHSFNDFKLRVGINHGPVIAGVIGAQKPQYDIWGNTVNVASRMDSTGVLDKIQVTEETSLILQTLGYTCTCRGIINVKGKGDLKTYFVNTEMSR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	GUANINE NUCLEOTIDE-BINDING PROTEIN G(S)
Molecular weight formula_weight	46656.4 kDa
Mutation mutation	N-TERMINAL HEXAHISTIDINE TAG
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGCLGNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGAGESGKSTIVKQMRILHVNGFNGGEGGEEDPNAKSNSDGEKATKVQDIKNNLKEAIETIVAAMSNLVPPVELANPENQFRVDYILSVMNVPDFDFPPEFYEHAKALWEDEGVRACYERSNEYQLIDCAQYFLDKIDVIKQDDYVPSDQDLLRCRVLTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVASSSYNMVIREDNQTNRLQEALNLFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLRQYELLGGHHHHHH

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	FORSKOLIN
Molecular weight formula_weight	410.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE-5'-RP-ALPHA-THIO-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE
Molecular weight formula_weight	539.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	34

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1cjka_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.29 — Nucleotide cyclase
Family Family family	d.58.29.1 — Adenylyl and guanylyl cyclase catalytic domain

Domain ID domain_id	d1cjkb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.29 — Nucleotide cyclase
Family Family family	d.58.29.1 — Adenylyl and guanylyl cyclase catalytic domain

Domain ID domain_id	d1cjkc1
Class class	a — All alpha proteins
Fold Fold fold	a.66 — Transducin (alpha subunit), insertion domain
Superfamily Superfamily superfamily	a.66.1 — Transducin (alpha subunit), insertion domain
Family Family family	a.66.1.1 — Transducin (alpha subunit), insertion domain

Domain ID domain_id	d1cjkc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (4 domains)

Domain ID domain_id	1cjkA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1230 — Nucleotide cyclase, GGDEF domain

Domain ID domain_id	1cjkB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1230 — Nucleotide cyclase, GGDEF domain

Domain ID domain_id	1cjkC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1cjkC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	400 — GI Alpha 1, domain 2-like
Homologous superfamily homologous superfamily	10 — GI Alpha 1, domain 2-like

▶

8. Citations (2)

▶

Unit-cell length a length_a	118.900 Å
Unit-cell length b length_b	134.900 Å
Unit-cell length c length_c	72.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.2200
R_free r_free	0.2660

fit	/app/data/saxs_computation/cj/1cjk/1cjk.fit
pddf	/app/data/pr_computation/cj/1cjk/1cjk.pr.out
profile	/app/data/saxs_computation/cj/1cjk/1cjk.dat

COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH ADENOSINE 5'-(ALPHA THIO)-TRIPHOSPHATE (RP), MG, AND MN

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADENYLATE CYCLASE, TYPE V

State in the Current Structure

Other States of the Same Protein in the Database

ADENYLATE CYCLASE, TYPE II

State in the Current Structure

Other States of the Same Protein in the Database

GUANINE NUCLEOTIDE-BINDING PROTEIN G(S)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 non-polymer

Entity 11 Entity 11 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
