1cul

;COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG ;

Method: X-RAY DIFFRACTION D_max: 101.8 Å Quality: GOOD

SAXS Profile

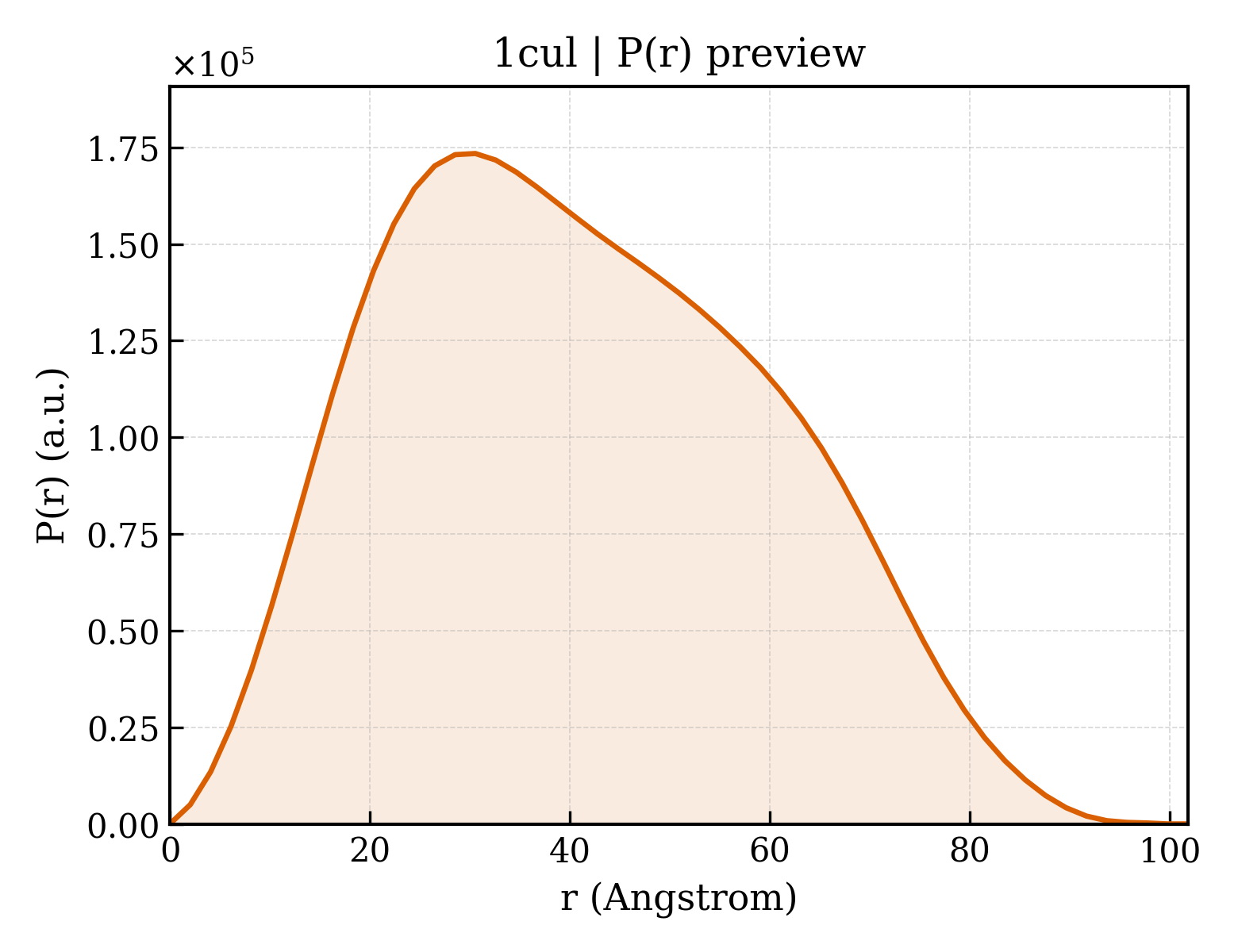

P(r) Distribution

▼

1. Structure Basics

entry_id	1cul
deposition_date	1999-08-20
title	;COMPLEX OF GS-ALPHA WITH THE CATALYTIC DOMAINS OF MAMMALIAN ADENYLYL CYCLASE: COMPLEX WITH 2',5'-DIDEOXY-ADENOSINE 3'-TRIPHOSPHATE AND MG ;
keywords	;COMPLEX (LYASE-HYDROLASE), HYDROLASE, SIGNAL TRANSDUCING PROTEIN, CYCLASE, EFFECTOR ENZYME, LYASE-HYDROLASE COMPLEX, LYASE/LYASE/SIGNALING PROTEIN, Lyase-Lyase-Signaling protein complex ;; Lyase/Lyase/Signaling protein
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.86 Å
rg_electron	31.20 Å
i0	111667000.00
molecular_weight	82359.0 kDa
excluded_volume	102390 Å³
envelope_volume	131230 Å³
shell_volume	35149 Å³
envelope_diameter	99.9 Å
shell_rg	38.12 Å
envelope_rg	31.01 Å
shape_rg	31.20 Å
total_rg	31.77 Å
total_atoms	5764
n_residues	707
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	101.8 Å
rg_real	31.88 Å
rg_real_error	0.88 Å
i0_real	1.1170e+08
i0_real_error	1.8050e+06
rg_reciprocal	31.88 Å
i0_reciprocal	111700000.0000
total_estimate	0.8985
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	30.6 Å
skewness	0.253
kurtosis	-0.718
angular_range	— – 0.2500 Å⁻¹
current_alpha	0.0000
highest_alpha	32680000.0000
n_real_points	51
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.951

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	TYPE V ADENYLYL CYCLASE
formula_weight	24495.4 kDa
ec_number	4.6.1.1
mutation	V476M
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5847

MEMKADINAKQEDMMFHKIYIQKHDNVSILFADIEGFTSLASQCTAQELVMTLNELFARFDKLAAENHCLRIKILGDCYYCVSGLPEARADHAHCCVEMGMDMIEAISLVREMTGVNVNMRVGIHSGRVHCGVLGLRKWQFDVWSNDVTLANHMEAGGKAGRIHITKATLSYLNGDYEVEPGCGGERNAYLKEHSIETFLILRCTQKRKEEKAMIAK

Source

organism	Canis lupus familiaris
common_name	dog
ncbi_taxonomy_id	9615
host_organism	Escherichia coli

Entity 2 polymer

description	TYPE II ADENYLYL CYCLASE
formula_weight	23230.4 kDa
ec_number	4.6.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

NEELYHQSYDCVCVMFASIPDFKEFYTESDVNKEGLECLRLLNEIIADFDDLLSKPKFSGVEKIKTIGSTYMAATGLSAIPSQEHAQEPERQYMHIGTMVEFAYALVGKLDAINKHSFNDFKLRVGINHGPVIAGVIGAQKPQYDIWGNTVNVASRMDSTGVLDKIQVTEETSLILQTLGYTCTCRGIINVKGKGDLKTYFVNTEMSR

Source

organism	Rattus norvegicus
common_name	Norway rat
ncbi_taxonomy_id	10116
host_organism	Escherichia coli

Entity 3 polymer

description	GUANINE NUCLEOTIDE-BINDING PROTEIN G(S)
formula_weight	44340.1 kDa
mutation	TRYPSINIZED, SHORT FORM
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MGCLGNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGAGESGKSTIVKQMRILHVNGFNGDGEKATKVQDIKNNLKEAIETIVAAMSNLVPPVELANPENQFRVDYILSVMNVPDFDFPPEFYEHAKALWEDEGVRACYERSNEYQLIDCAQYFLDKIDVIKQDDYVPSDQDLLRCRVLTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVASSSYNMVIREDNQTNRLQEALNLFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLRQYELL

Source

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913
host_organism	Escherichia coli

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	FORSKOLIN
formula_weight	410.5 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	TRIPHOSPHATE
formula_weight	258.0 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
formula_weight	195.2 kDa
src_method	syn
entity_count	2

Entity 8 non-polymer

description	;2',5'-DIDEOXY-ADENOSINE 3'-MONOPHOSPHATE ;
formula_weight	315.2 kDa
src_method	syn
entity_count	1

Entity 9 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 10 non-polymer

description	5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE
formula_weight	539.2 kDa
src_method	syn
entity_count	1

Entity 11 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	83

▶

6. Citations (1)

▶

length_a	118.200 Å
length_b	133.600 Å
length_c	70.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

resolution	2.400 Å
resolution_low	15.000 Å
r_factor	0.2210
r_work	0.2160
r_free	0.2630

fit	/app/data/saxs_computation/cu/1cul/1cul.fit
pddf	/app/data/pr_computation/cu/1cul/1cul.pr.out
profile	/app/data/saxs_computation/cu/1cul/1cul.dat
